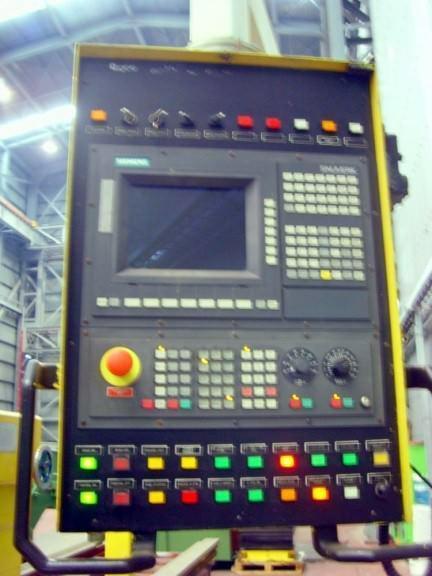

SIEMENS 840C CNC CONTROL W/ 9.5" COLOR CRT
C-AXIS WITH SPINDLE BRAKE
MILLING ATTACHMENT

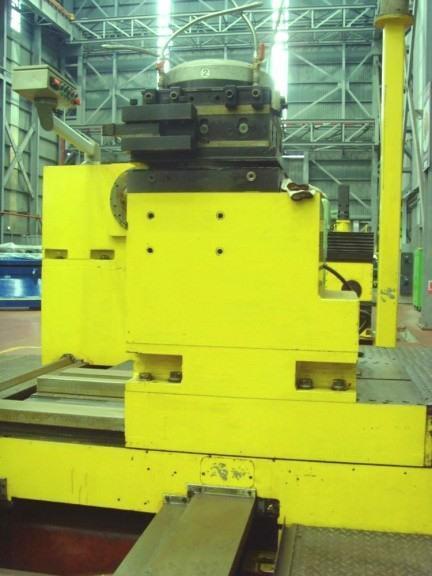

SAUTER 4-STATION SQUARE HORIZONTAL TURRET
85" DIAMETER 4-JAW STEEL BODY CHUCK
CARRIAGE CAN PASS STEADY RESTS & TAILSTOCK

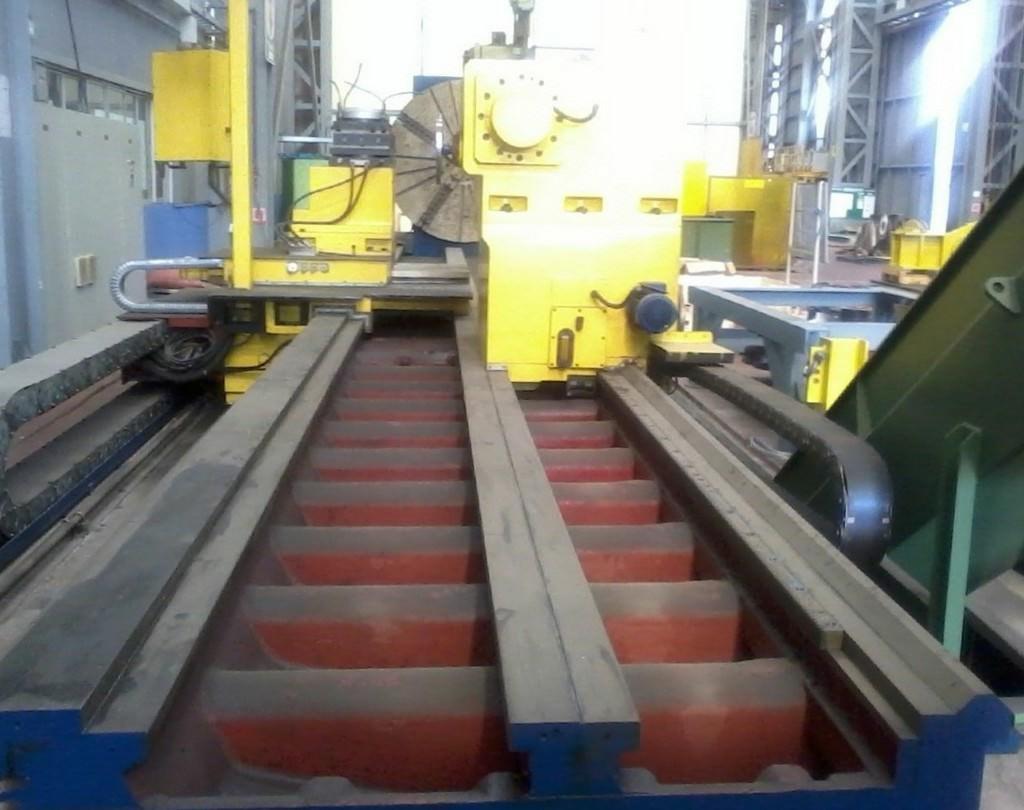

3-WAY HEAVY DUTY BED CONSTRUCTION
134 HP SPINDLE MOTOR
CAPACITY:
MAXIMUM SWING 86.61"
MAXIMUM SWING OVER SADDLE 66.92"
DISTANCE BETWEEN CENTERS 472.44"
SPINDLE SPEEDS (3-RANGES) 1.25 TO 250 RPM
WEIGHT CAPACITY BETWEEN CENTERS 88,000 LBS

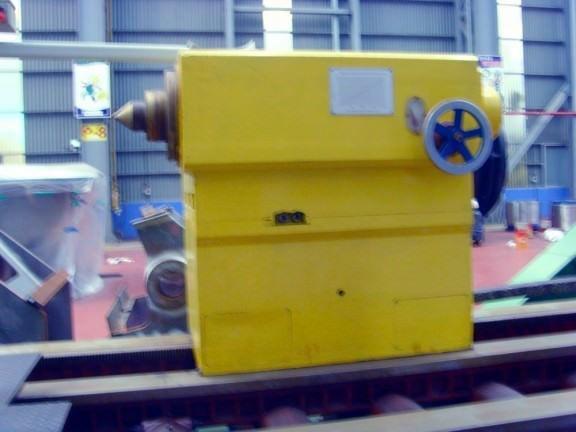

TAILSTOCK QUILL DIAMETER 15.74"
TAILSTOCK QUILL TRAVEL 9.84"
WIDTH OF BEDWAYS 66.92"

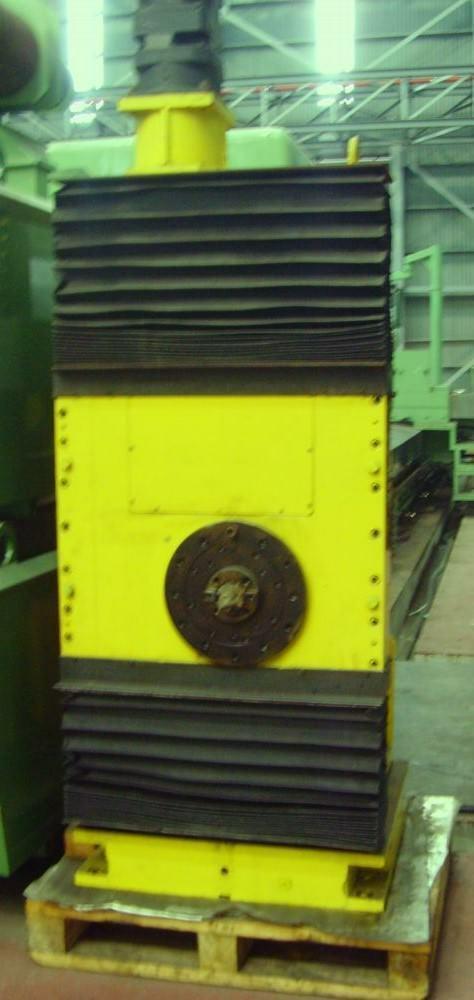

MILLING ATTACHMENT Y-AXIS 31.49"
MILLING ATTACHMENT TAPER #50
LONGITUDINAL FEEDS 0-157 IPM
TRAVERSAL FEEDS 0-78.74 IPM
RAPID TRAVERSE 157.48 IPM
EQUIPPED WITH:
SIEMENS 840C CNC CONTROL W/ 9.5" COLOR CRT
C-AXIS WITH SPINDLE BRAKE
MILLING ATTACHMENT
SAUTER 4-STATION SQUARE HORIZONTAL TURRET
85" DIAMETER 4-JAW STEEL BODY CHUCK
CARRIAGE CAN PASS STEADY RESTS & TAILSTOCK
3-WAY HEAVY DUTY BED CONSTRUCTION
134 HP SPINDLE MOTOR
