General characteristics:
Processed material cold rolled sheets, sandblasted, galvanized, aluminum, pre-painted.
Surface dry, oiled
Thickness range mm. 0.4 – 4 mm.
Strip width mm. 400 – 8000 (4000 + 4000)
Max. weight of stack Kgs. 3000
Working speed 45 m/min.
Working direction left – right
Working ref. Line center

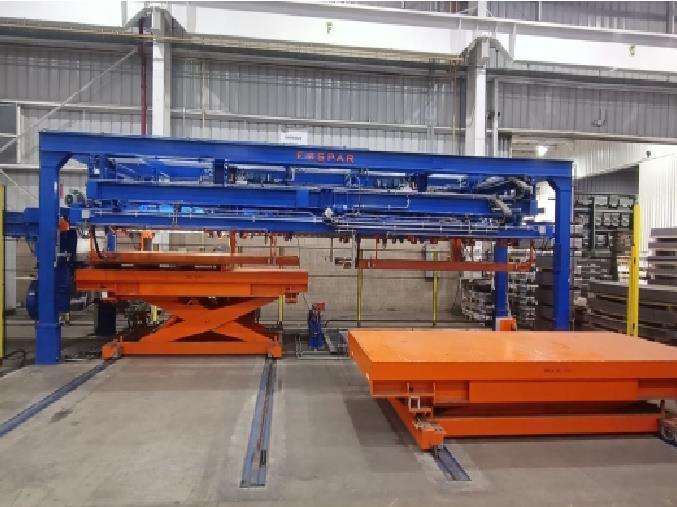

STACKER WITH MOTORIZED ARMS + AIR CUSHION (USED – RECONDITIONED)
Weight of stack max. Kgs. 3000
Height of stack max. mm. 350 (included pallet)
Sheets length min. mm. 300
Max. mm. 1550
Sheet length FIRST BOX (pos. A) min. mm. 400 – max mm. 4000
Sheet length SECOND BOX (pos. C) min. mm. 400 – max mm. 4000
Sheet length FIRST AND SECOND SYNCHRONIZED BOXES (pos. A + C) min. mm. 4001 – max mm. 8000.
Pos. A) 1 STACKING BOX – FIRST CHOICE
Max. length mm. 4000 with motorized arms and air cushion system
One front stop and possibility of length positioning by means of gearbox
Pneumatic tail stop
Air operated side compactors
Tail fans with electromechanical flap
Motorized belts for sheets transferring into the stacking boxes pos. C.
Pos. B) 1 STACKING BOX – FIRST CHOICE
Max length mm 4000 with motorized arms
One front stop and possibility of length positioning by means of gearbox
Pneumatic tail stop
Air operated side compactors
The stacking boxes A) and B) work separately when the length of the processed sheets is lower than 4000 mm.
When the length of the sheets are superior to mm. 4001 the 2 stacking boxes work together, synchronized.
PAINTING
2 layers of nitro paint and one layer of anti-rust.
Moving parts ORANGE RAL 2004
All other parts BLUE RAL 5005
Hydraulic equipment tropicalized / brown
Pneumatic equipment GREY RAL 7035
Environmental conditions
Room temperature 5 – 35° C
Room humidity 30 – 65% without condensation.
Not included in the price : conveyor belt, pantograph platforms, packaging).
