Manufacturer: Fagor-Biele
Year: 2012
Materials: Cold rolled Steel, Zinc Coated (Electrolytic, Hot Galvanized, Phosphate), Oiled and Not Oiled Steel.
Exposed Steel (O5)
Number of Stations: 2
Max Weight in Each Station: 15 Ton
Number of Stoppers in Each Station: 12

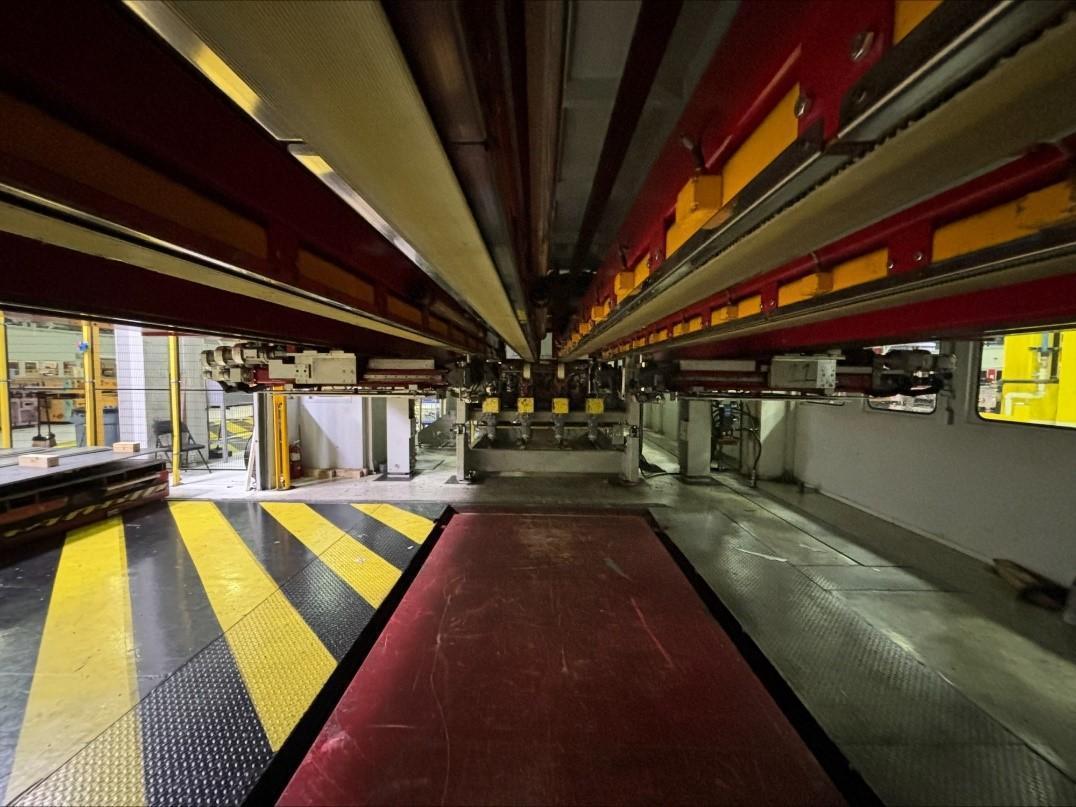

Hydraulic Lift System Tables with Scissor System

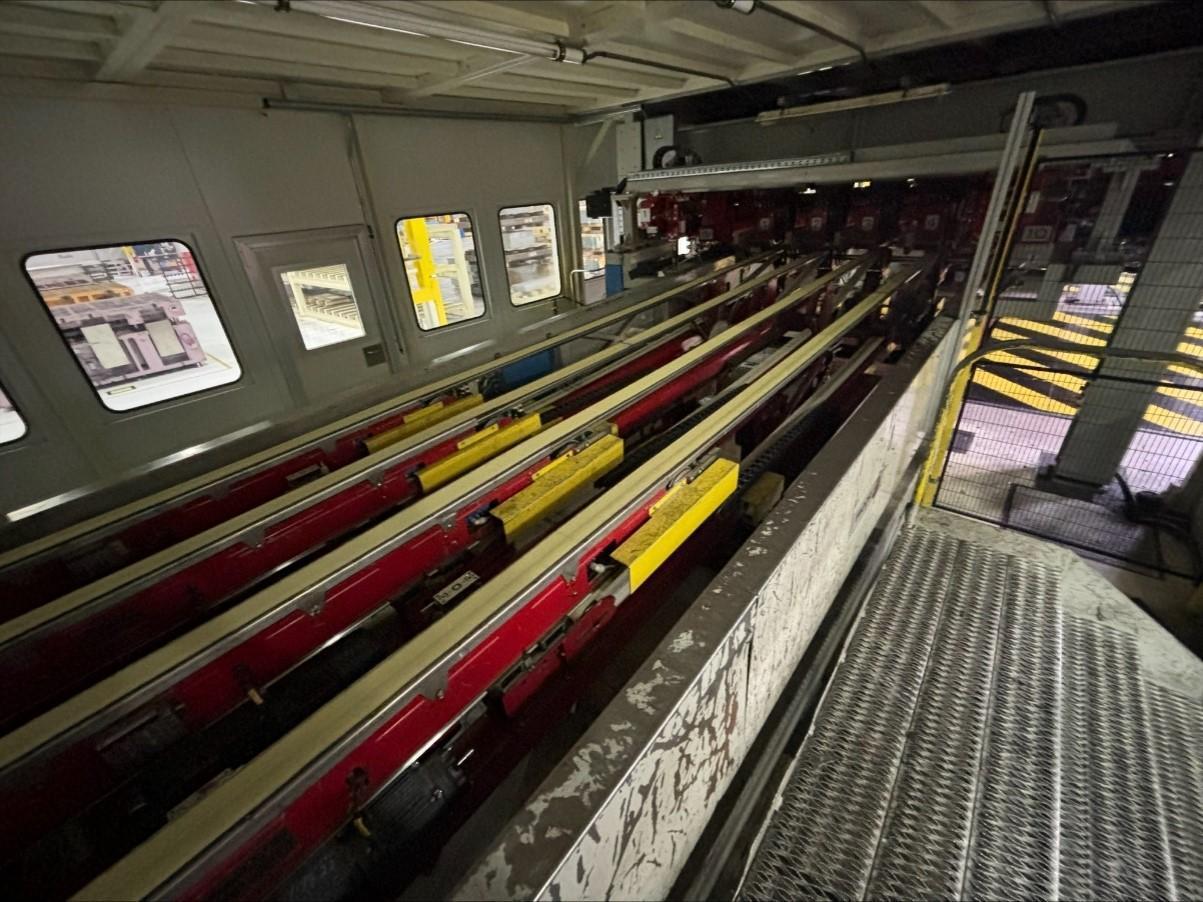

Max Belt Speed (meters/minute): 120 and 150 m/min
12 stops / Guide with the Following:
• Forward / Backward (controlled by absolute generator).
• Left / Right (controlled by absolute generator).
• Rotation +/ - 90 degrees (controlled by absolute generator).
• Alternating Current Motor for each movement.
• Plates of no more than 200 mm
• All stops and guides are floating and have a safety detector.
Blank Dimensions:
Single Length Range: 4200mm Max , 200mm Min
Double Length Range: 2000mm Max, 200mm Min
Single Width Range: 2100mm Max, 200mm Min
Double Width Range: 2100mm Max, 200mm Min
Max Stack Height:
• Maximum Height of the Stack Without Pallet: 600 mm
• Maximum Height of the Stack With Pallet:860 mm

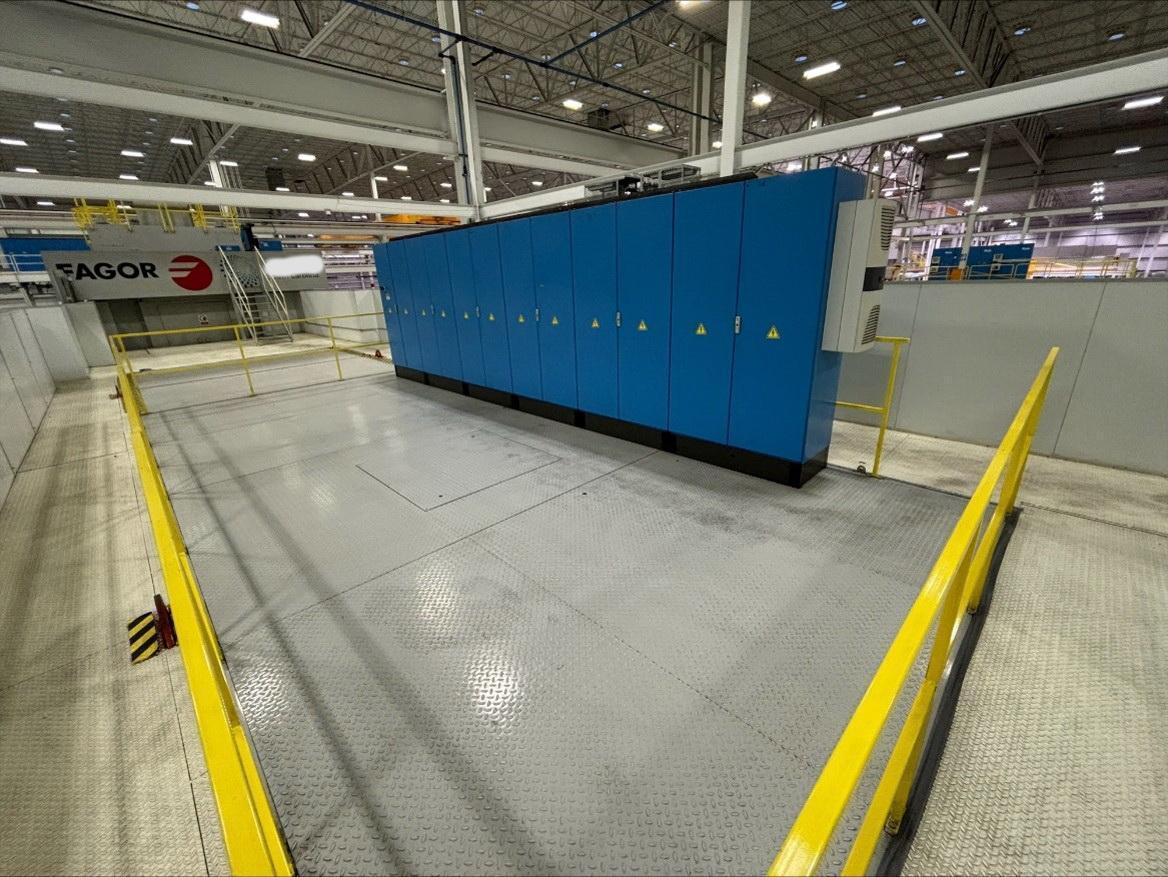

Electronics: SIEMENS S7-400 PLC Controlling All AC Drives
Light Curtain Safety System
Installed and Running
