MATERIAL
SOFT: CQ / DQ
MICRO-ALLOYED STEELS: UNI EN10149
HARD: 1035 CARBON
REFERENCE CHARGE
4 COILS OF 1250 MM
2 COILS OF 1500 MM + 2 COILS OF 1250 MM

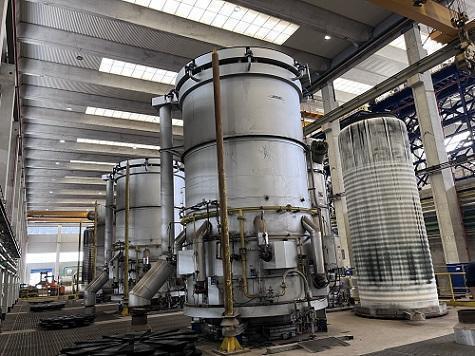

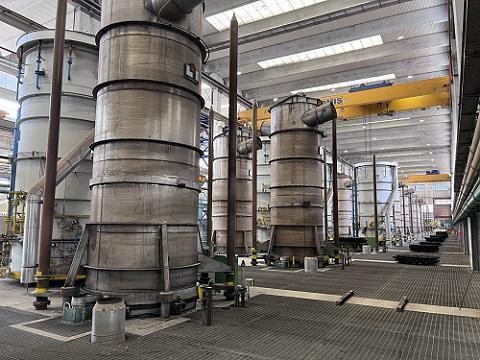

11 EBNER HEATING BELLS

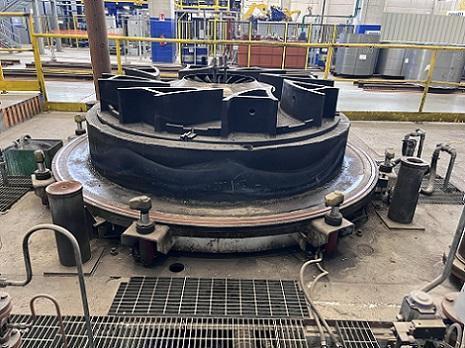

22 BASSES
11 COOLING BELL
12 INNER COVERS
83 SEPARATORS
CHARGING DIMENSIONS
COIL PILING HEIGHT MAX……………..5.792mm
STRIP THICKNESS……………………. . 0.25MM - 2.54MM
STRIP WIDTH……………………………. 558.8MM - 1.549,4MM
COIL O.D. …………………………………1.016MM - 1.930,4M
COIL I.D…………………………………… 520.7MM
COIL WEIGHT……………………………. 30 TON.
CHARGE WEIGHT, MAX…………………120 TON.
OPERATING TEMPERATURE MAX 750°C
HEATING BELL CHAMBER TEMPERATURE MAX850°C
INNER COVER 280 C - 750C
UNPILING TEMPERATURE 90 degrees C
