FANUC 0I-TC CNC CONTROL (RETROFITTED 2010)

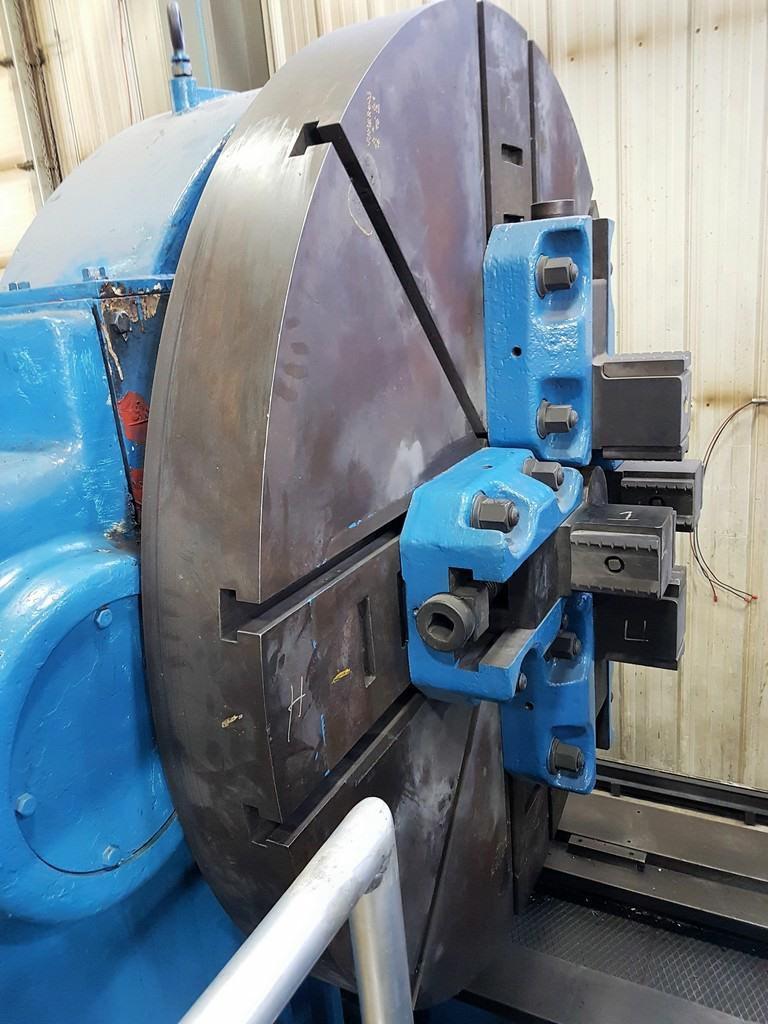

75" 4-JAW CHUCK WITH 4-TOP JAWS
4-WAY BED CONSTRUCTION
2-CARRIAGES
20.5" HEAD & TAILSTOCK RISERS
NEW DRIVE NUT & DRIVE MOTOR ON REAR CENTER (2015)
NEW SIDE RAIL ON MAIN CARRIAGE (2015)
NEW ROLLER BEARINGS IN HEADSTOCK IN 2005
NEW LUBRICATION SYSTEM, NEW PUMP, RELAY WIRE, WIRINGS & FITTINGS (2005)
CAPACITY:
MAXIMUM SWING OVER BEDWAYS 127"
MAXIMUM SWING OVER CARRIAGE 88"
DISTANCE BETWEEN CENTERS 360"
OVERALL LENGTH OF BED 540"
WIDTH OF BEDWAYS 90"
MAXIMUM SPINDLE SPEED 62 RPM
MAXIMUM WORK PIECE WEIGHT 110,156 LBS
MAXIMUM WORK PIECE WEIGHT, 1-STEADY 176,250 LBS
MAIN MOTOR POWER 75 HP
APPROXIMATE FLOOR SPACE REQUIRED 697" L X 132" W
APPROXIMATE OVERALL WEIGHT OF MACHINE 180,000 LBS
EQUIPPED WITH:

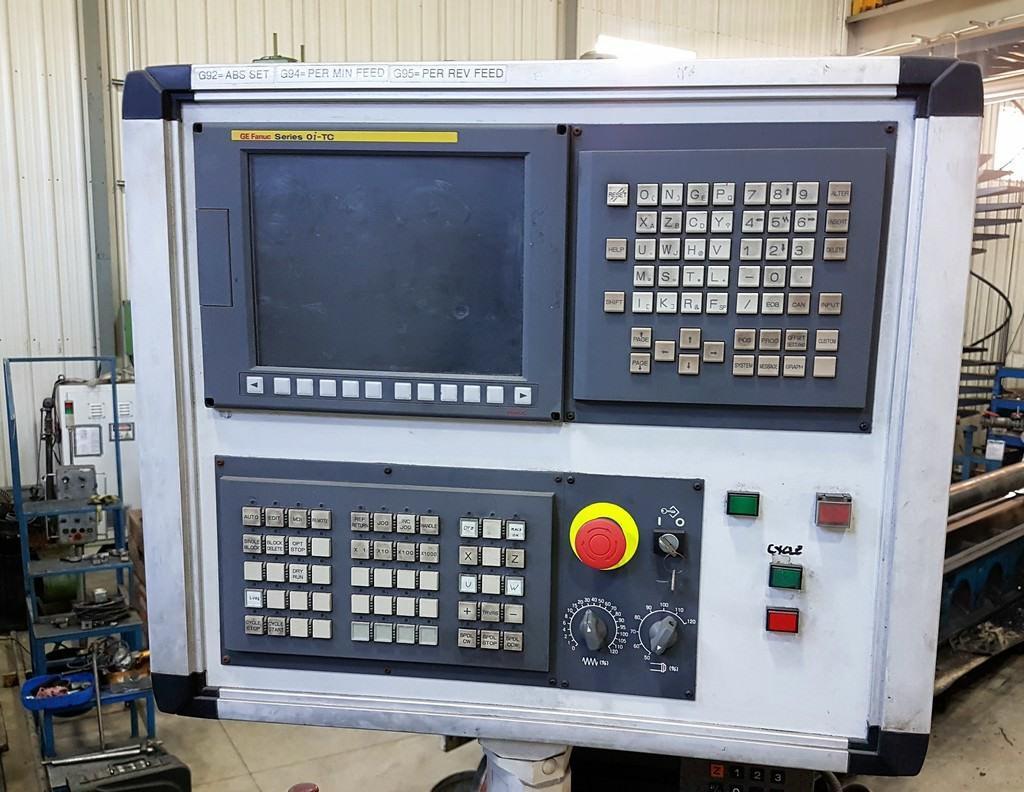

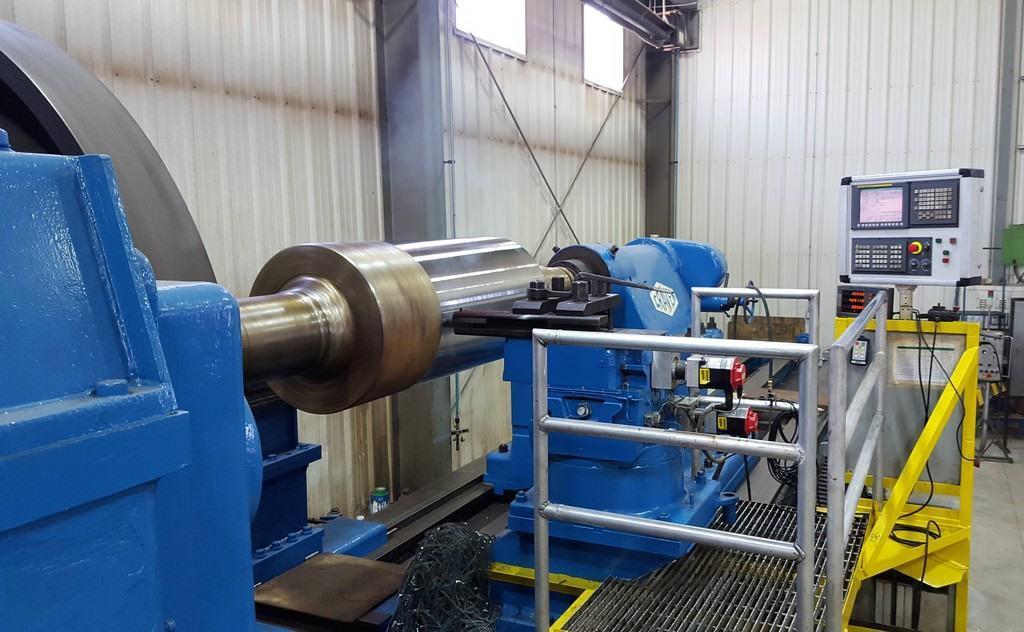

FANUC 0I-TC CNC CONTROL (RETROFITTED 2010)

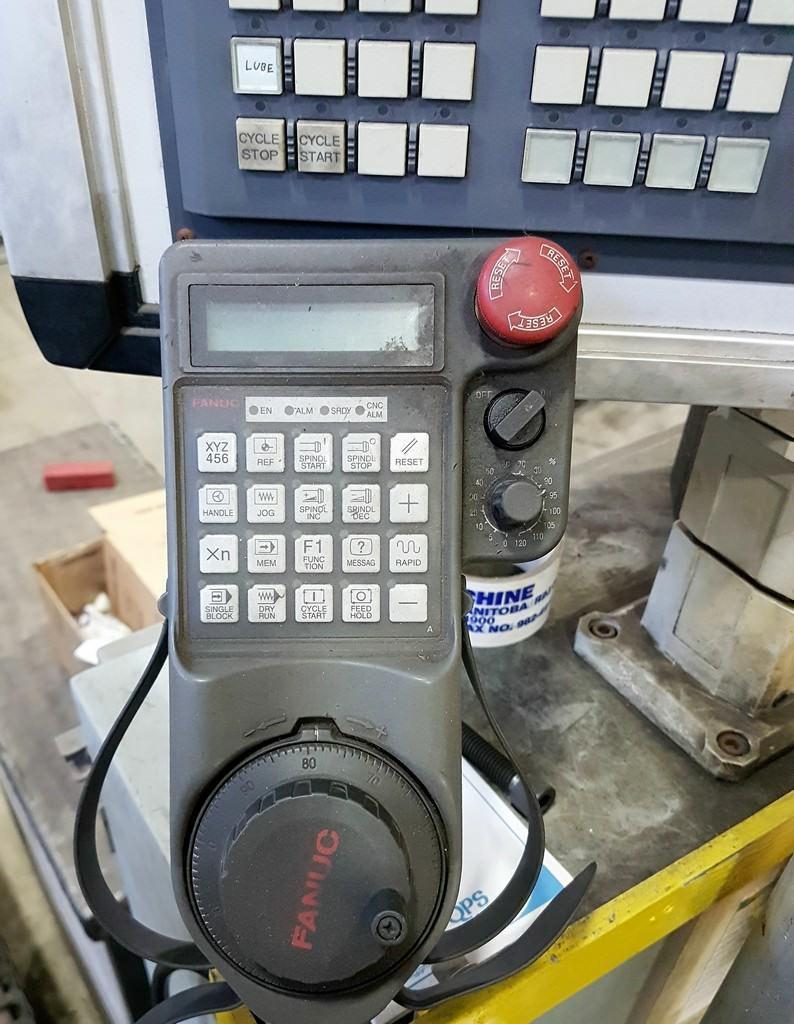

OPERATORS REMOTE PENDANT

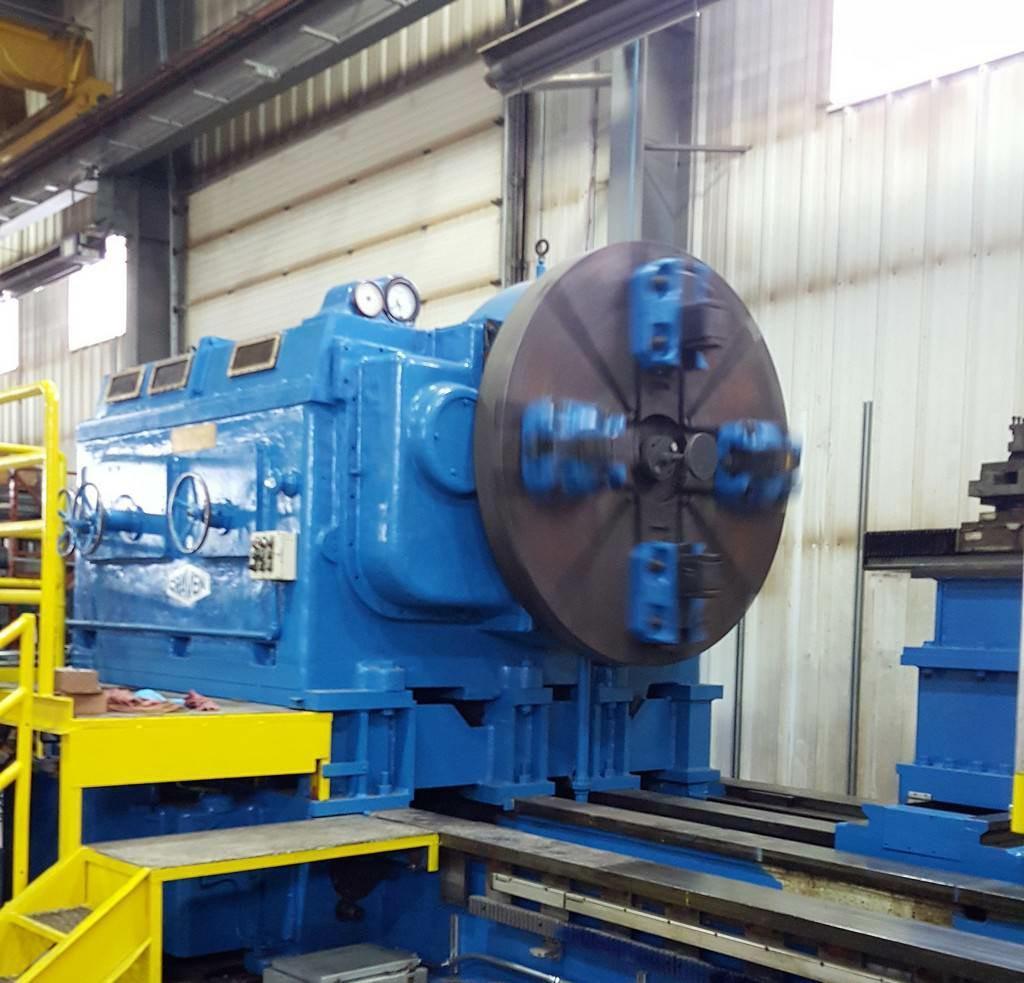

75" 4-JAW CHUCK WITH 4-TOP JAWS

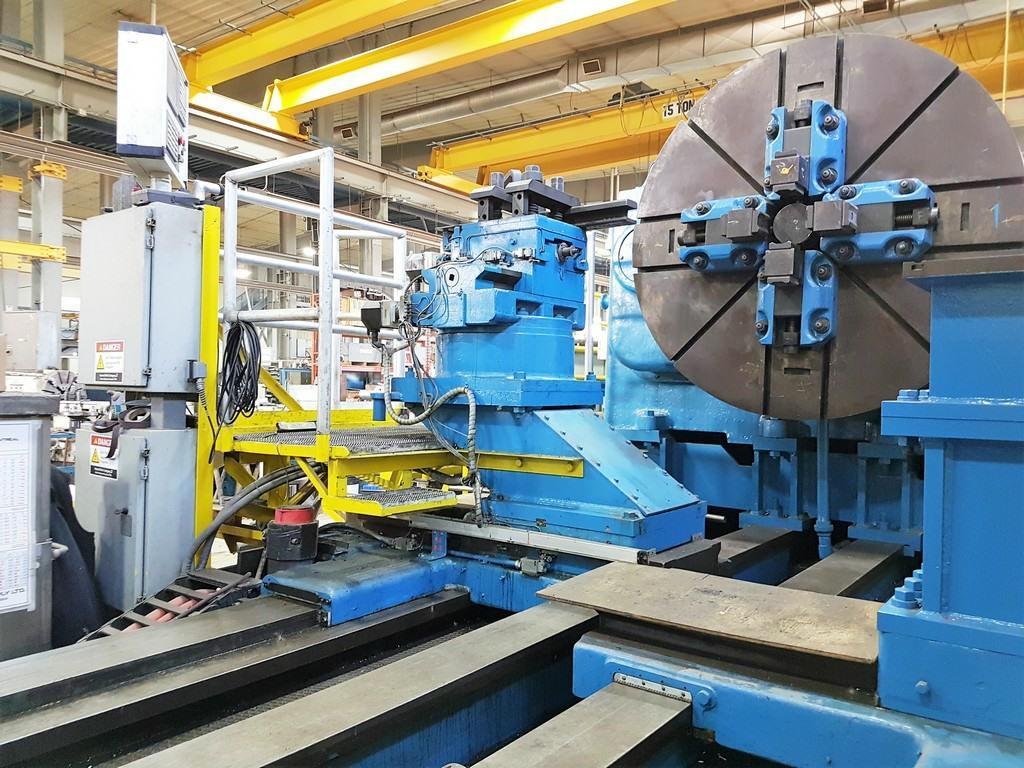

2-CARRIAGES, FRONT & REAR

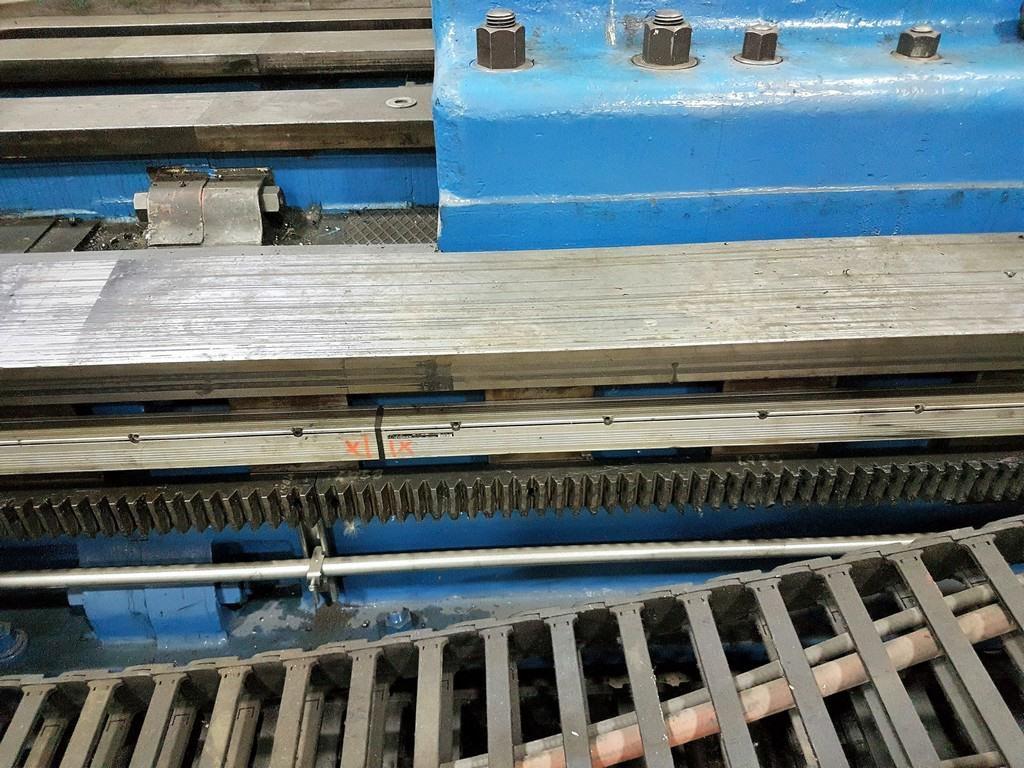

4-WAY BED CONSTRUCTION

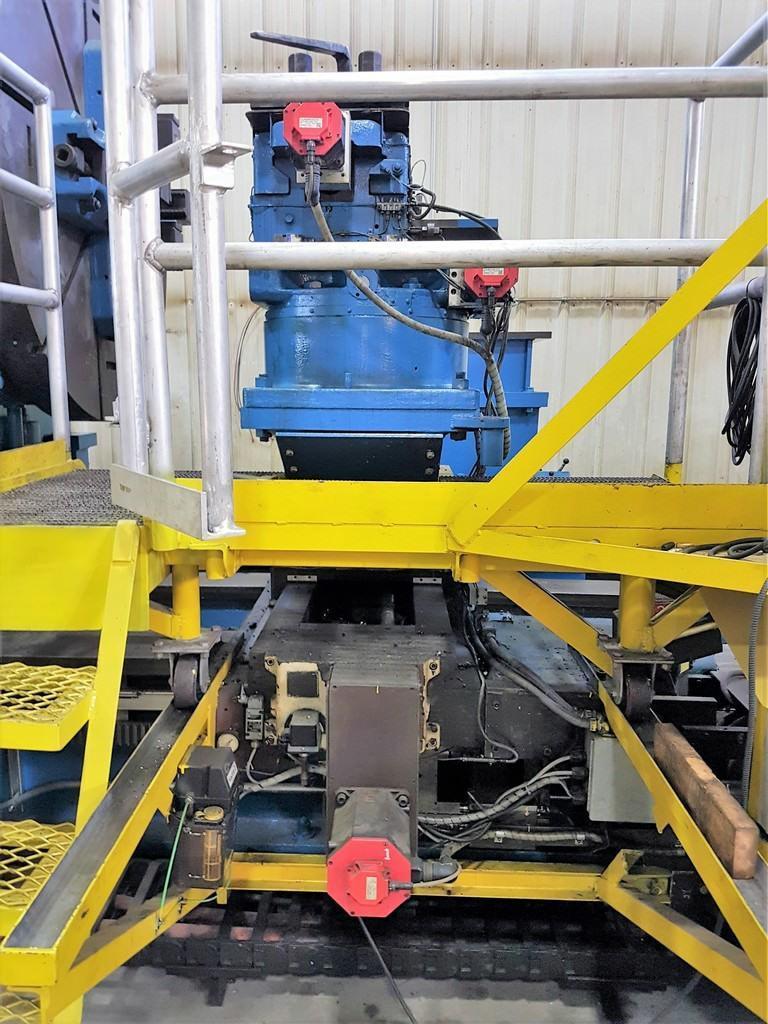

FRONT CARRIAGE WITH FANUC RED CAP SERVO MOTORS ON CROSS SLIDE & TOOL POST
REAR CARRIAGE WITH MASTER SETCO SERVO SLIDE & TOOL POST
HEIDENHAIN SCALES

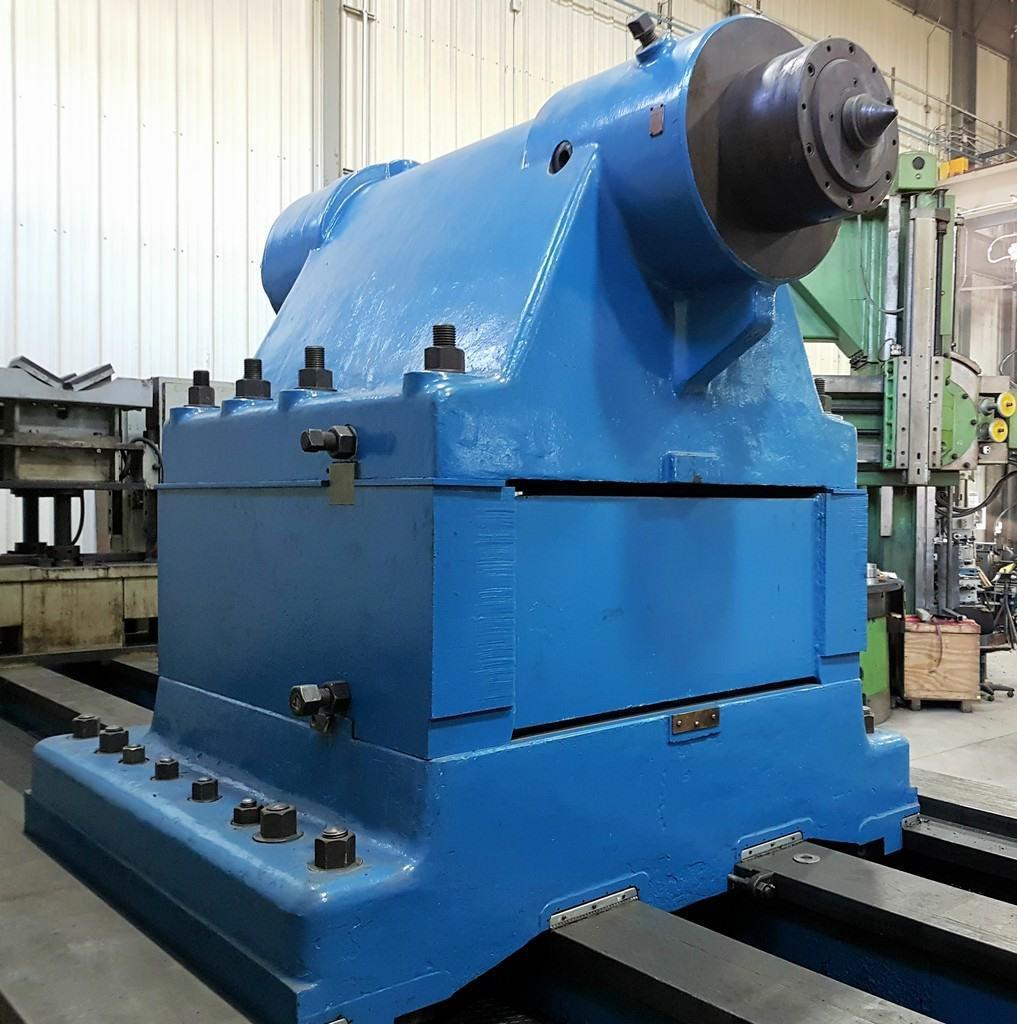

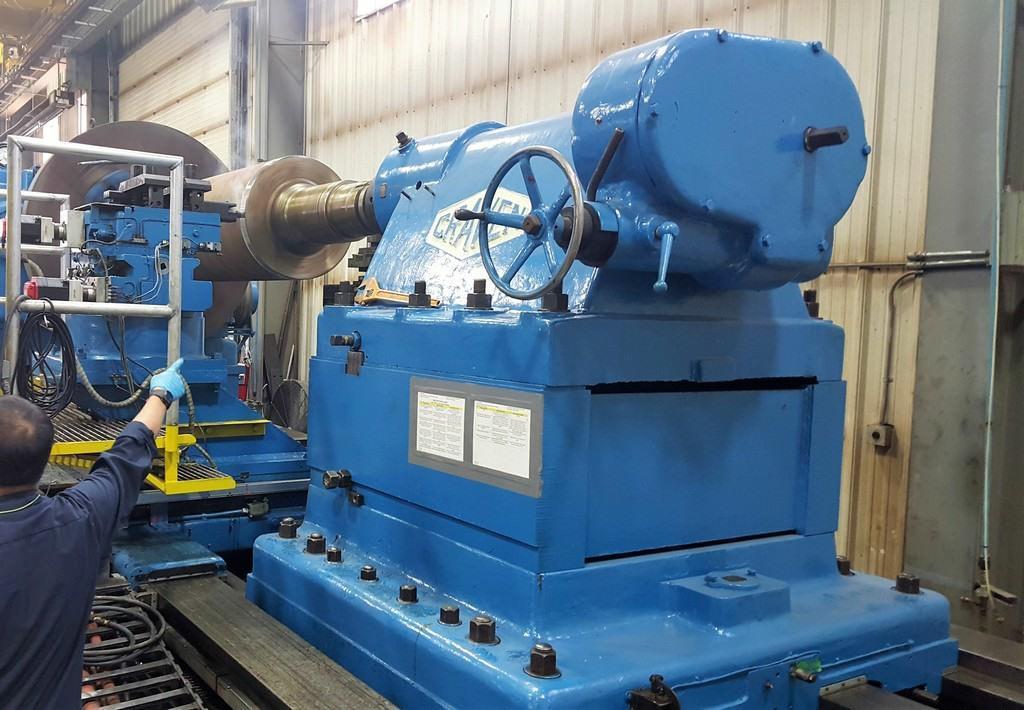

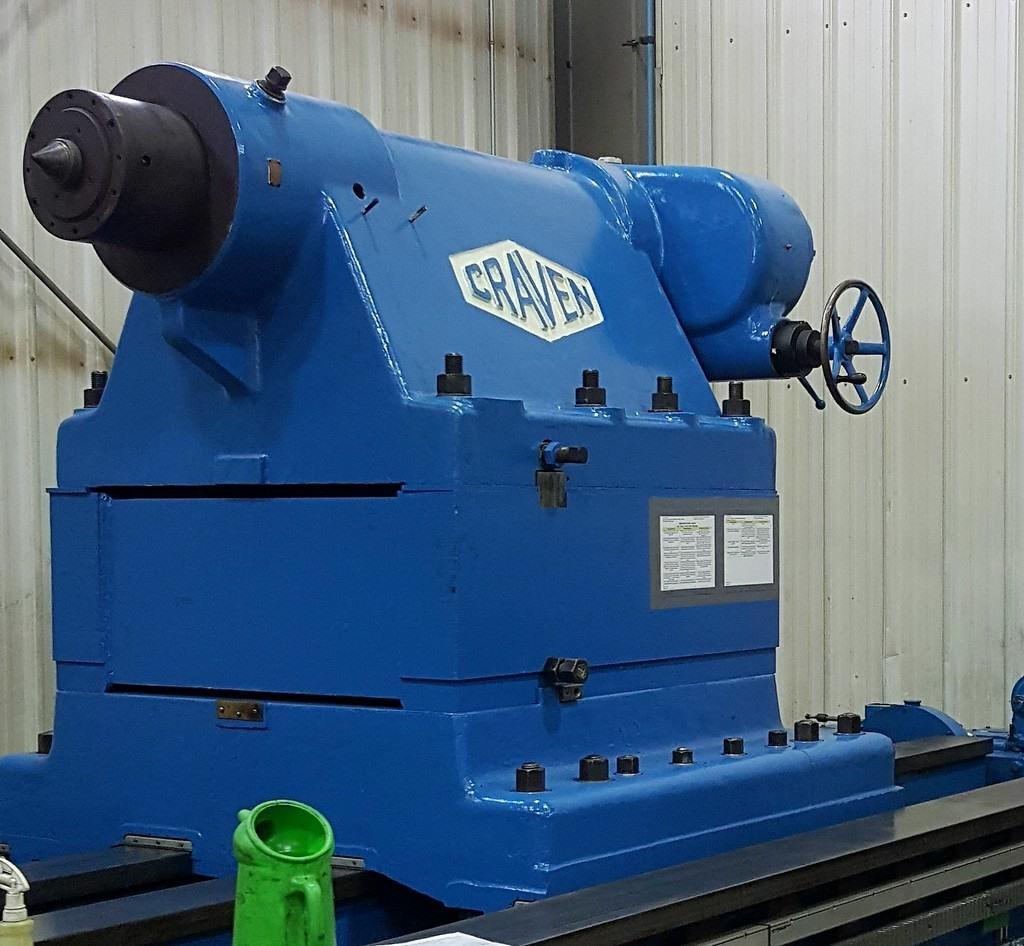

POWERED TAILSTOCK, SITS ON CENTER BEDWAYS

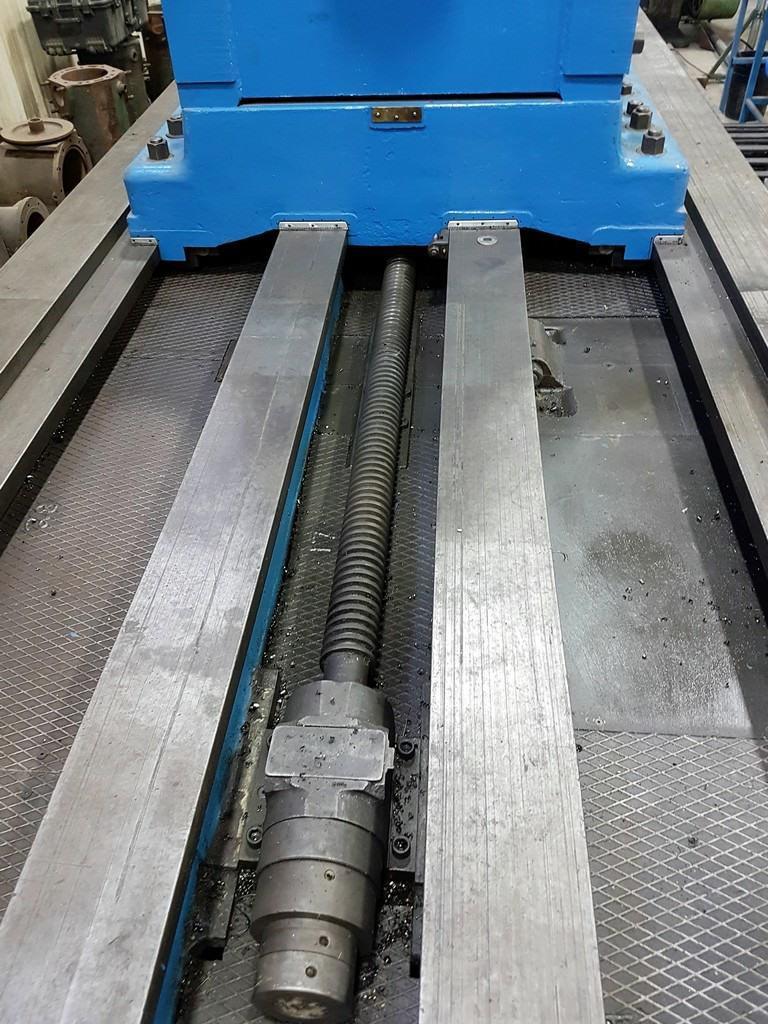

NEW DRIVE NUT & DRIVE MOTOR ON REAR CENTER (2015)
NEW SIDE RAIL ON MAIN CARRIAGE (2015)
NEW ROLLER BEARINGS IN HEADSTOCK IN 2005
NEW LUBRICATION SYSTEM, NEW PUMP, RELAY WIRE, WIRINGS & FITTINGS (2005)
(2) 10" - 24" ROLLER STEADY RESTS (NEW 1999)
(2) WORK RESTS
20.5" HEAD & TAILSTOCK RISERS
(1) INDEXABLE TOOLING RISER
(1) SOLID TOOLING RISER
THREADING

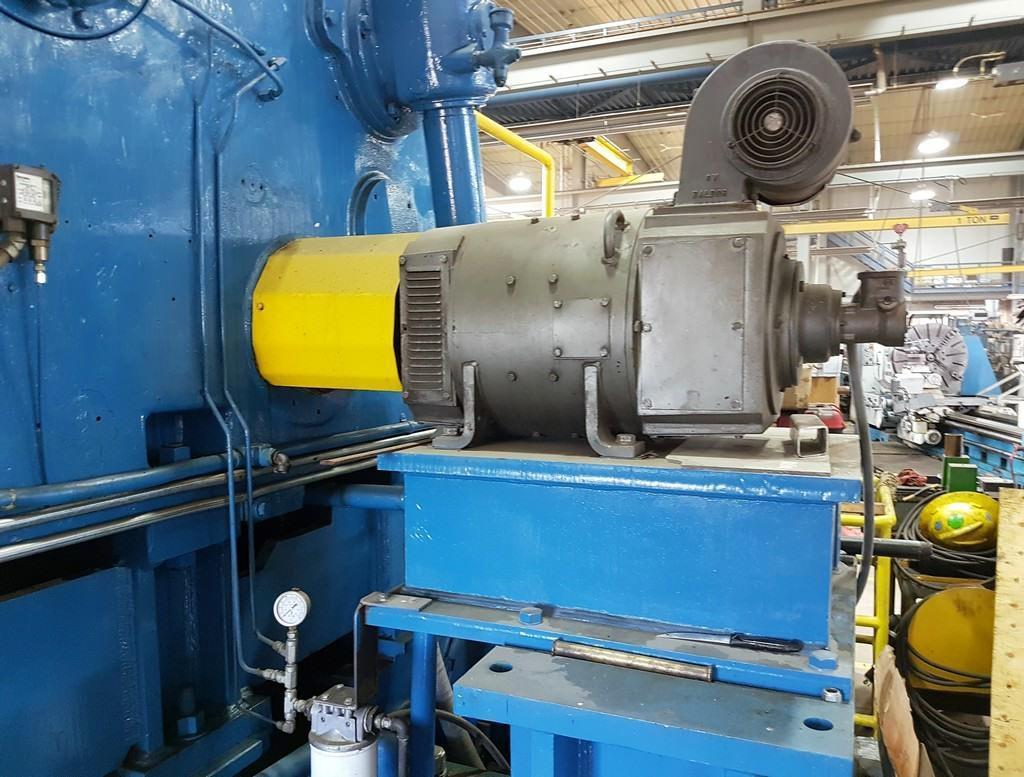

75 HP MAIN DRIVE MOTOR
NOTE:
INSPECT IN PLANT UNDER POWER
