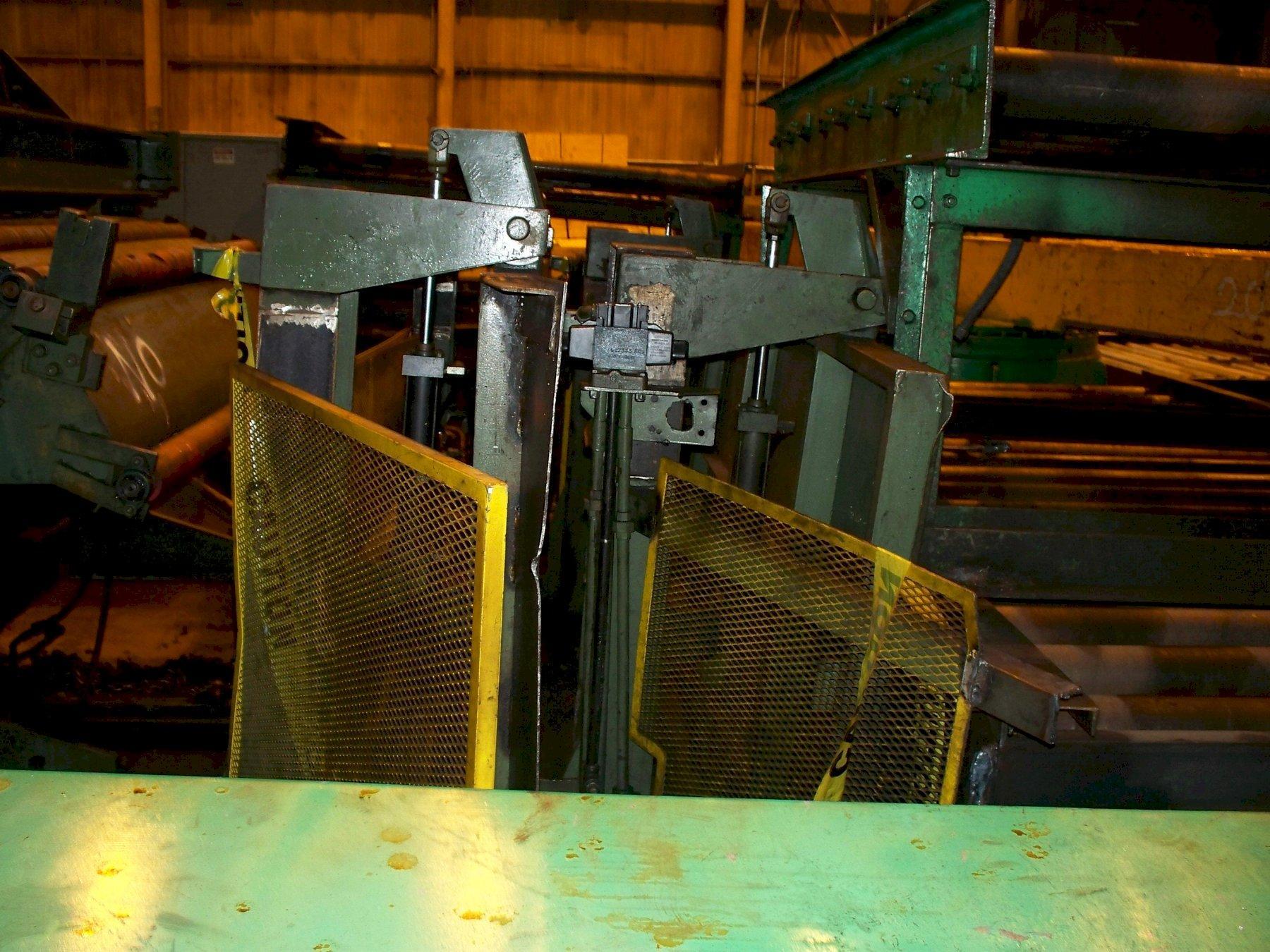

Model No. RF 72 - .187
SPECIFICATIONS -
Capacity: 72" (1828mm) Wide Strip x .187" (4mm)
16" (406mm) Wide x 12" (304mm) Dia. center feed rolls
Two (2) 10" (254mm) dia. x 18" (457mm) face steel rolls
Bottom roll raised and lowered by pivot assembly and air bladder
Anti-back up brake
H&S Dual output reducer, 3.71:1 reduction
43 HP DC motor, 650 RPM, 240 Volt, 155 AMP.
Frame: 406AS
Horseburg and Scott
3.71 Gearbox and pinion stand
45" (1143mm) Pass line
