The Furnace operates on natural gas at 5 PSI, and 480 V, 3-phase electricity, utilizing two built-in gas
burners with a total input possible of 3,000,000 BTUs/hour.

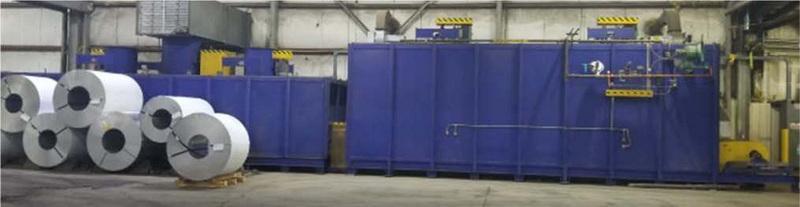

Two zones 22’6” long for a 45’ long heated length, plus a 2’0’’ space between the heating and cooling
zones, and a 45’ long cooling zone plus a 5’0” conveyor extension on each end of the oven.
Overall length = 102’0”

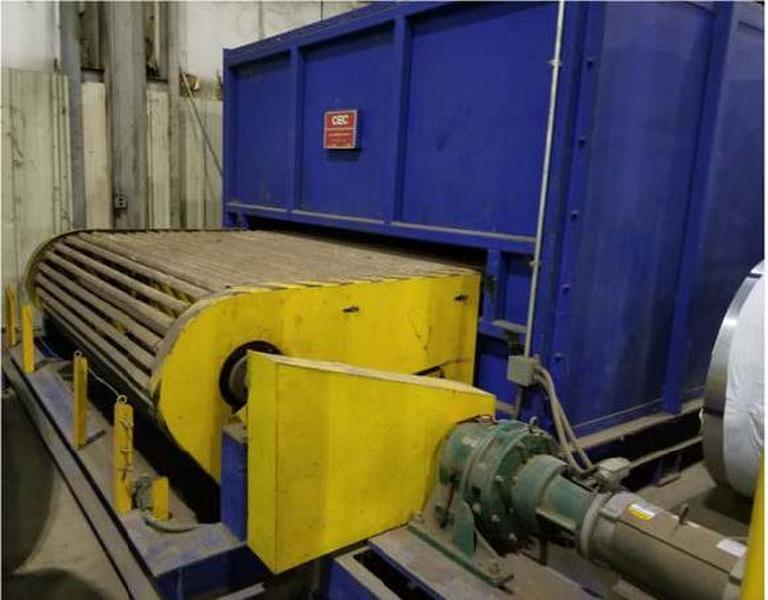

An 88” wide conveyor made specifically for aluminum and is continuous throughout the entire 102’0” span of the oven
Oven opening is 5.25” high by 96’ wide.
Annealing Temperature uses maximum of 850o F air temperature in the heating chamber, and 90oF cooling temperature in the cooling chamber

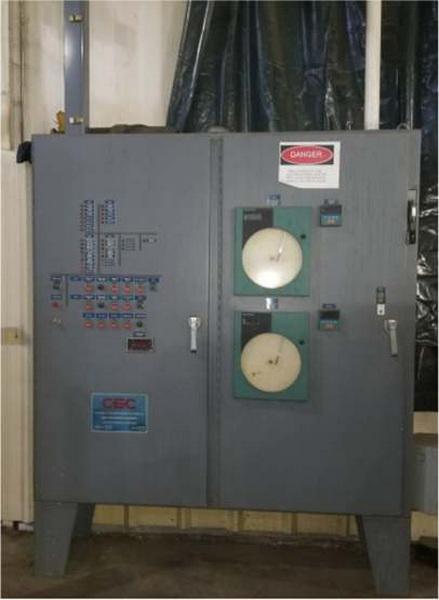

Temperature control for both heating and cooling is highly versatile utilizing 25 HP blower fans to manage whatever heating and cooling curves are needed
There are several additional operational, control, and safety specifications available for interested parties
The furnace has 40 hours operating time.
Notes: Manufacturer is still in operation and provided a 2018 replacement value of $900,000
