96.5" (2450mm) x 25mm x 70,000# Cut-to-Length Line

Brand
Not Specified

Model
Not Specified

Type
Cut To Length Lines

Stock #
603815

Condition
Used

Year
2010

Request a Quote
Have one to sell?
Coil Weight 70000 pounds
Width 96.5 inches
Thickness .984 inches
ID 32 inches
Max OD 94.5 inches

Equipped With

Year: 2010
Material: Hot Rolled Steel Strip (SS, S55C, SPAH, DAS, ATS etc.)
Thickness: 3.2mm - 25mm
Coil Weight: 35 Tons
Coil ID: 508mm, 610mm, 762mm, 812mm
Coil OD: 1,000mm - 2,400mm
Coil Width: 900mm – 2,500mm
Plate Length: 2,000mm – 24,000mm
Working Speed: Max 27 MPM or 17 MPM (2 Step Changeable)

Motor Power
Rough Leveler: 400 kW DC
Scrap Chopper: 63 kW X 1 SET, DC
1st Finish Leveler: 264 kW DC
2nd Finish Leveler: 266 kW DC
Flying Shear: 75 kW AC, 55 kW AC Servo

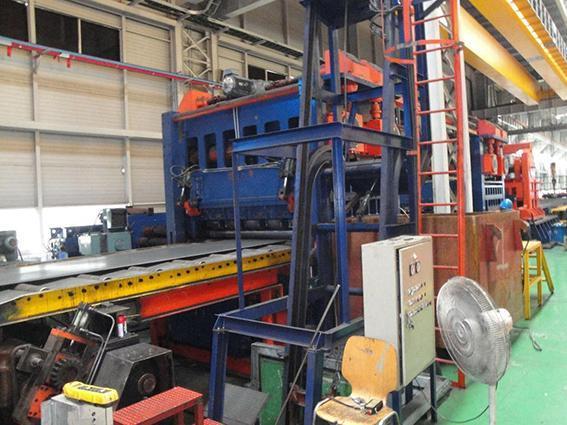

Complete Cut-to-Length Line Consisting of the Following Components:
Coil Car
Uncoiler
Pinch & Rough Leveler
Surface Brushing Unit w/ Dust Collector

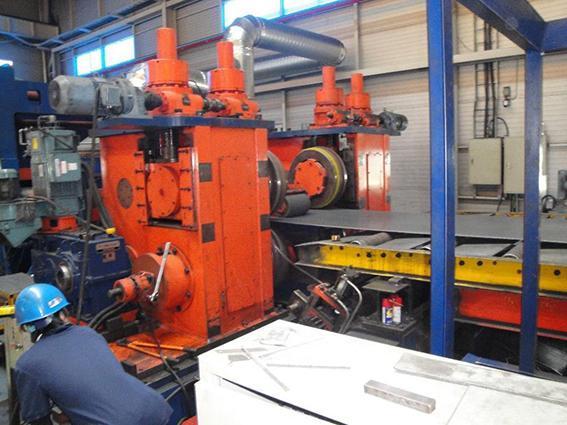

Side Trimmer & Scrap Chopper w/ Disposal Unit
Threading Table

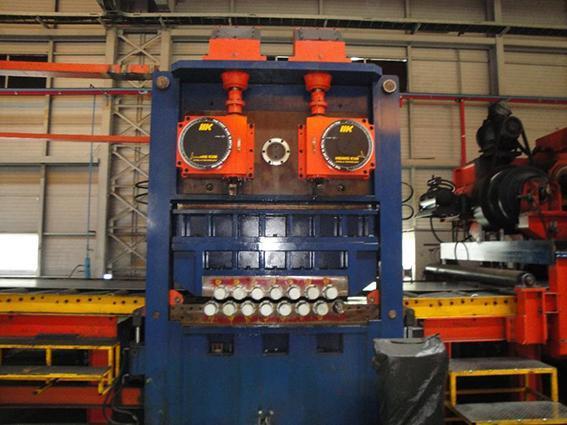

1st Finish Leveler
Threading Table

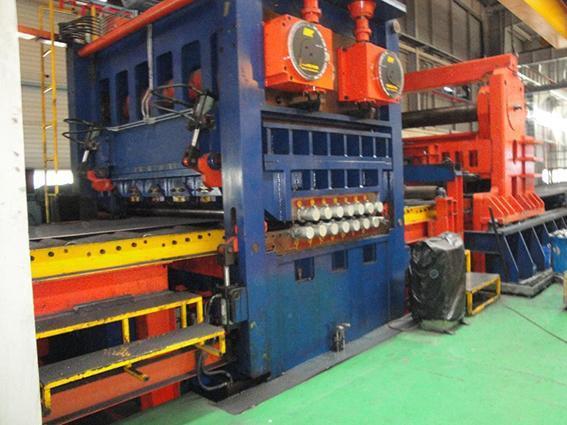

2nd Finish Leveler
Strip Press Roller
Measuring Roller

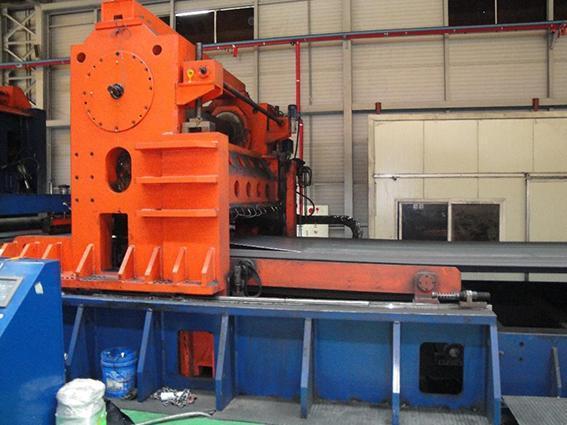

Flying Shear w/ Traverse Device

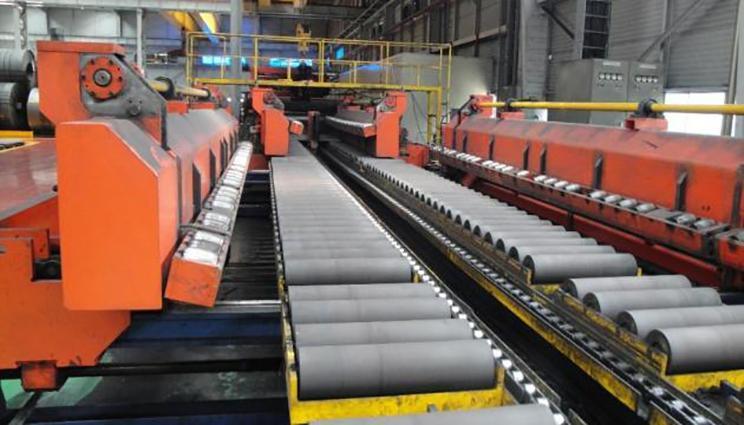

Run Out Belt Table
Reject Table w/ Scrap Car
Inspection Table
Setting Roller before Piling
No. 1 & 2 Pilers
Piling Roller Table for Shot Plate
Piling Table for Long Plate
Receiving Table
Hydraulic Control Unit (Entry & Exit)
Electric Control Panel (for Motor Drive, AC Control, Servo Control, PLC, Auxiliary)
Operator Desk

Installed and Under Power
