Equipped With
Coil Feed Line:
Thickness Range: 2mm-12mm
Width Range: 80mm-520mm
Coil OD Range: 800mm-1750mm
Coil ID: 500mm
Max Coil Weight: 6000kg

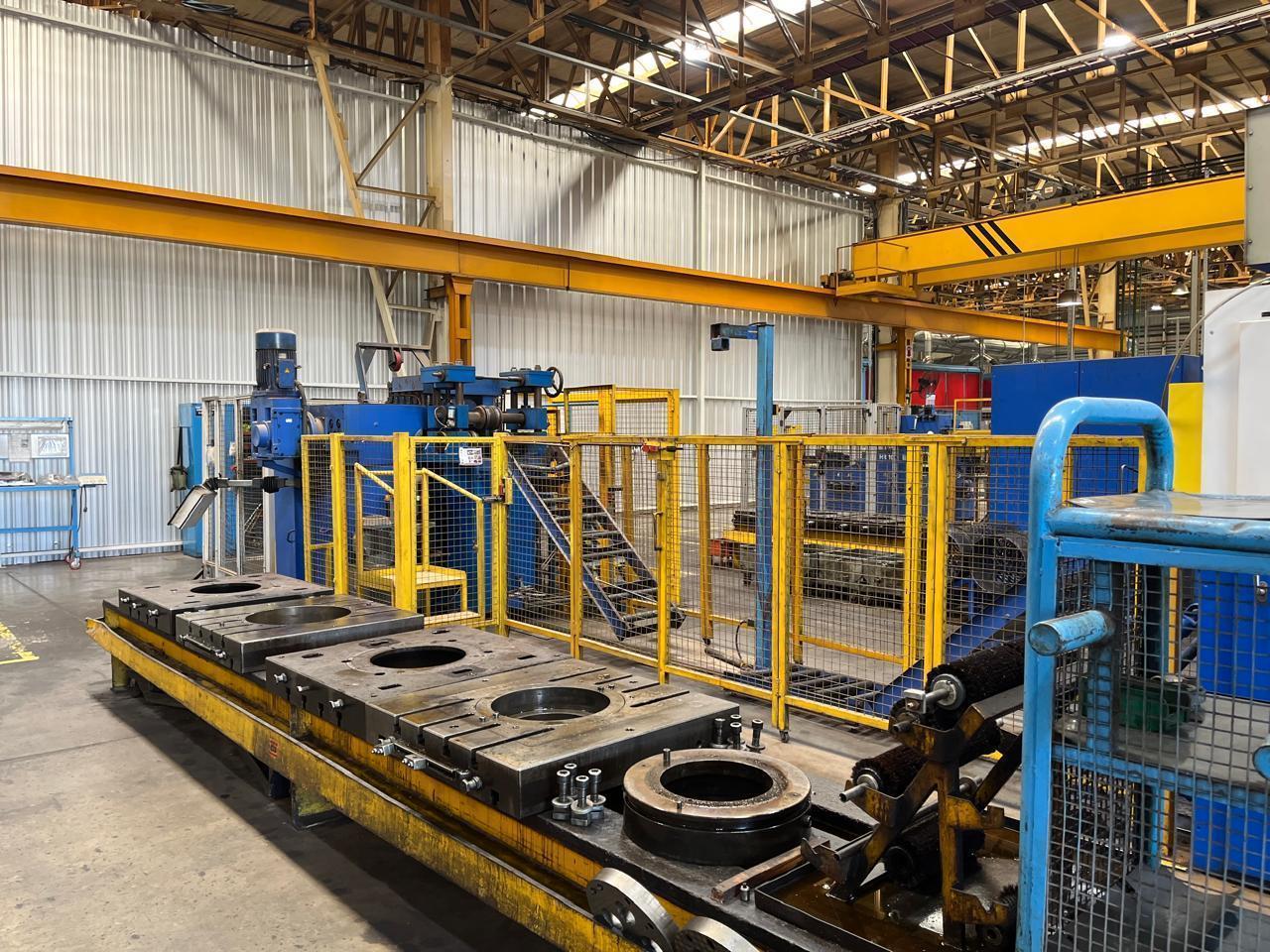

Schmid Press
Year 2002
Model: HSR 800 Ecoline
Maximum Tool Height: 420mm
Minimum Tool Height: 320mm
Machine Table Dimensions: 900mm x 900mm
Total Force: 100-8000KN
Stamping Force: 50-4000KN
Counter Force: 50-1600KN
Cut Speed: 10-40mm/sec
Pieces a Minute: 8-18 Pieces
Cut Stroke: 0-30mm
Total Stroke: 2mm-205mm
Equipped With:
Piston Stop: CNC Type Automatic Hydraulic Positioning
Automatic Hydraulic Tool Clamping
V-Ring: Hydraulic Regulation
Tool Verification Protection
Tool Protection Inside the Cut (Dependent on Stroke and Pressure from Operator Panel)
External Tool Protection (With Sensor in Tool Discharge Channel)
Automatic Loop with Ultrasonic Sensor
Siemens PLC and Controls
