Manufacturer: Herr Voss
Width Range: 36" to 74" Wide
-60,000 lbs. Coil Weight
-0.075" to 0.375" Thick (at 80,000 PSI Yield)
-20" to 34" Coil I.D. Range
-84" Max. Coil O.D.
-50 FPM Jog Speed
-20 to 175 FPM Line Speed
-Left to Right Line Direction
Consisting of the following:
-Entry Coil Ramp:
3 Coil Storage
Hyd. Lever Type Holding Mechanism

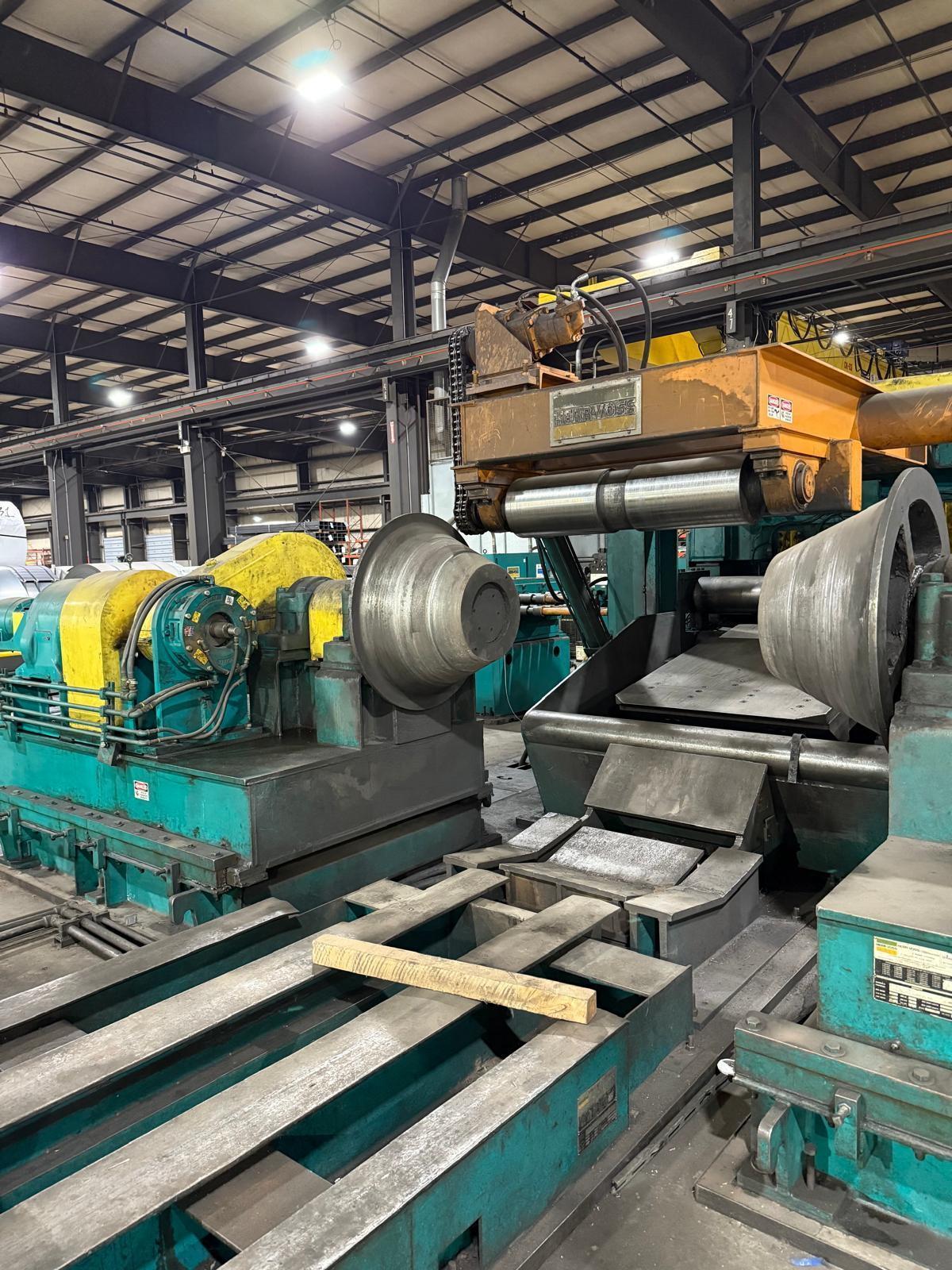

-Cone Type Uncoiler:
Motorized Feedup AC Motor and Air Clutch on one head
Wichita Water Cooled Brake on each head
Sliding Base on each head
Coil Lift with 12" Bore Hydraulic Cylinder
-Threading Unit:
Motorized Overarm Holddown Roll
Steel Roll powered by AC Motor
Hydraulic Actuated Peeler Table
-Entry Side Guides:
Powered Width Adjustment

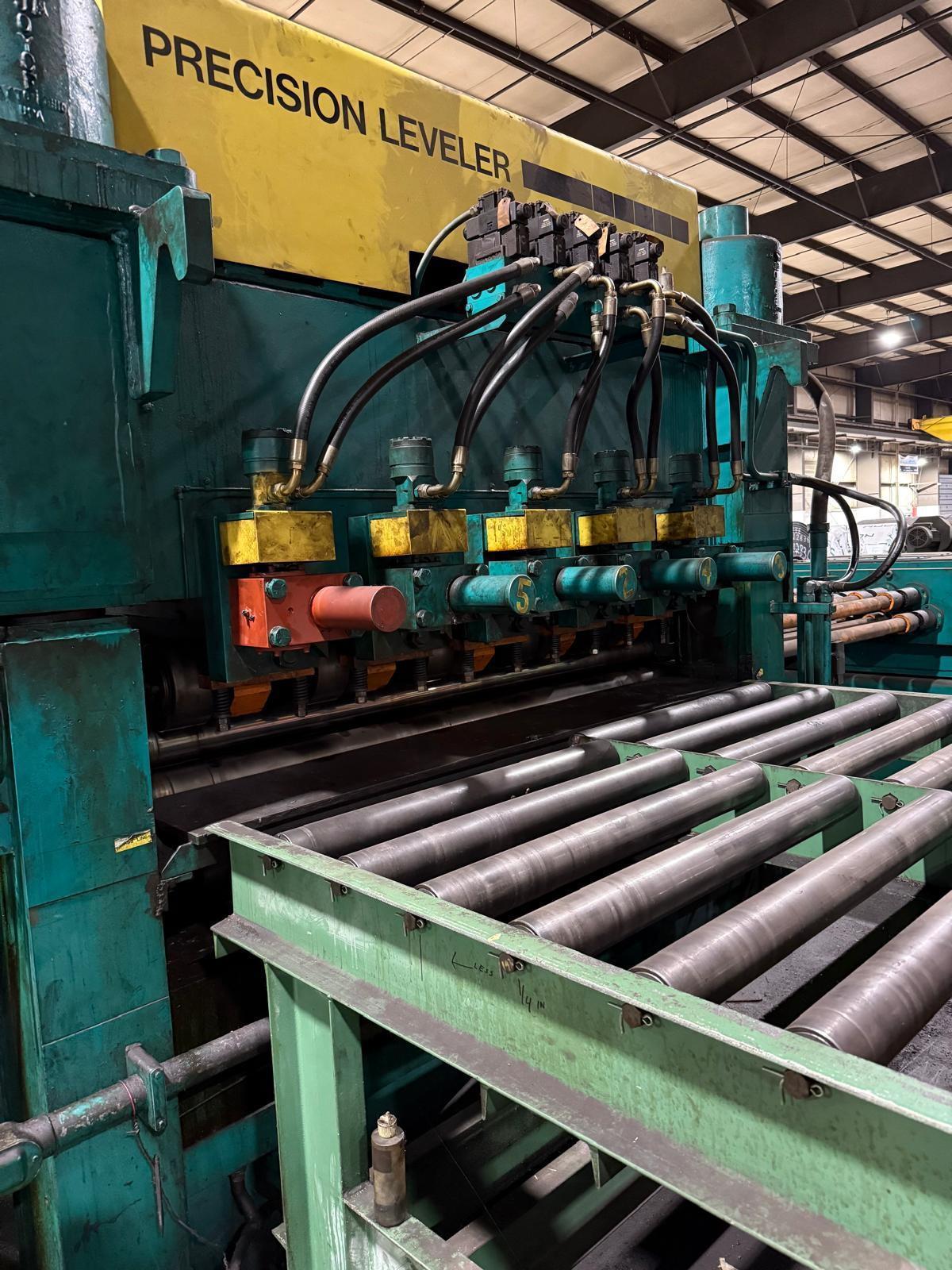

-Herr Voss 4-HI Precision Leveler
Keystone Model VKL 88/4.50-11/5 4 HI, LH
Gauge Range: 0.096" - 0.375"
11 Work Rolls
4.50" Dia. x 88" Face Rolls
5 Flights of Motorized Backups
200 HP Reliance DC Motor, 850/1700 RPM, 500 V
-Squaring Guides:
Powered Width Adjustment
(Will open to 80" Wide)
-Powered Tailout Pinch Rolls:
Hydraulic Cylinder Open & Close
-Measuring Unit:
Entry Encoder Roll

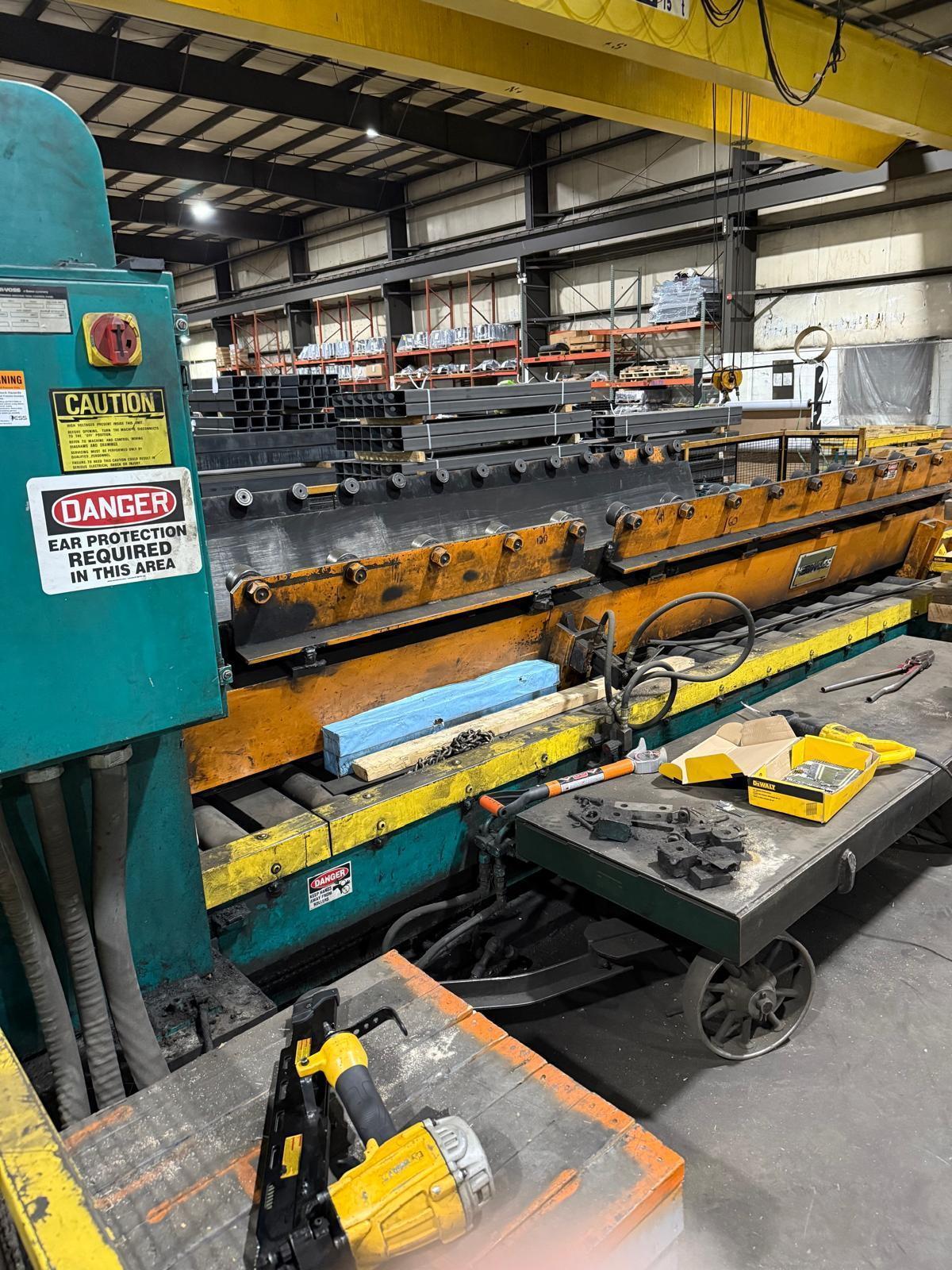

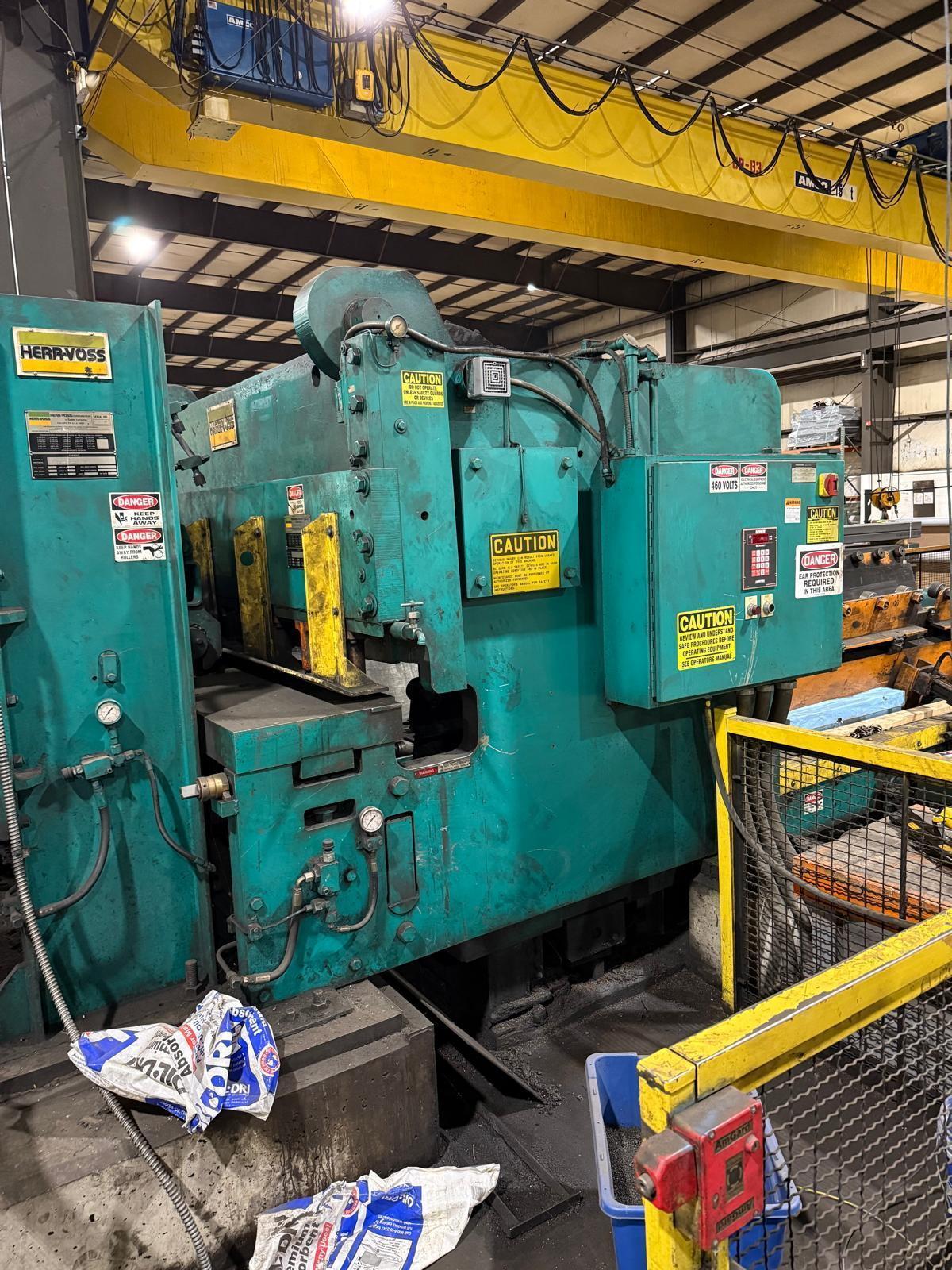

-Herr Voss Mechanical Shear:
Blade Gap Adjustment Control
Straight Blade Rake
Material Holddowns
AC Motor
-Drop Type Stacker:
Side Guide Retainers with Powered Side Tap
40,000# Capacity
Min. Sheet Length: 24"
Max. Stacked Sheet: 24'
-Runout Conveyor:
40' Long

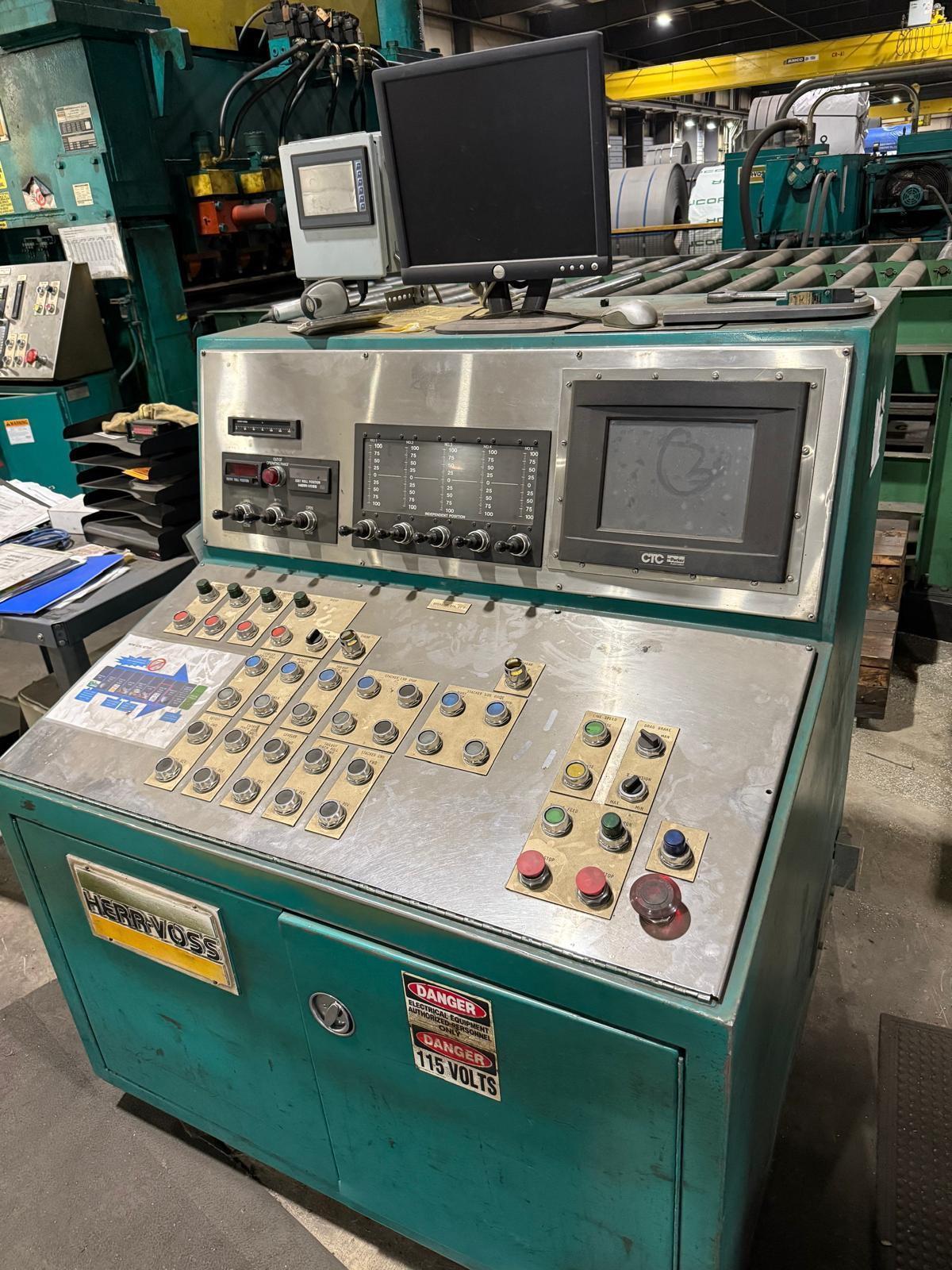

-Main Operators Control Panel:
-Main Hydraulic Power Unit:
-Includes Complete Mechanical and Electrical Drawings and
Operators Manual.
