Equipped With

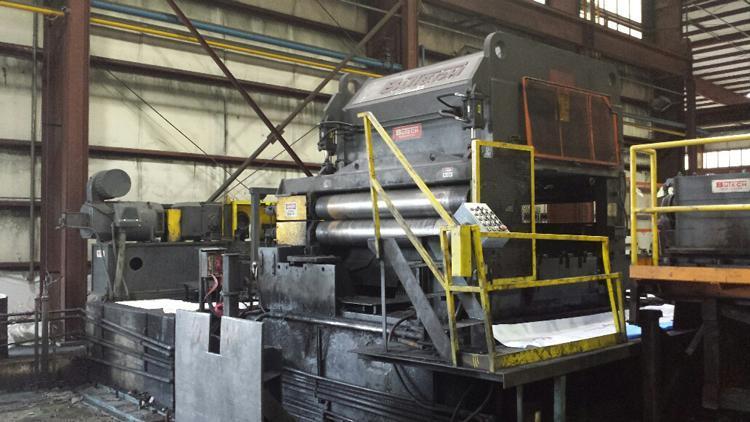

72" X .200" BUTECH LEVELER
General Specifications:
Manufacturer: Butech
Year of Manufacture: 2002
Material: HR, HRHS, HRPO
Yield Strength: 85,000 PSI max.
Strip Thickness Range: .060"-.200"
Strip Width Range: 24"-72"
Line Speed: 0 to 326 or 400 FPM max. as determined with customer
Line Direction: Left to Right
Guide Reference: Centerline
(2) 250 HP DC Motors
(17) Roll Leveler Specifications:
Work Roll Quantity: 17, 8 up, 9 down
Work Roll Size: 2.750" (70 mm) dia. x 80" (2030 mm) face
Back Up Flights: 7 top and bottom
Strip Thickness Range: .060"-.200"
Many spare parts including work rolls and back up rolls
