| Coil Weight | 40000 pounds |
| Width | 72 inches |
| Thickness | .135 inches |
| ID | 20 inches |
| Max OD | 72 inches |
|
General Specifications Thickness Range: 24ga to 10Ga Coil Weight Capacity: 40,000# Sheet Length: 24” - 20’ Coil OD: 72” Coil ID: 20” - 24”
Complete With the Following Components:
L-Type Coil Car Floor Standing / Self Contained Hydraulics Powered Conveyor Rolls of V-Deck
Mandrel Uncoiler Sliding Base 4 Leaf Hydraulic Expansion Powered Hold Down Roll Disc Brake Air Clutch & Feed Up Drive
Peeler Table Edge Guides Pinch Rolls

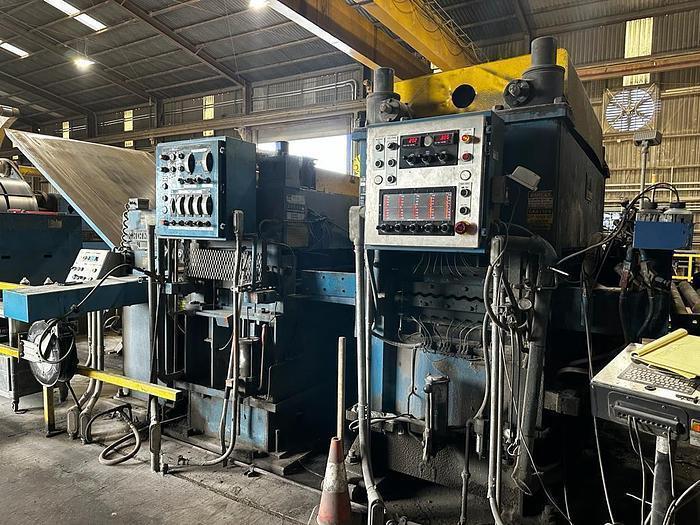

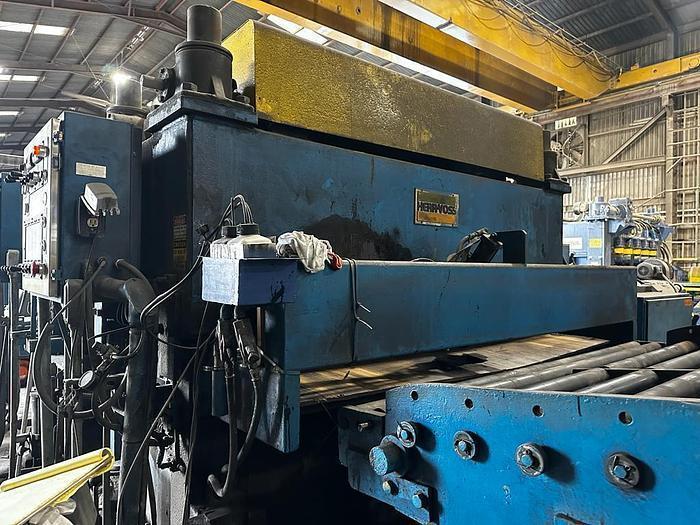

Herr Voss 4HI Precision Leveler. (Rebuilt) Model: LH-84-1.75-19-7 Thickness Range: .028” - .125” 1 3/4” Dia. Work Rolls 84” Roll Face 7 Flights Top & Bottom Back-Ups 5 Flights Motorized with Individual Adjustments 75 HP DC Drive
Herr Voss 4HI Precision Leveler Model: LH-82-2.187-19-7-4HI Thickness Range: .036” - .164” 7 Flights Top & Bottom Back-Ups 5 Flights Motorized with Individual Adjustments Digital Read Out Roll Positioning 125 HP DC Drive
Hump Table Cincinnati Shear Twin Belt Gauging Table Positive Stop Motorized Length Adjustment In Line Printer

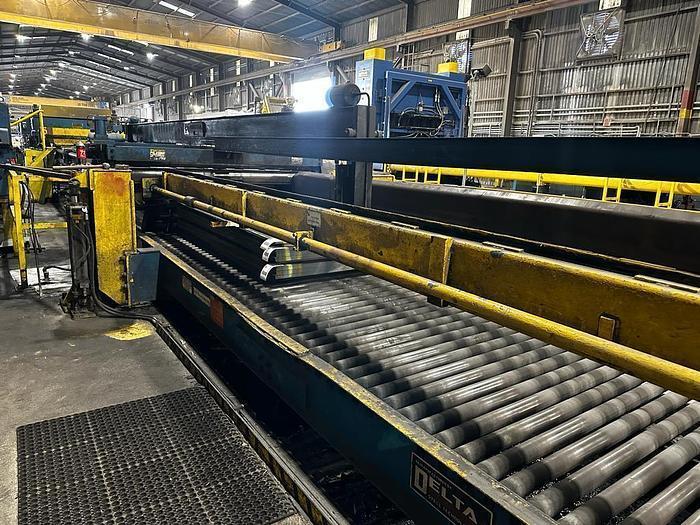

Cincinnati Stacker (Updated By Delta Brands) Hydraulic Lift Table Blower Side Squaring End Stop Motorized Width Adjustment

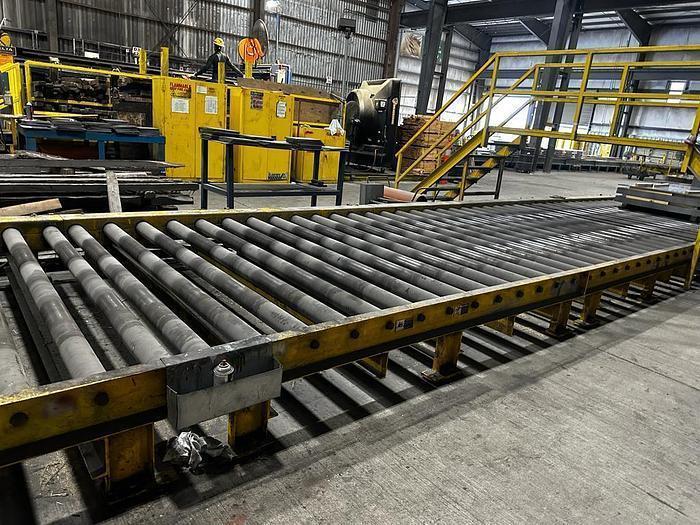

End Discharge Run Out Conveyor

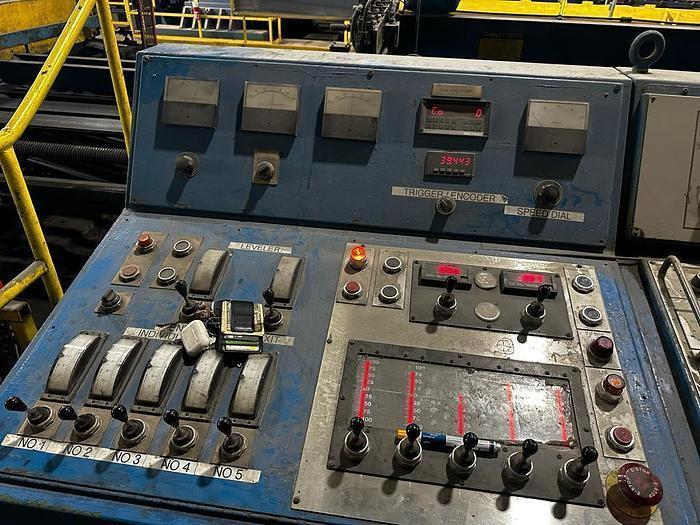

Two Sets of Leveler Controls Digital Length Measuring Bardac Digital Drives (Drive Web Ready) Model PXL115 50/60 HZ
Spare Rolls and Spare Parts |
