Manufacturer: TUREK & HELLER
Model: WU-11
Line Direction: Left to Right
O.D. Capacity: .312" - .875"
Wall Thickness: .010"- .054"
Speed: Up to 25 FPM
Consisting of:
LITTELL PAYOFF REEL
Single Coil: 25OOlb. capacity
Electric brake,
Coil I.D: 15"-20"
Max. Width: 12"

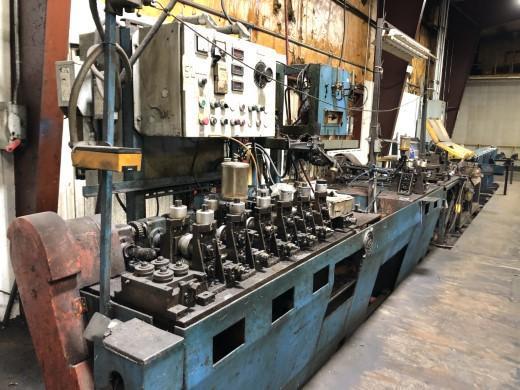

TUREK & HELLER TUBE MILL
Universal Drive, 2 motors

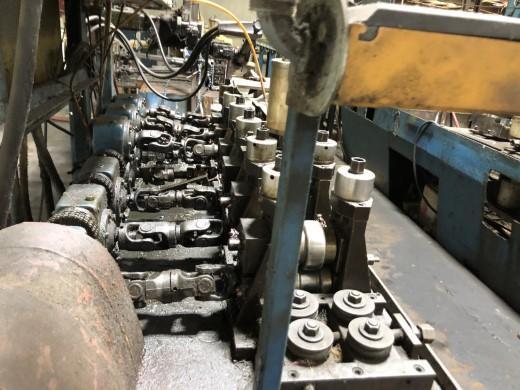

FORMING SECTION:
Entry Strip Guide
Shaft Diameter: 1.125"
3 Forming Stands
Roll Space: 3"
Horizontal Centers: 7.5"
Vertical Centers.: 3.0" to 4.0"
3 Side Roll Units
3 Fin Stands
2 Side Roll Units
Motor Drive: HP, DC Volt

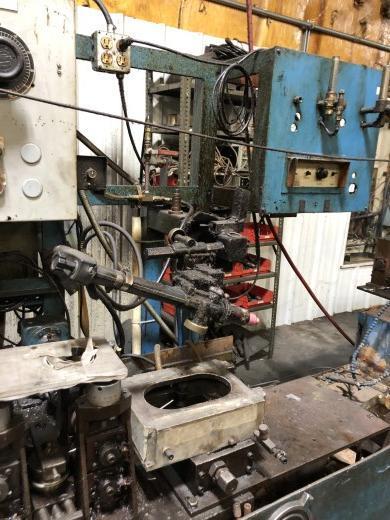

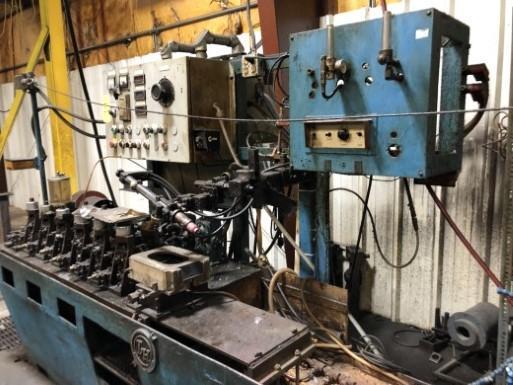

WELDING SECTION, TIG
Weld Box: 2 roll
Main welder: Gas control system for Argon, Nitrogen,
Welder: Miller Gold Star 652 CC-DC Welding Power Source
SIZING SECTION
3 Sizing Stands
Roll Space: 3"
Horizontal Centers: 7"
Vertical Centers: 3.0" to 4.0"

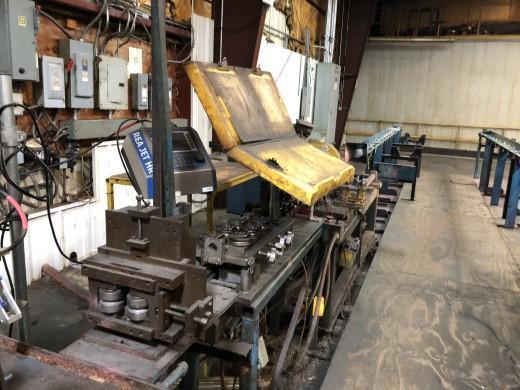

Straightening Head
In-Line 2 Plane Straightener, 12 Roll
REA Jet HR Printer
Motor Drive: HP, DC Volt

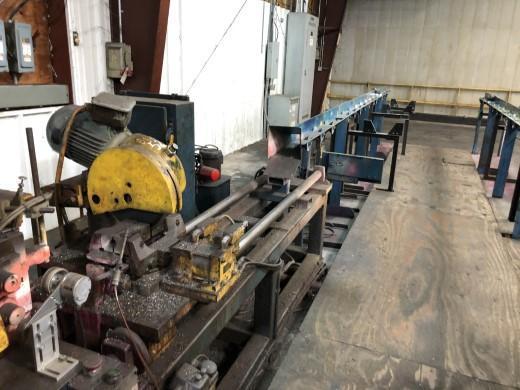

CUTOFF SECTION
Flying Cutoff Saw

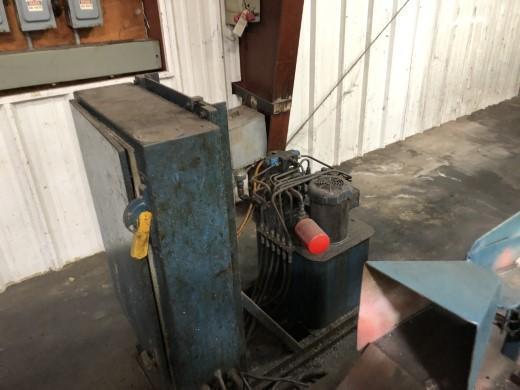

Hydraulic Die Accelerator
Pneumatic Clamp
Runout Trough
Mill Dynamics Main Motor Drive, Solid State
AVAILABLE TOOLING: 394", .472" (12mm on Mill), .500", .590"
