Equipped With
MODEL NUMBER: 190-6
AGE: Year: 2017
Round High Frequency Pipe Welding Line is mainly used to weld round and square/rectangular pipes. This line utilizes roll forming to process steel strip into various shapes. It is also capable of producing shape steel of various diameters and sizes by high frequency induction heating and weld seam squeezing.
LINE SPECIFICATIONS:
Hand of Operation: Right to Left
Driven Spindle Diameter: 4.3" (110mm)
Side Roll Spindle Diameter: 2.7" (70mm)
Round Tube Diameter: 2.3" - 7-1/2" (60-190mm)
Maximum Wall Thickness: .240" (6mm)
Square Tube Diameter: 2" x 2" - 6" x 6" (50 x 50mm - 150 x 150mm)
Welding Speed: 100 - 160 FPM (30 - 50 MPM)
Electrical Input for Line: 480 Volt/60 Hz/3Phase
ENTRY EQUIPMENT:
1 - 20,000 Lb. Coil Car (9,000Kg)
1 - 20,000 Lb. Uncoiler (9,000Kg)
1-Flattener, 5-Roll Type, with Entry and Exit Pinch Rolls
1-Shear End Welder, Hydraulic and Pneumatic Operation, Max Strip 600 x 8mm

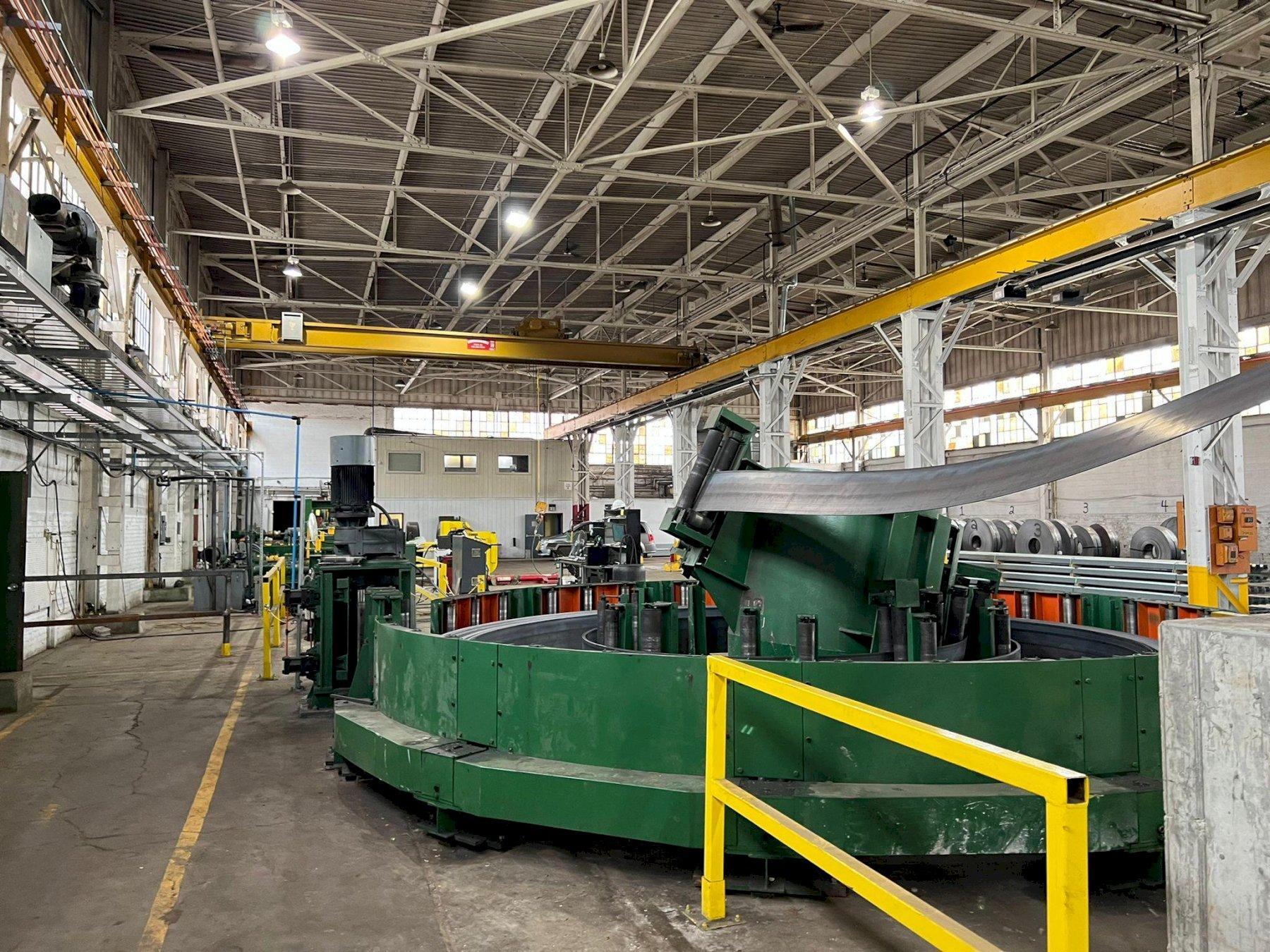

1 - SRET Horizontal Coil Accumulator
FORMING MILL:
4 - Driven Breakdown Stands
4 - Side Idler Rolls
3 - Driven Fin Stands
3 -Side Idler Rolls 600 KW HCT

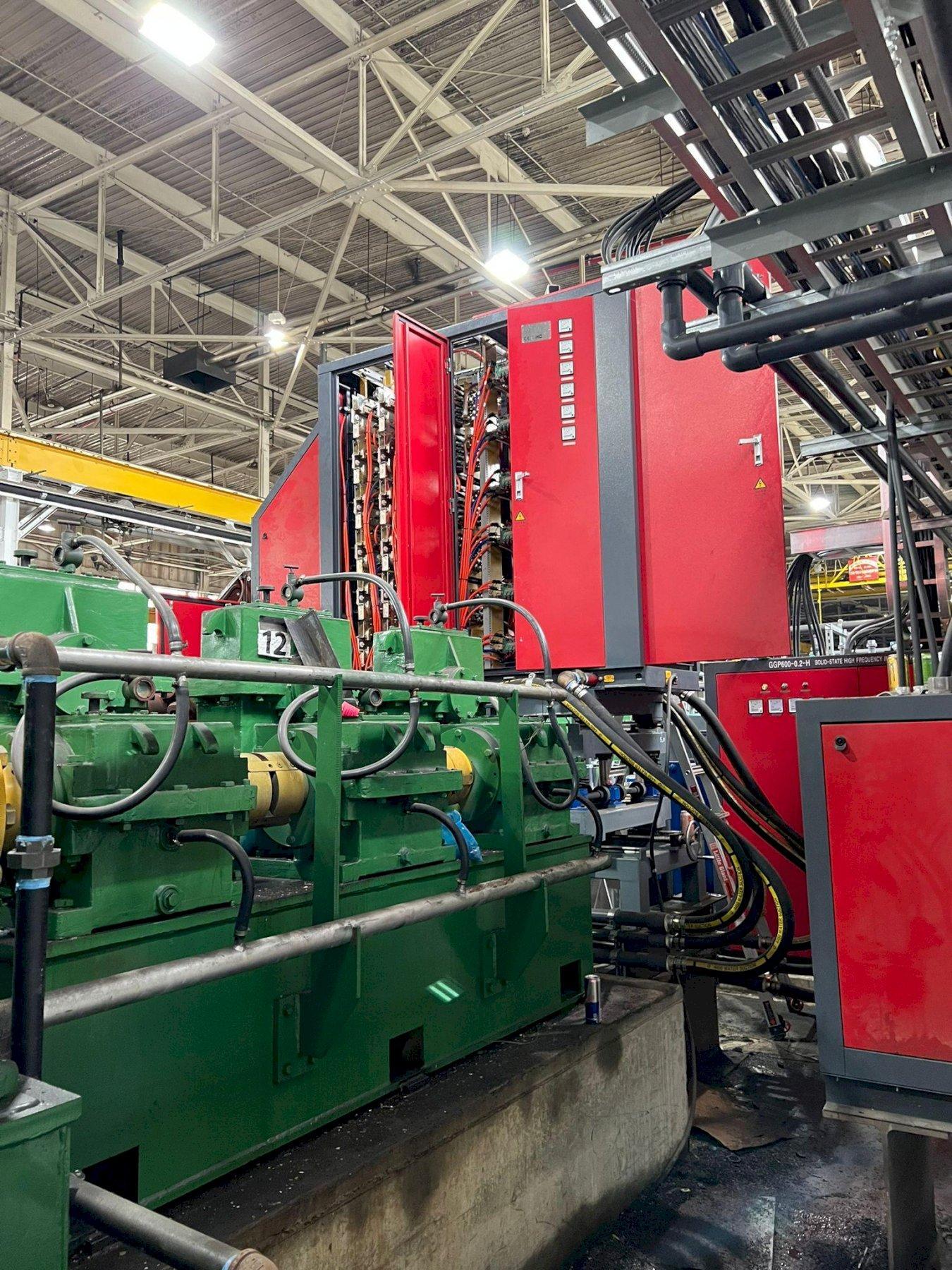

Solid State High Frequency Welder
Model: GGP600-0-2-H
Seam Orientation Stand
1 - 4-Roll Weld Pressure
1 - Double Bead Scarf Remover
1 - Coolant Zone, 20 Ft.
SIZING MILL:

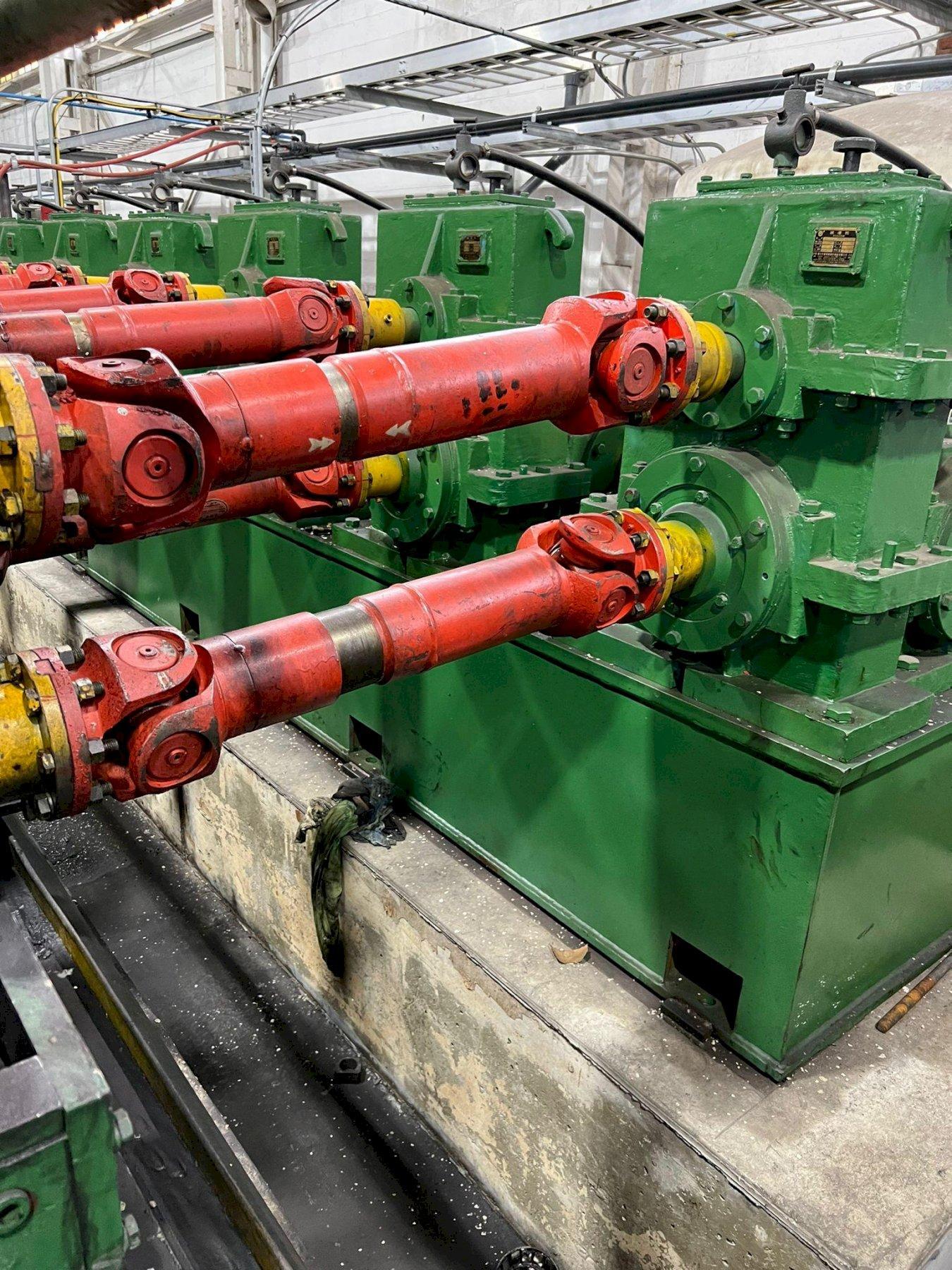

6 - Driven Sizing Stands
6 - Idle Side Roll Stands

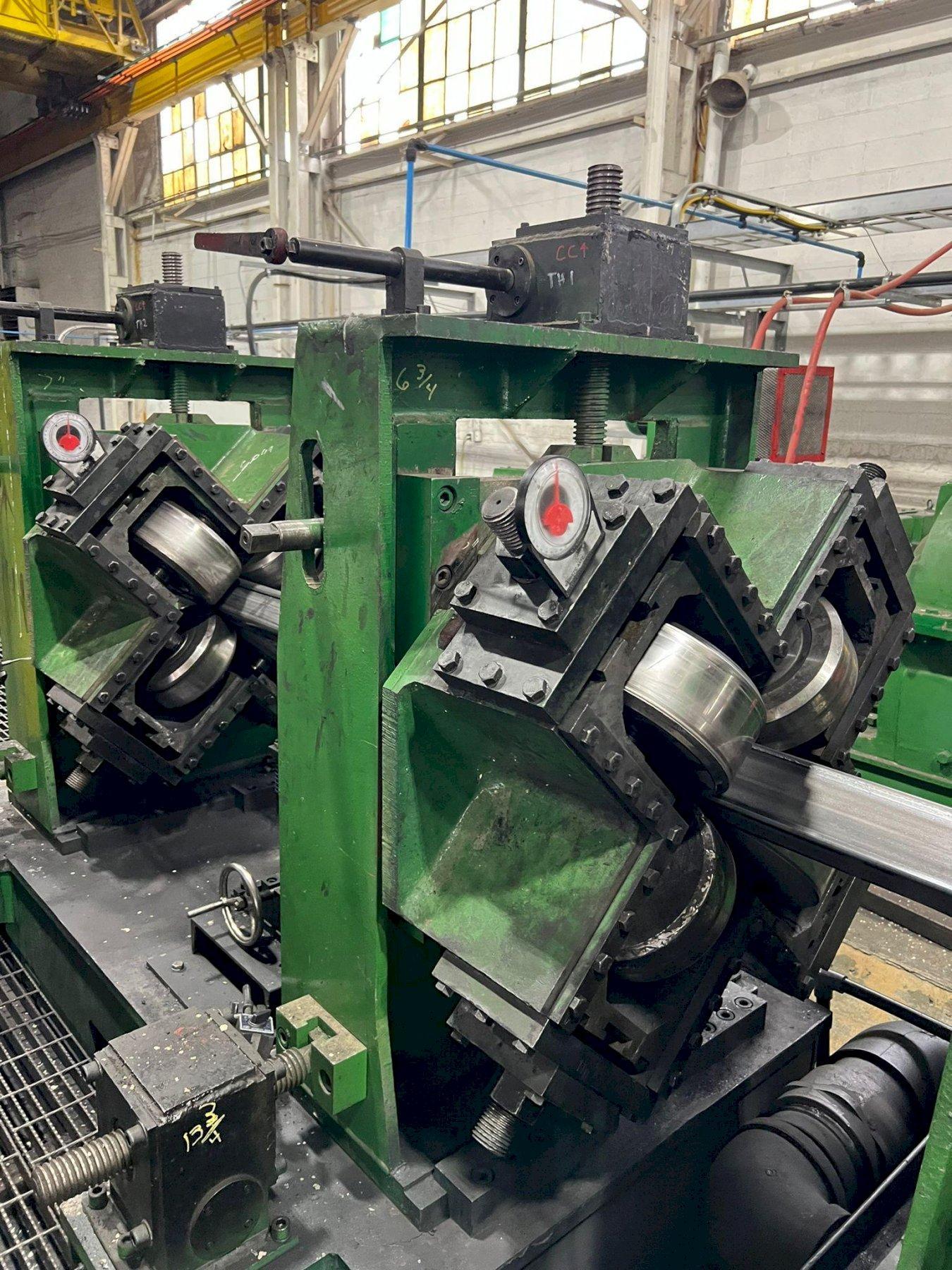

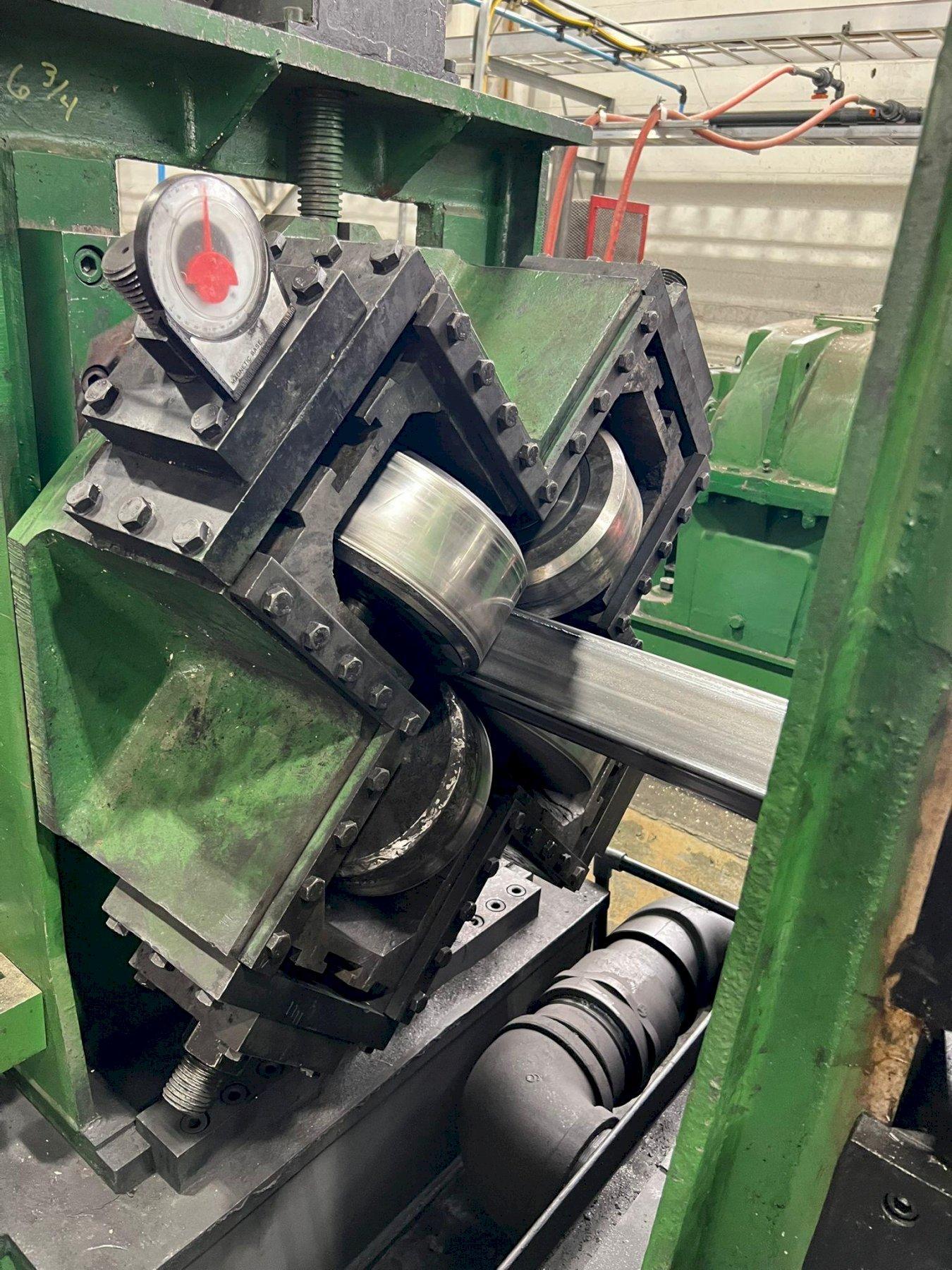

2 - 4-Roll Turkshead Units

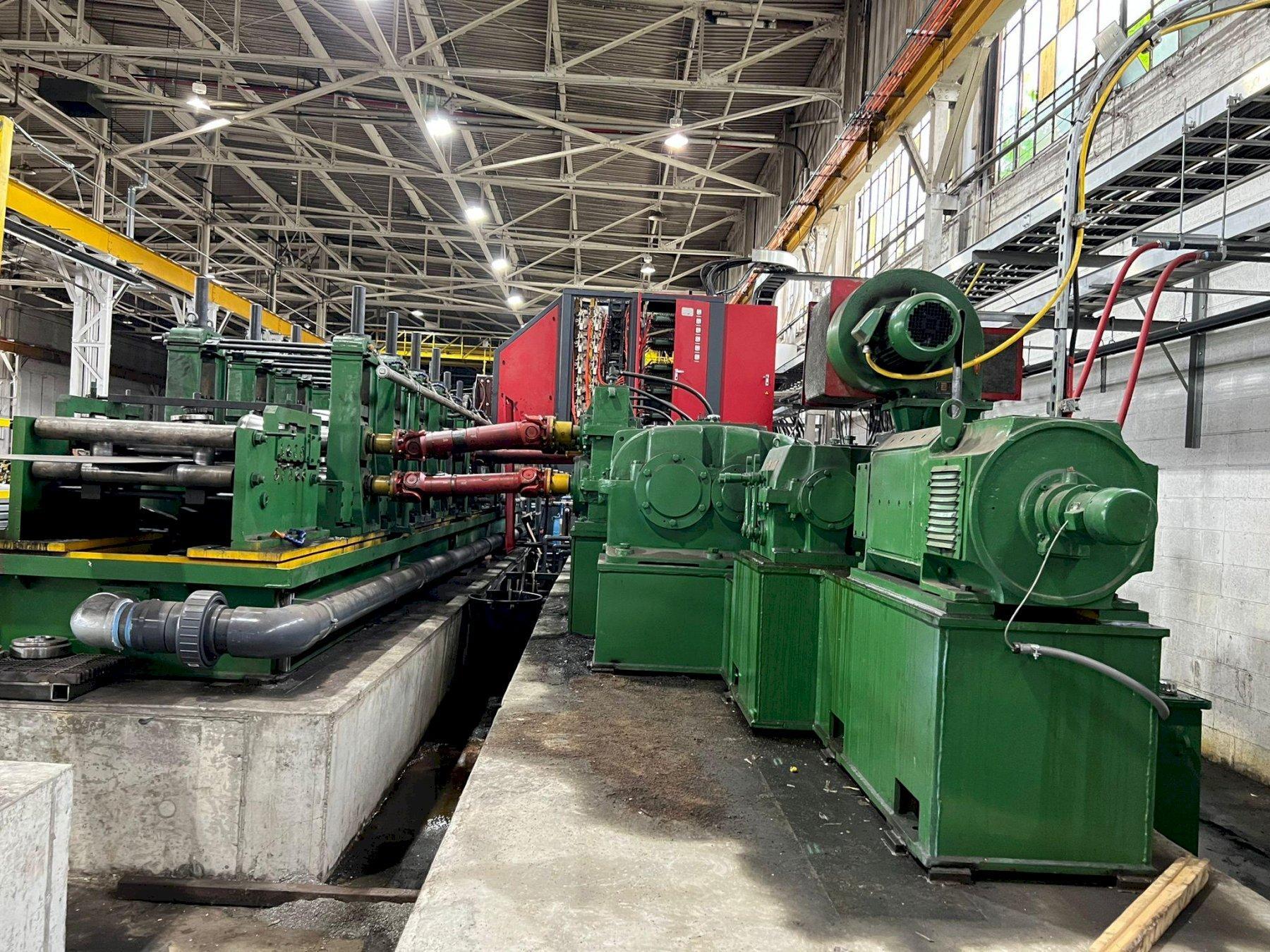

DRIVE MOTORS:
FORMING: 120 HP (90 KW) DC Motor with 3 Speed Shift Transmission
FIN: 120 HP (90 KW) DC Motor with 3 Speed Shift Transmission
SIZING: 215 HP (160 KW) DC Motor with 3 Speed Shift
Transmission Shift Transmission
Ratios: 1.1, 1.2, 1.3, Neutral

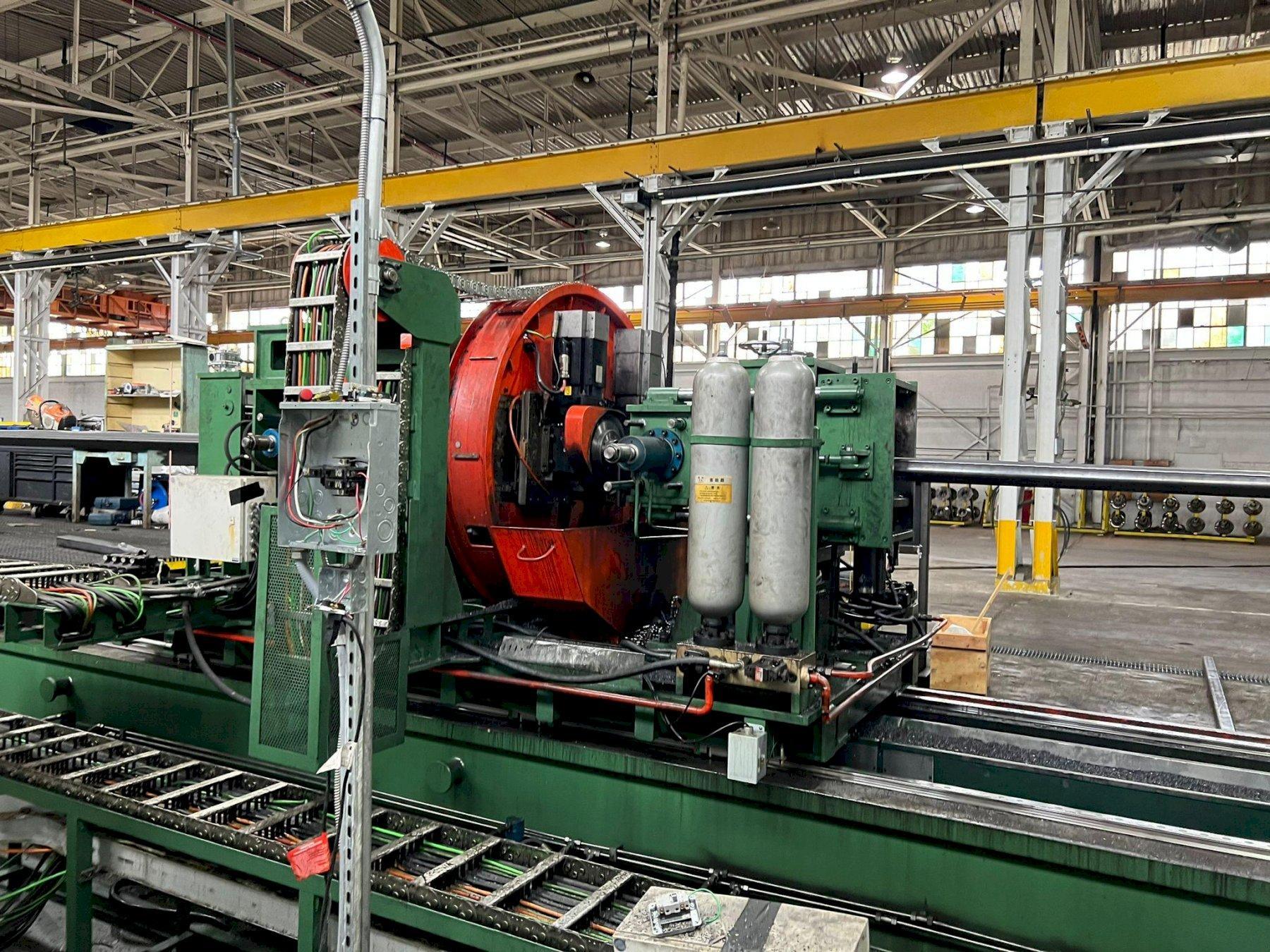

HC Teneng USA Milling Cut-Off
Model KK-7 Profile Milling Flying Saw
2 Milling Blades
45 KW Accelerator
Linear Travel
Run Out Table with Side Discharge
Tooling: 4” x 2” 5” x 2”… in which they also produce the 4” x 3” 6” x 2” 4” x 4” Complete Installation and Foundation Drawings Included with the Tube Mill

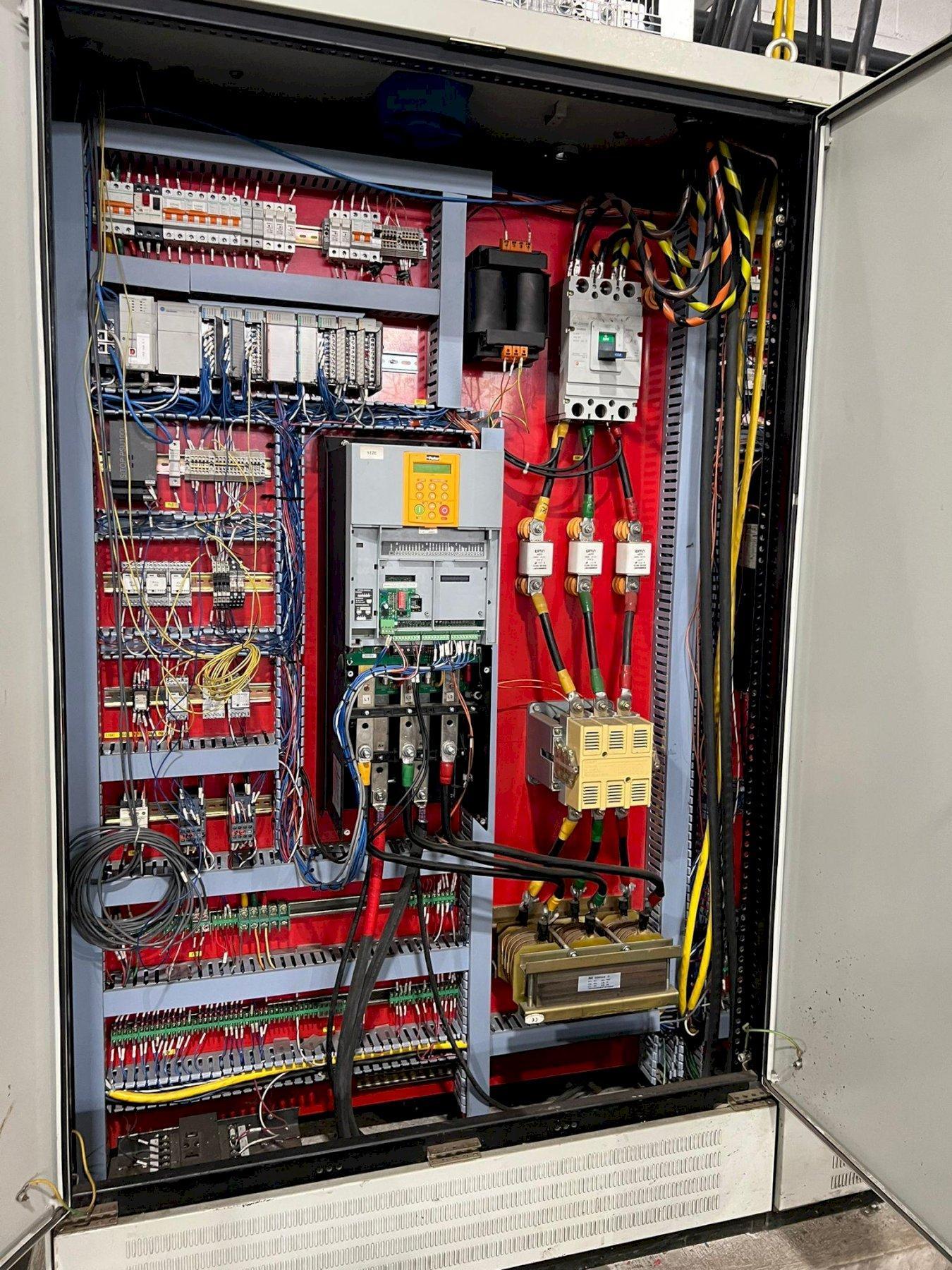

Parker Digital Drives
Model 591P

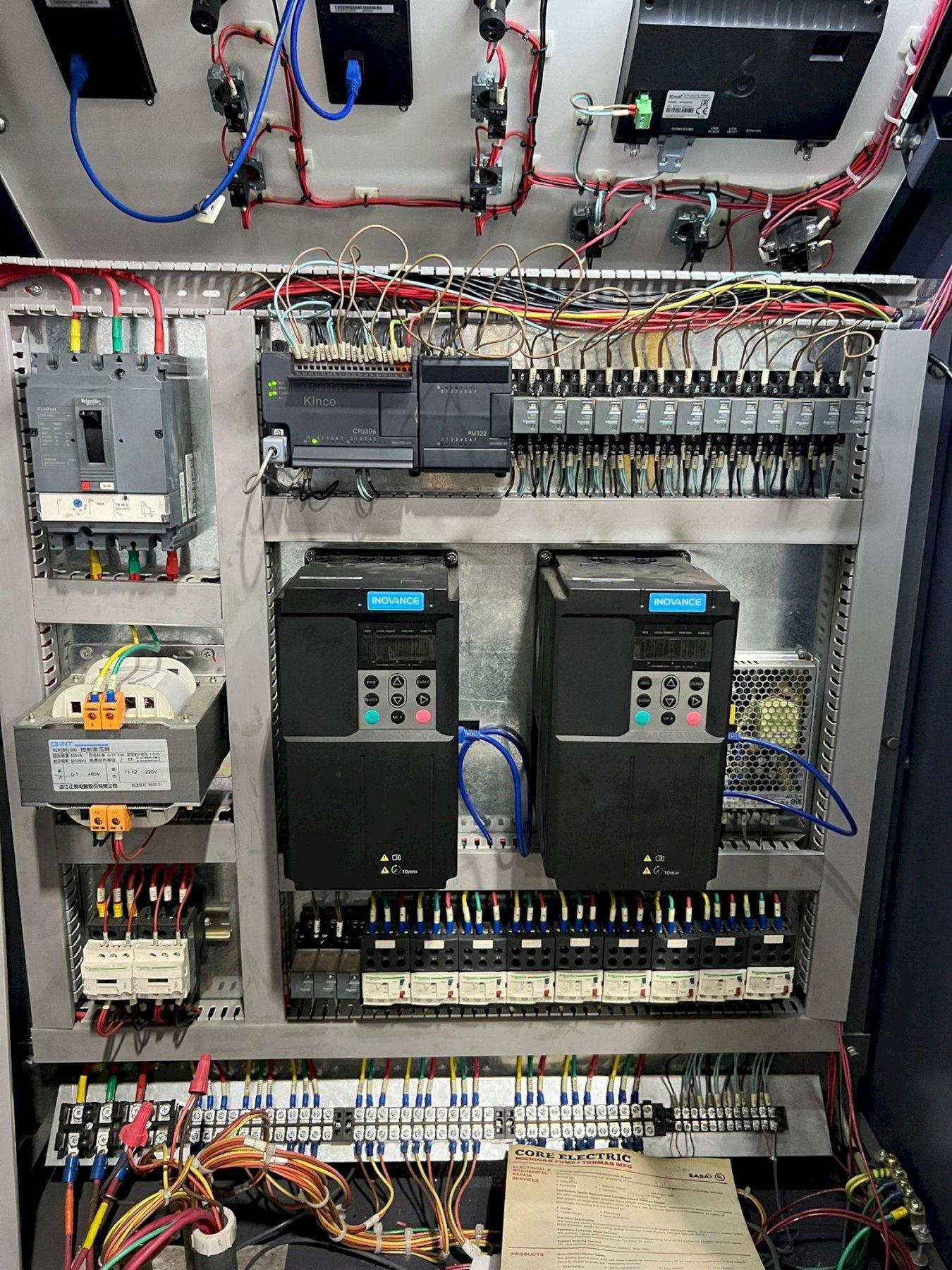

Digital Drives & Controls
Siemens Touch Screens
Filtration System
Spare Shafts
Installed
