Tube Diameter: 12.70mm - 63.25mm
Thickness Range: 3.0mm - .80mm
Mill Speed: 0 - 120 Meters/Min
Tube Length: 4.0M to 6.0M
OD Range: 12.70mm - 63.25mm
Square Range: 10mm x 10mm to 50mm x 50mm
Rectangular Range: 20mm x 10mm to 80mm x 20mm
Mill Shaft Diameter: 70mm
Coil Specifications
Coil Width: 20mm - 170mm
Coil Thickness: .80mm - 3.0mm
Coil ID: 508mm
Coil OD: 1500mm
Coil Weight: 1200 KG
Complete Mill With:

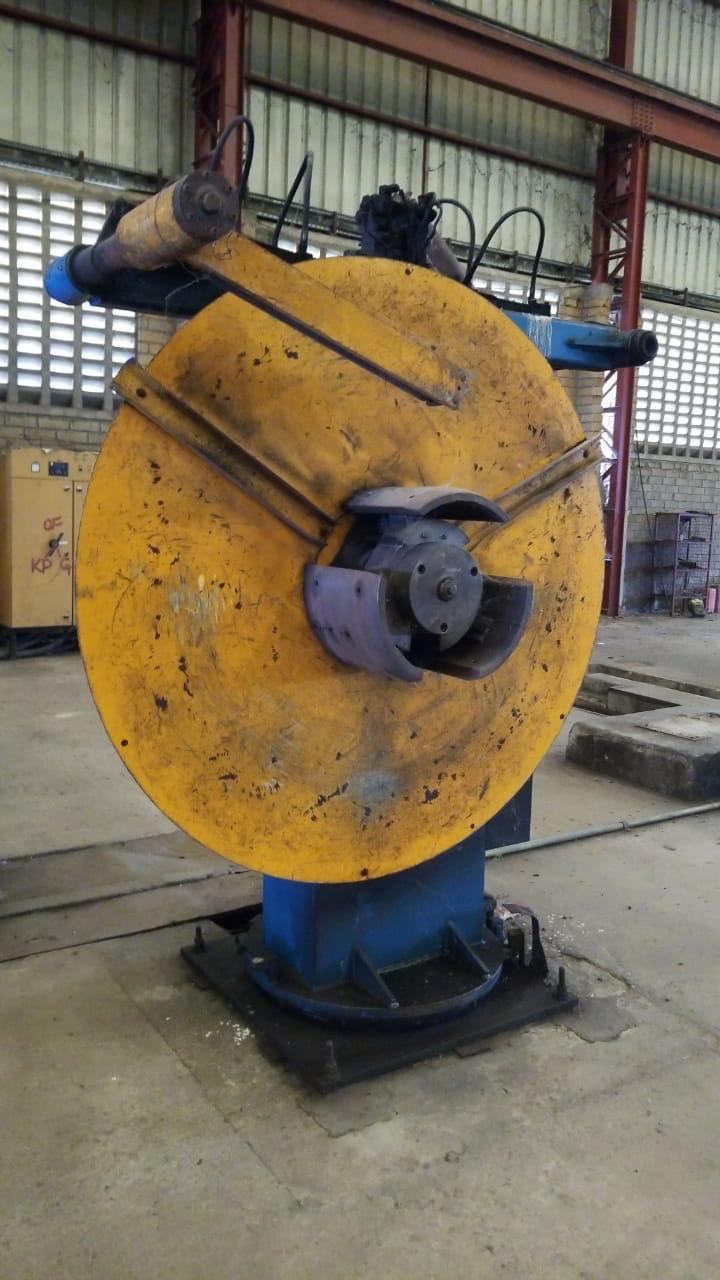

Double End Uncoiler
Manual Strip / Butt Welder

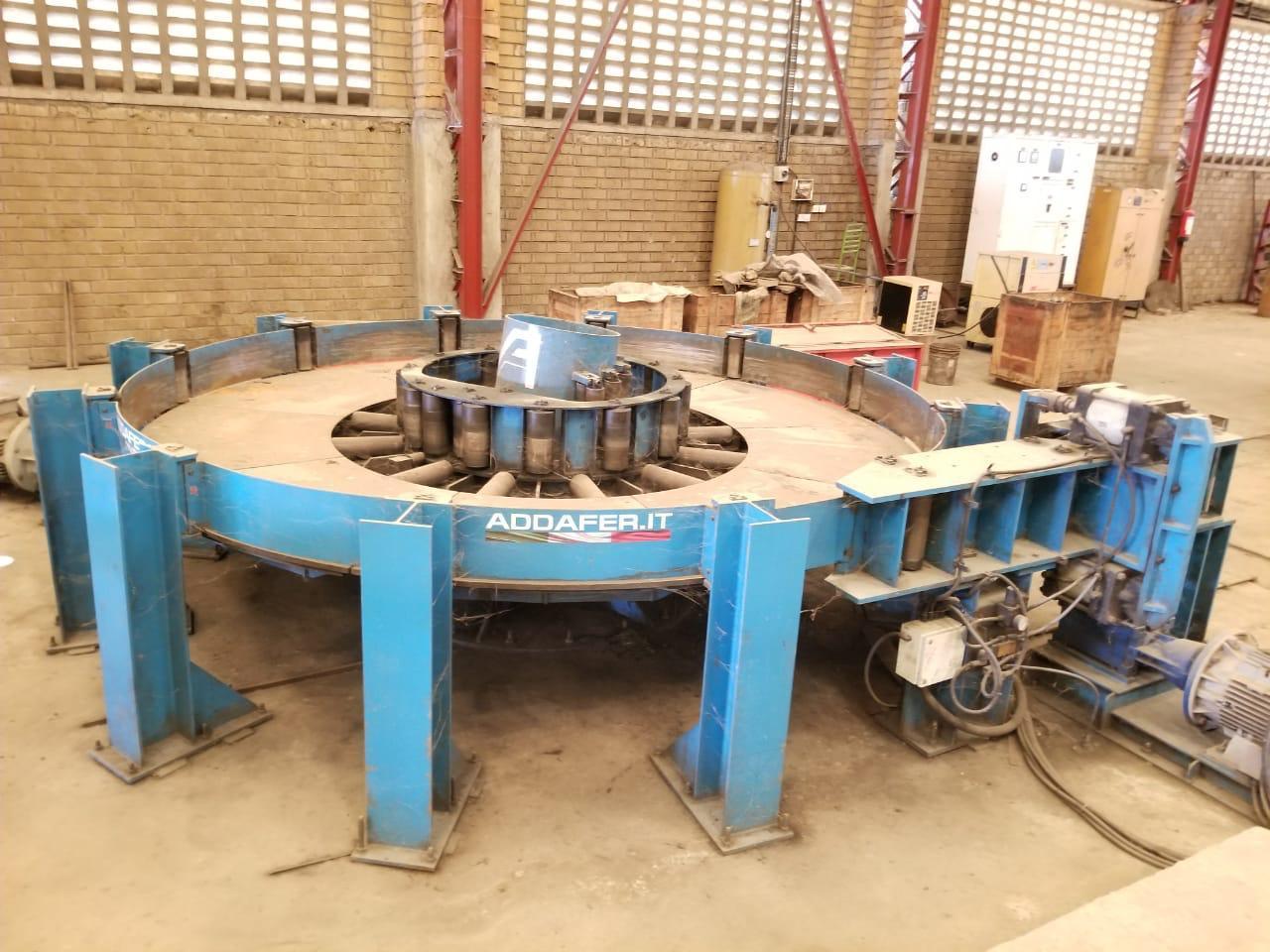

Horizontal Accumulator

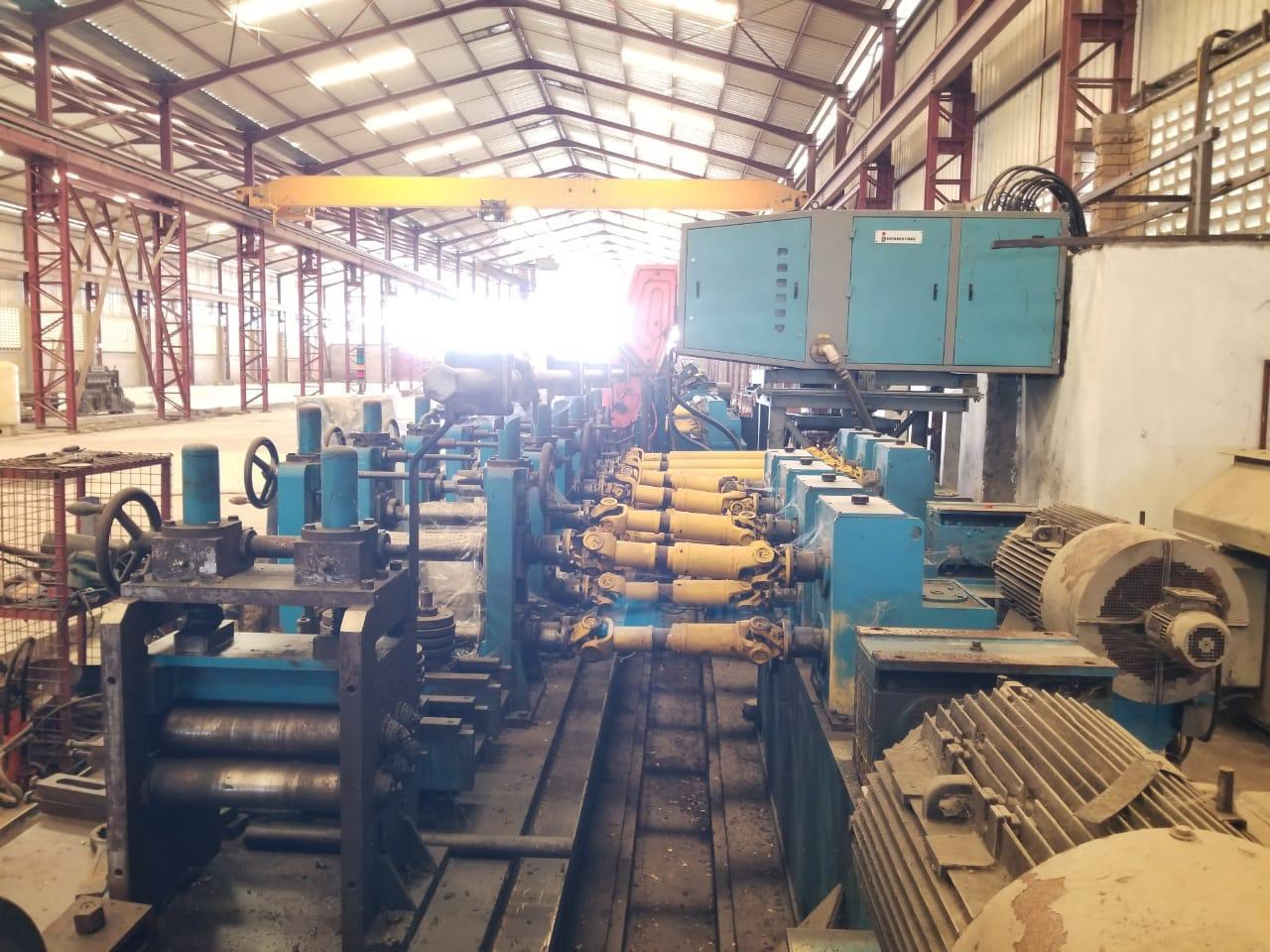

Forming Mill
5 Roll Flattener
2 Sets Edge Guides
4 Forming Stands
3 Finn Pass Stands
6 Side Idler Rolls
Universal Drive
Center Point Adjustment
Forming Drive: 35 KW Variable Speed AC Motor
Finn Pass Drive: 45 KW Variable Speed AC Motor

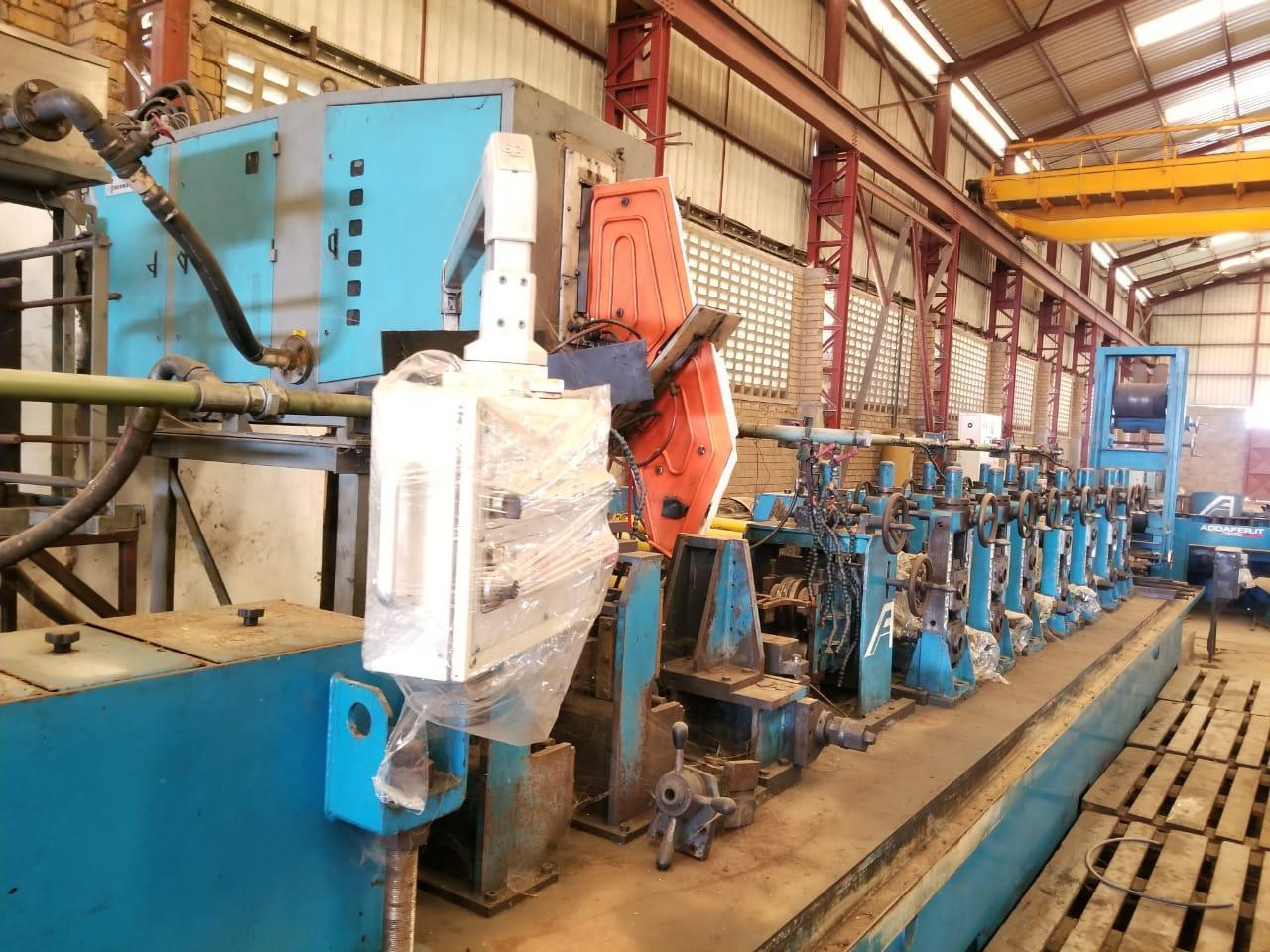

200 KW Thermatool Solid State High Frequency Welder
Siemens PLC Controller
MOSFET High Frequency Converter
3 Roll Weld Box
Double Scarfng
Cooling Trough

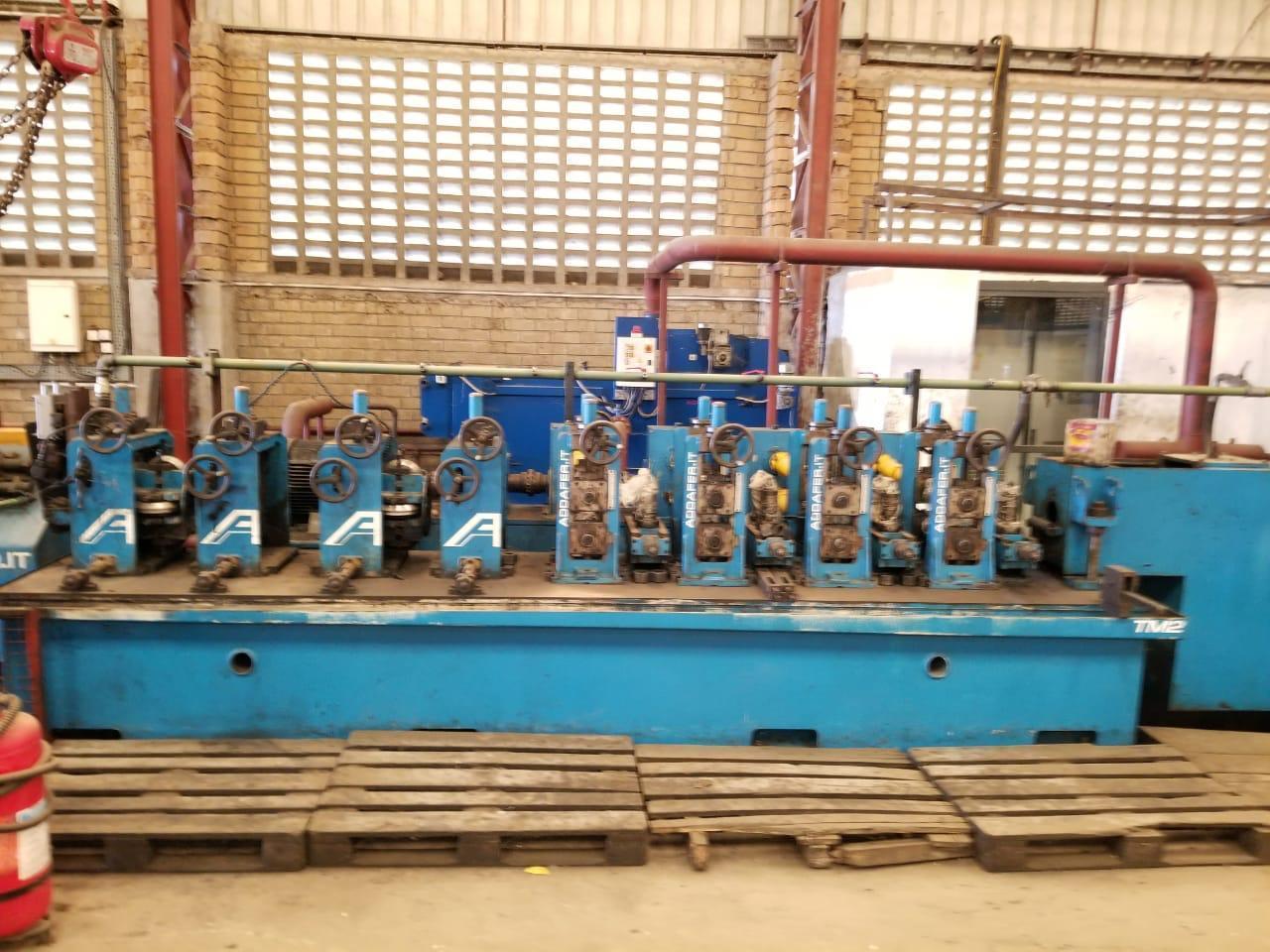

Sizing Mill
4 Sizing Stands
4 Side Idler Rolls
4 Turks Head Stands
Universal Drive
Center Point Adjustment
55KW AC Variable Speed Motor

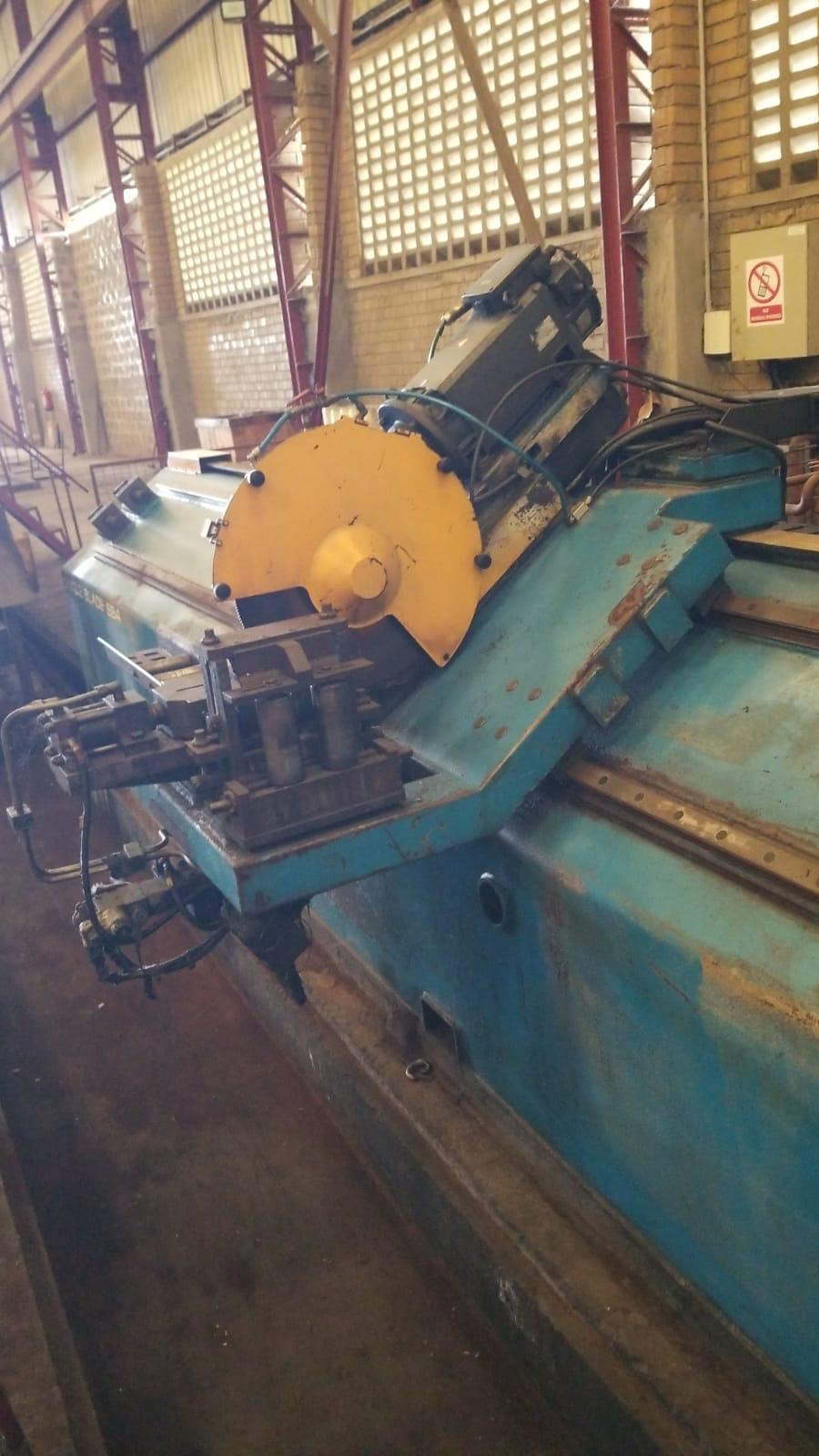

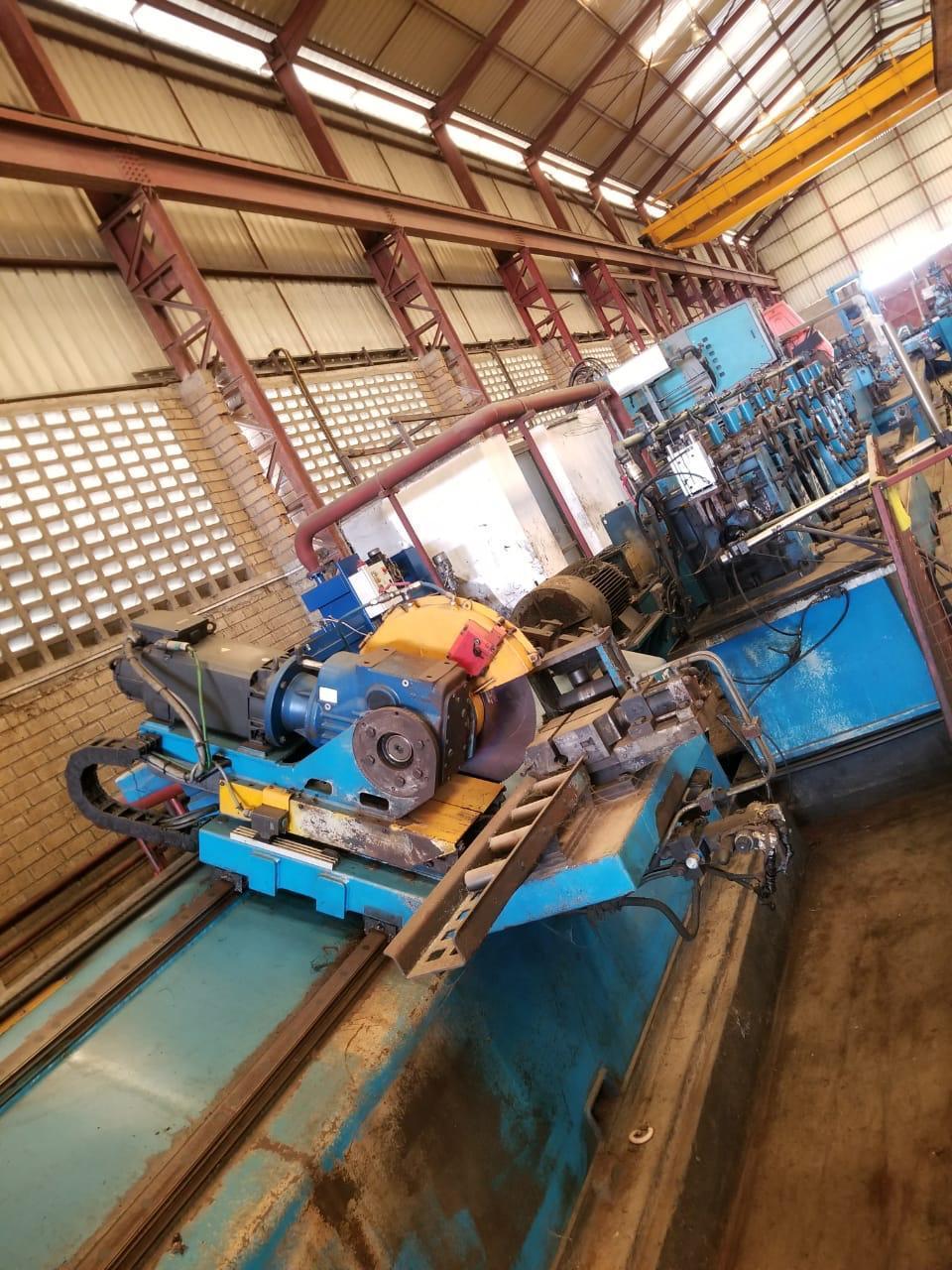

Flying Saw Cut-Off
Inclined Base
Linear Bearing Travel

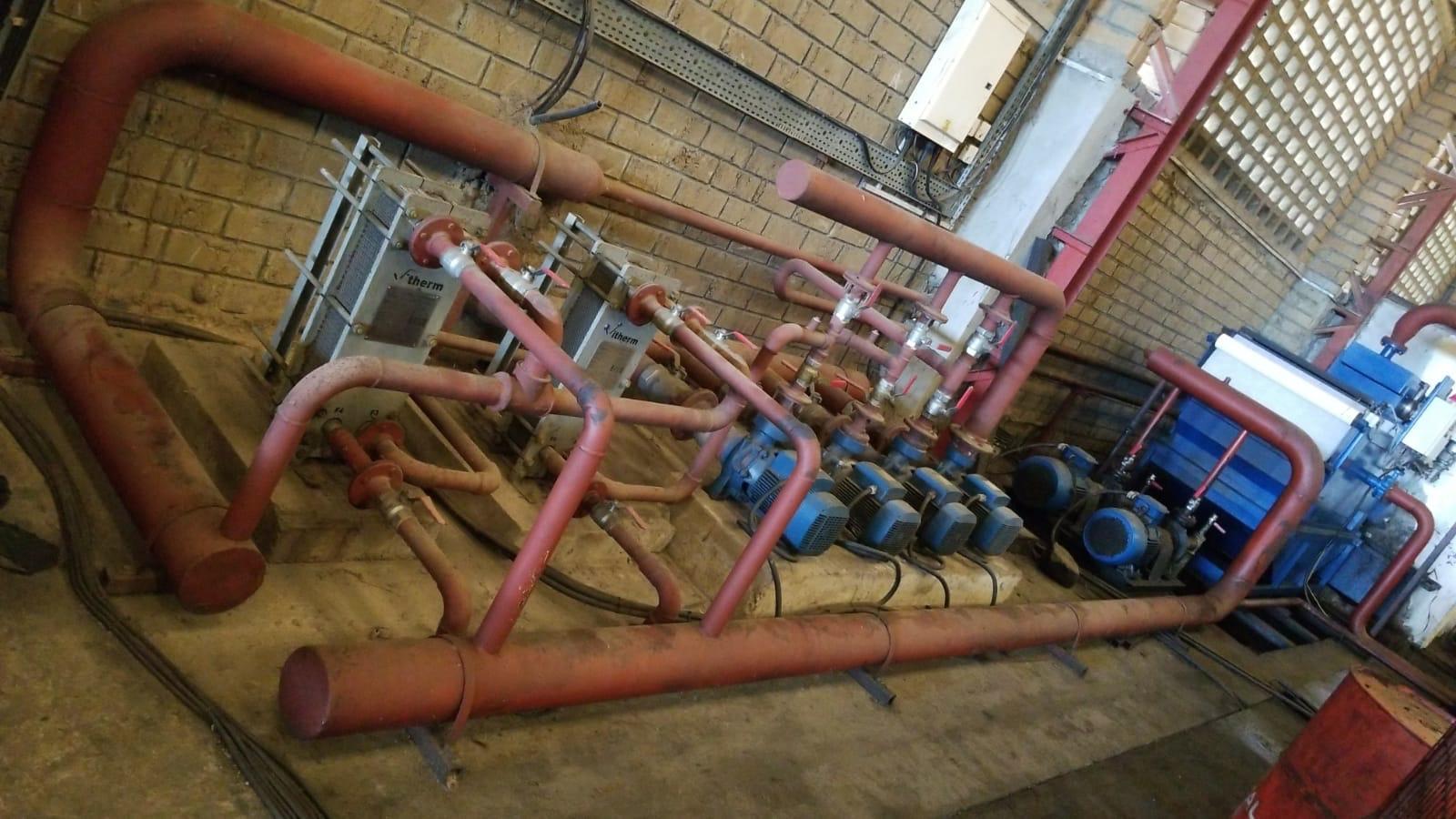

Filtration System

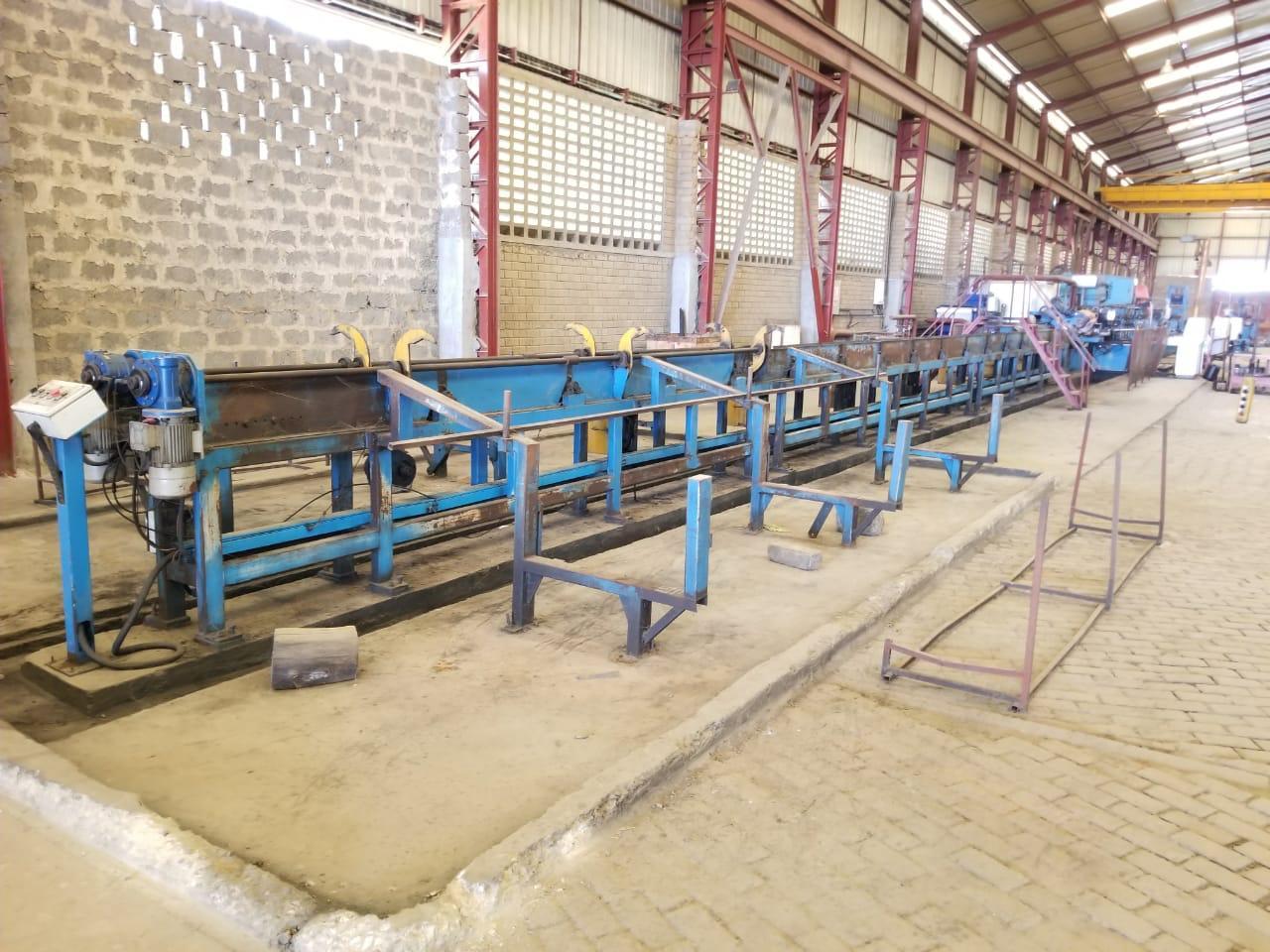

Run Out Dump Table
Siemens PLC S7-200
380 Volt / 50 Cycle
Digital Drives and Controls
Operator Push Button Stations
Digital Readouts
Tooling:
Rounds: 20mm , 25mm , 32mm , 38mm , 42mm
Squares: 20mm , 25mm , 30mm , 40mm
Rectangles: 40mm x 20mm & 40mm x 25mm
