Manufacturer: Loopco
Weight Capacity: 40,000#
Coil I.D. Entry: 19.50" - 24"
Coil I.D. Exit: 20"
Line Speed: 300 and 600 FPM
Line Direction: Left to Right
Complete Line with the Following Components:

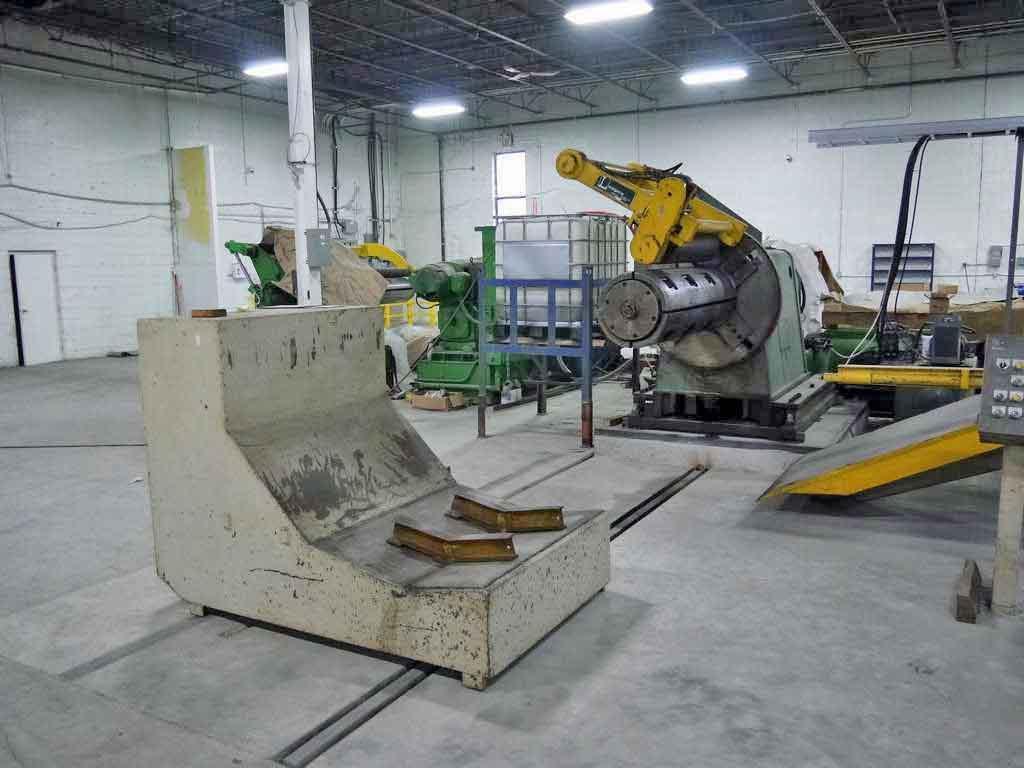

Loopco "L" Type Coil Car:
Self Contained Hydraulic Power Unit
Hydraulic Motor Travel

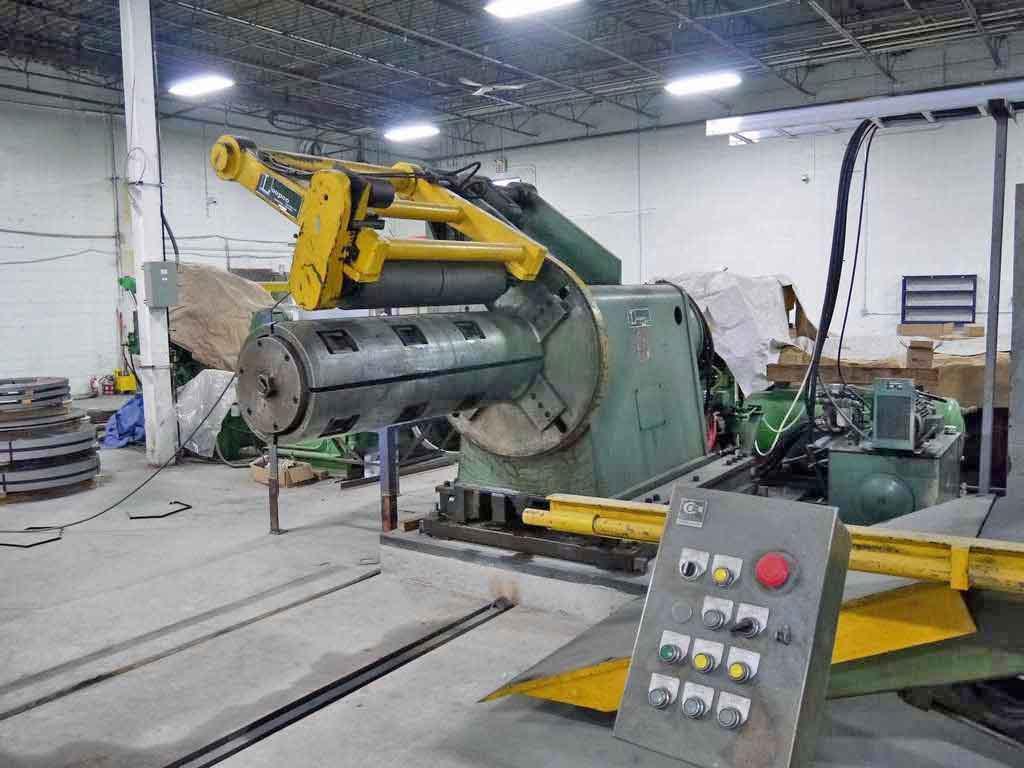

Loopco Mandrel Uncoiler:
Hydraulic Expansion
Powered Overarm Holddown Roll
Sliding Base
Water Cooled Brake
Feedup Drive

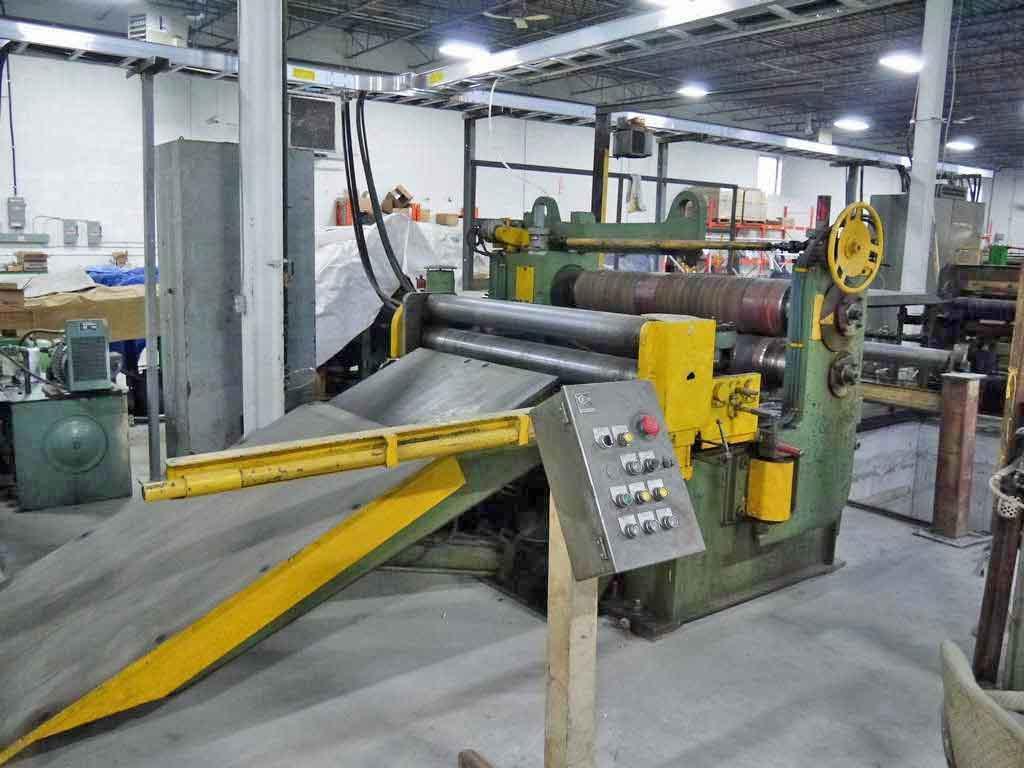

Loopco Entry Unit:
Peeler Table
Driven Pinch Rolls
Roller Side Guides
Loopco Single Slitter Head:
Crane Type Removable
7" Dia. Arbors
AC Gear Motor Threading Drive
(1) Scrap Winder:
Hydraulic Motor Drive
Pit Cross Over Table:

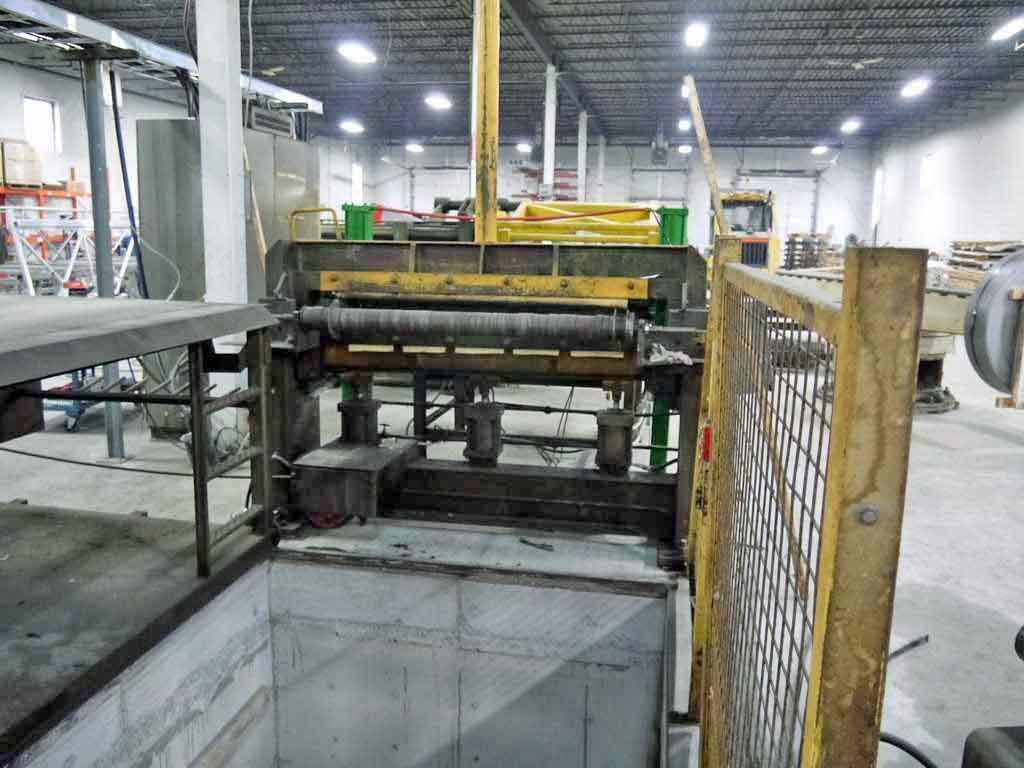

Loopco Drag Board Tension Stand:
Air Bag Tension Type
Exit Driven Pinch Rolls
Cross Over Table to Recoiler:

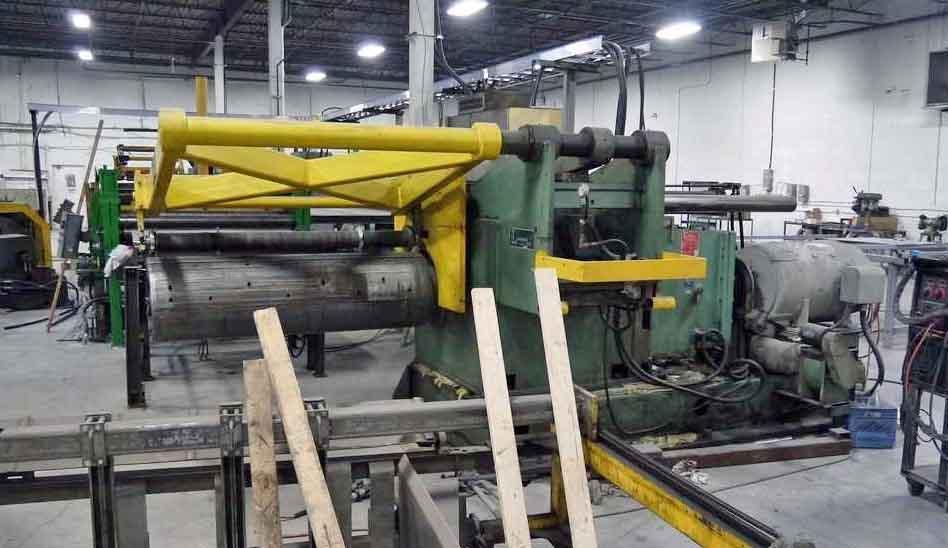

Loopco Recoiler:
20" Dia. Drum
Hydraulic Expand & Grip
Overarm Separator
2 Speed Reducer w/34.34:1 & 17.17:1 Ratios
75 HP DC Motor, 650 - 2000 RPM, 500 V
2 Arm Exit Turnstile
Slitter Tooling and Tooling Cart
Hydraulic Unit
Controls
