Year: 1989 / 1998
Thickness Range: .025" - .250"
Coil Capacity: 50,000#
Coil ID: 20"
Coil OD: 72"
Complete Line With:

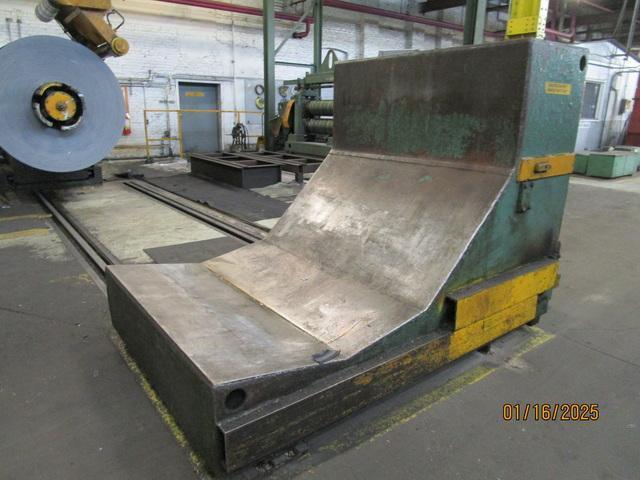

Entry L-Type Coil Car
Floor Standing / Self Contained Hydraulics

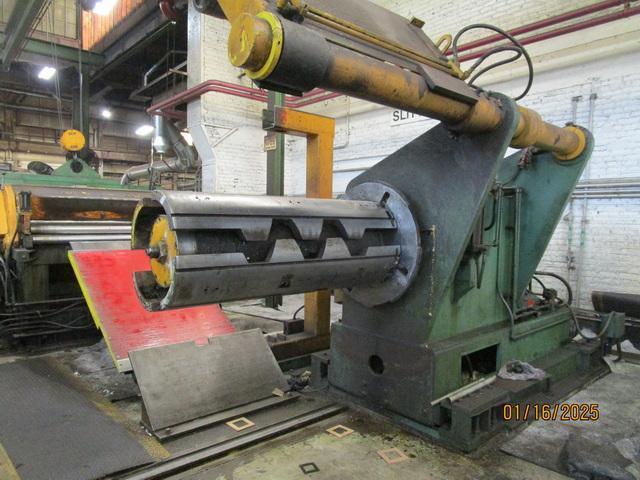

Mandrel Uncoiler
4 Leaf Hydraulic Expansion
Powered Hold Down Roll
Water Cooled Brake & Cooler
Hydraulic Drive
Hydraulic Sliding Base
Edge Control

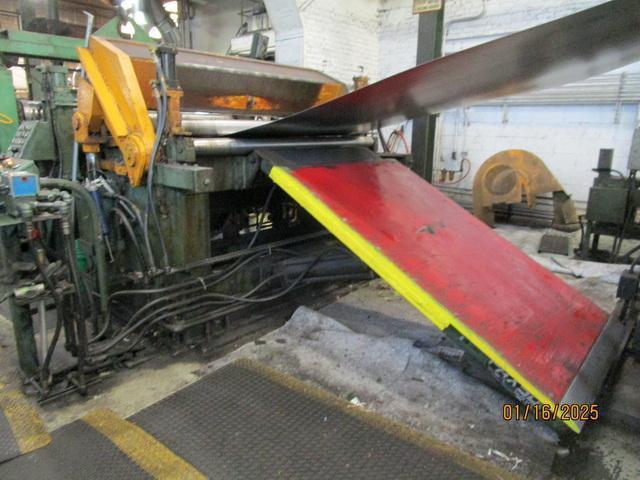

Peeler Table
Pinch Rolls
Crop Shear

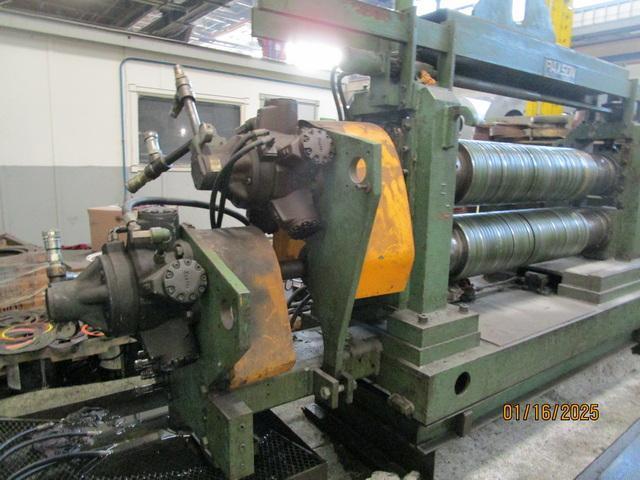

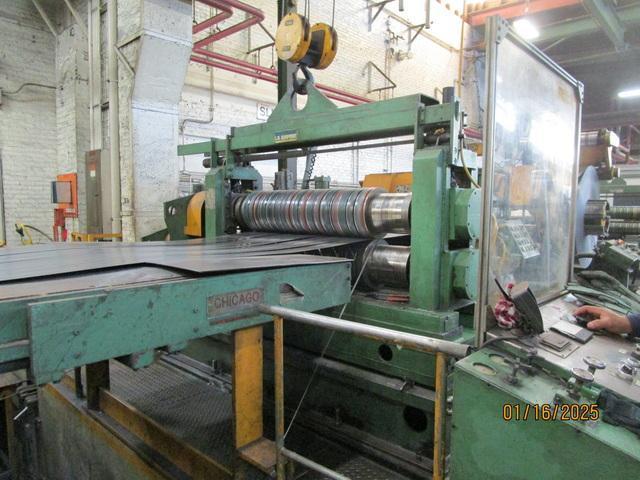

2 Slitter Heads
8" Diameter Arbors

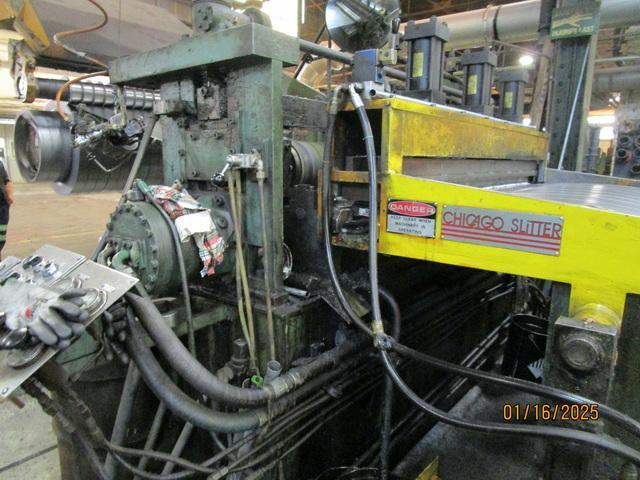

(2) 5 Vane Hydraulic Drives
Motorized Arbor Adjustment
Hydraulic Locking Heads
Sliding Outboard Support
Entry Pinch Rolls
2 Sets of Edge Guides
Tooling
Overhead Gantry for Slitter Head Changing
Chicago Feed Up Table

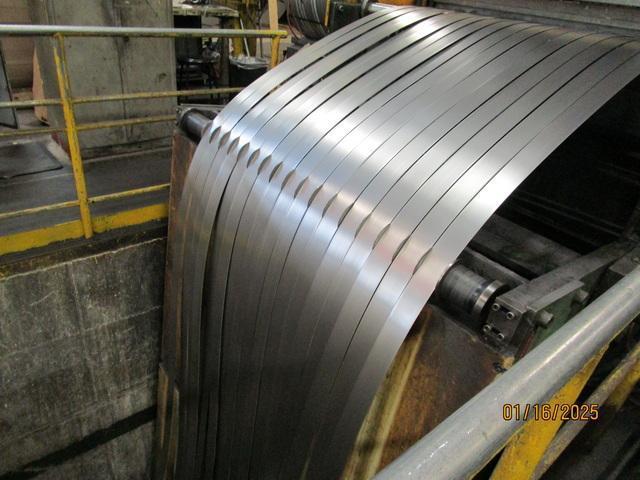

Chicago Looping Pit Cross Over Table

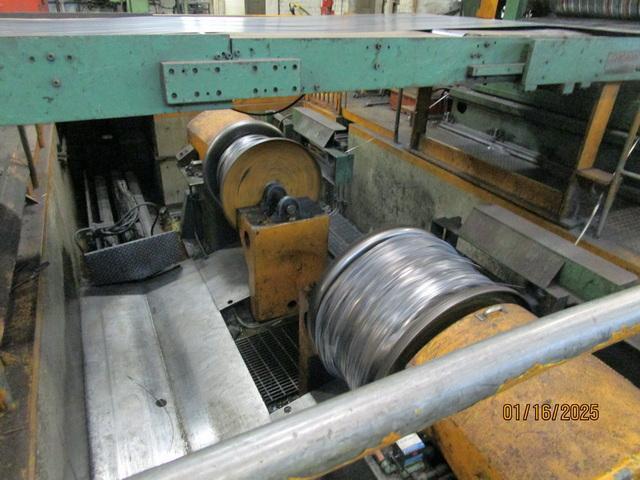

2 Scrap Winders
Oscillating Wind
Auto Bundle Eject
Bundle Transfer Conveyor
Chicago Rotary Drag Board Tension Stand
Top & Bottom Drag Pad Pressure
Air Bladder Pad Pressure
Rotary Tension Stand with Dual Hydraulic Brakes
2 Sets of Spare Tension Rolls
Exit Pass Line Rolls

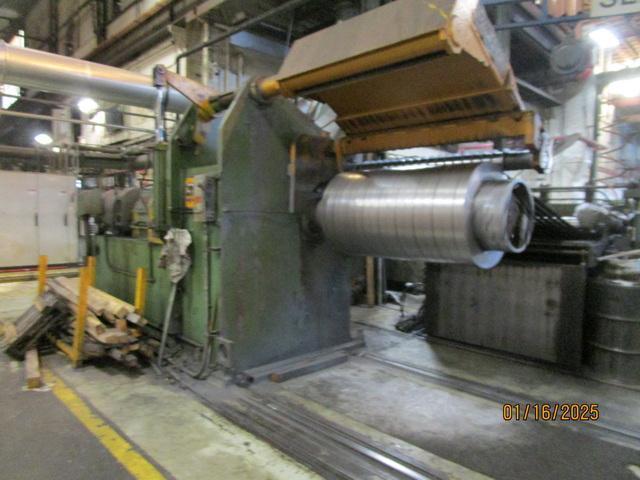

Recoiler
Overarm Seperator
Hydraulic Push-Off
20" Full Hydraulic Drum
100 HP DC Drive
2 Speed Drive All Gear Box
Exit L-Type Coil Car
Floor Standing / Self Contained Hydraulics
Coil Holders
Built In Scale
Tooling: Knives, Rubbers & Spacers
Hydraulic Units
Electrical Drives and Controls
Operator Push Button Panels
2 Sets of Spare Rotary Tension Rolls
Complete Line
