60” CMS Precision Rollform Line
Year 2003
Wall Panel Roll Form Line
Panel Width: 6” - 46”
Thickness: 18Ga to 10Ga
Total HP: 180
Complete Mill With

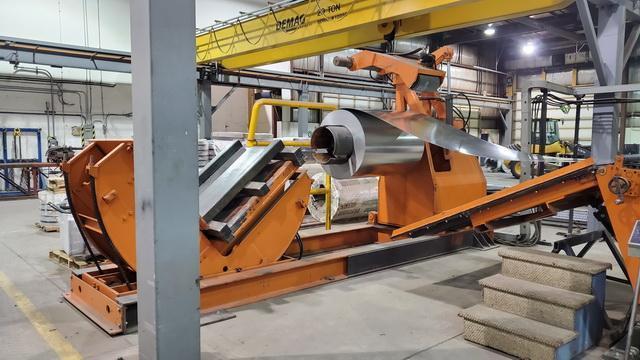

Entry Coil Car / Coil Tipper
20,000# Mandrel Uncoiler
Sliding Base
Hold Down Roll
Hydraulic Expansion
Powered / Feed Up Drive
Entry Feed Unit
Peeler Table
Edge Guides
Pinch Rolls

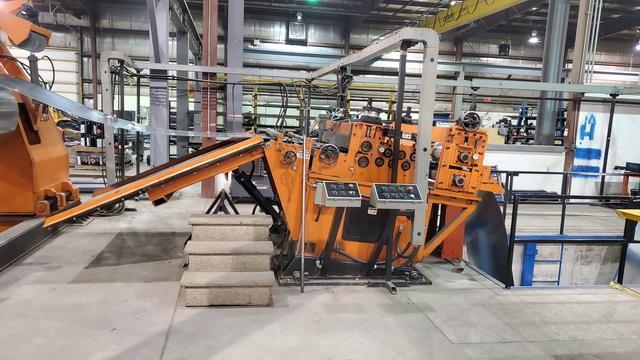

7 Roll Powered Flattener
Edge Trimmer
Looping Pit Cascade Rolls
Feeder Unit
Exit Pit Cascade Rolls
Edge Guides
Precision Feeder Roll

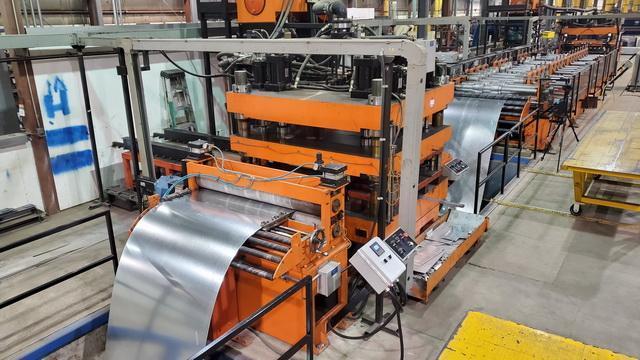

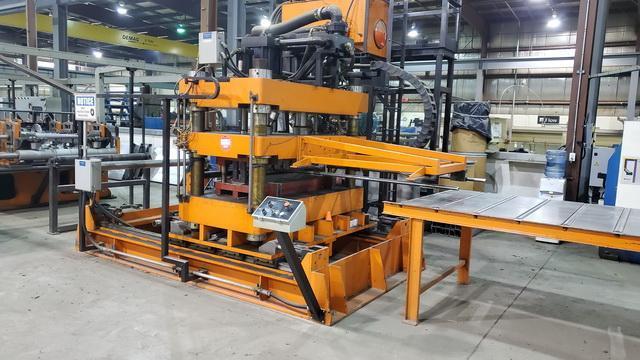

4 Post Hydraulic Hole Punch Press
4 Hydraulic Cylinders
Punch Die Shuttle Table

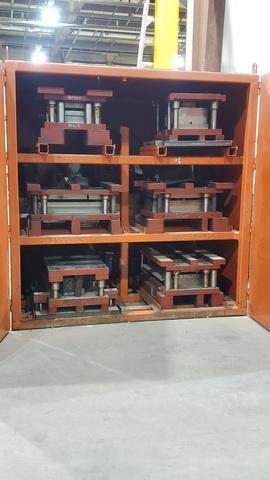

Spare Dies and Punches
Scrap Removal System
50 HP Power Unit

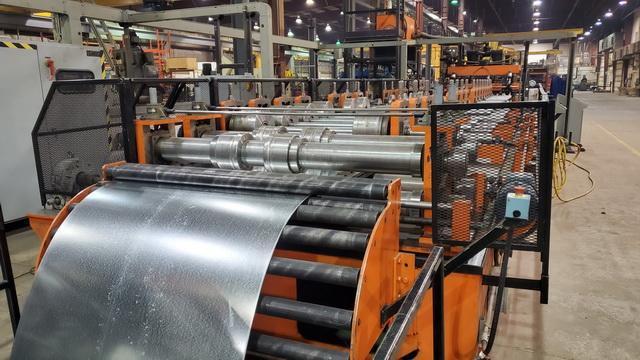

Auto Stand Adjust Rollformer
Entry Edge Guide Rolls
2 Entry Pressure Stands

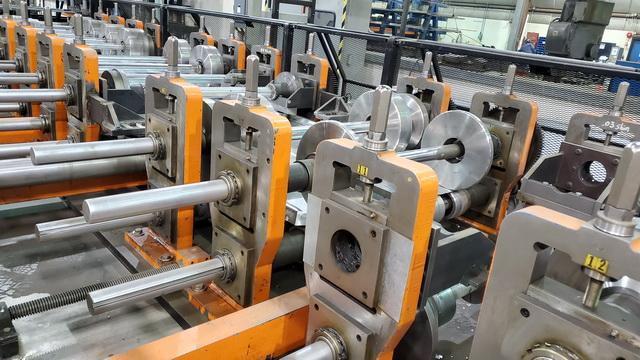

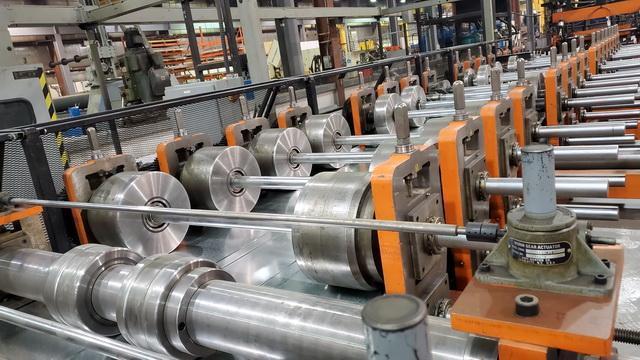

16 Roll Forming Stands
40 HP AC Variable Speed Drive
Motorized Width Adjustment
Motorized Stand Adjustment
4 Post Hydraulic Flying Shear
Hydraulic Shear Accelerator
(2) Hydraulic Power Packs
40 HP Hydraulic Unit with Servo Cylinder
30 HP Hydraulic Unit
Linear Sliding Base

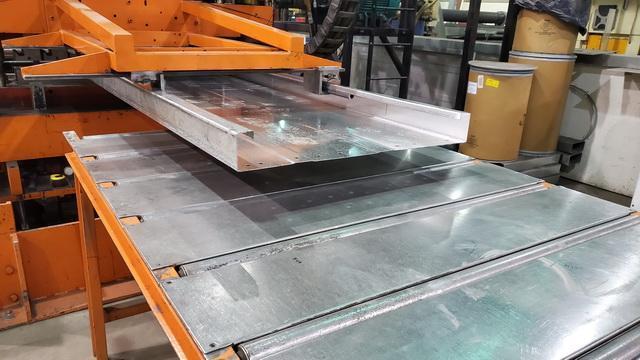

Run Out Table
Allen Bradley Digital Readouts
Allen Bradley Touch Screen Controller
Auto Tooling Adjust
