Manufacturer: Abbey Etna Machine Co.
Model Number: 6SXU
Specifications
Tube Diameter Range: 1.9” (48.2mm) – 6” (152mm)
Wall Thickness Range: .042” (1.1mm) - .120” (3mm)
Forming Roll Space Width: 21” (533mm)
Fin & Sizing Roll Space Width: 8” (203mm)
Driven Spindle Diameter: 2-1/2” (63.5mm)
Gear Box Data: Abbey 4K, 15:1 Ratio
Direction of Operation: Left to Right

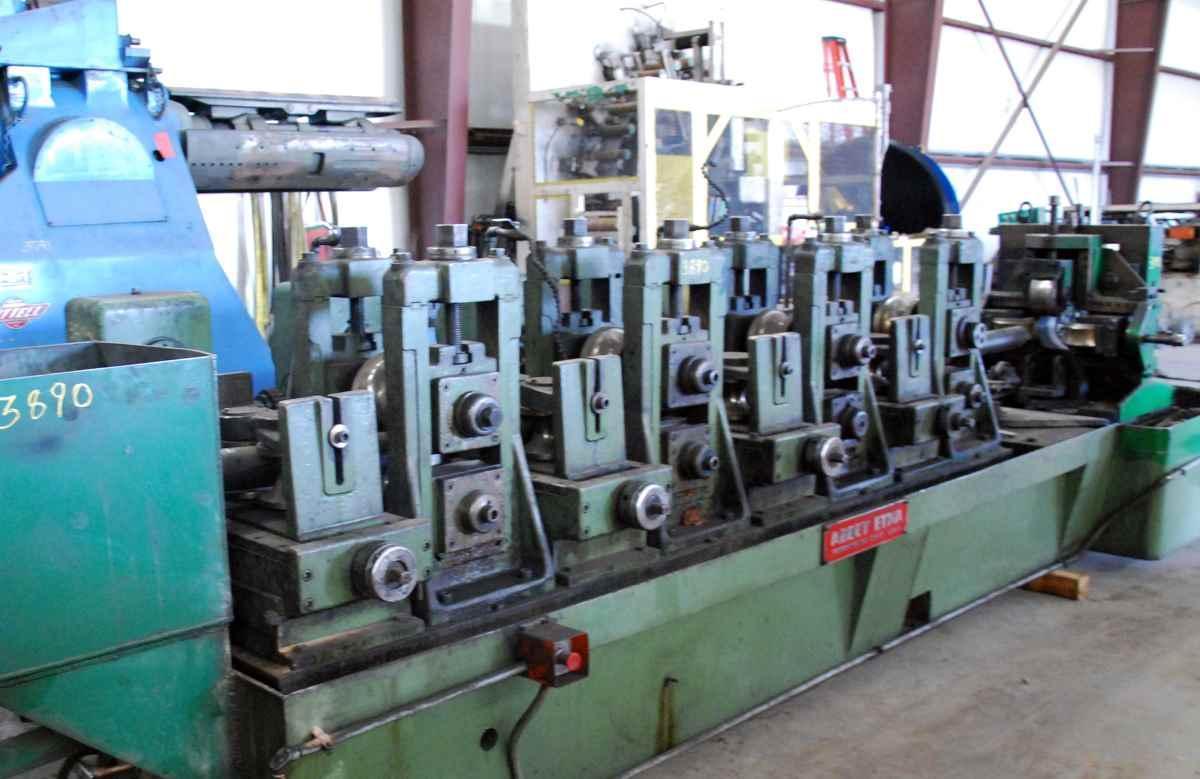

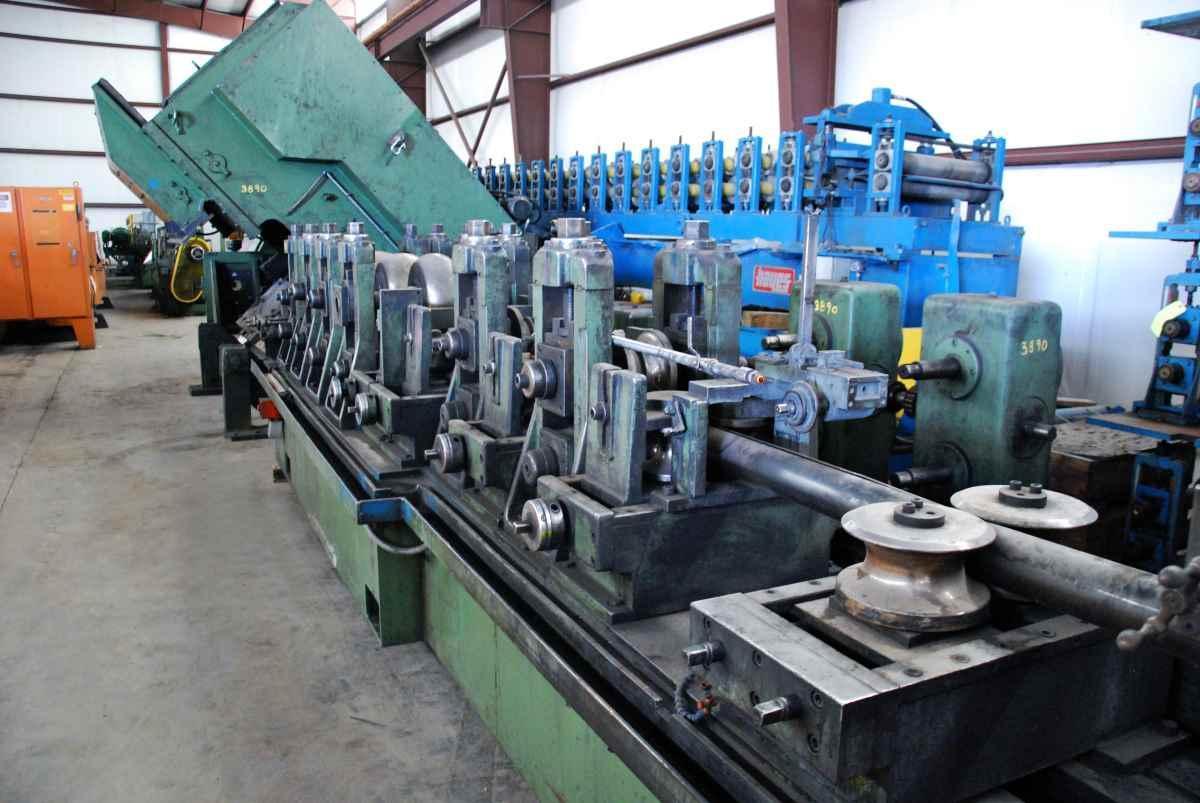

Forming Mill
Entry Guide
(4) Driven Breakdown Stands
(4) Idle Side Roll Units
(2) Driven Fin Stands
Welding Section
(1) 2 Roll Weld Pressure Unit for HF Welding
(1) Scarfing and Seam Ironer Unit
Sizing Mill
(4) Driven Sizing Stands
(4) Idle Side Roll Units

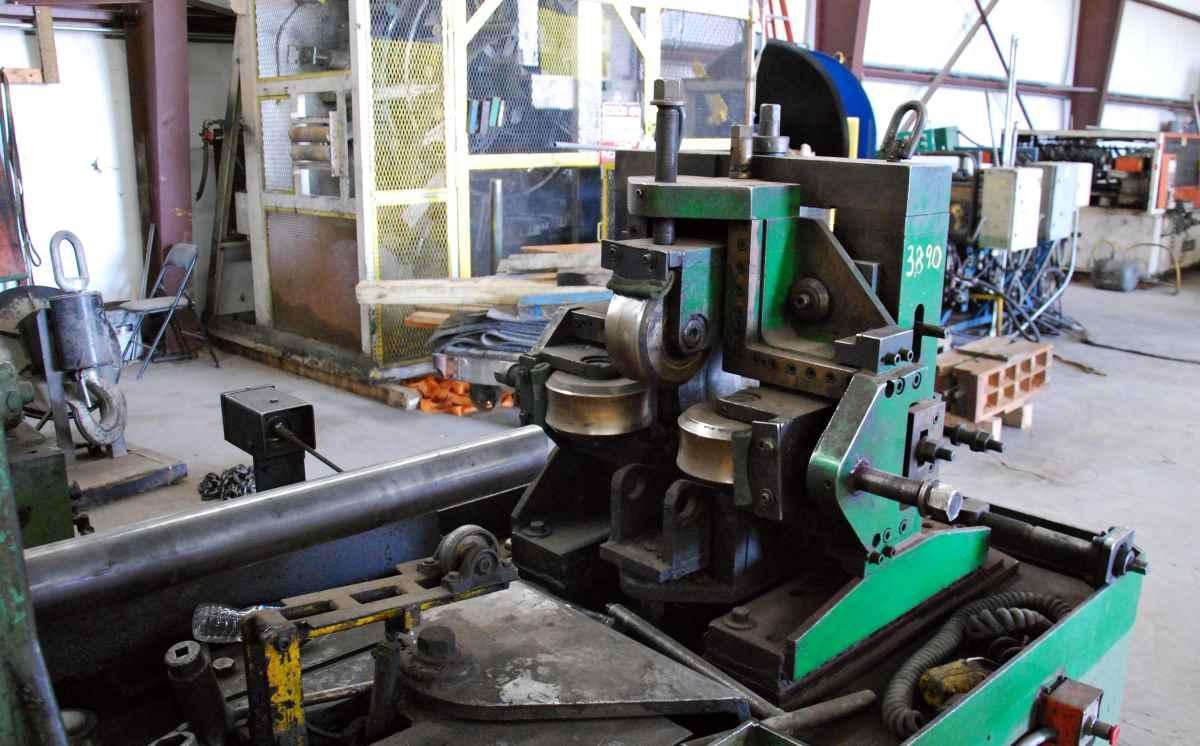

(1) Straightener Unit (Modified Turkshead)
Various Tooling Sizes
