500KW Interpower Off Line Induction Tube Annealing Line NEW 2020

Model
Not Specified

Stock #
102150O

Condition
Not specified

Year
2020

Equipped With

Year 2020
Serial No. 13190

Power:  500 KW / 3KHZ
Temperature Range:  1900 - 2200 Degrees Farenheit
Full Load Current:  32.0 Amps
Disconnect Rating:  60 Amps

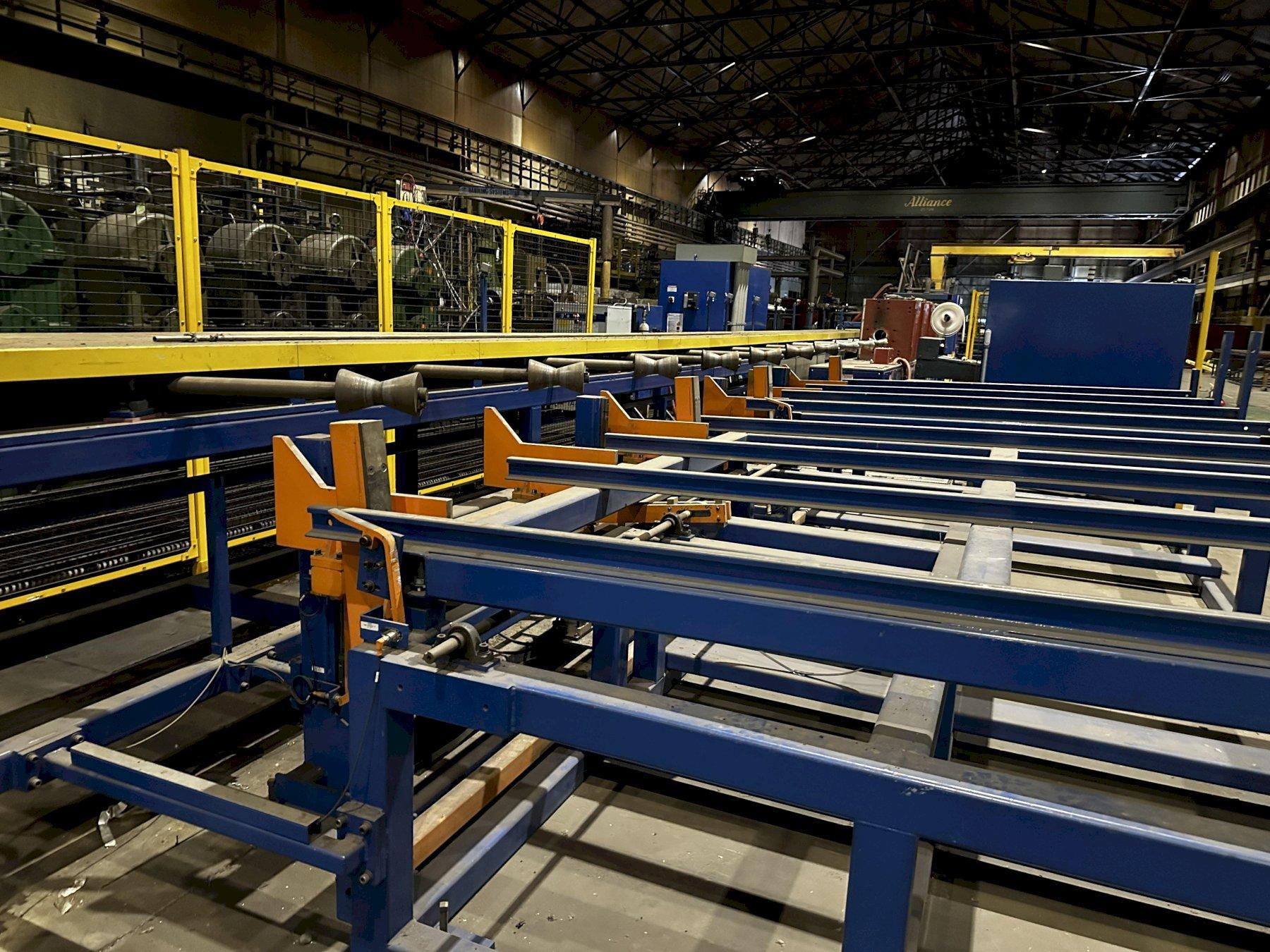

Entry & Exit Feed Tables

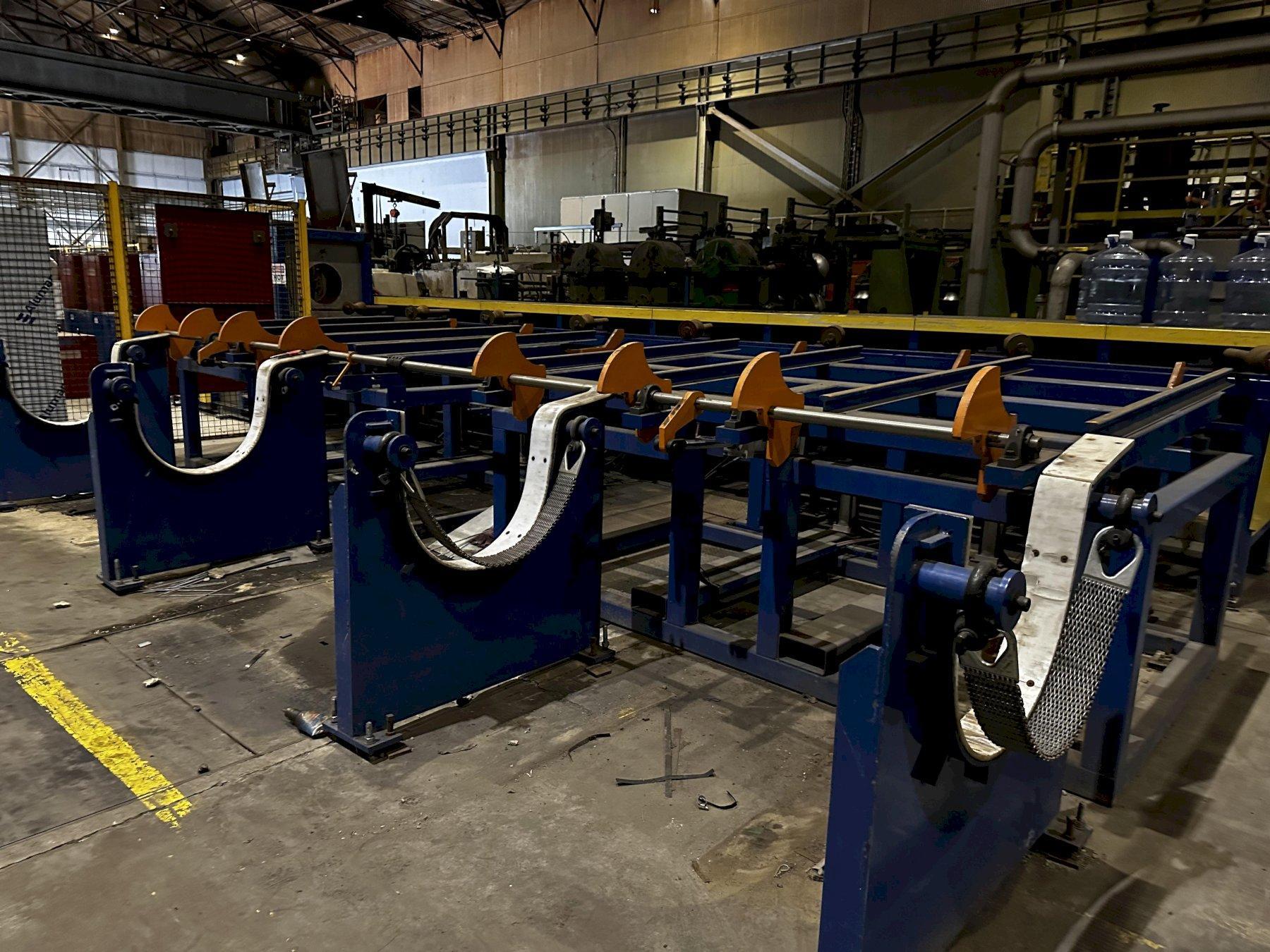

Skewed Tables

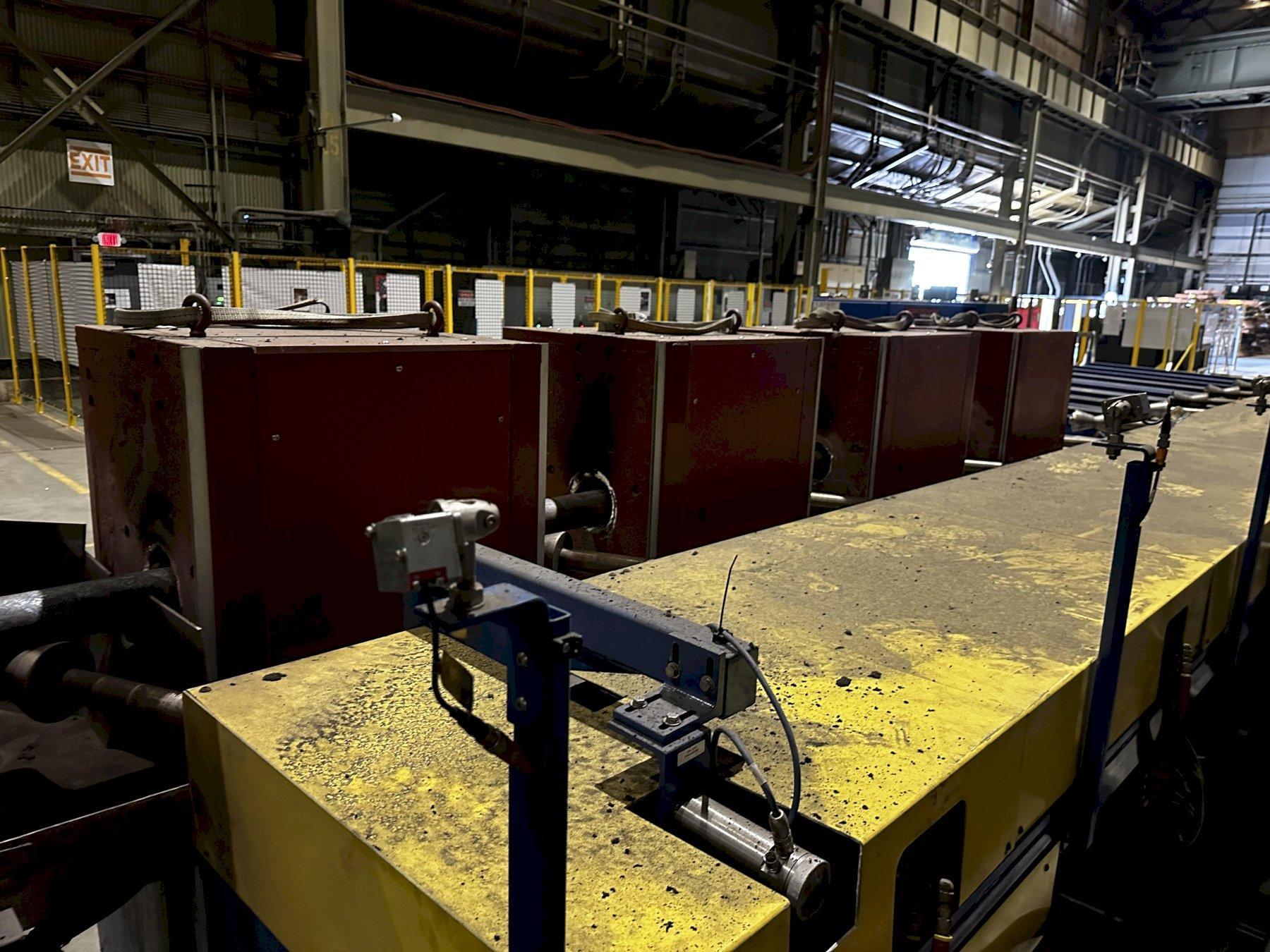

4 Induction Coil System
Cooling Section

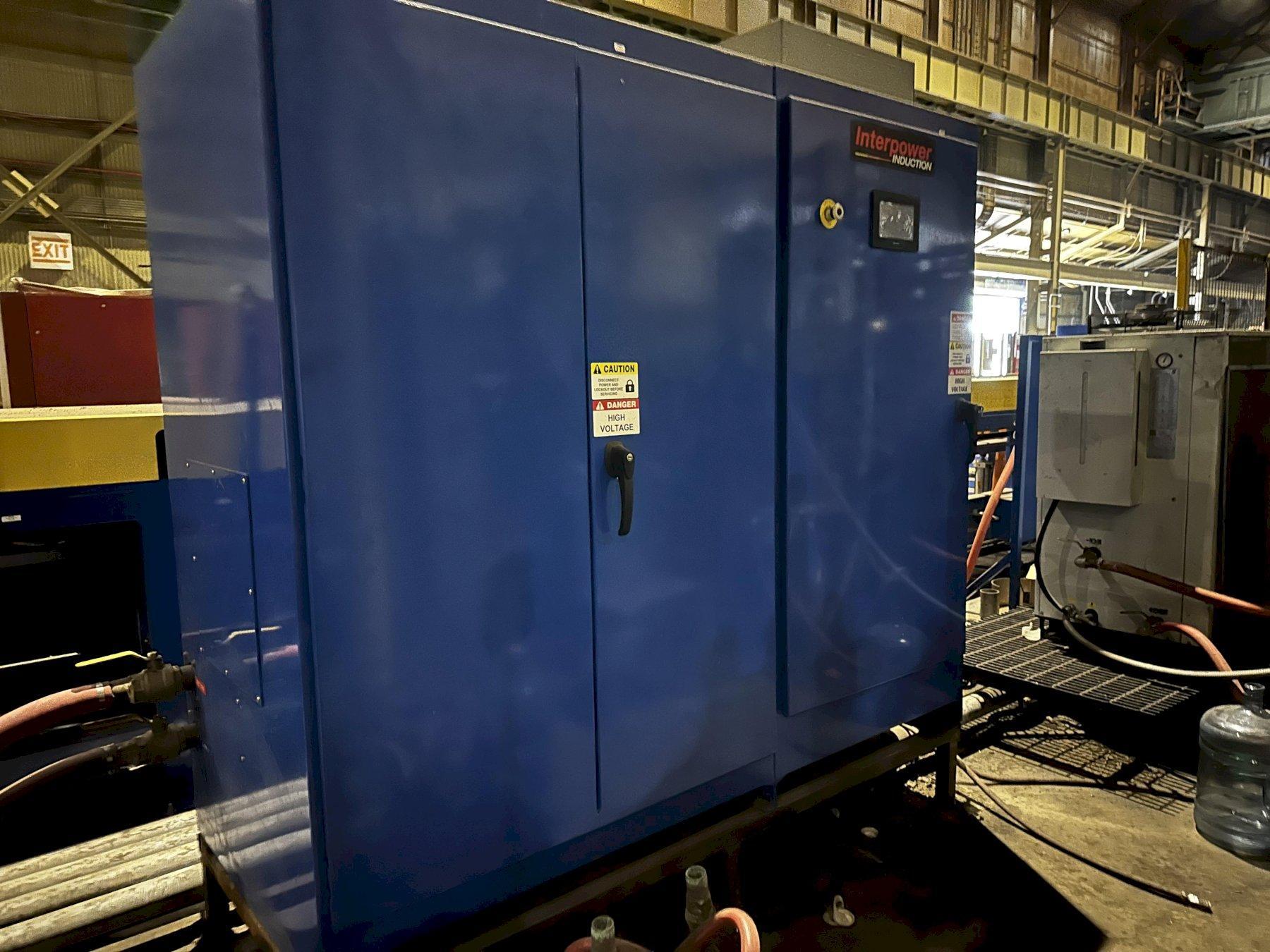

Power Supply
Water Chiller
Control Panel

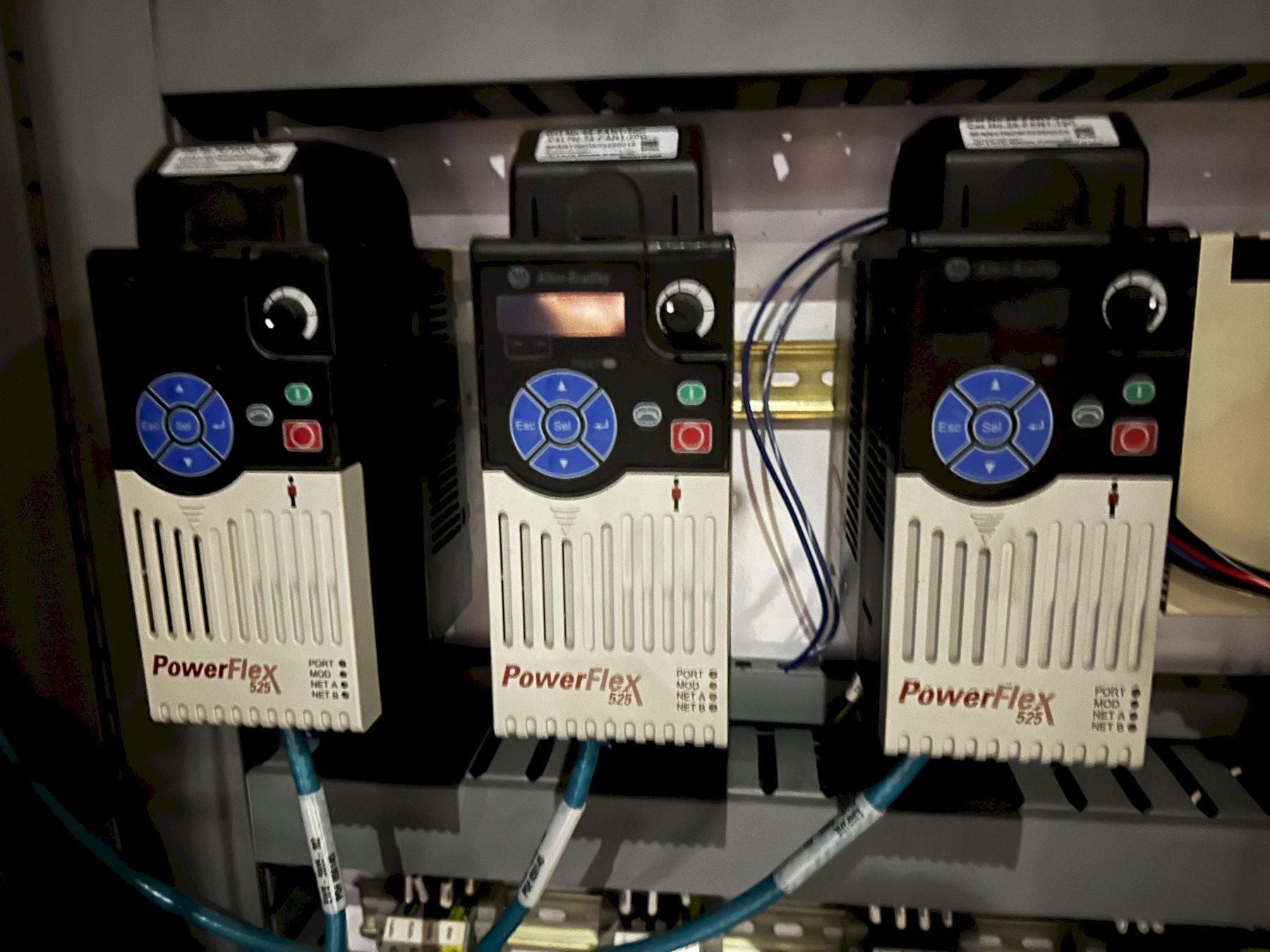

Allen Bradley 525 PowerFlex Digital Drives

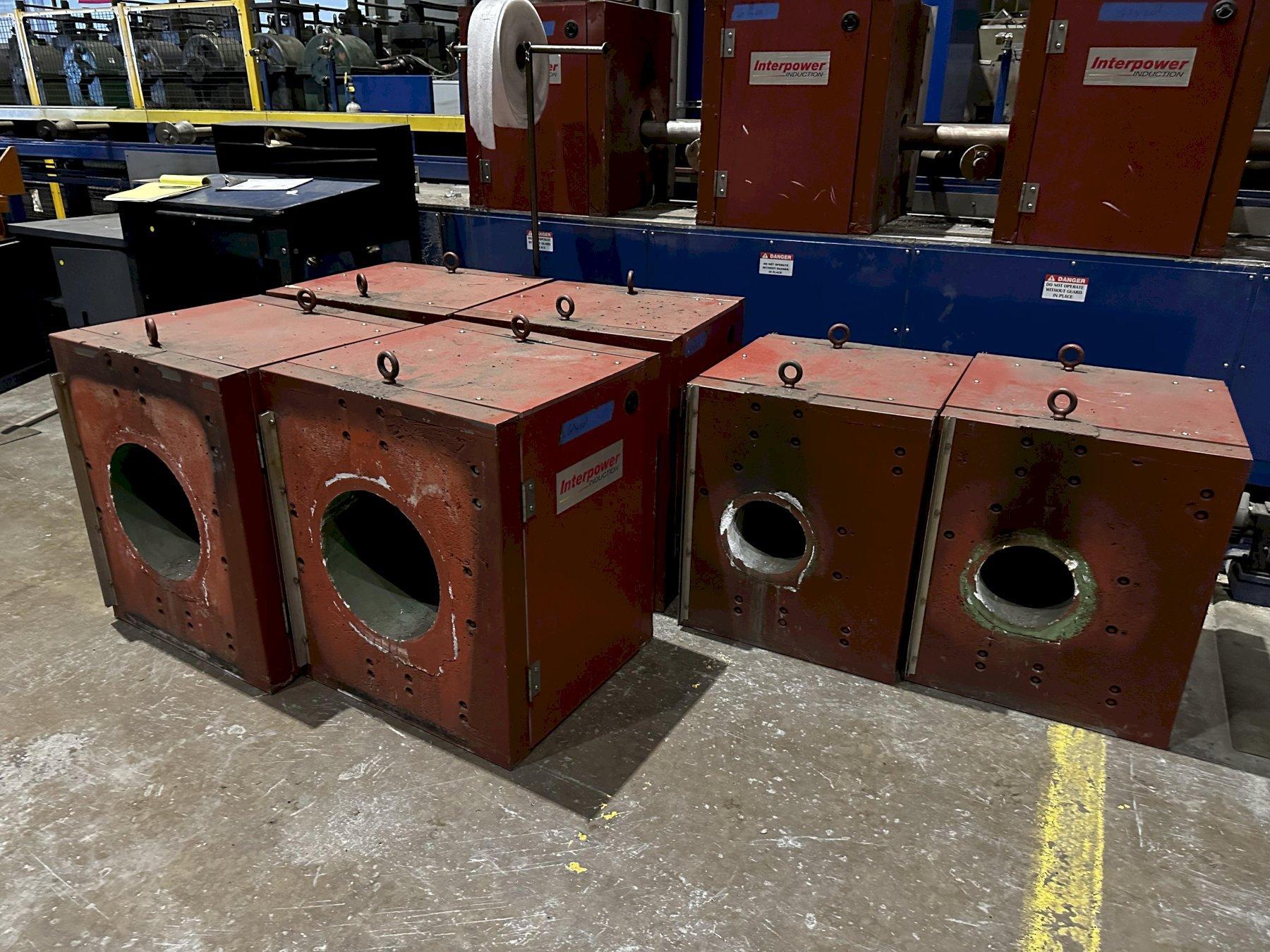

13 Induction Coils
(4)  2” - 3” Diameter
(4)  4” - 6” Diameter
(4)  8” - 12” Diameter
(1). Spare Coil

Max Length:  24’

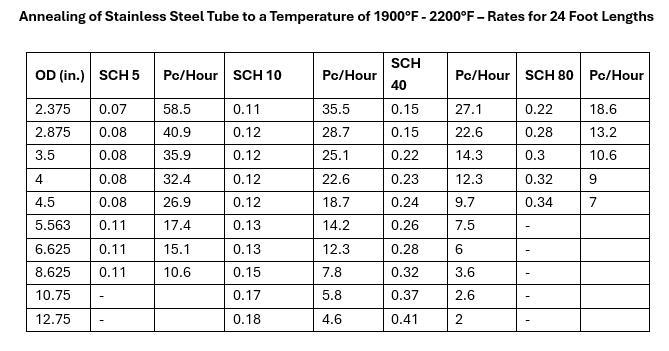

Annealing of Stainless Steel Tube to a Temperature of 1900°F - 2200°F – Rates for 24 Foot Lengths



OD (in.)

SCH 5

Pc/Hour

SCH 10

Pc/Hour

SCH

Pc/Hour

SCH 80

Pc/Hour

40

2.375

0.07

58.5

0.11

35.5

0.15

27.1

0.22

18.6

2.875

0.08

40.9

0.12

28.7

0.15

22.6

0.28

13.2

3.5

0.08

35.9

0.12

25.1

0.22

14.3

0.3

10.6

4

0.08

32.4

0.12

22.6

0.23

12.3

0.32

9

4.5

0.08

26.9

0.12

18.7

0.24

9.7

0.34

7

5.563

0.11

17.4

0.13

14.2

0.26

7.5

-



6.625

0.11

15.1

0.13

12.3

0.28

6

-



8.625

0.11

10.6

0.15

7.8

0.32

3.6

-



10.75

-



0.17

5.8

0.37

2.6

-



12.75

-



0.18

4.6

0.41

2

-
