Equipped With
General Specifications:
Square Tube Range: 150x150mm-400x400mm
Rectangle Tube Range: 150x150mm-300x500mm
Round Tube Range: 273-508mm
Wall Thickness Range: 4mm-16mm
Tube Length Range: 6m-15m
Max Line Speed: 25m/min
With the Following Components:
Coil Car
Uncoiler
Shear and End Welder
Accumulator

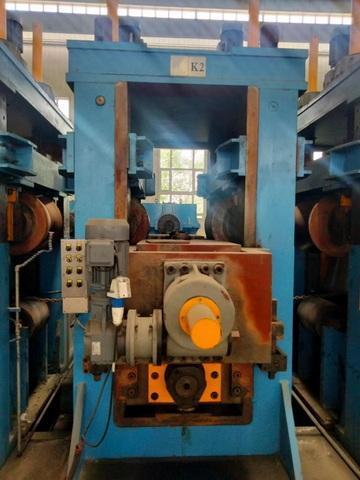

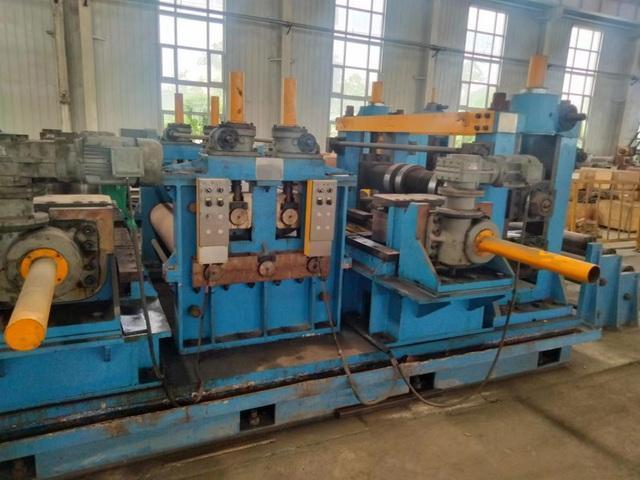

Forming Section (With Automatic Roll Adjustment)
12 Horizontal Rolling Stands
5 Vertical Rolling Stands
2x 160kw Motors, 1 x 250kw Motor
Vertical Roll Shaft Diameter: 140mm
Roll Changing System Adjusted by 3kw AC Motors
HF Welder
1200KW
Scarfing
Cooling Tank
Sizing Section (With Automatic Roll Adjustment)
4 Stands
2 x 200kw Motors
Cut Off

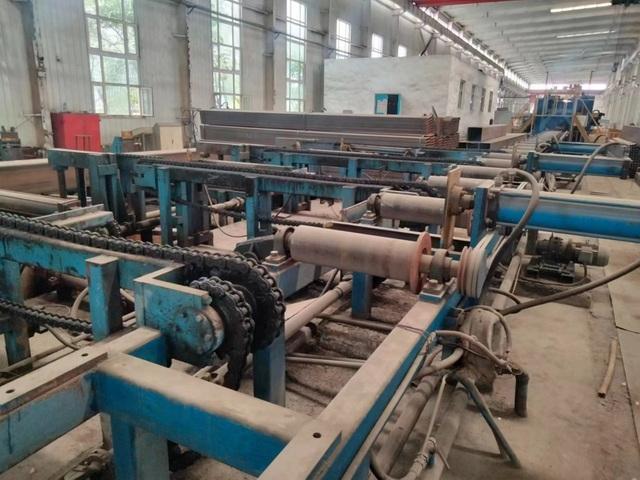

Run Out Table
Electric and Hydraulic System
Tooling for 377mm OD, 426mm OD, 150x150-400x400mm 3 Sets
