Equipped With
General Specifications:
Coil Thickness: .3mm-3mm
Coil Width: 200mm-1850mm
Coil Weight: 25,000 kg
Coil ID: 508mm-610mm
Coil OD Range: 600mm-2300mm
Line Speed: 10-90m/min
Cutting Length for Both Pilers: 150mm-4000mm
Max Piling Weight: 6000kg (only material)
AC Digital Servo Controller
SPM: 20-80
Stroke: 300mm
Die Height: 1200mm
Slide Adjustment: 300mm
Line Direction: Right to Left
Slide Area: 4000mm x 2500mm
Bolster Area: 4000mm x 2500mm

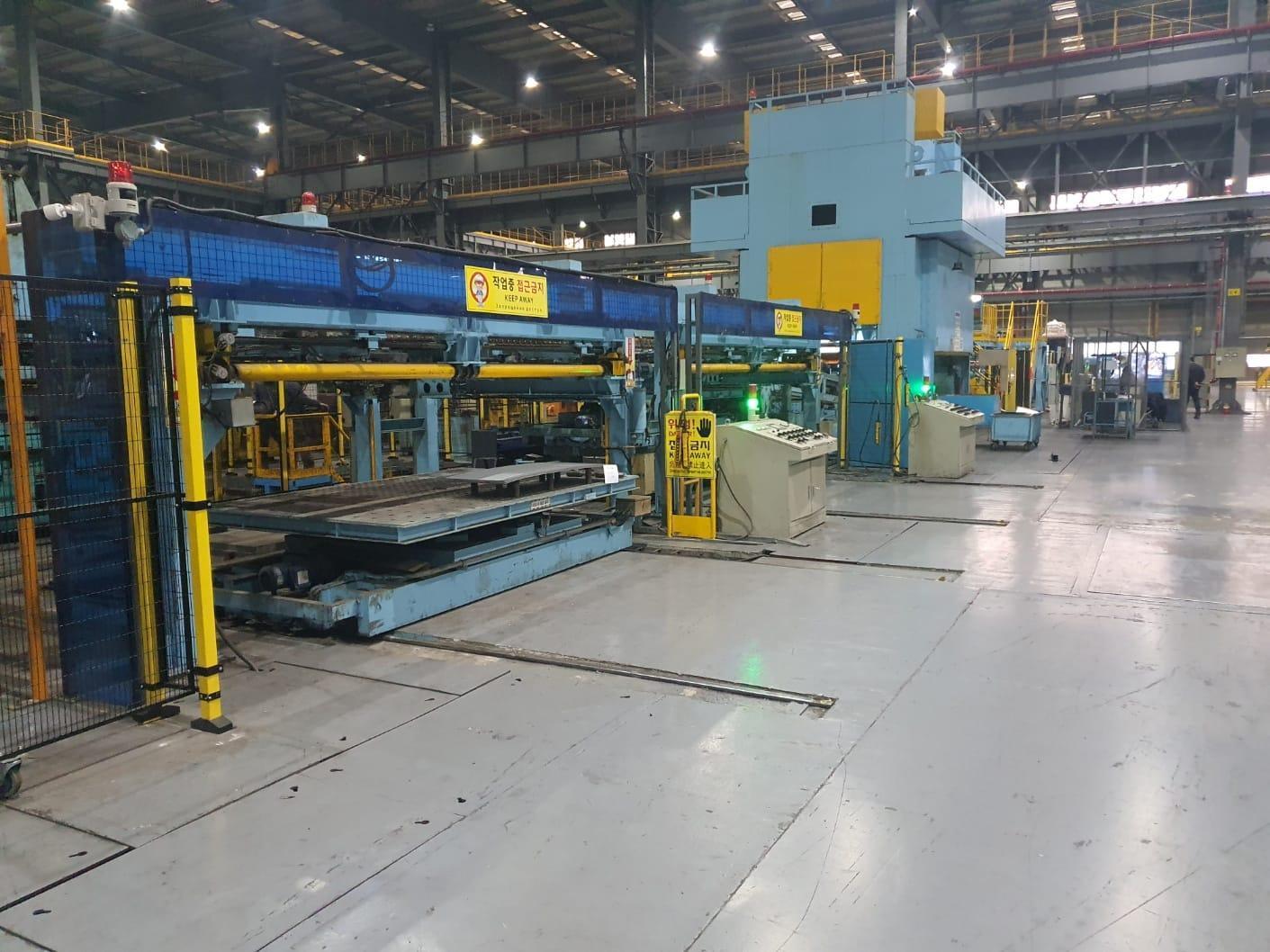

Complete with the Following Components:
Entry Coil Car
Uncoiler with Snubber Roll
Peeler Table
Flattener
Entry Crop Shear
6-HI Leveler with Edge Guides
Looping Pit/Table
Feeder
400 Ton Press
Telescoping Conveyor
Stacker with Two Stations
Reject Box
