Tube Diameter: 2" - 4"
Wall Thickness: .065" - .120"
Max Line Speed: 4 ft/min
Complete Mill With:

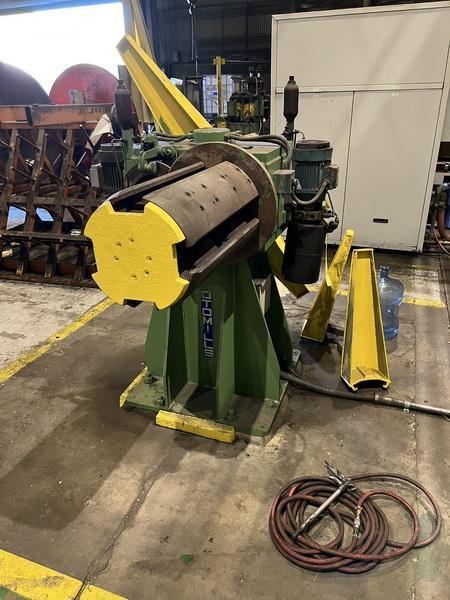

Oto Mills Double End Uncoiler
Hydraulic Expansion
Powered
Drag Brake
Coil Keepers
Cage Type Accumulator

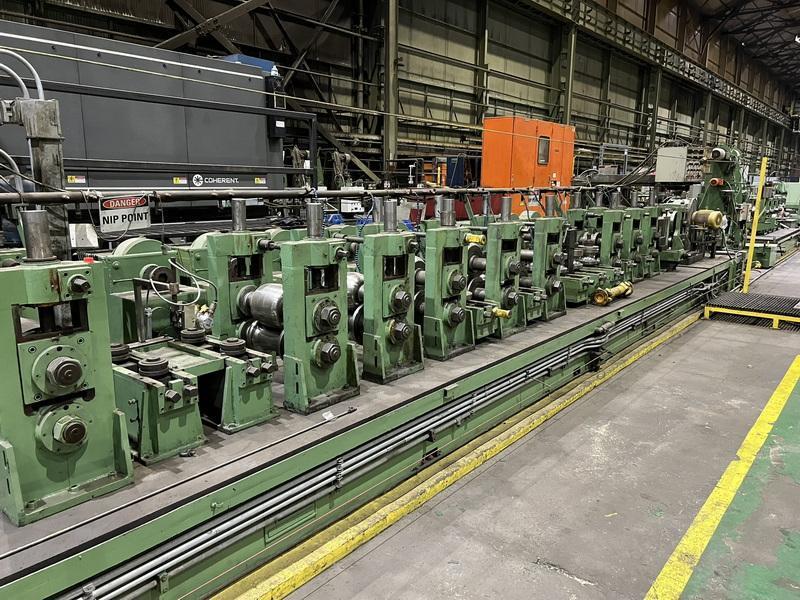

Forming Mill
Universal Drive
Single Point Adjustment
30 HP Forming Drive
Entry Stand
2 Sets of Edge Guides
5 Forming Stands
2 Side Idler Rolls
3 Side Idler Roll Cluster
3 Finn Pass Stands
2 Side Idler Rolls
Weld Box
Tig Welder
Gas Mixers
2 Polishing Heads

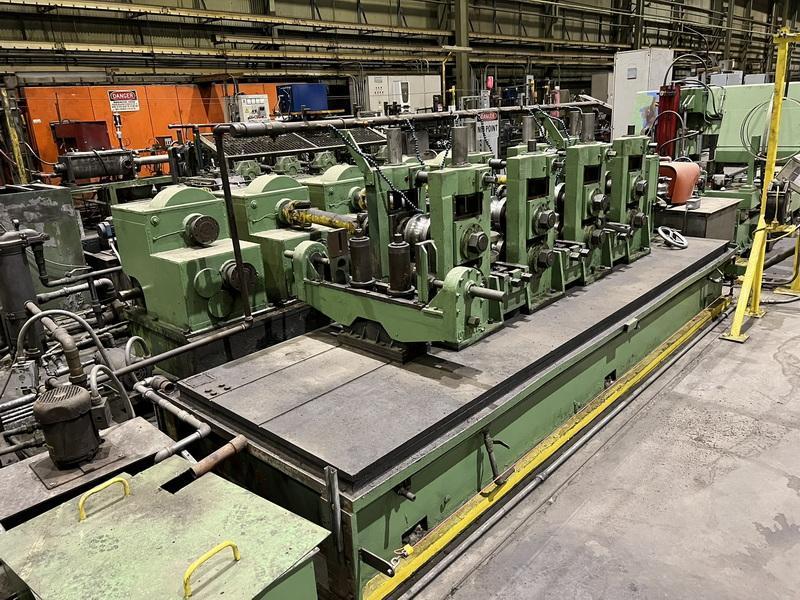

Sizing Mill
Universal Drive
Single Point Adjustment
4 Sizing Stands
3 Side Idler Rolls

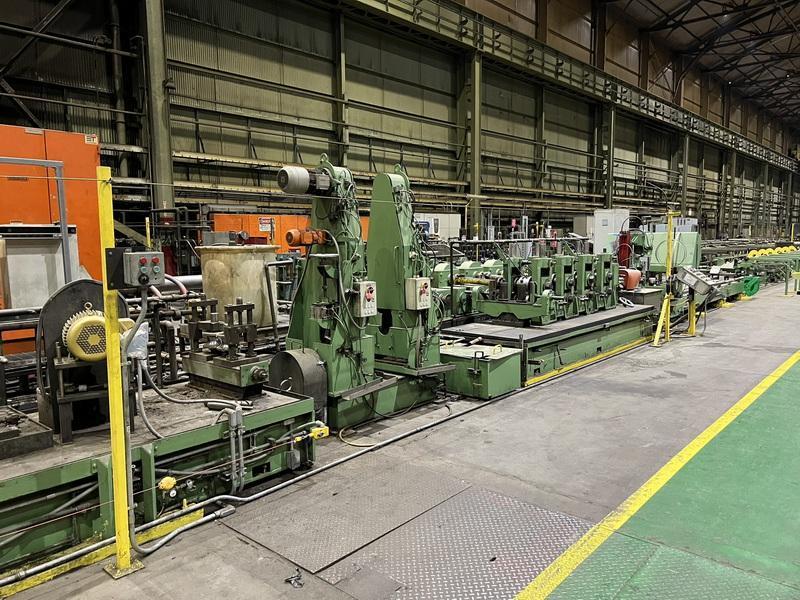

Flying Saw Cut-Off
Run Out Table
Panelview 1000 Digital Controls
Tooling for the following: 2.5, 3.0, 3.25, 3.5, 4.0
