Manufacturer: Wilson Byard
Entry Coil Width: 2000mm (80")
Coil OD: 2000mm (80")
Coil ID: 610mm (24")
Steel Grades: X52, X70
Pipe Diameter Range: 500mm to 3000mm (and above)
Pipe Thickness Range: 5mm to 25mm
Pipe Length: 6m (min) up to 20m (100m with optional extension)
Estimated Annual Production Tonnage: 4,800 working hours per year... 50,000 Tonnes per Annum
Complete Mill with the Following 5 Sections (Rear Feed in Section, Front Feed In Section, Pipe Formation System, Gate Section and Pay Off Table) :
REAR FEED IN SECTION:

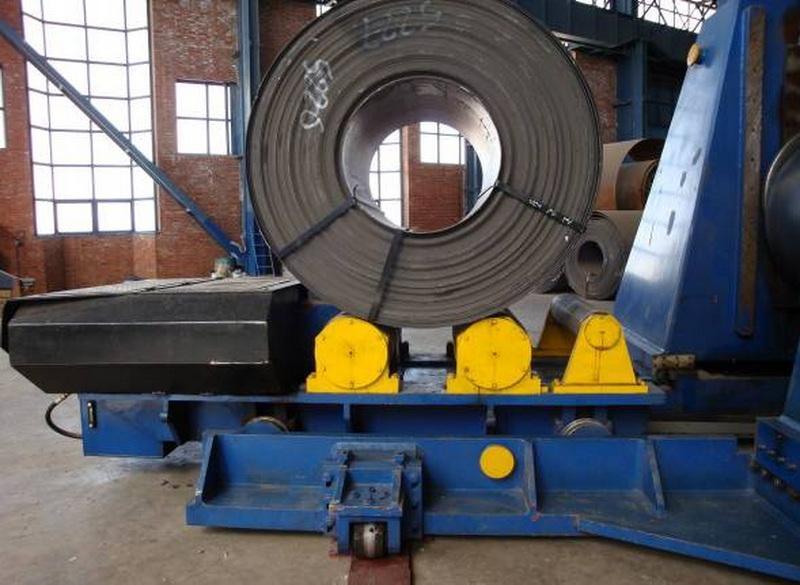

- Coil Positioning Device with Coil Car
40 Ton Weight Capacity
- Double Cone Uncoiler

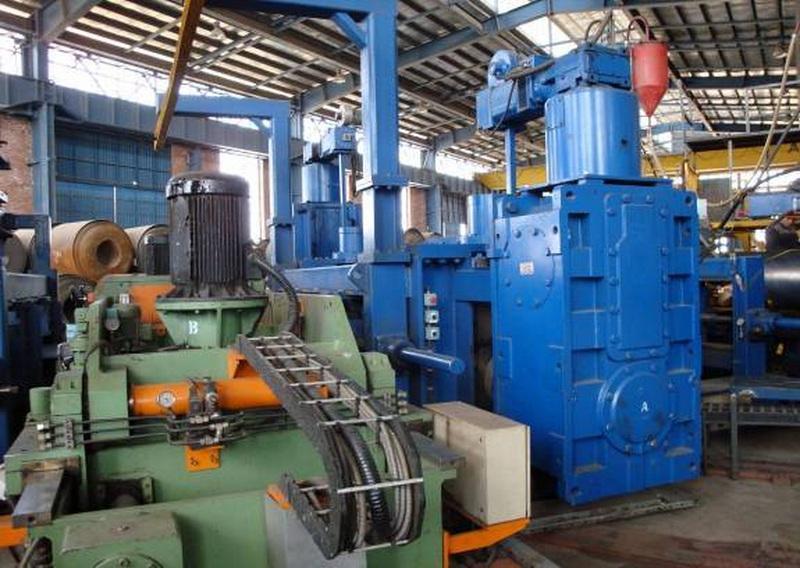

- 5 Roll (3 over 2) Straightener
FRONT FEED IN SECTION:
-Cross Butt Welding Station
Lilcoln Tandem WElding (DC 1500) and AC 1200
- Cagil Milling Prep Section
Single V, Double V Milling

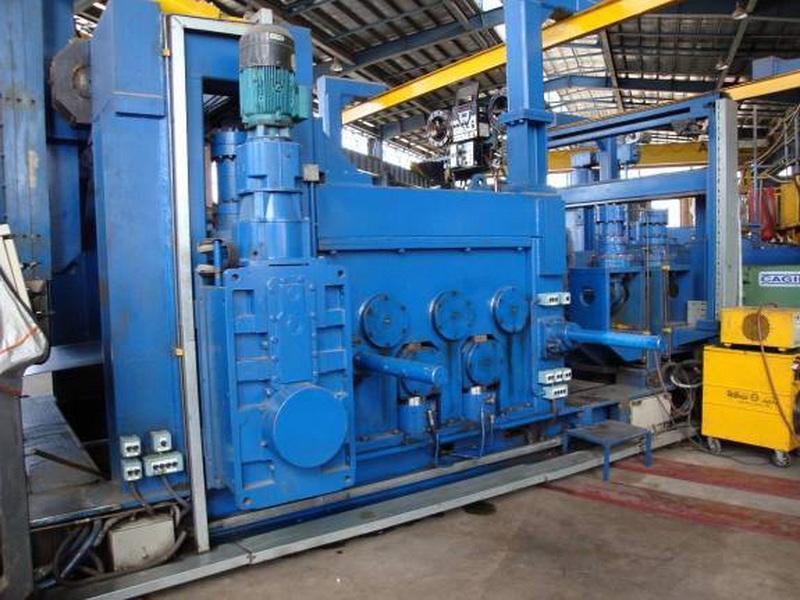

- Main Drive Rollers
450mm Diameter Rolls
Flexible Gear Coupling
(2) 44kw DC Motors

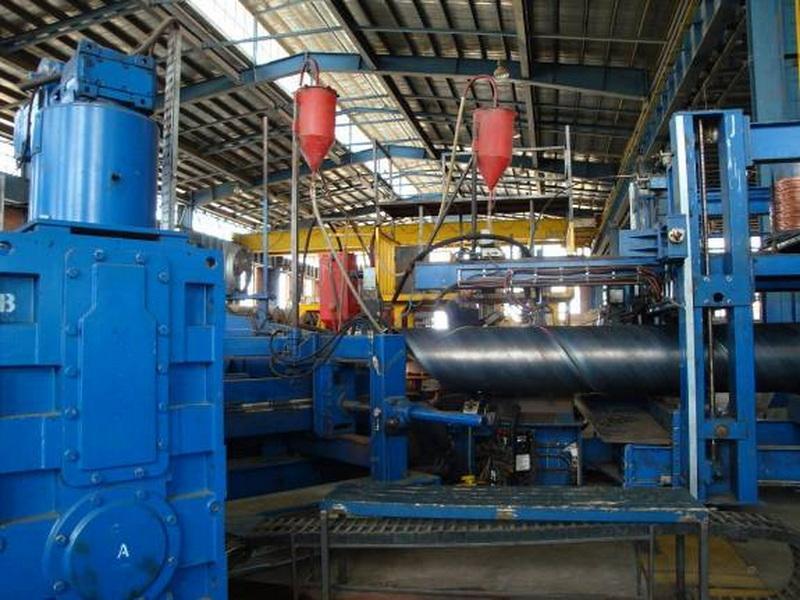

PIPE FORMATION SYSTEM (Helix Angle):
-Formation Rollers
Front set Mounted onto Formation Table Top
Second Set Mounted onto the Boom Section
Third Set Horizontally Adjustable by Jactuator
-Formation Boom
-Small Pipe Formation Boom
-Weld Guidance System
ISS Ltd Scottish Laser Guidance and Welding Co.
- Inside Welding Head
Lilcoln Tandem WElding DC1500 /AC1200
- Lilcoln Flux Management and Recovery System
-Gap Control
GATE SECTION:
- Double Gate with Lower and Upper Roller Assemblies to Guide the Pipe
Rollers Manually Adjustable for Positioning Helix Angle
- Welding Platform
-Welding Equipment
PAY OFF TABLE:
- Plasma Pipe Cut Off System
Cut Off Trolley with Hypertherm Plasma Air Cutting Head

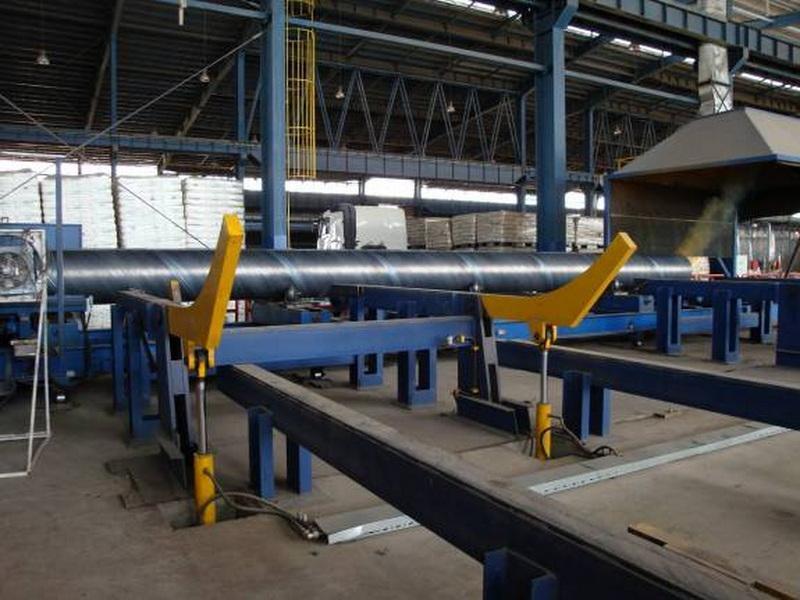

- Pipe Throw Off Arms
Complete with Hydraulics, Electrics, Controls, Manuals and Drawings
