Product TYPE
- Angle A40~A100
- Channel C75~C150
- Flat bar F38~F125
- Round bar R16~R25
- Un-Angle UA50
- Pro-File PF-C, PF-F
- Rock bolt M25, M29
- SPS5 F60~F80
- Half round bar HR60
- Square bar S22
Total 10types 98size
Equipment configuration and specifications:
Reheating furnace
- Type Pusher type, 3zone - Buner 12sets
- Capacity 50ton/Hr.(to 65ton/hr.)
- Size W6.11m x H4.3m x L24m
- Fuel LNG
- Control PID control
- Other Instrument system & Heat exchanger

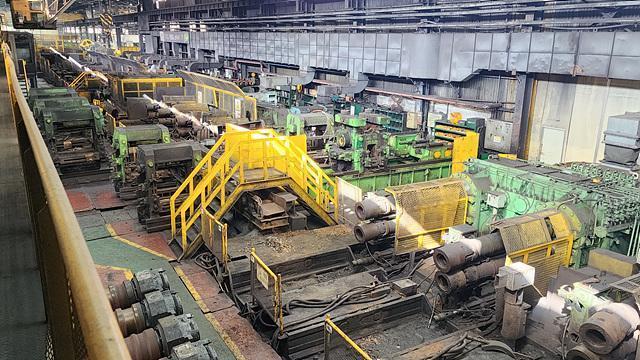

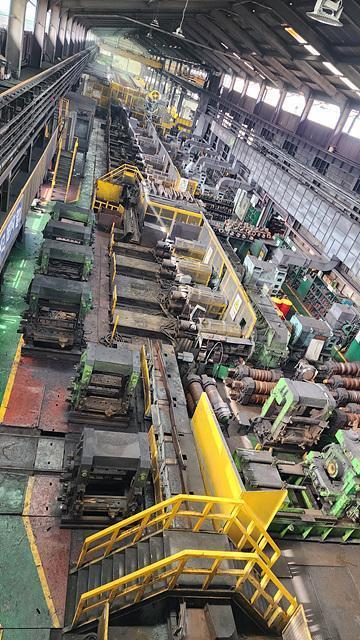

Mill Line

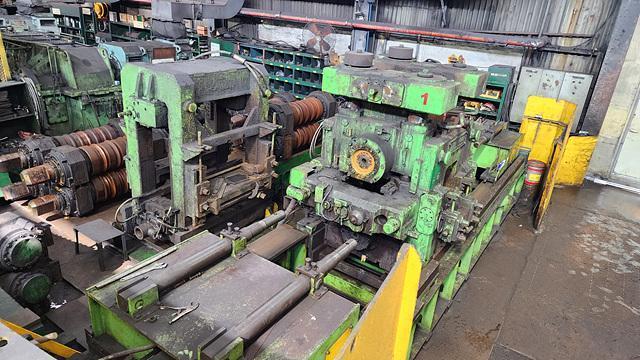

- Roughing mill H-V Stand – Motor 750kw (450~1350rpm), Roll Dia.-500mmØ
1/2 Stand – Motor 550kw (250~800rpm), Roll Dia.-500mmØ
3/4 Stand – Motor 600kw (250~800rpm), Roll Dia.-500mmØ
5/6 Stand – Motor 600kw (400~1000rpm), Roll Dia.-500mmØ
- Intermediate mill 7/8 Stand – Motor 600kw (400~1000rpm), Roll Dia.-420mmØ
9/10 Stand – Motor 600kw (300~800rpm), Roll Dia.-420mmØ
- Finishing mill 11/12 Stand – Motor 650kw (500~1200rpm), Roll Dia.-400mmØ
13 Stand – Motor 650kw (500~1200rpm), Roll Dia.-400mmØ
14 Stand – Motor 650kw (500~1200rpm), Roll Dia.-400mmØ
15 Stand – Motor 650kw (450~1350rpm), Roll Dia.-400mmØ
16 Stand – Motor 650kw (450~1350rpm), Roll Dia.-400mmØ
18 Stand – Motor 650kw (450~1350rpm), Roll Dia.-400mmØ
18 Stand – Universal mill (channel)
Edge stand (Flat, Profile)
- Shear Flying shear - Motor 75kw (1500rpm)
Cutting capacity-65mmsq. Cutting speed-3.6m/sec.
Dividing shear – Motor 110kw (500rpm)
Cutting capacity-1,080°C x 250w
Cooling bed Type – Working beam, run in & run out table
Size – W7m x L75m
Move rack pitch – 500mm
Fix rack pitch – 250/500mm
Rack motor – 90kw (1150rpm)
Water spray zone – 3 zone
Leveler Type- multi horizontal pitch type,
Motor-AC 150KW
Levelling speed-2.8m/sec
Leveler-A40x7pcs, C150x1pcs
Leveling roll pitch - 500mm
Cold shear Type - down cut, air C&B
Motor – AC55kw
Cutting capacity – 400ton
Shear gauge stopper
Products handling Conveyor & counting system
Stacking & turner
Binding machine x 2
Short products treatment system

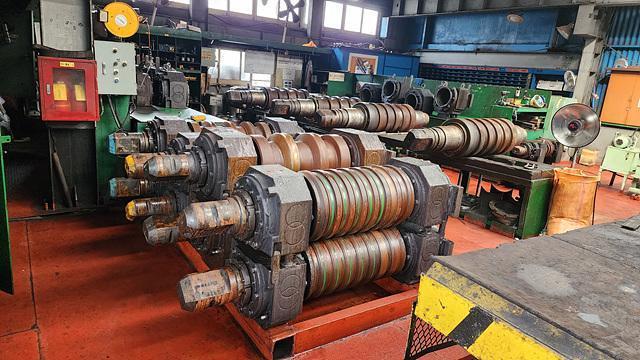

Roll shop Roll for each product – app.380ea
Roll process tool – Lathe
Roll treatment tool
Entry guide
Exit guide
Bearing chock
Bearing removal machine
Electric equipment DC motor convter panel(mill motor)
PLC & Relay panel
Power & control panel
Control desk
Other facilities
Gas station(LNG)
Direct/Indirect water pump
Dust treatment system-Recuperator, Blower,
Lubrication & Hydraulics system
