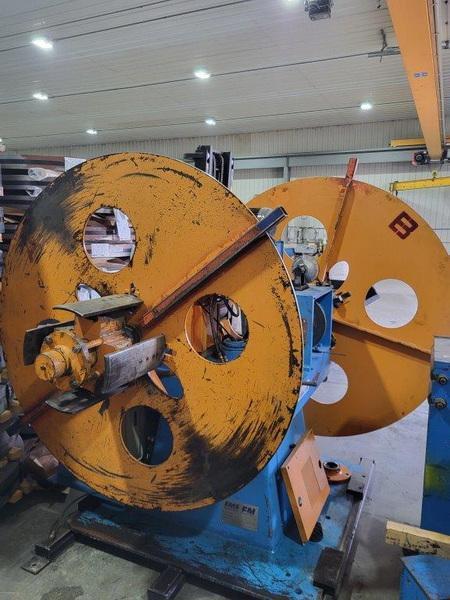

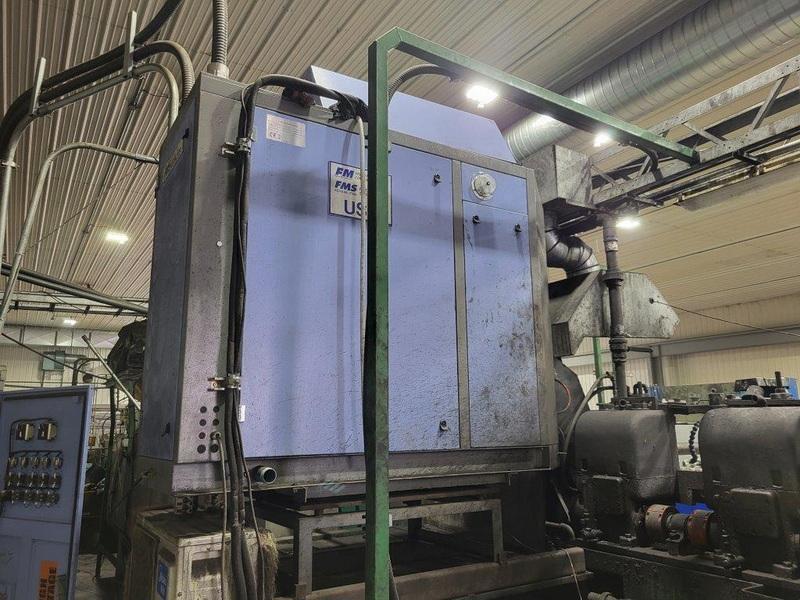

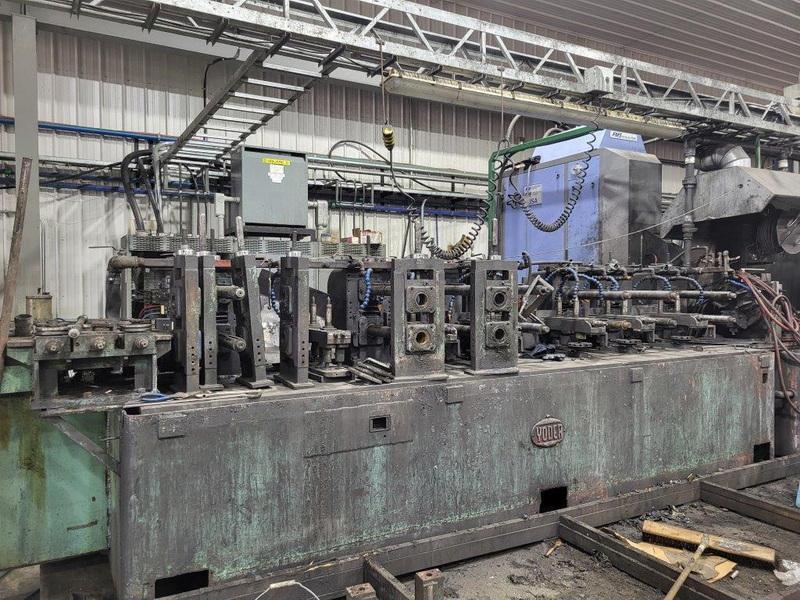

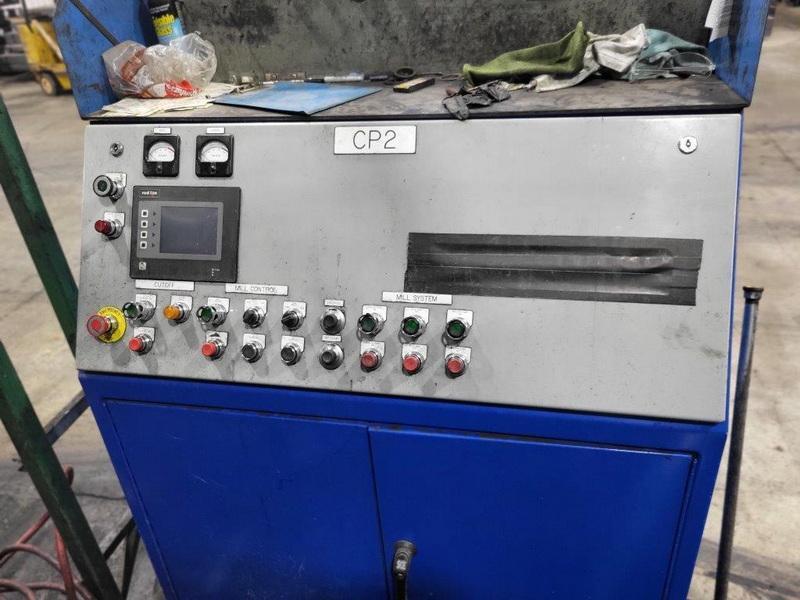

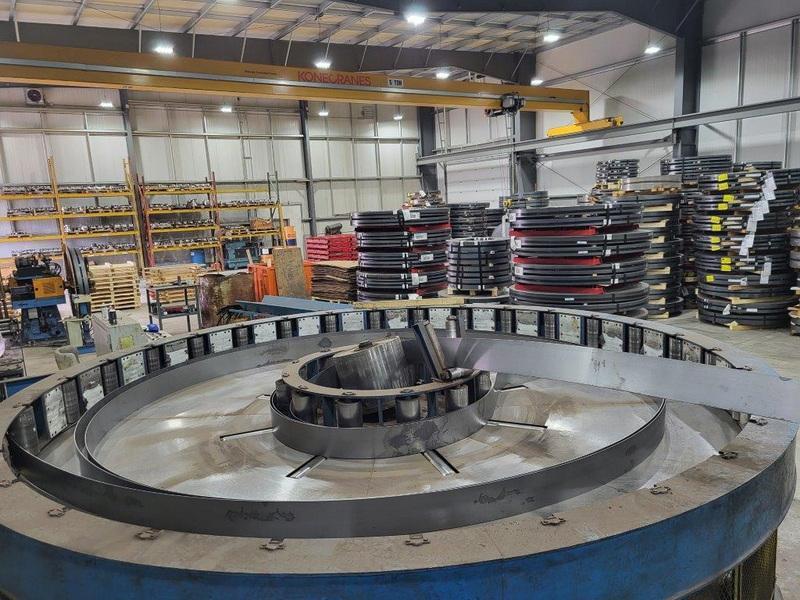

Manufacturer: Yoder Model: M2.5 Line Direction: Left to Right Thickness Range: .035" to .134" Tube OD Range: 1/2" to 3.1" Complete Line with the Following Components: 5 ton x 14 ft Jib Crane 10,000 lb FMS Double Uncoiler. (New 2015) 12” Hydraulic Shear/ End Welder 12” FMS Horizontal Accumulator (New 2015) 200 KW FMS Solid State HF Welder (New 2014) Forming Section: 60 HP AC Motor 4 speed transmission. (New 2009) 4 Breakdown Stands, 2.5” shafts, 15” Roll space. 3 Fin Stands , 2.5” shafts 15” Roll space. 6 Idle Roll stands 1.375” shafts. Operators Console built in 2009 Currently less than 10,000 hrs showing. 3 Roll chuck Style Weld Box. 30mm shafts. Rolls Included 200 KW HF Solid State FMS Welder Manufactured in 2014 Ironing Pass 1.375” Shafts. 25 ft Cooling Trough. Sizing Section: 60 HP AC Motor with 4 speed transmission (New 2009) 4 Sizing Stands, 2.5” shafts, 15” roll space. 4 Idle Roll Stands, 1.375” Shafts. 4 roll chuck style Turks Head with Rolls 4 Roll FMS sizing Turks head. Yoder P55 3.125x.134 flying cutoff with Air Clutch Die Accelerator. (New 2015) Lots of new and used die sets. 28 ft roll out table with air dump system. Manual stacking table. Upgraded it to new electronics and motor drives. Less than 10,000 hours on it since then. Lots of spare parts on the shelves and 3 gearboxes. Tooling included:
1" x 1" Set
.625" OD
Video Available
