Material Specifications:
Pre-painted Galvanized Steel Sheet
Tensile Strength: 250-350 MPA
Thickness Range: 0.75-1.5 mm for TR150/280mm and TR100/275
0.75-1.25 fo Cassette, HACIERBA100/600
Line Speed: Max: 40 m/min
Complete Line with The Following Components:
Entry Coil Car
Mandrel Uncoiler
Coil Weight: 15ton
Coil OD: 1300mm
Coil ID: 508mm
Coil Width: 1250mm

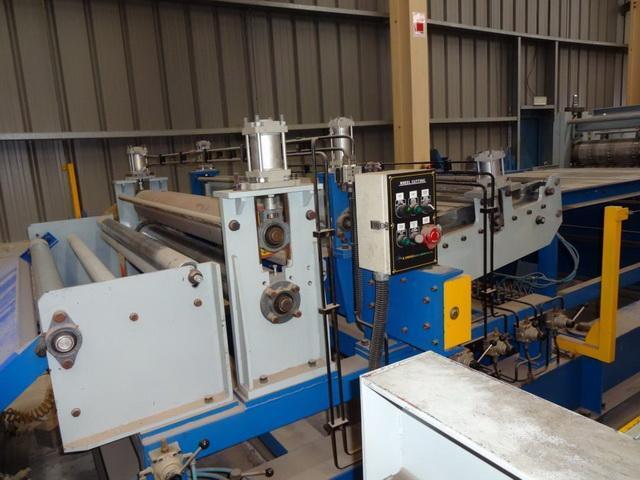

Front Shearing & Coil Guide Table & Protect Film Applicator Unit

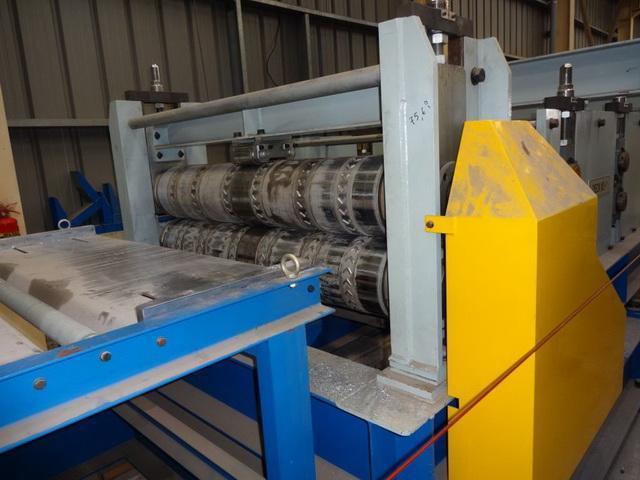

Cassette Type Roll Forming Machine (A, B and C)

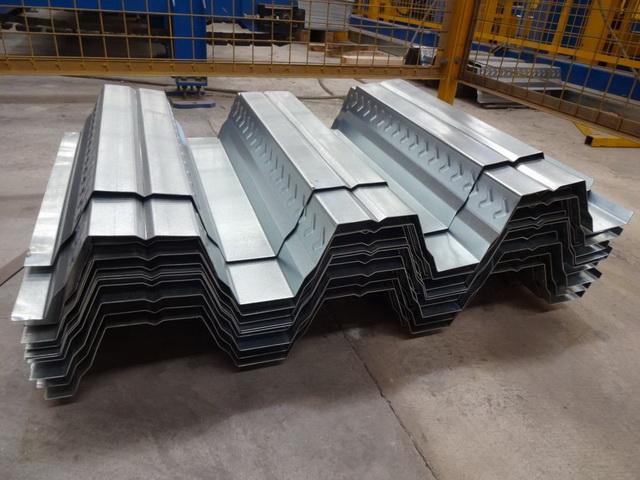

A. Roll Forming Machine for Trapezoidal (150/280mm)
Forming Station: 26 Steps, (The Steps Might Change Without Notice)
Pass Line: 1000mm
Shaft Diameter: 130mm
B. Roll Forming Machine for Trapezoidal (100/275mm)
Forming Station: 26 Steps, (The Steps Might Change Without Notice)
Pass Line: 1000mm
Shaft Diameter: 130mm
C. Roll Forming Machine for Cassette, HACIERBA (100/600mm)
Forming Station: 22 Steps, (The Steps Might Change Without Notice)
Pass Line: 1000mm
Shaft Diameter: 130mm

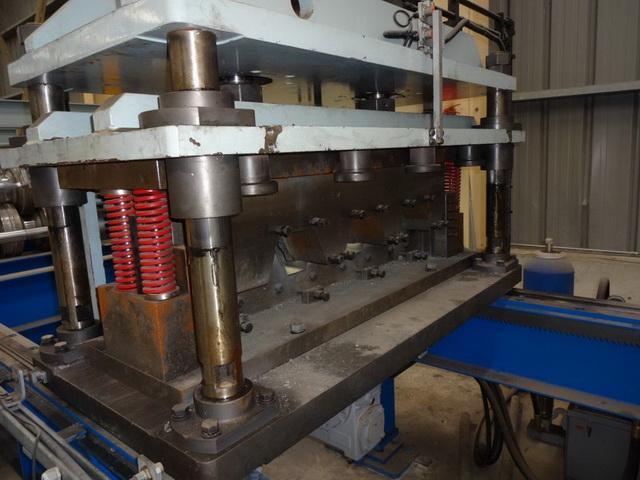

Hydraulic Flying Cut Off
Traveling Method: Servo Motor
Tolerance of Cutting: Total ±2.0mm
Hydraulic Pressure: Max. 140 kgf/cm
Mould Exchangeable: 3 Set for 3 Different Profiles
Auto Stacker
Type: Drop Down Systems, Automatic Let-Out System
Stacking Alignment: By Air Cylinder
Load Capacity: Max: 3 Ton
Stacking Length: Max 15 Meter

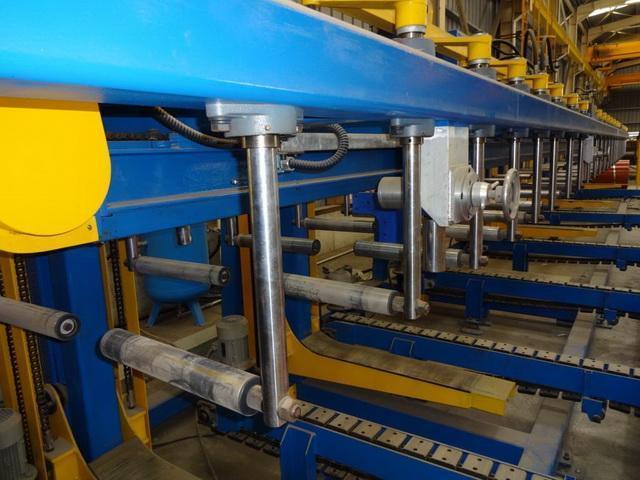

Out Let Conveyor: 6 Row (Driving Roller)
Electronic Package:
Combined with: PLC, Inverter, Breaker, AM-meter, V-meter, Emergency Switch, Servo Controller, Etc.
Electric control panel consists of length count, number count and PLC monitoring system
Siemens Motors (I.C.E Type)
Complete with Electrics, Controls, Hydraulics
