Coil Capacity: 50,000#
Featuring:
Edge Milling
Laser Tracking
In Line Ultrasonic Testing by Inspectech
6 Channels & 6 Probes
Plasma Cut-Off
Digital Readouts
Touch Screen Controls

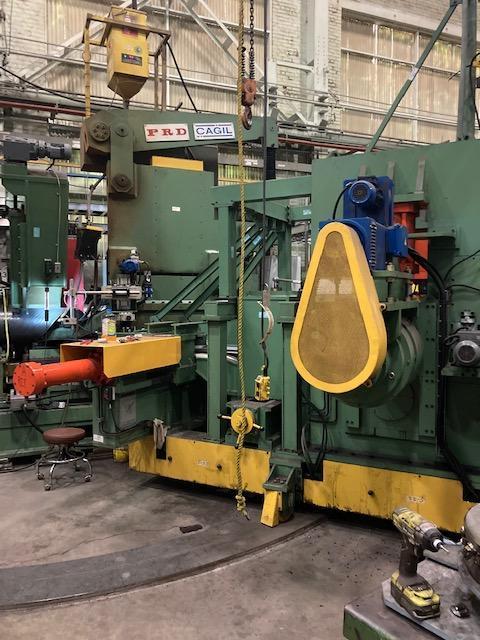

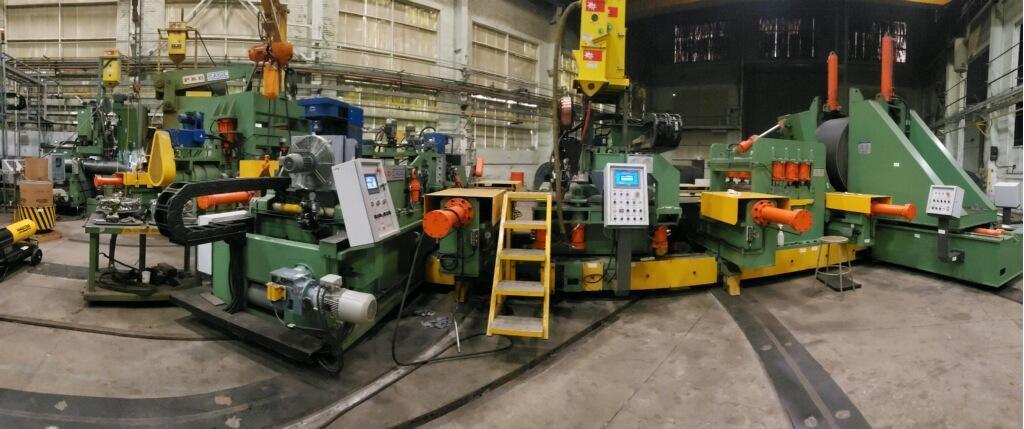

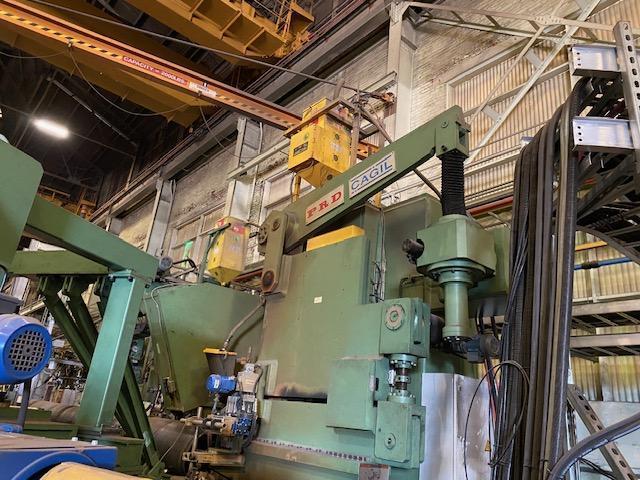

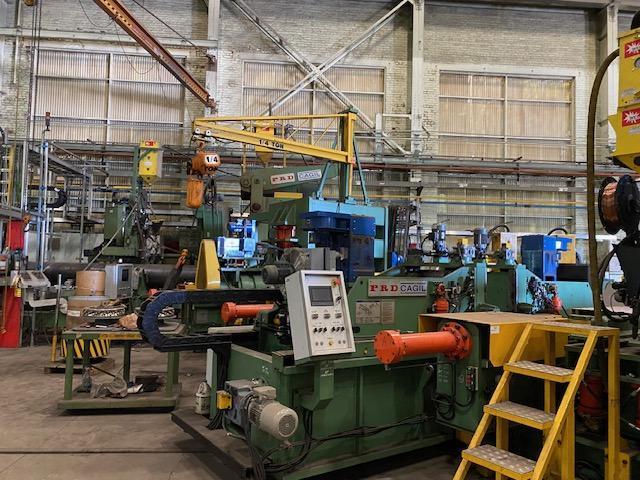

Spirally Welded Pipe Machine:
Coil Buggy

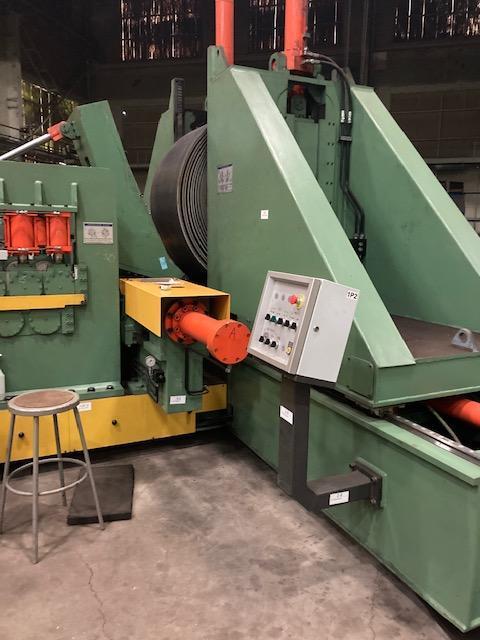

Un-Coiler
Entrance Guide
Pinch Roll
5 Roll Straightener with 300mm Diameter Rolls
Side Guide #1
Metal Joiner
Side Guide #2
Edge Milling Machine with 30 KW DC Motor
Profile: X , Y, I
Cutting Head Diameter: 450mm
Tips per Milling Head: 45
Main Drive Roll with 400mm Diameter Rolls
Side Guide #3
Over Under Support
3 Roll Forming Station
ID / OD Seam Rollers
Angle Setting Unit 10 to 45 degrees

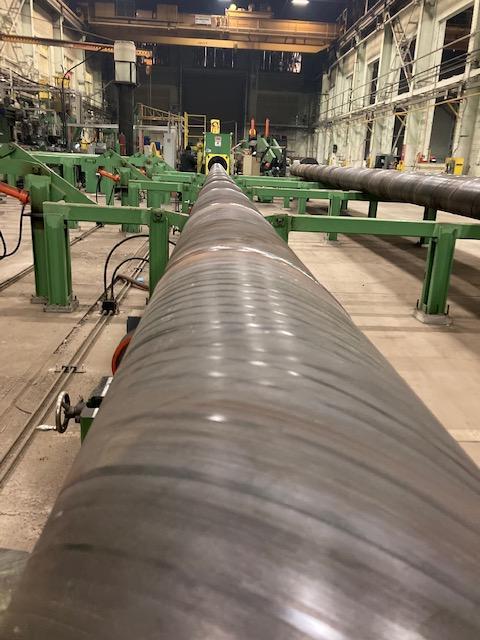

Run Out
Ultra Sonic Testing 6 Channel / 6 Probe

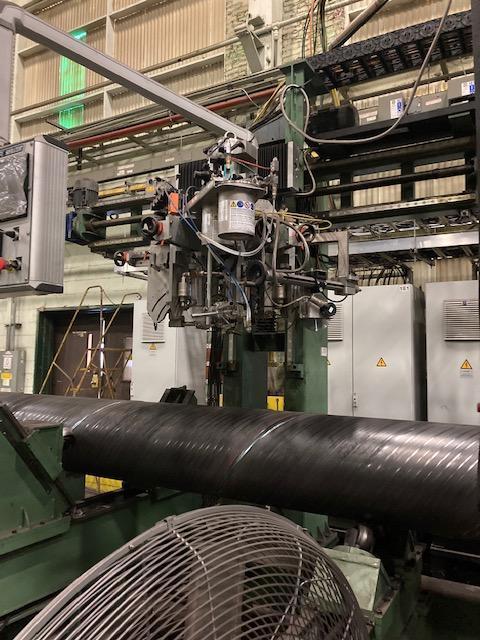

Out Side Welding Must
Pipe Cut to Length Unit
System Hydraulics
System Electrics

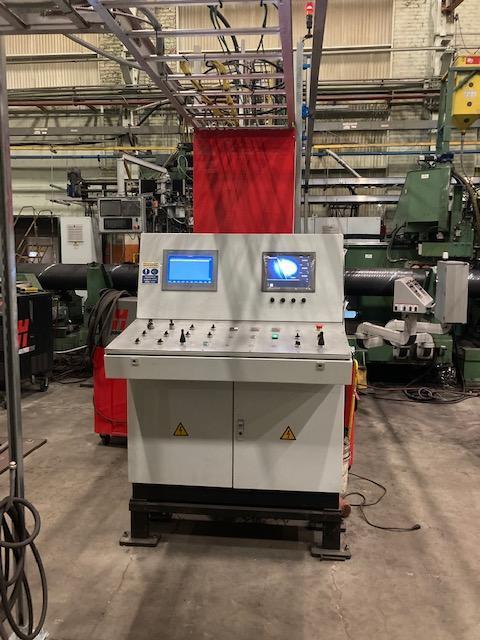

Touch Screen Operator Panel Siemens PLC Digital Drives and Controls
Lincoln Power Wave Welding System
Tandem Arc ACDC 1000
Flux Recovery
PRD Pipe Clean Out System
COMPLETE MILL
