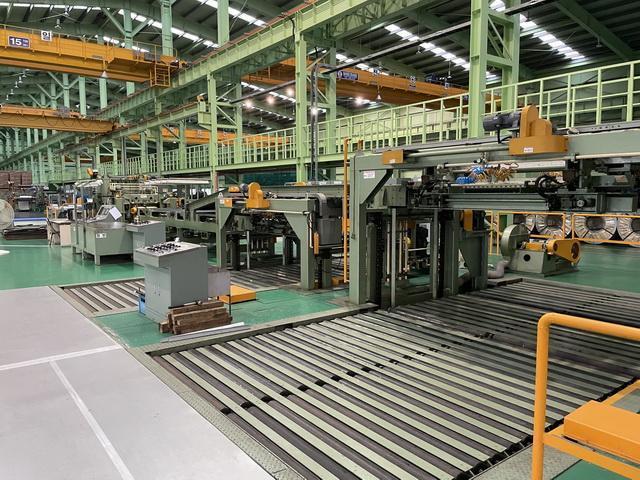

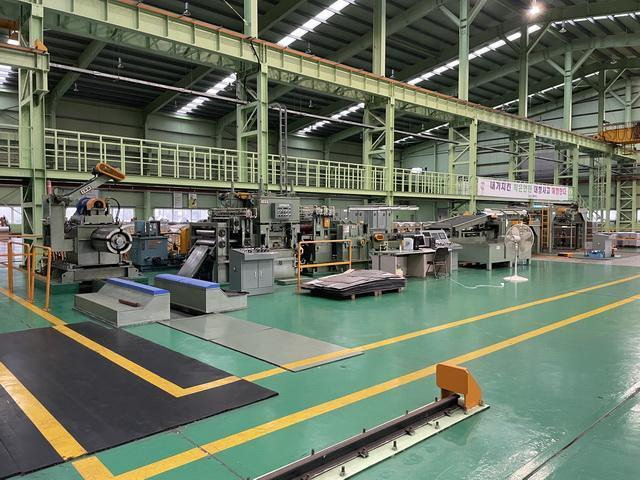

24" (750mm) x .091" (2.3mm) x 15,000# Rotary Shear Cut-to-Length Line Year 2007
24" (750mm) x .091" (2.3mm) x 15,000# Rotary Shear Cut-to-Length Line Year 2007
24" (750mm) x .091" (2.3mm) x 15,000# Rotary Shear Cut-to-Length Line Year 2007
24" (750mm) x .091" (2.3mm) x 15,000# Rotary Shear Cut-to-Length Line Year 2007
24" (750mm) x .091" (2.3mm) x 15,000# Rotary Shear Cut-to-Length Line Year 2007
24" (750mm) x .091" (2.3mm) x 15,000# Rotary Shear Cut-to-Length Line Year 2007
  • 24" (750mm) x .091" (2.3mm) x 15,000# Rotary Shear Cut-to-Length Line Year 2007
  • 24" (750mm) x .091" (2.3mm) x 15,000# Rotary Shear Cut-to-Length Line Year 2007
  • 24" (750mm) x .091" (2.3mm) x 15,000# Rotary Shear Cut-to-Length Line Year 2007
  • 24" (750mm) x .091" (2.3mm) x 15,000# Rotary Shear Cut-to-Length Line Year 2007
  • 24" (750mm) x .091" (2.3mm) x 15,000# Rotary Shear Cut-to-Length Line Year 2007
  • 24" (750mm) x .091" (2.3mm) x 15,000# Rotary Shear Cut-to-Length Line Year 2007

24" (750mm) x .091" (2.3mm) x 15,000# Rotary Shear Cut-to-Length Line Year 2007

Brand
Not Specified

Model
Not Specified

Type
Cut To Length Lines

Stock #
604920C

Condition
Used

Year

Request a Quote
Have one to sell?
Coil Weight 15000 pounds
Width 24 inches
Thickness .091 inches
ID 20 inches
Max OD 60 inches

Equipped With

General Specifications:
Thickness Range: .012"-.091"
Width Range: 6"-24" (150mm-750mm)
Max Coil Weight: 15,000# (7500kg)
Coil ID: 20" (508mm)
Coil OD Range: 32"-60" (800mm-1650mm)
Line Speed: 32-260ft/min (10-80m/min)
Line Direction: Left to Right

Complete Line with the Following Components:
Coil Staging Area
Pit Type Coil Car

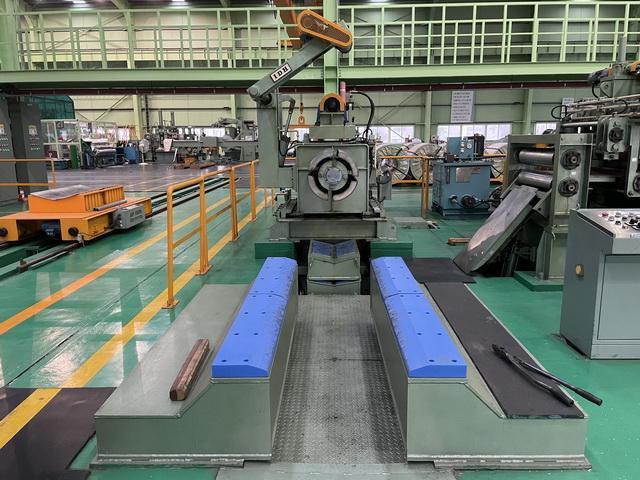

Uncoiler with Outboard Support Arm and Hold Down Roll
Coil Peeler Table
Pinch Rolls

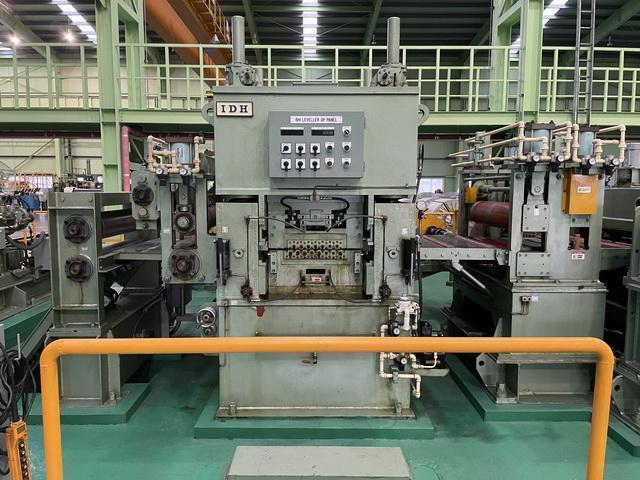

6HI Leveler
Feed Roll
Measuring Roll

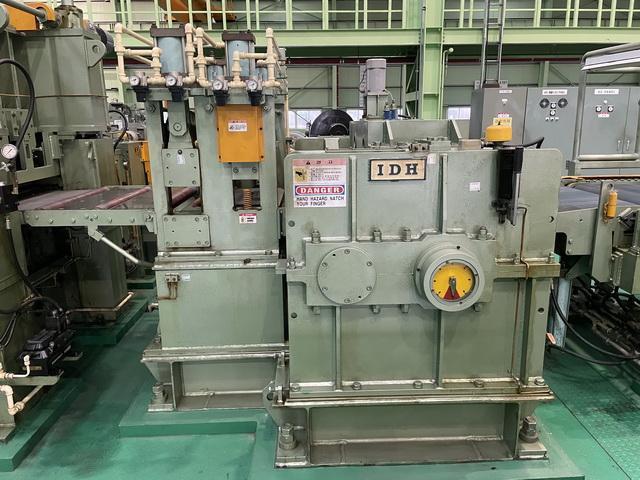

Rotary Shear
Run Out Conveyor
Reject Bucket
Stacker 1
Stacker 2
