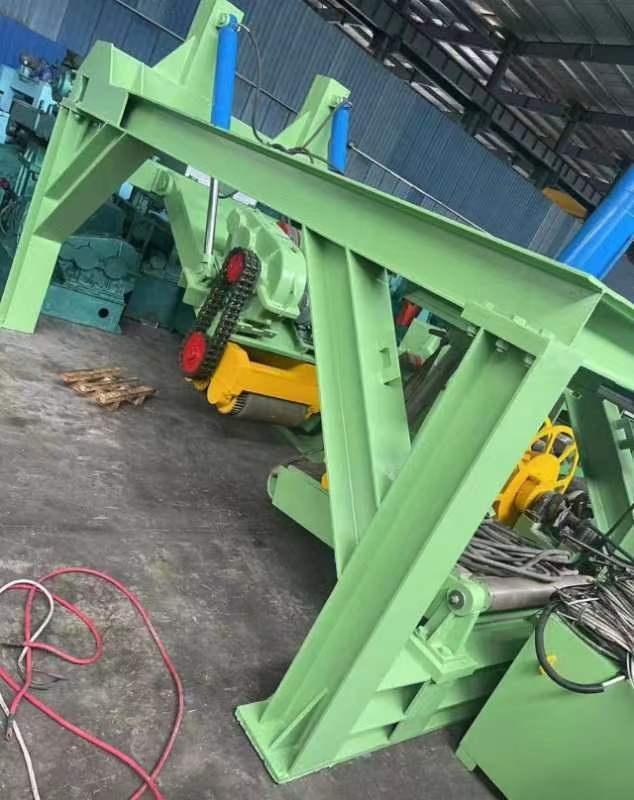

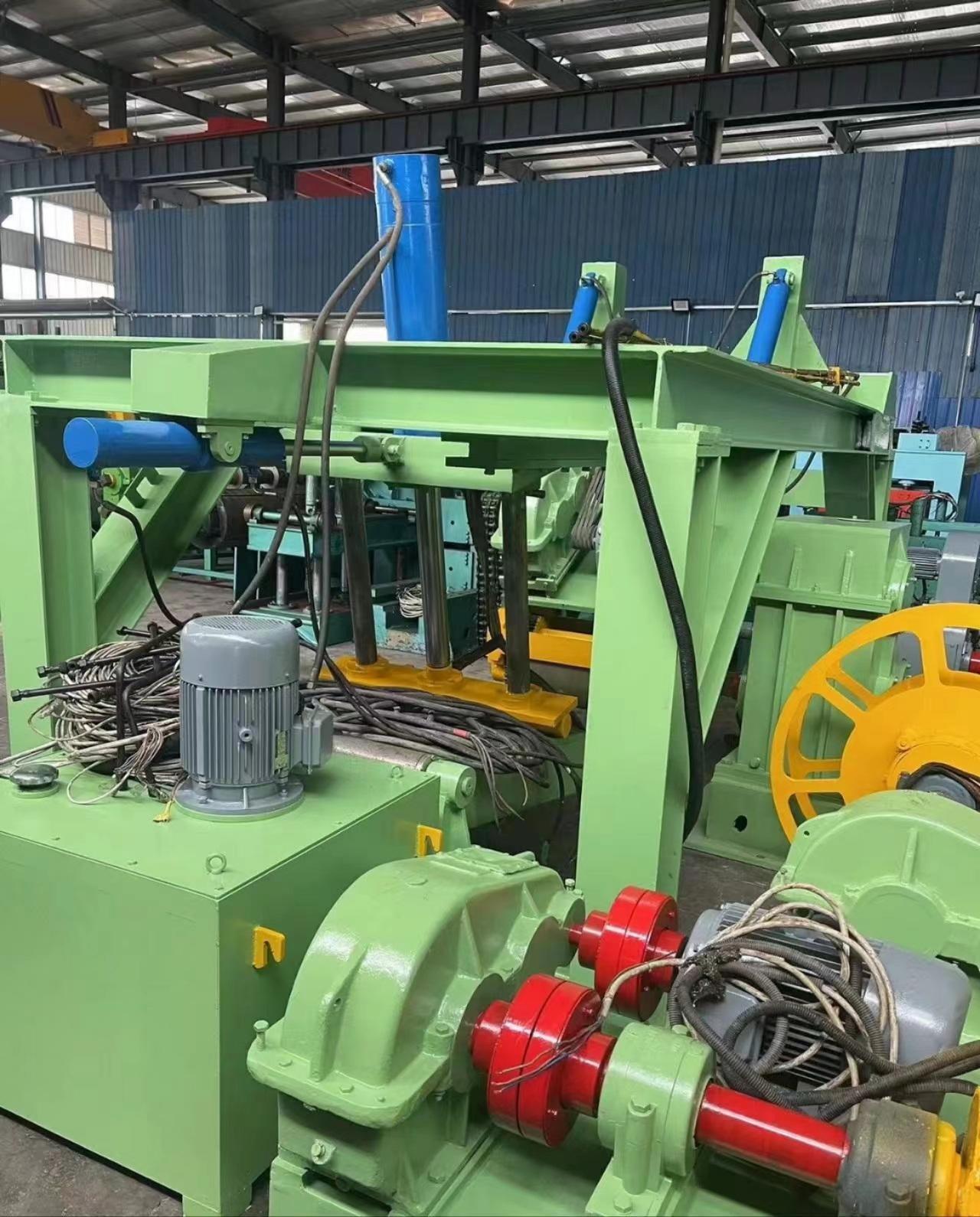

2200mm x 20mm x 32 Ton Heavy Gauge Cut to Length Line with Edge Trimmer (2018)
2200mm x 20mm x 32 Ton Heavy Gauge Cut to Length Line with Edge Trimmer (2018)
2200mm x 20mm x 32 Ton Heavy Gauge Cut to Length Line with Edge Trimmer (2018)
  • 2200mm x 20mm x 32 Ton Heavy Gauge Cut to Length Line with Edge Trimmer (2018)
  • 2200mm x 20mm x 32 Ton Heavy Gauge Cut to Length Line with Edge Trimmer (2018)
  • 2200mm x 20mm x 32 Ton Heavy Gauge Cut to Length Line with Edge Trimmer (2018)

2200mm x 20mm x 32 Ton Heavy Gauge Cut to Length Line with Edge Trimmer (2018)

Brand
Not Specified

Model
Not Specified

Type
Cut To Length Lines

Stock #
605181

Condition
Used

Year

Request a Quote
Have one to sell?
Coil Weight 64000 pounds
Width 86 inches
Thickness .787 millimeters

Equipped With

Manufacturer: Wuxi Lixing (China)
Manufactured Year: : 2018
Refurbished: 2024
Line Direction: Left to Right

Thickness Range Stainless: 3 to 14mm
Thickness Range Carbon Steel: 5-20mm

Max Coil Weight: 32 Ton

Complete Line with the Following Components:

Pit Type Coil Car
32 Ton Weight Capacity
Hydraulic Lift

Double Expandable Cone Uncoiler
Hydraulic Expansion

Free Standing Powered Hold Down Roll

Peeler Table

Entry Pinch Rolls

Double Sided Adjustable Edge Guides

Entry Roller Conveyor

Slitting Head
320mm Diameter Arbor
132KW Motor DRive

Double Scrap Winder

Roller Conveyor Section

11 Roll (5 over 6) Flatener
250mm Work Roll Diameter
2 Center Back Up Flights on Top
200KW Motor Drive

Exit Roller Conveyor

Feed Up Rolls

Hydraulic Shear
2500mm Blade Face
25mm Thickness Capacity

Exit Pinch Rolls

Drop Type Stacker

Run Out Table

Complete with Controls, Hydraulics, Electrics

Video Available
