2150mm x 8mm x 40 Ton Ungerer Cut-To-Length Line with Rotary Shear

Brand
UNGERER

Model
Not Specified

Type
Cut To Length Lines

Stock #
605186

Condition
Used

Year
1989

Request a Quote
Have one to sell?
Coil Weight 40 pounds
Width 2150 millimeters
Thickness 8 millimeters
ID 530 millimeters
Max OD 2500 millimeters

Equipped With

Material Specification:

Material Type: Hot and cold rolled steel dry, pickled and oiled, HRD, HRP, and galvanized coils.
Yield Strength: N/mm2 see table A
Thickness: Min. 2mm Max 8mm
Width: Min. 610mm Max 2150mm

Coil Data:

Weight: Max 38.000 Kg.
Internal Nominal Diameter: 530mm, 920mm
External Diameter: Min 800mm, Max 2500mm

Sheet Data:

Length: Min 1000mm, Max 24000mm
Width: Min 610mm, Max 2150mm
Side trimming: Whole Thickness range
Side trimming for each side: Min 10mm, Max 75mm
Tolerance: +/- 25mm
Tolerance on length: See table

Package Data:

Height: Max 680mm (without beams)
Weight: Max 5000 Kg
Stacking method: Without pallet
Packaging: Foil/wooden beams/straps

Characteristics of the Line:

Manufacturer: Ungerer
Manufacturer date: 1989
Working Speed Max: 50 m/min (depending to width and yield strength of material)
Working Direction: From left to right (seen from operator side/main control desk)
Line Referencing: Centre
Pass Line Height: 1.500 mm Approx.
Unwinding: from the top
Temperature of surrounding: -0°C ÷ 45°C
Ambient temp operation: +5°C ÷ 45°C
Ambient Humidity: 30 ÷ 94%
Rewinding: Yes
Bushing Unit: Yes
Type Cutting Unit: Flying Shear
Leveler: Parabola

Electrical Characteristics:

Three phase voltage: 400 V +/-10% 50 Hz
Auxiliary voltage: 220 V 50 Hz
Solenoid valve voltage: 24 V

Hydraulic Characteristics:

Hydraulic Oil Pressure: 120 bar
Compressed Air Pressure: 6 bar

Complete Line With:

Coil Storage Ramp

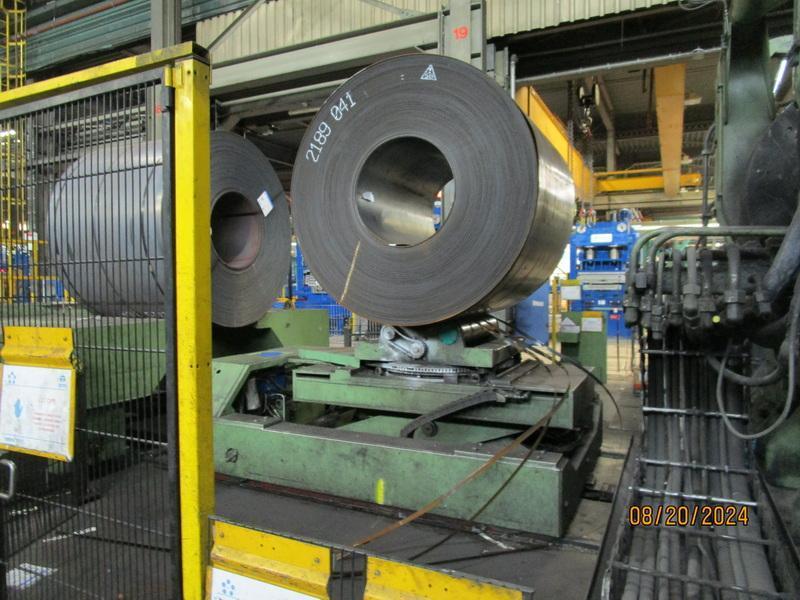

Coil Car with Motorized Lift
Coil Rotation
Floor Standing

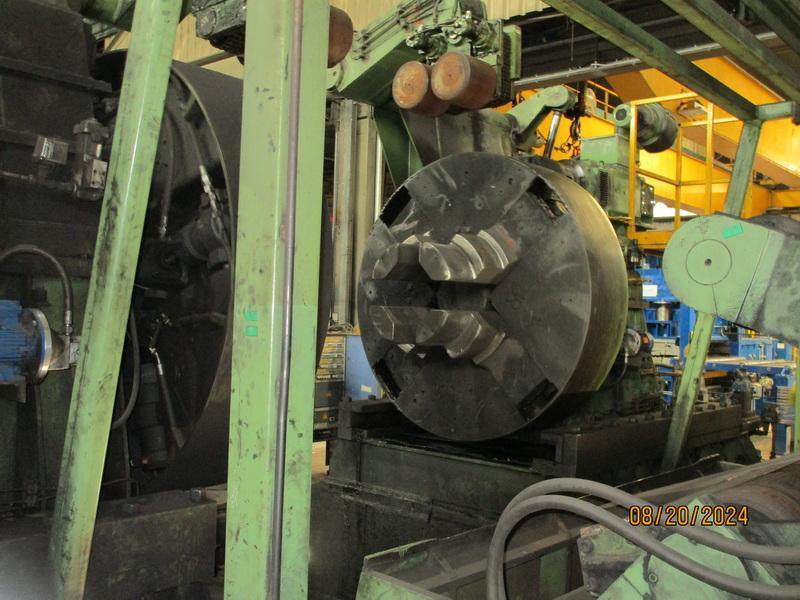

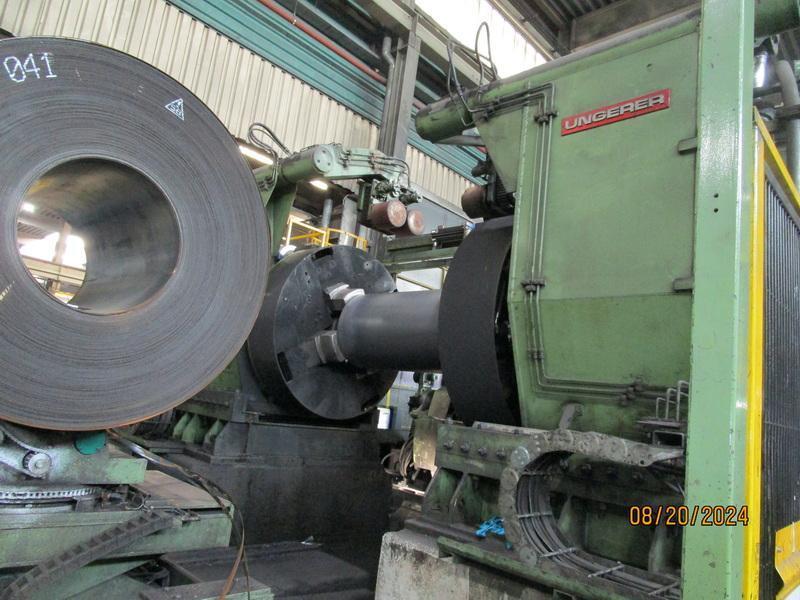

Double Stub Mandrel Uncoiler
Hydraulic Expansion
Hydraulic Sliding Base
DC Drag Generator Brake 35 HP
Double Powered Hold Down Rolls
Edge Control

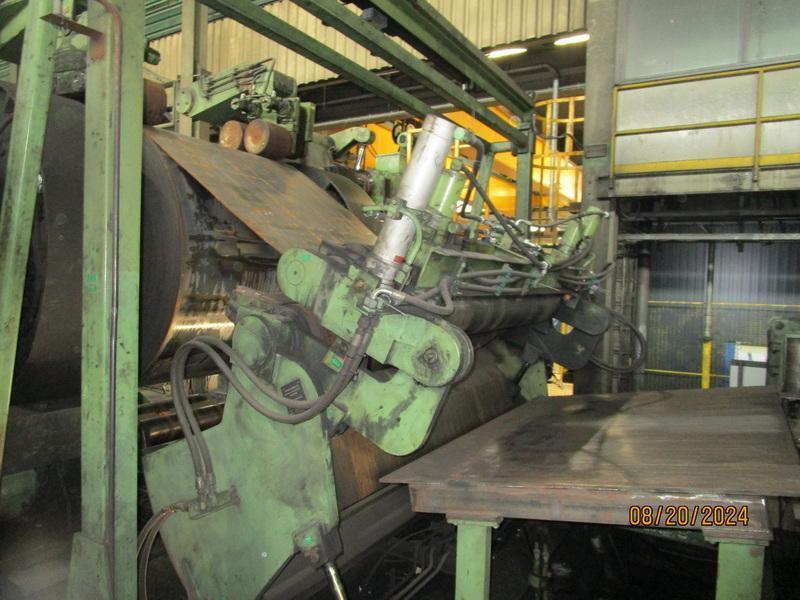

Peeler Table with Pressure Roll
Edge Guides

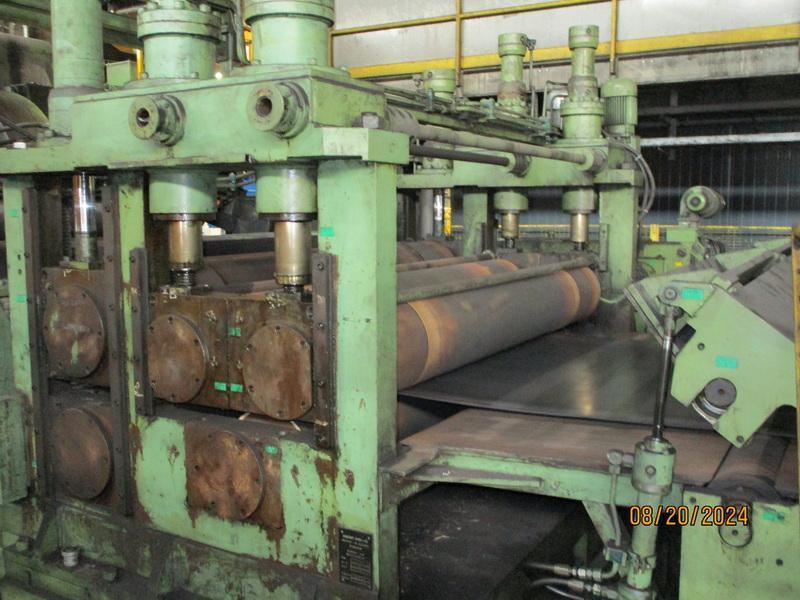

3 Roll Coil Breaker
60 HP DC Drive
400mm Diameter Work Rolls
Entry Pinch Rolls
Crop Shear with Reject Conveyor

Powered Pinch Rolls
Edge Trimmer with AC Servo Drive
Dual Rotary Scrap Choppers
Exit Scrap Conveyor

Ungerer Cassette Leveler
2 Cassettes
15 Work Rolls 7/8
95mm Diameter Work Rolls
7 Flights Top & Bottom Back-Ups
Bottom have Individual Motorized Adjustments
Digital Roll Positioning
Motorized Tilt
LVDT Positioning
400 HP DC Drive
New Gear Box
Cassette Changing Cart

Brushing Unit

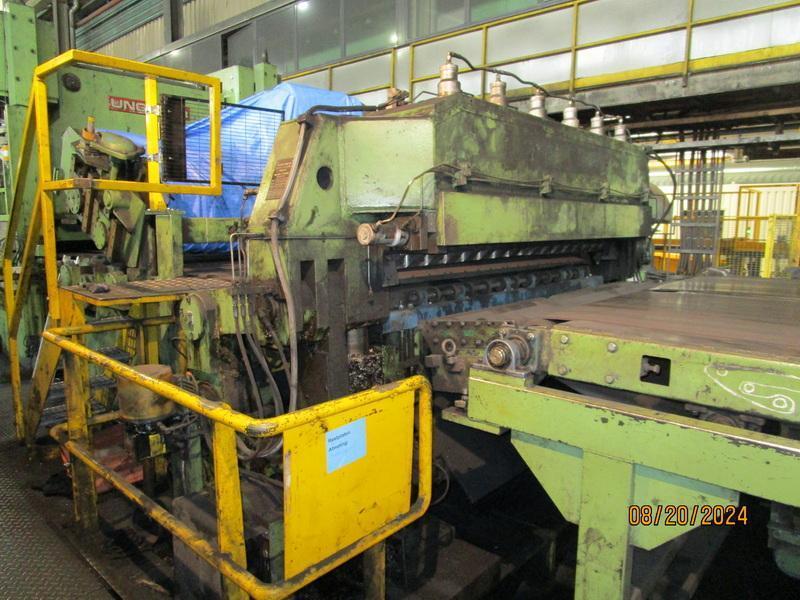

High Speed Rotary Shear
"Rebuilt in 2014"
345 HP DC Drive

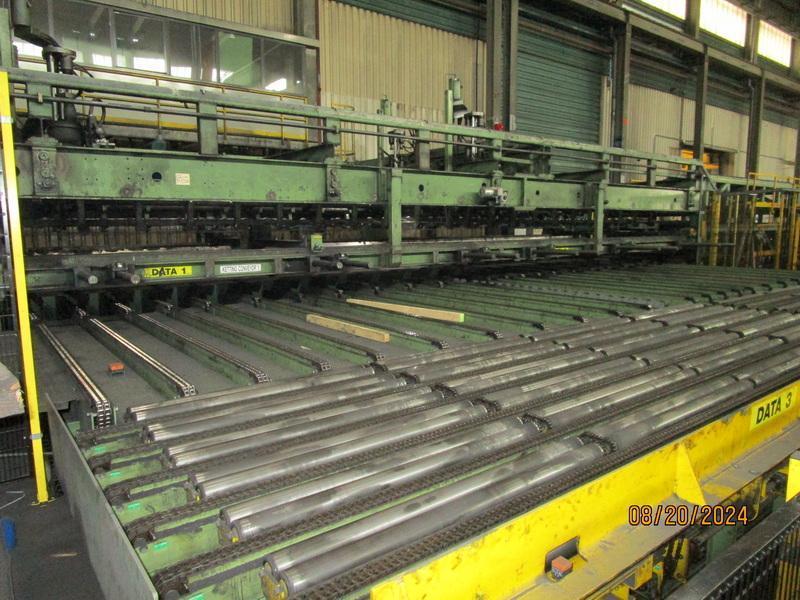

Run Out Gauging Table

Double Stacker
Motorized Lift Table
Side Squaring
Motorized End Stop
Side Discharge Conveyor

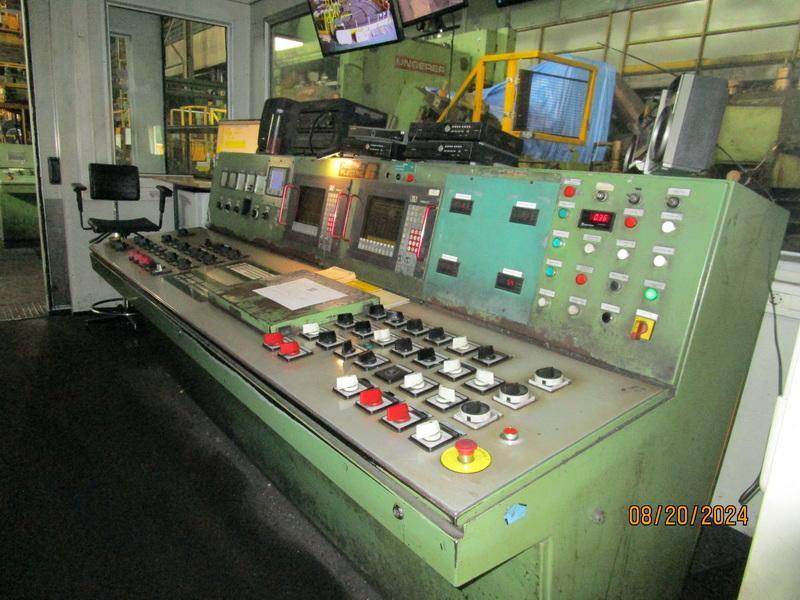

Operator Control Stations
Digital Readouts
Digital Controllers

OPTIONAL:  Pesmal Sheet Bander
Auto Banding
Auto Wood Loading
Feed Conveyor
Cyklop Banding
Exit Conveyor

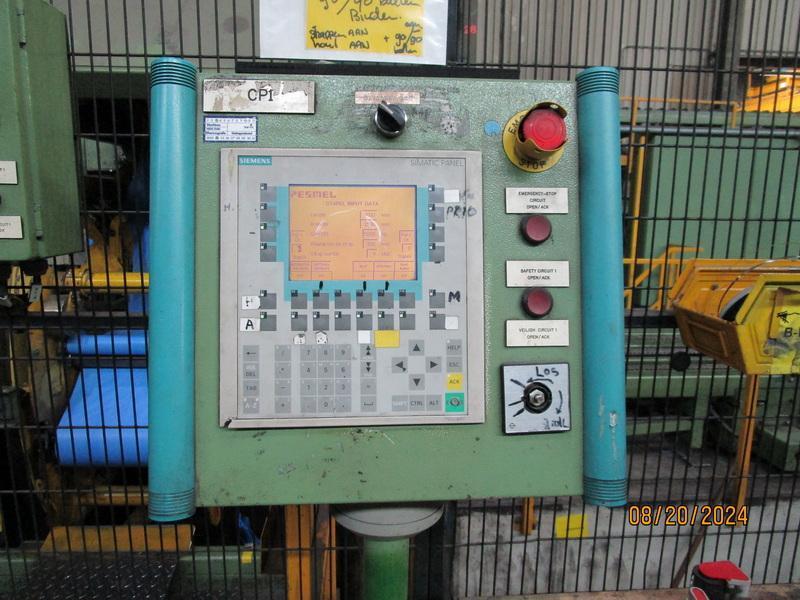

Siemens Simatic Digital Controller

Spare and Waring Parts:

Edge Trim Knives: 26 edge trim knives
Scrap Shear Knives: 2 complete sets scrap shear knive holder. 2 spare chop knives
Leveler: 2 complete cassette. 2 spare set leveler roll. 1 set spare support roll
Shear Knives: 2 set knives beams. 6 set complete (upper and lower) knives.
