2000mm x 8mm x 70,000# Bronx Cut-To-Length Line with Flying Shear

Brand
BRONX

Model
Not Specified

Type
Cut To Length Lines

Stock #
604856

Condition
Used

Year
1987

Request a Quote
Have one to sell?
Coil Weight 70000 pounds
Width 78.74 inches
Thickness .315 inches
ID 20 inches
Max OD 78.7 inches

Equipped With

Thickness Range:  2mm - 8mm
Coil Capacity:  70,000#
Coil OD:  2100mm
Coil ID:  508mm ,  610mm , 762mm
Strip Width:  2000mm - 600mm
Sheet Length:  8000mm - 600mm
Pack Weight:  10,000 KG
Max Line Speed:  60 meters/min
Cuts Per Minute:  35

Complete Line With

4 Coil Storage Storage Ramp
Coil Loading Car

Double Stub Mandrel Uncoiler
Sliding Base
Hydraulic Expansion
Drag Brake
Tension Control

Peeler / Hold Down Roll
3 Roll Coil Breaker
Feed Up Table

7 Roll Backed Up Leveler with Pinch Roll Breaker (9 Rolls Total)
Entry Power Pinch Rolls
3 Flights Top & Bottom Back-Up Rolls
Entry & Exit Pinch Rolls

Marking Unit
Measuring Roll
Pinch Rolls

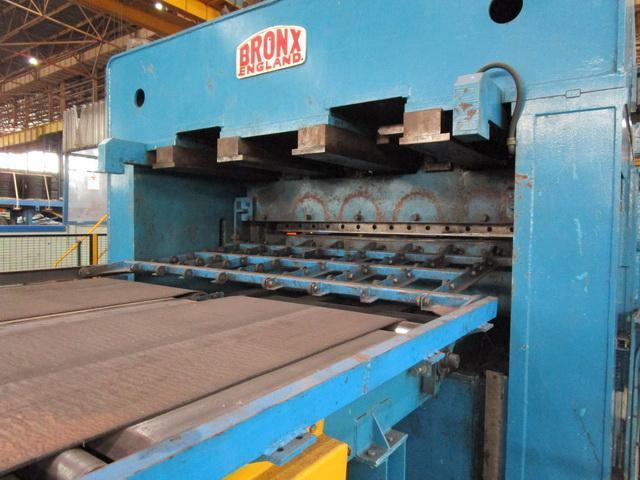

Bronx Flying Shear
35 Cuts Per Minute
AC Die Accelerator
Flywheel & Air Clutch and Brake
Rack & Pinion Accelerator

Reject Conveyor
Twin Belt Gauging Table

Stacker
Side Squaring
Lift Stacking Tables
Photo Cells
Drop Type
Motorized End Stop
Motorized Run Out Conveyor

Upgraded AC Motors
Upgraded Control Techniques Digital Drives

Complete Line
