Manufacturer: Schuler /Fagor
Year: 1993
Coil Width Range: 380mm x 2000mm
Thickness Range: 0.5mm to 2mm
Line Direction: Right to Left
Complete Line with the Following Components:
Single Coil Storage Saddle
Floor Type Coil Car
Max Coil Weight: 30 Ton
Schuler Double Expandable Mandrel Uncoiler
Hydraulic Expansion
DC Motor Regen Brake System
Coil ID Expansion Range: 610/915mm
Max Coil OD: 2000mm
Free Standing Coil Hold Down Roll
Coil Peeler
Entry Crop Shear
Roller Table

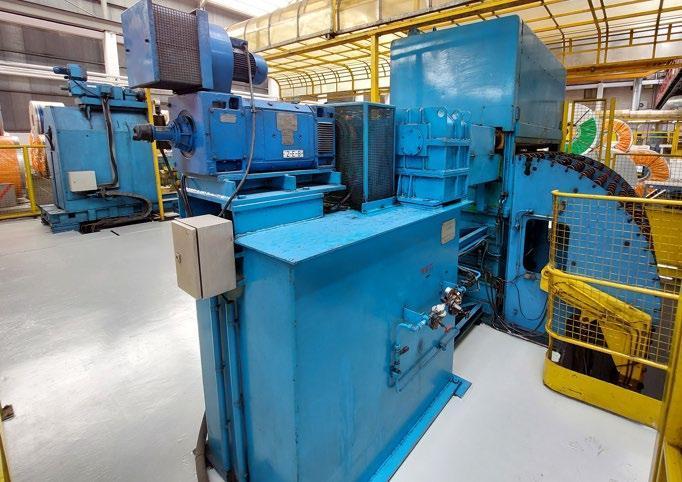

Shuler 5-HI Precision Leveler
21 Work Roll Design
45mm Work Roll Diameter
230mm Diameter Back Up Roll
97.5KW DC Motor Drive
Edge Trimmer with Scrap Winders
Entry and Exit Cascade Rolls
Pit Cross Over Table
Servo Feeder Roll

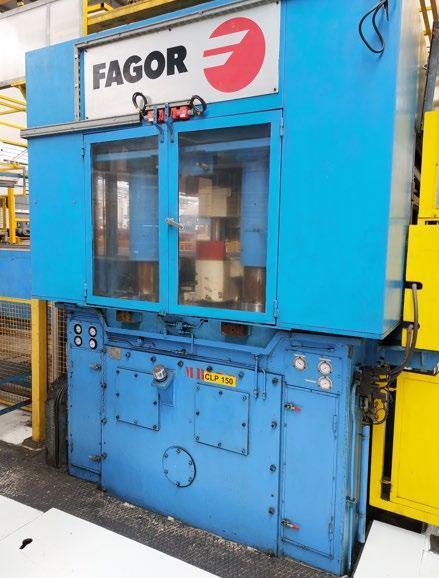

Fagor Oscillating Shear
37KW Motor Drive
Exit Run Out Table

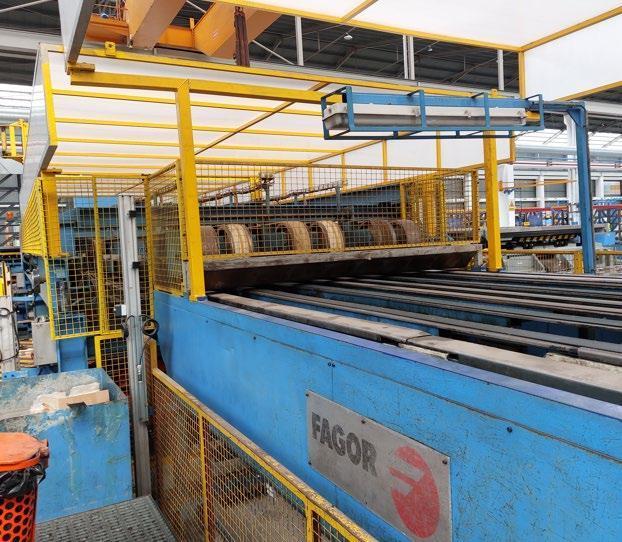

Schuler Stacker System
Lift Table
Digital Scale
Powered Exit Roller Conveyor
Complete Line with Electrics, Hydraulics, Controls
Installed
