Brand: Ozka
Year : 2003
Technical Specifications:
Outside Diameter Range: 323,2-2032,0 mm.
Wall Thickness: 4-18 mm.
Pipe Length: 6-35 m.
Coil Weight: Max 30 MT
Coil Width: Max 1550 mm.
Technical Details of Main Components:

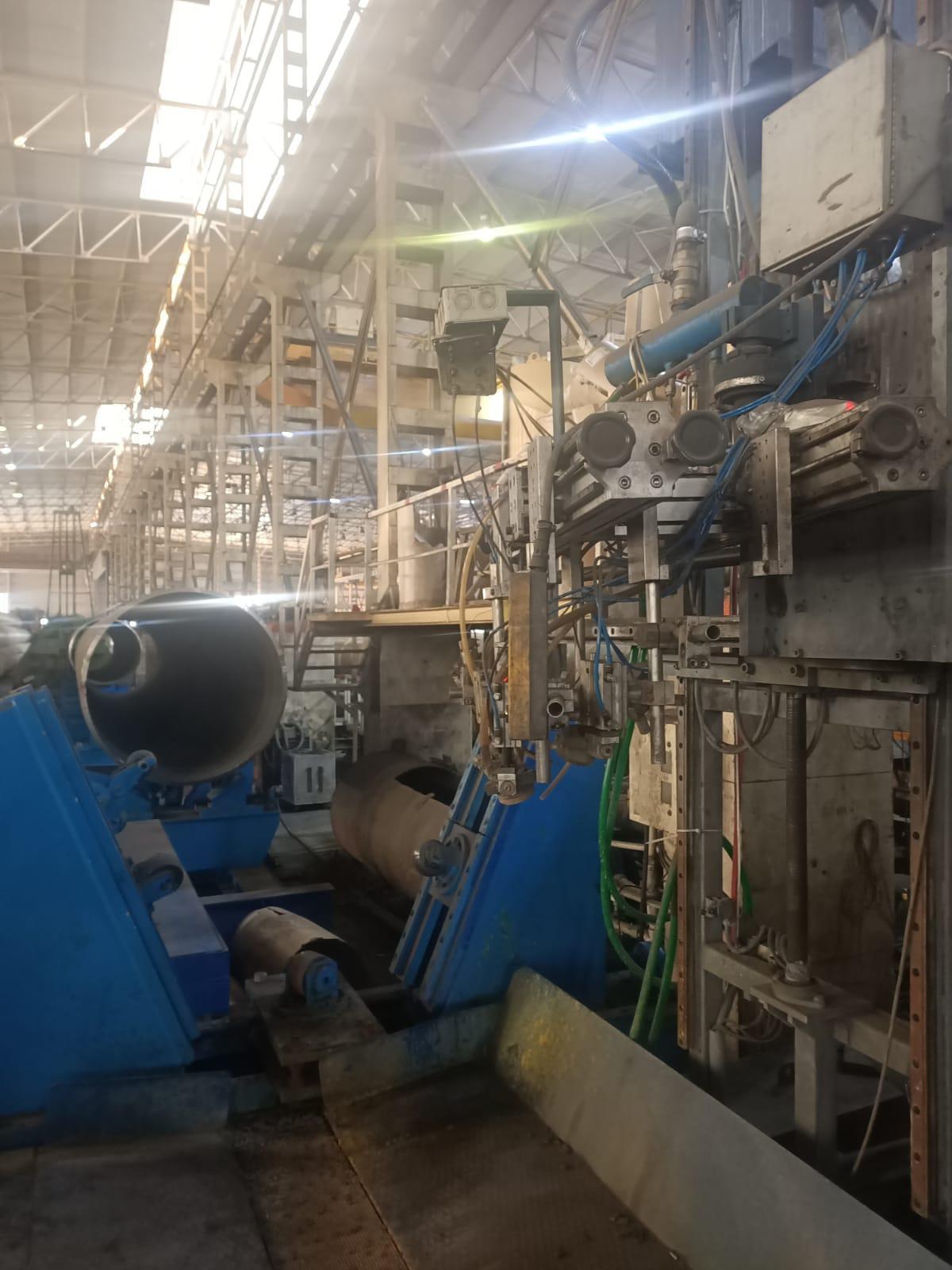

Outside Submerged Arc Welding Unit:
Lincoln DC 1500 Power Source (1500 A), NA-5 Control Unit- 1 piece
Lincoln AC 1200 Power Source (1200 A), NA-4 Control Unit- 1 piece
Inside Submerged Arc Welding Unit:
Lincoln DC 1500 Power Source (1500 A), NA-5 Control Unit- 1 piece
Lincoln AC 1200 Power Source (1200 A), NA-4 Control Unit- 1 piece
Skelp End Welding Unit:
Na-3N Control Unit- 1 piece
Skelp End Cutting Unit:
Oxy-Fuel Cutting (OFC) Unit
Pipe Cutting Unit:
Oxy-Fuel Cutting (OFC) Unit
Welding Flux Drying Oven
Edge Milling Unit:
Left and Right 22 kw – 1 piece
Diameter of milling unit : 400 mm
Automated Online UT System
Sofratest, Ultrasonic Weld Inspection System – 1 piece
Operator Control Unit
Electrical Panels
Hydraulic Systems
Relevant spare parts which are in stock of seller
Power information of electric motors:
Main Drive Shaft Motor: 30 kw 1 piece
Auxiliary Drive Shaft Motor: 11 kw 1 piece
Main Hydraulic Pump Motor: 11 kw 1 piece

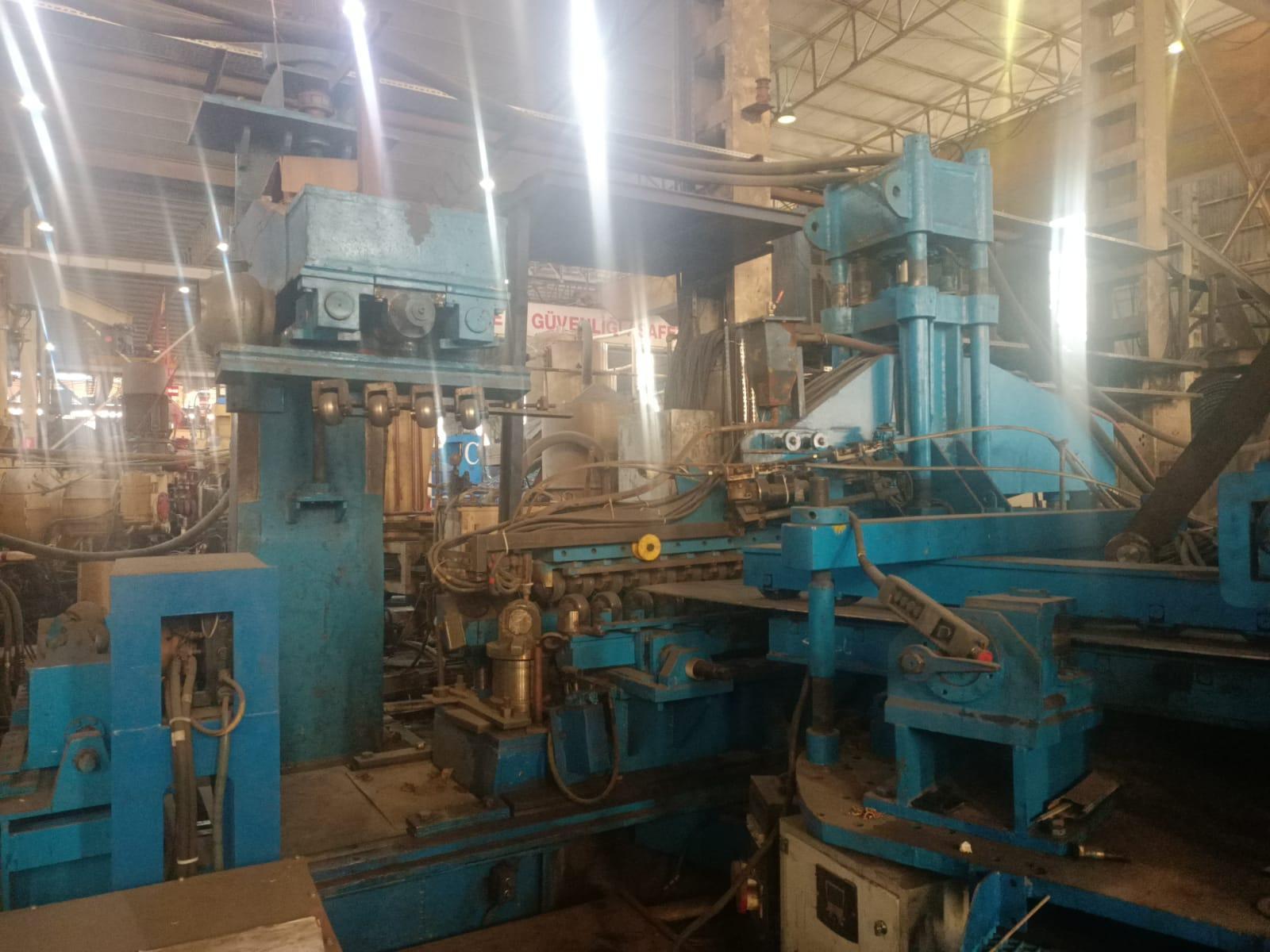

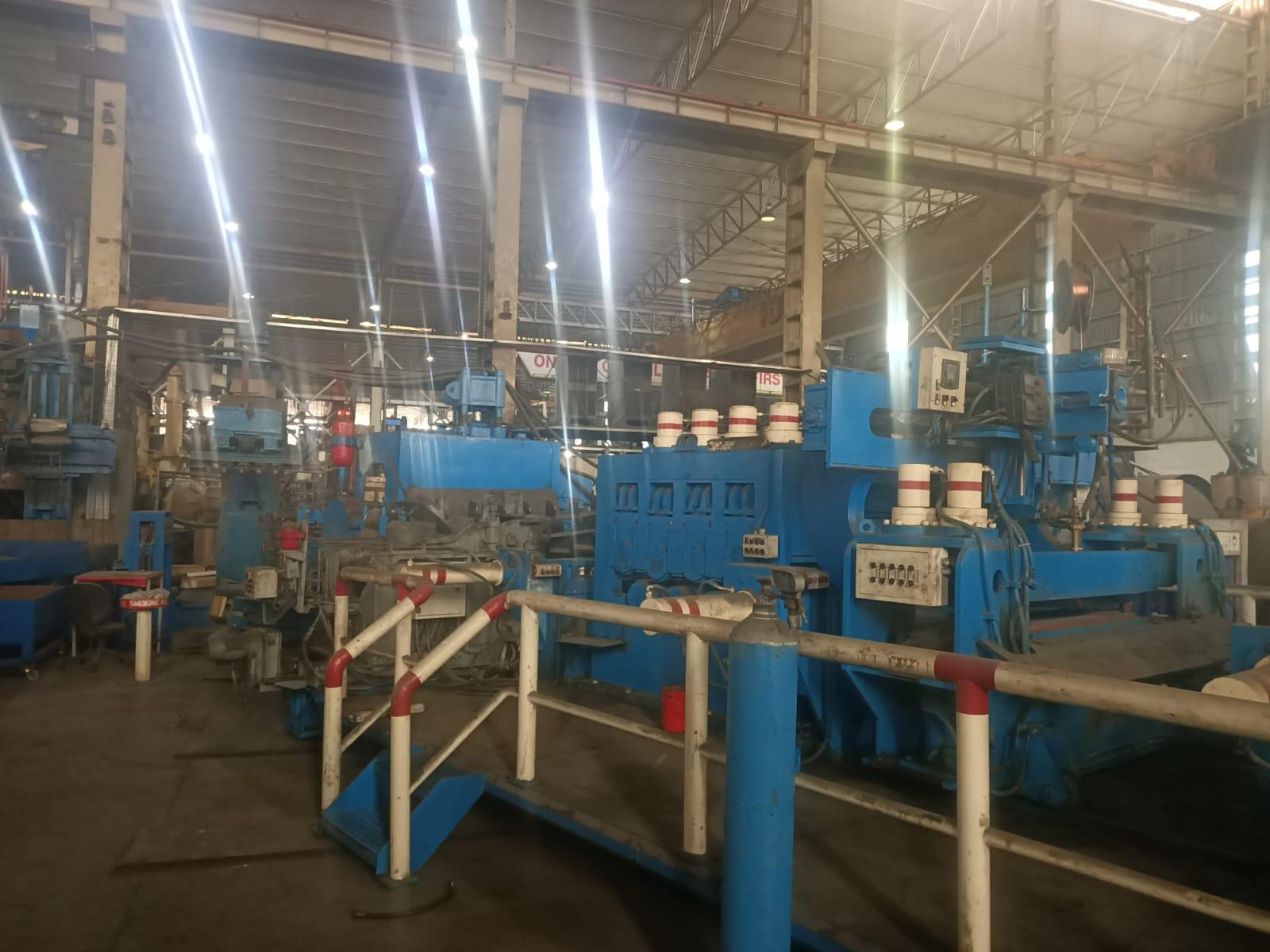

Complete Mill with the Following Components:
Uncoiler
Edge Guides with Hydraulic Adjustment
Edge Guides with Hydraulic Adjustment
Butt Welding Station
Traversing Base
Edge Guides with Hydraulic Adjustment
7 Roll Flattener
Brushing Unit
Edge Guides with Hydraulic Adjustment
Main Feed Roll
Edge Brushing
Edge Guides with Hydraulic Adjustment
Pre-Bender
Inner Beam Forming Roll
Weld Engineering Flux Recovery
Laser weld Tracking
Plasma Cut-Off
Milling Head for Milling Weld Smooth

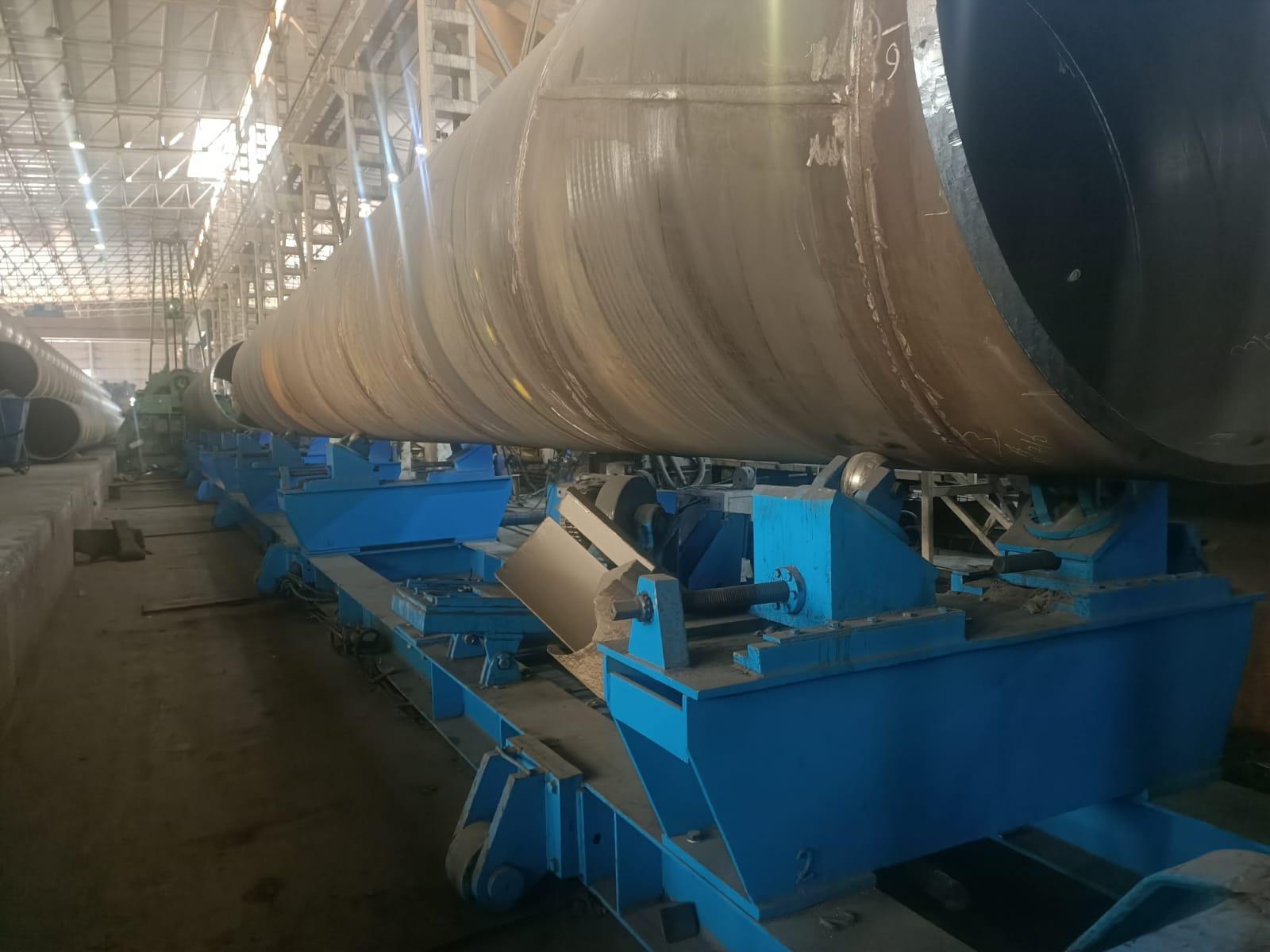

Run Out Conveyor with Lifting Table
Digital Variable Speed Drives
Complete Mill with Electrics, Controls, Hydraulics
Video Available
Can be Inspected Installed
