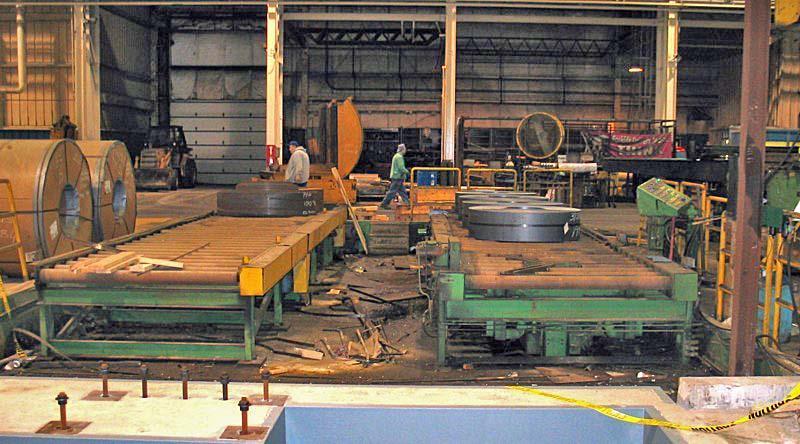

20,000# x 72" Loopco Banding Line Components

20,000# x 72" Loopco Banding Line Components

Brand
LOOPCO

Model
Not Specified

Type
Banding Machinery/Lines

Stock #
605042

Condition
Used

Year
1985

Request a Quote

Have one to sell?

SPECIFICATIONS
FILES & ATTACHMENTS

Width	72 inches
Coil Weight	20000 pounds

Equipped With

-20,000 lb. Capacity Heavy Duty Conveyor
-26" Wide Mult Capacity
-72" Coil O.D. Max.

Consisting of the following:

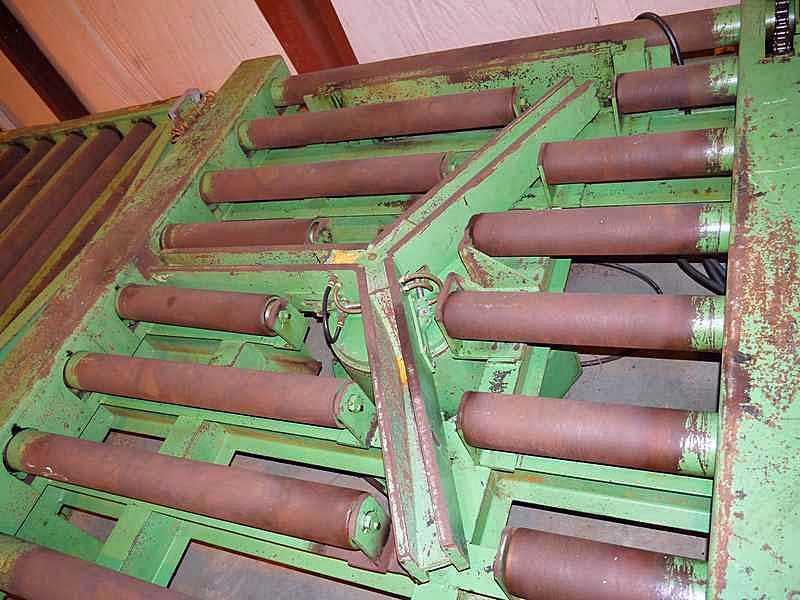

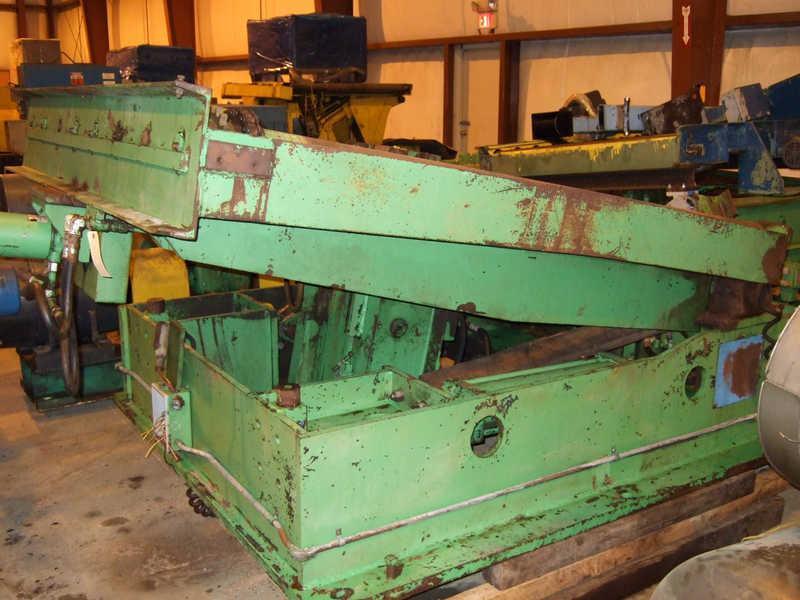

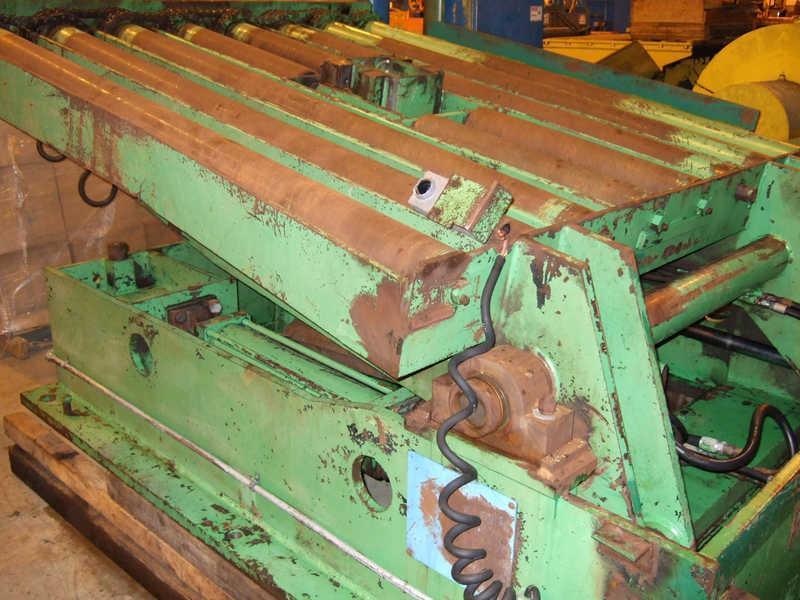

-Downlayer:
  5" Dia. x 75" Face Driven Rolls
  Hydraulic Motor Drive
  Right Angle Discharge
  25" Long Horn Extension
  (1) - 2.5" Bore x 26" Stroke Hyd. Horn Cylinder
  (2) - 5" Bore x 23" Stroke Hyd. Tilt Cylinders
  Approx. 74" from floor to top of horn in "tipped" position
  34.5" Passline Height

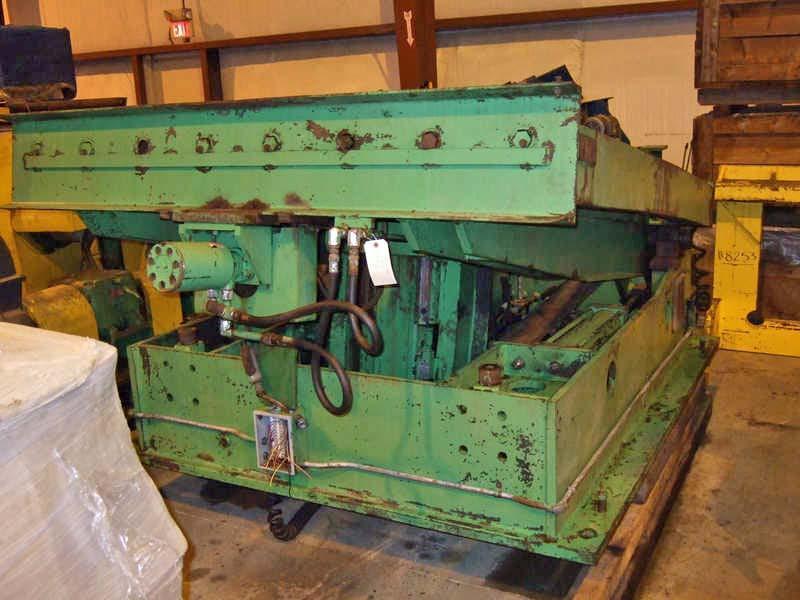

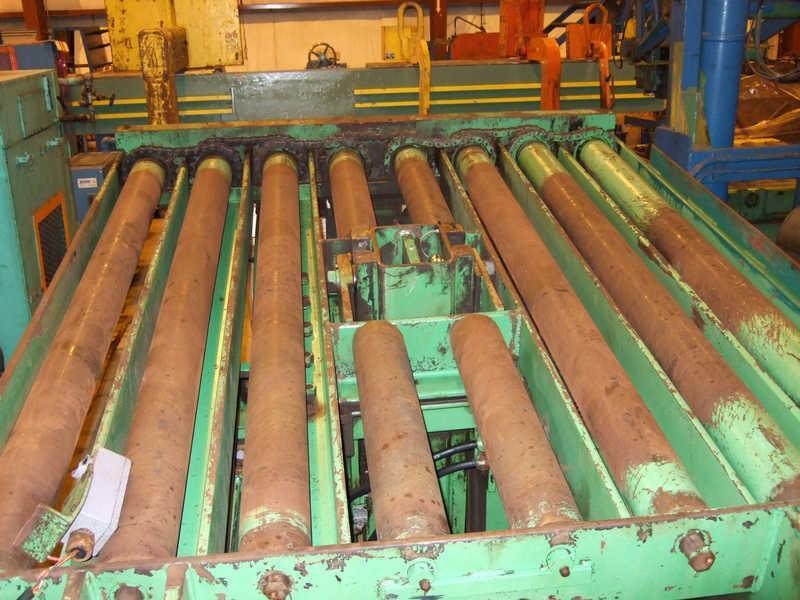

-Manual Banding Table:
  5" Dia. Driven Rolls
  Hydraulic Motor Driven Rolls
  3 Arm Type Coil Lift and Rotate
  (1) - 6" Bore x 9" Stroke Hyd. Lift Cylinder
  Hydraulic Motor Rotate
  35" Passline Height

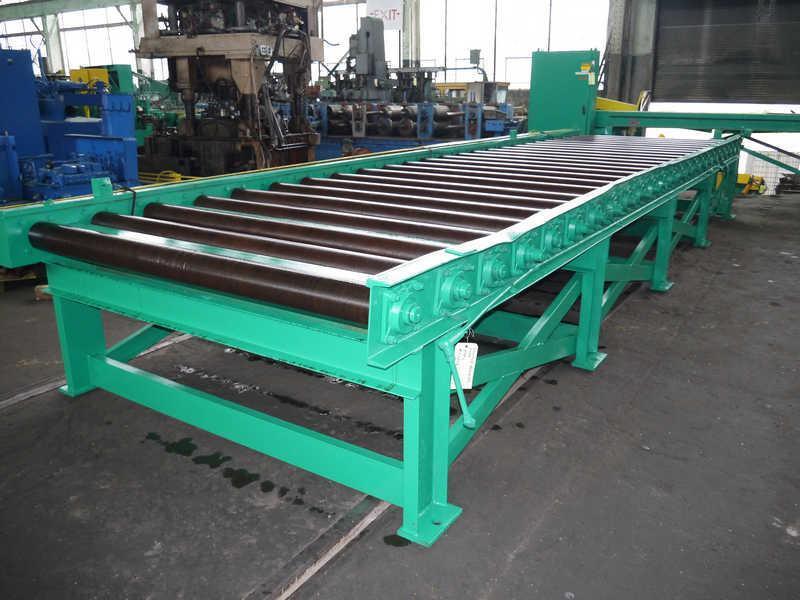

-Coil Storage Conveyor:
  25' Long
  5.25" Dia. x 74" Face Driven Rolls
  10 HP Foote-Jones AC Gear Motor Drive, 230/460 V
  35" Passline Height

-Mechanical Drawings included
