Oto Mills Laser Stainless Tube Mill Line
Tube Diameter: 3/4" - 2.0"
Wall Thickness: .028" - .160"
Max Line Speed: 7.5 ft/min
Complete With Mill

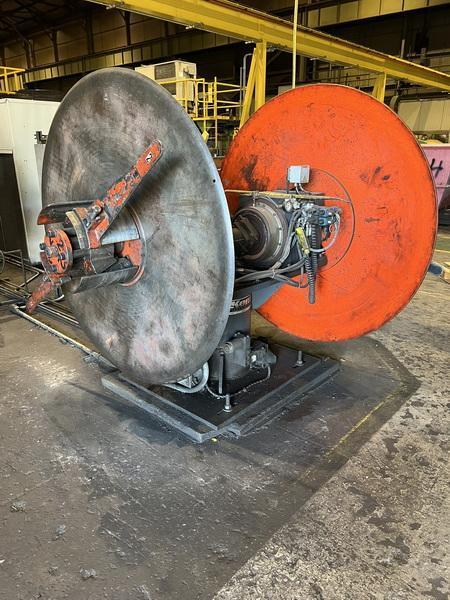

10,000# Kent Double End Uncoiler
Model KD-10000
Hydraulic Expansion
Drag Brakes
Powered Rotation
Shear & End Welder
Entry Pinch Rolls
5 Roll Flattener
Cage Type Accumulator

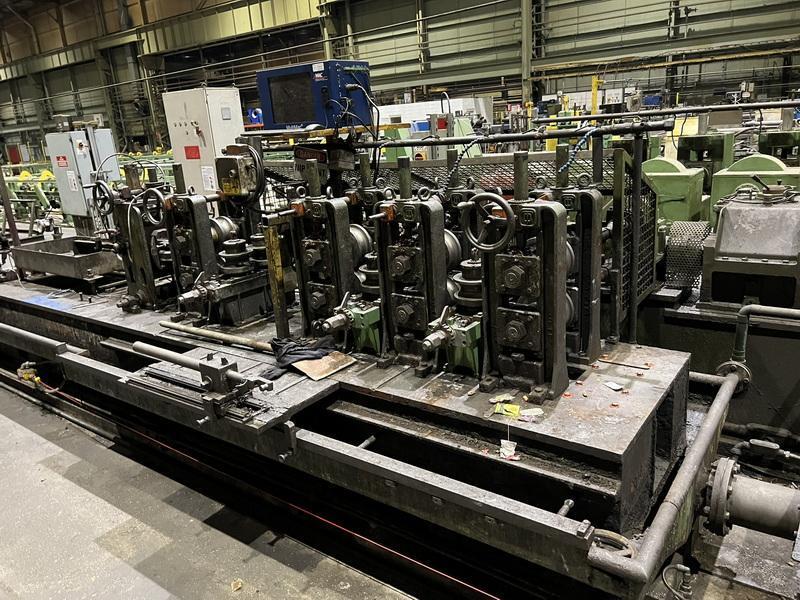

Oto Mills Forming Mill
Universal Drive
Single Point Adjustment
11 KW ABB Forming Drive
7.5 KW ABB Finn Pass Drive
2 Speed Gear Box
2 Sets of Entry Edge Guides
4 Forming Stands
3 Side Idler Rolls
2 Side Idler Roll Cluster

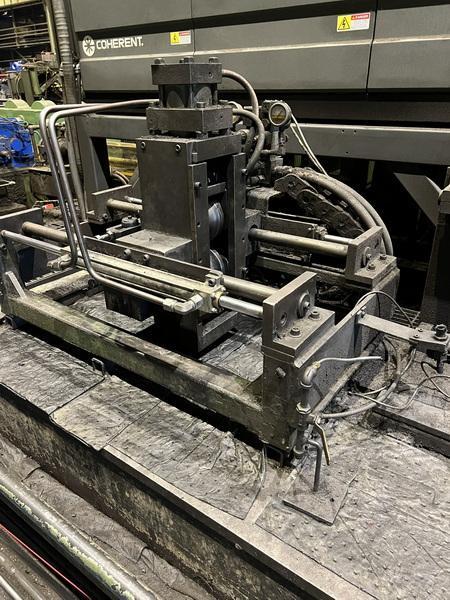

Coherent Laser Welder
Model FH 8000
Year 2017
Entry Guide Stand
4 Roll Weld Box
Exit Squeeze Stand
2 Induction Heaters
Traversing Bead Rolling Stand
Bossi Polishing Head
Year 2005
Model STP 3000

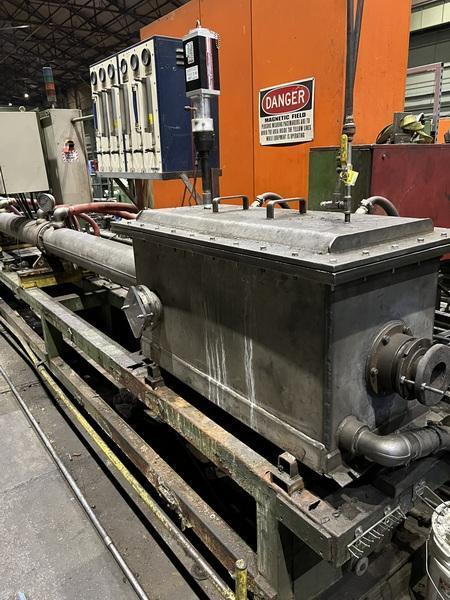

In Line Bright Annealing
Elotherm Power Supply
Hydrogen / Nitrogen Gases
Cooling Chamber
4 Sizing Stand
3 Side Idler Rolls
Turks Head
Universal Drive
Single Point Adjustment
11 KW ABB Drive
2 Speed Gear Box
Multi Mac Eddy Current Tester
Band Saw Flying Cut-Off
Run Out
Operator Push Button Station
Tooling for the following: 0.750, 1.0, 1.050, 1.315, 1.5, 1.66, 1.900, 2.0, 2.375, 2.5
