Turek & Heller Laser Stainless Tube Mill Line
Model WU20H-12
Tube Diameter: .750" - 2.0"
Wall Thickness: .028" - .128"
Max Line Speed: 14 ft/min

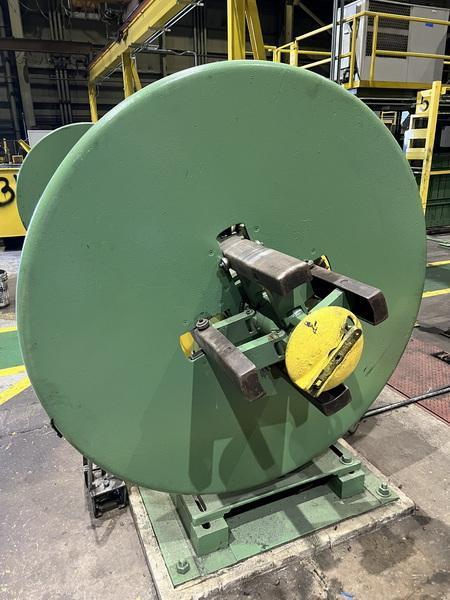

4000 Littell Double End Uncoiler
Shear & End Welder
Cage Type Accumulator

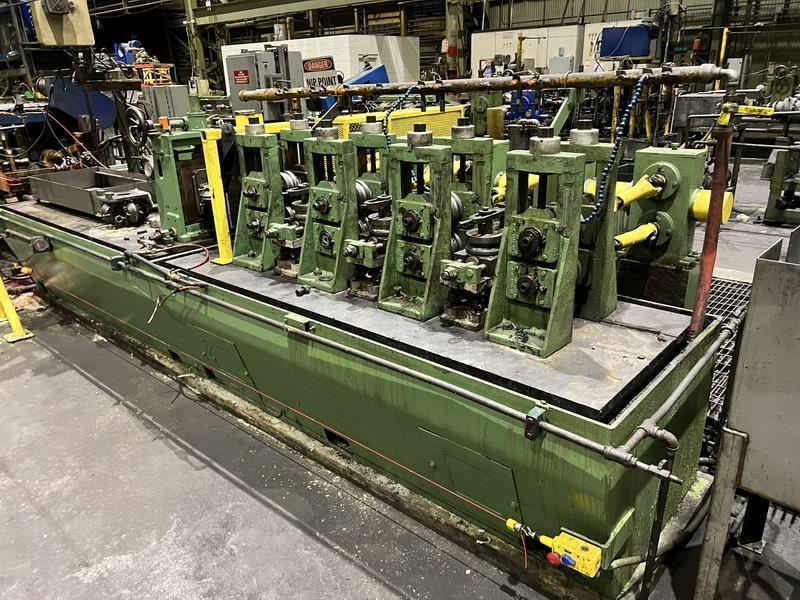

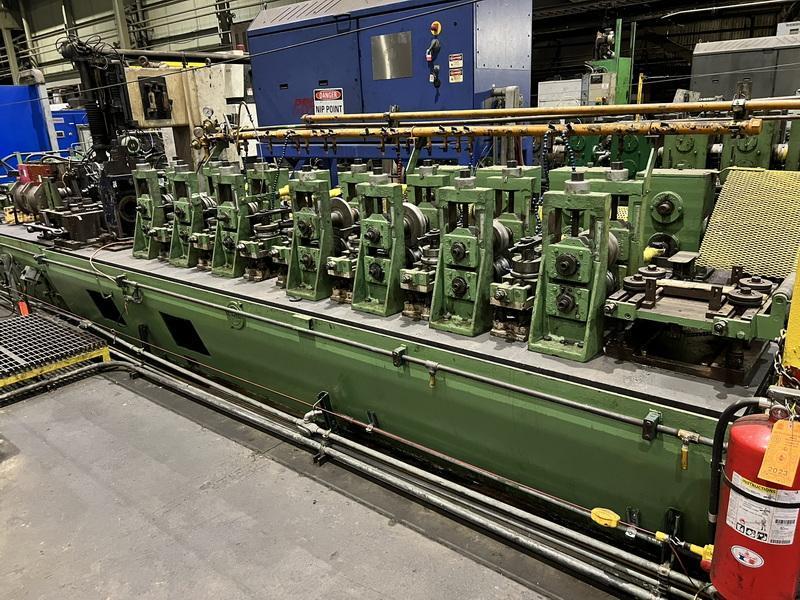

Forming Mill
Universal Drive
2 Sets of Entry Edge Guides
4 Forming Stands
3 Side Idler Rolls
2 Side Idler Roll Cluster
3 Finn Pass Stands
2 Side Idler Rolls

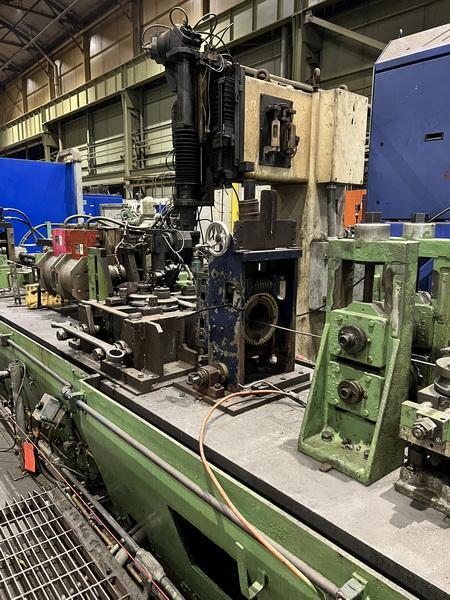

PRC Laser Welder
Model CH6000
New in 2011
Digital Readouts
4 Roll Weld Box
2 Induction Heaters
Bead Roller
Bright Annealing
Cooling Chamber
Interpower Power Supply
Multimac Eddy Current Tester

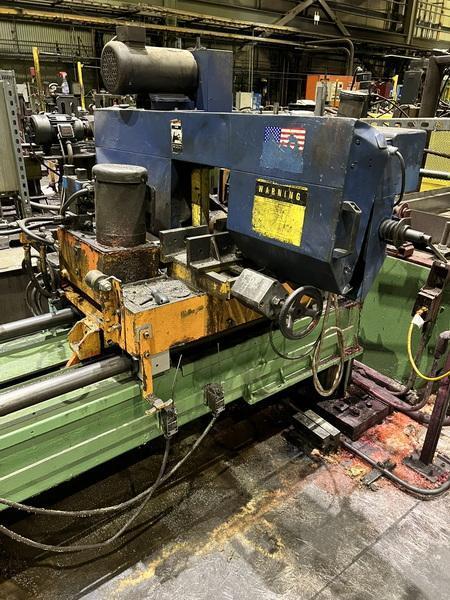

Band Saw Cut-Off
Run Out Table
Tooling for the following: 0.750, 0.875, 1.0, 1.050, 1.250, 1.5, 2.0
