General Specifications:
Year 2012
Tube Diameter Range: .413"-2" (10.5mm-60.5mm)
Wall Thickness Range: .031"-.078" (.8mm-2mm)
Line Speed: 6'-98'/min (2-30m/min)
Line Direction: Right to Left
Following Components:
Mandrel Uncoiler
Shear End Welder

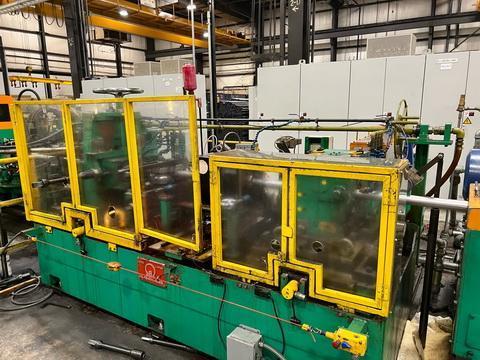

Forming Group
Two Sets of Entry Edge Guides
7 Forming Stands
Five Side Roll Stands
First and Fifth forming stands driven with 3.7kw motor

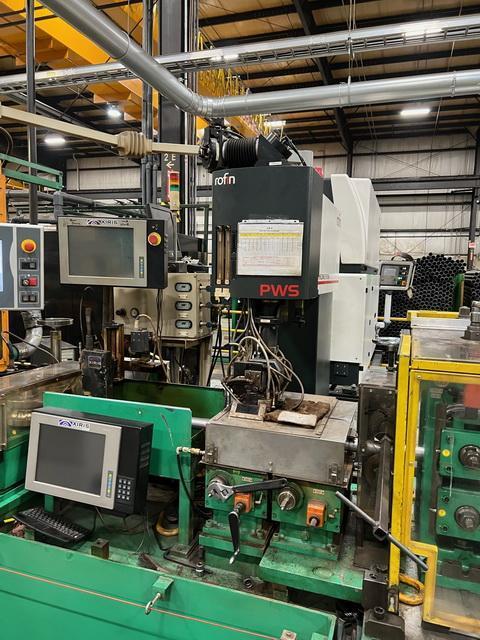

Rofin PWS Laser Welder
6kW output
Four Roll Weld Box
Spare Weld Box for Smaller Sizes

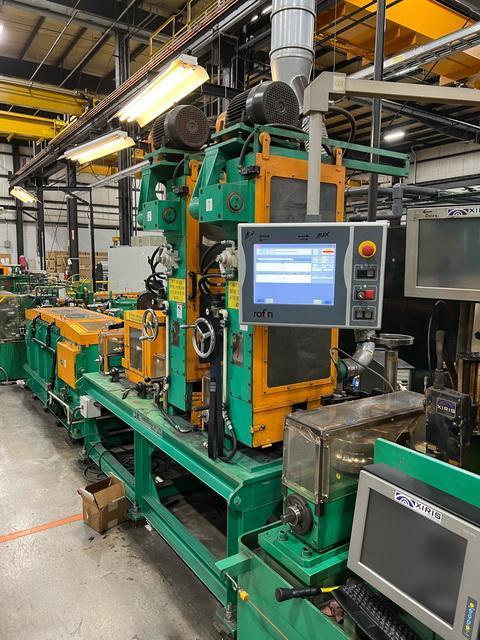

Two Squeeze Roll Stands
De-oxidizing Chamber
Inert gas sent into weld box to remove oxygen from the air
XIRIS Weld Monitoring Camera

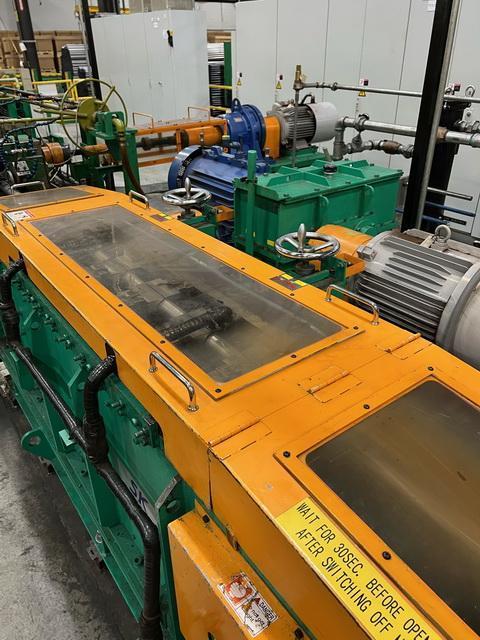

Polishing Section
Two Konishisaku Polishing Heads
Two Brushing Heads
Caterpillar Drive
2 x 22kw motors
*this unit pulls the tube through the mill, a special Kusakabe design

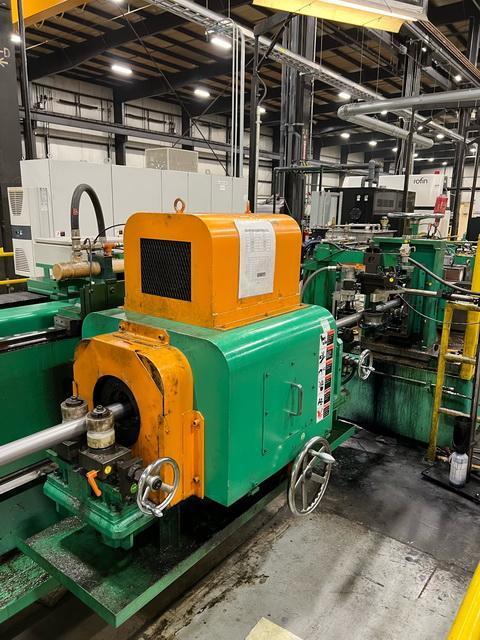

Kusakabe Modular Sizing Mill
Kusakabe's MSM design is a very strong and rigid 3 roll sizing method that provides a tube with an OD of high precision.
5.5kw motor
Pruftechnik Eddy Current Tester
Model Eddychek 5
Turks Head
Ink Jet Printer for Labeling Pipe
Rotary Flying Cut Off

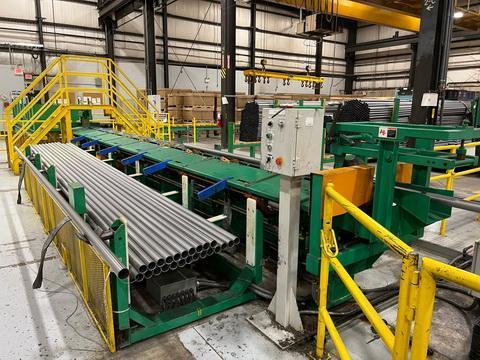

End Table
Automatically sorts by good pipe and scrap
Digital Read Outs and Touch Screen HMI
Flare Tester and Flatness Tester
Tooling for the following outer diameters: 60.5mm
In Storage
