| Tube Diameter | 2.5 inches |
Manufacturer: Olimpia80
Year: 2003
Diameter Range: 18mm (.70") to 63.5mm (2.5")
Thickness Range: 1mm (0.039") to 4mm ( .157")
Max Speed: 100mpm
Max Tube Length: 6 meter
Product Range:
Round Diameter Dimensions: 19.1mm, 25.4mm, 31.8mm, 38.1mm, 50.8mm, and 63.5mm
Square Dimensions: 15x15mm, 20x20mm, 25x25mm, 30x30mm, 40x40mm and 50x50mm
Rectangular Dimensions: 20x10mm, 30x15mm, 30x20mm, 40x20mm, 50x30mm and 60x40mm
Complete Tube Mill Line with the Following Components:
Double End Mandrel Uncoiler
4 Ton per Arm Coil Weight
Strip width: max. 300 mm
Coil Inner Diameter: min. 400 mm - max. 550 mm
Outer coil diameter: max. 1400 mm
Shear and End Welder
Double Vertical Accumulator
15Ton coil weight Total

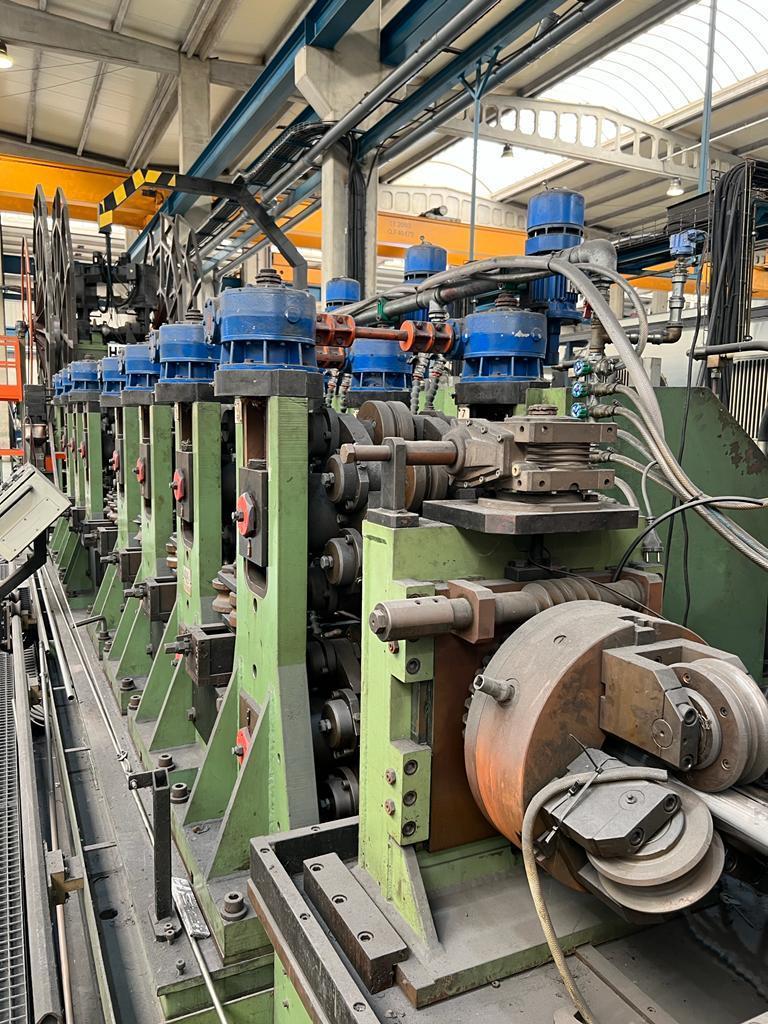

6 Position Revolving Forming and Sizing Section
* Machine Capable of Change the Sizes of Tooling Using a 6 Position "Revolver Style" Changing Mechanism

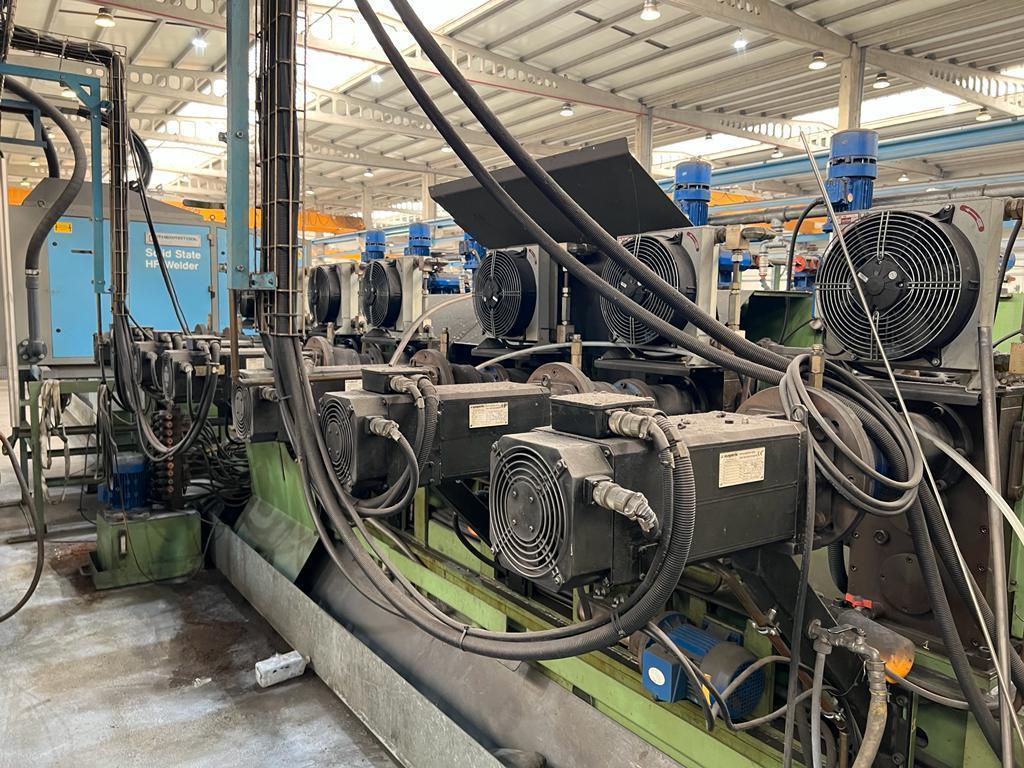

Individual Servo Motors in Each Stand
Single Point Adjustment on All Stands
1O motorized rotating heads (7 in forming and 3 in calibration) and
1O idle side carriages (7 in forming and 3 in calibration
12 positions for mounting the roller shafts i, 6 on the upper support and 6 on the lower one.
50 mm Diameter Shaft
11 roller alignment system is simple and is operated by side screws.
The distance between the center of the heads of 650 mm.
11 complete change of equipment is carried out automatically in 15-20 minutes

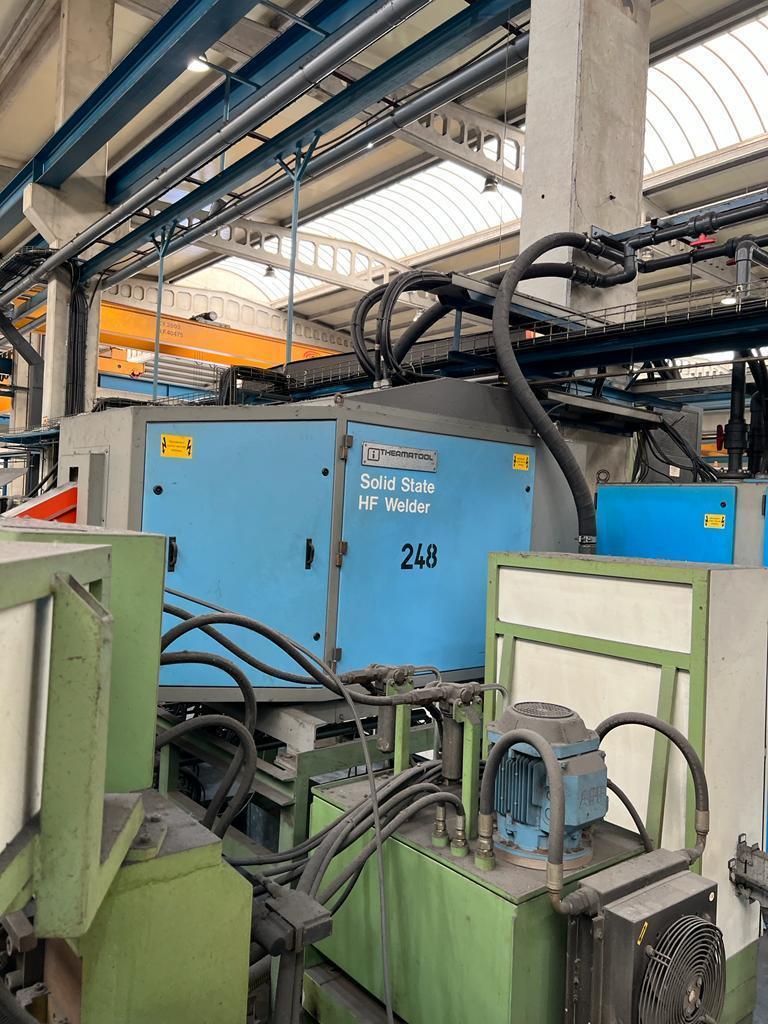

Solid Estate High Frequency Thermatool TIG and Plasma Welding Systems in Controlled Atmosphere

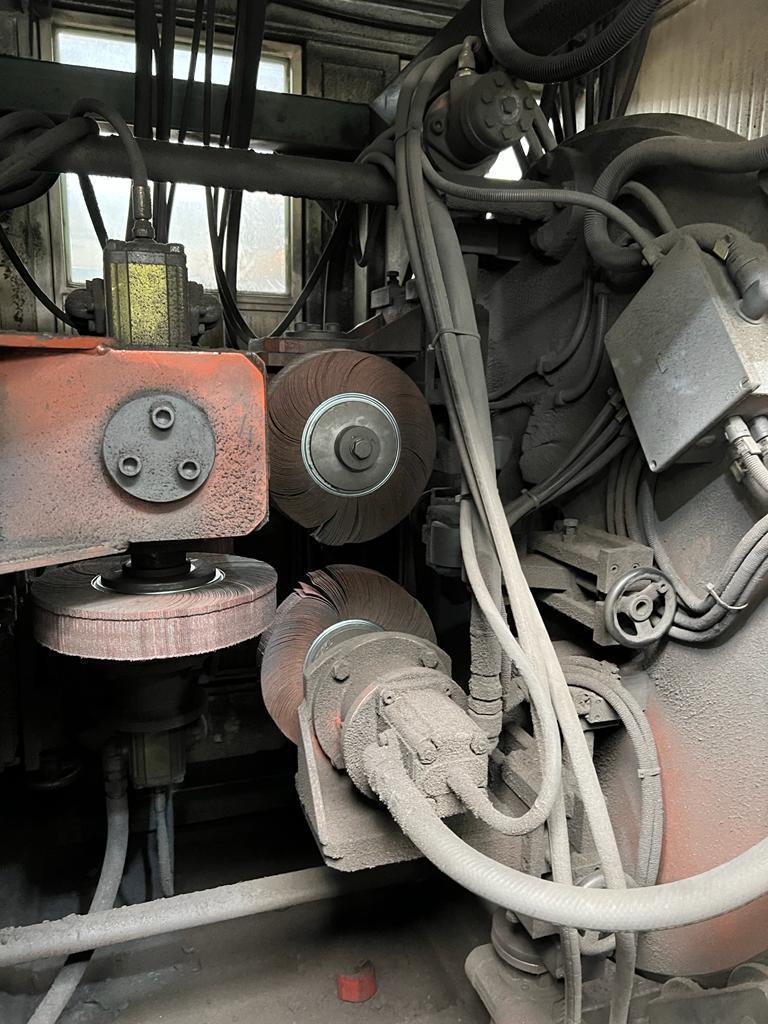

Brushing Section and External Weld Grinder
BRUSHING MACHINE FOR SQUARE TUBES AND RECTANGLES
6 BRUSHING HEADS

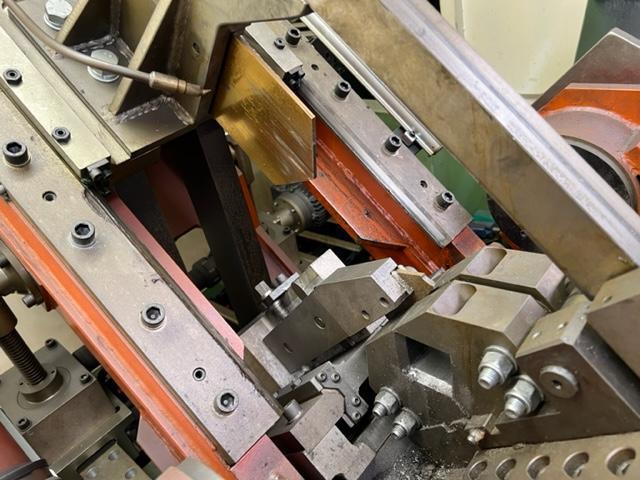

DOUBLE DIE CUTTING SYSTEM (2007)
Maximum line speed: 30 - 35 m/min
Minimum tube length: 4000 mm
Cutting rail length : 4200 mm
Cutting disc diameter: 250 mm
Cutting disc speed : 15 m/min for HSS discs / 60 m/min for discs
with carbide inserts
Cutting accuracy : +/- 1 mm
Run Out Table For pipes of a Lenght max. of 6 m

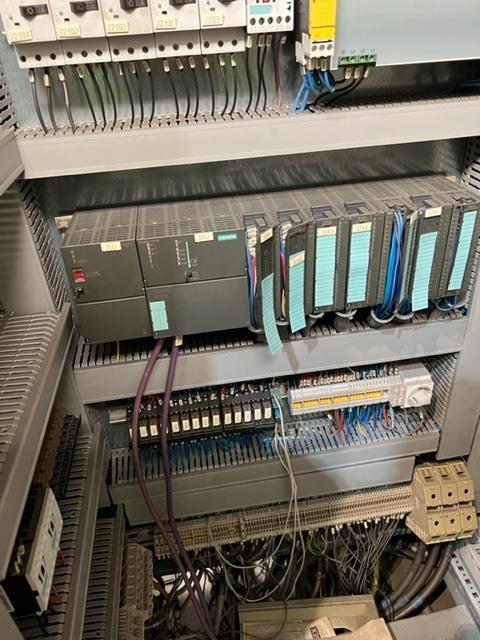

Complete with Controls, Electrics, Tooling, Manuals and Drawings
Installed and Running
