2.5" x .134" Turek & Heller Stainless Mineral Insulated Cable/Tube Line 2006

Model
Not Specified

Stock #
603992

Condition
Used

Year
2006

Tube Diameter 2.5 inches
Max. Wall Thickness .134 inches

Equipped With

Year:  2006
Manufacturer:  Turek & Heller
Finished Dia Stainless Tubing: .85" & 1.21"
Maximum Wall Thickness:  .170"
Material:  446, 347, 825, Stainless Steel

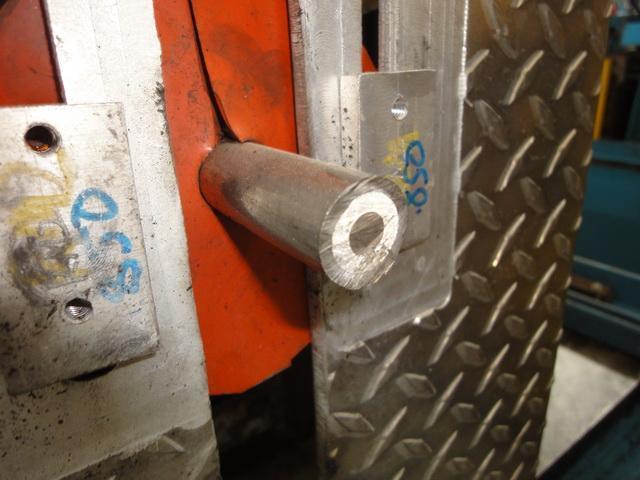

Line produces Stainless Steel Mineral Insulated Tubing with Copper or Alloy Center Wire Conductor.
Application:  High Voltage Deep Well Drilling to Lower the Viscosity of the Oil During Pumping.
Replaces the Water & Steam System Currently mostly used.
Used in Both Horizonal and Vertical Wells.

CAN ALSO BE USED FOR THE PRODUCTION OF STAINLESS STEEL COILED TUBING

Featuring:
Core Entry Line with
   20K Reel-O-Matic Payoff
   Core Pull Off Section
   2 Plane Straightener
   Strip Core Feeder & Washer
Complete Entry Line
Entry Edge Prep Station with Edge Trimmer

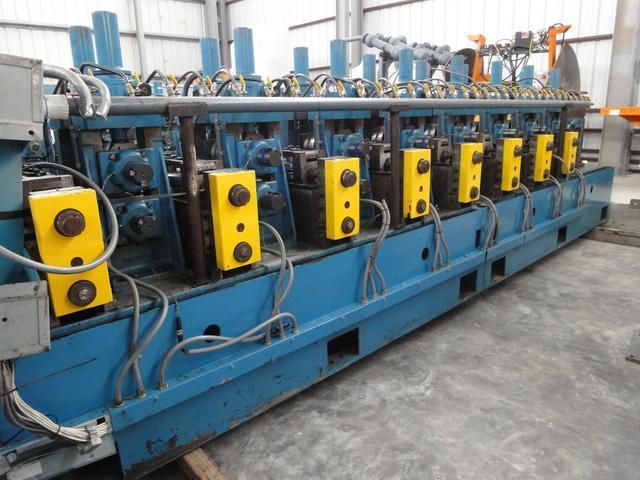

5 Turek & Heller Forming Stands with 4 Side Idler Rolls
3 Turek & Heller Finn Pass Stands with 4 Side Idler Rolls
(2) Sets of 6 Roll Weld Boxes with Dual Torches
Argon Gas Mixers with Stealth Digital Readouts
(2) WU35 Turek & Heller 8 Stand Precision Reducing Mills with 8 Side Idler Rolls
Strip Core Washer

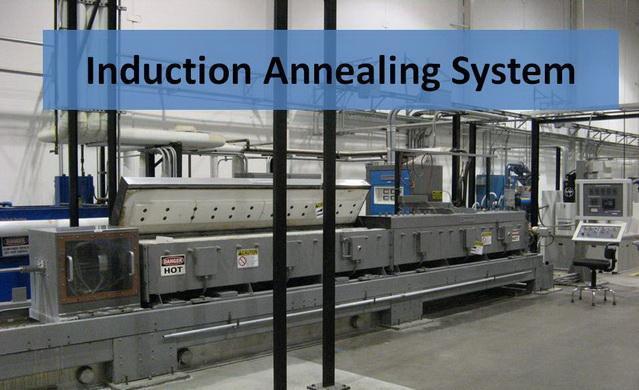

200 KW Thermatool Annealing System
FWQ - Fast Water Quench
In Line Product Testing featuring: Eddy Current Test, Magnetic Test, Laser Marking, Laser Micrometer
Turek & Heller Rotary Flying Cut-Off
Cut-Off Core Guide Assembly
Reel-O-Matic Take Ups (2 x 10 Ton and 1 x 20 Ton)

Tooling, Digital Electrics, Coolant and All Associated Equipment

Complete Line in Excellent Condition
