| Tube Diameter | 2.5 inches |
| Max. Wall Thickness | .120 inches |
Manufacturer: TUREK & HELLER
Model: WU-20-10
Serial #: 1094
Line Direction: Left to Right
O.D. Capacity: .625 - 2.5"
Wall Thickness: .020 - .120
Speed: Up to 25 FPM
Consisting of:
LITTELL PAYOFF REEL
Single Coil: 4000lb. capacity
Electric brake,
Coil I.D: 15"-20"
Max. Width: 12"

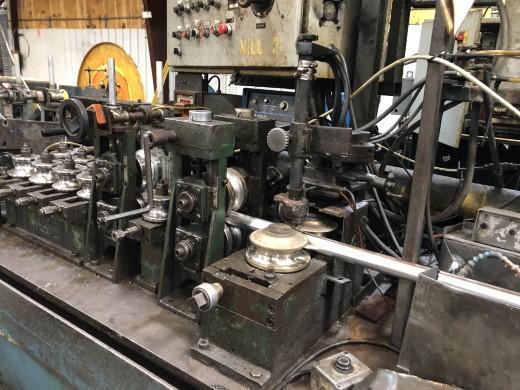

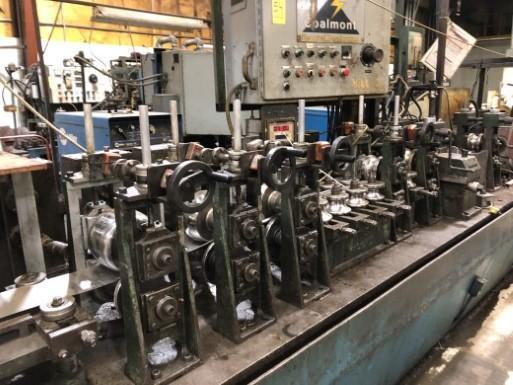

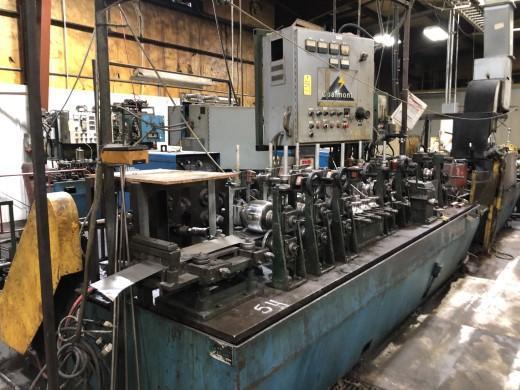

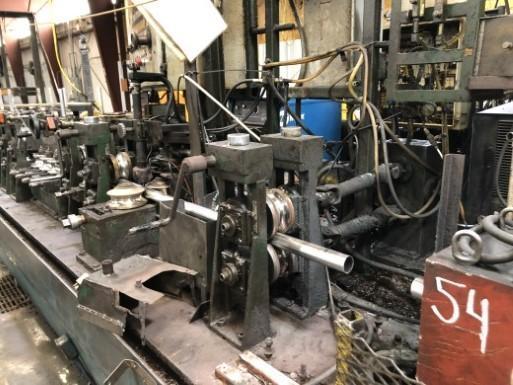

TUREK & HELLER TUBE MILL
Universal Drive, Single Point Adjustment, 2 motors
FORMING SECTION:
Entry Strip Guide
Shaft Diameter: 2.00"
3 Forming Stands
Roll Space: 9"
Horizontal Centers: 12"
Vertical Centers: 5-1/2" to 7-1/2"
Side Roll Cluster, 4 Passes
2 Fin Stands
Roll Space: 4-1/2"
Horizontal Centers: 15"
Vertical Centers: 5-1/2" to 7-1/2"
Motor Drive: HP, DC Volt
WELDING SECTION, TIG
Weld Box: 2 roll
Main welder: Gas control system for Argon, Nitrogen,
Welder: Miller Gold Star 452 CC-DC Welding Power Source
1 Pull-Out Vertical Stand (Could be used to Bead Roll)
IB-LINE INDUCTION ANNEALING
Ajax Tocco Inductron, Mfg. 2006
Model DL293-150-3/10-08H
150 KW, 3/10 K-Hz
Pyrometer Temperature Gauge
IRCON Modline 3, Digital readout
SIZING SECTION
3 Sizing Passes
Roll Space: 4-1/2"
Horizontal Centers: 15"
Vertical Centers: 5-1/2" to 7-1/2"
Straightening Head
Coolant System
Motor Drive: HP, DC Volt
CUTOFF SECTION
Flying Cutoff Saw
Pneumatic Die Accelerator
Pneumatic Clamp
Runout Trough
Mill Dynamics Main Motor Drive, Solid State
AVAILABLE TOOLING: 1.00", 1.050", 1.75", 2.00", 2.25"
