Manufacturer: Sonoda Engineering Ltd (Japan)
Year of Manufacturing: 2010
Thickness Range: 0.019" (0.5mm) to 0.078" ( 2mm)
Coil Width Range: 3.5 (90mm) to 18" (450mm)
Line Speed: 80 m/min
Threading Speed: 15 m/min
Line Direction: Left to Right

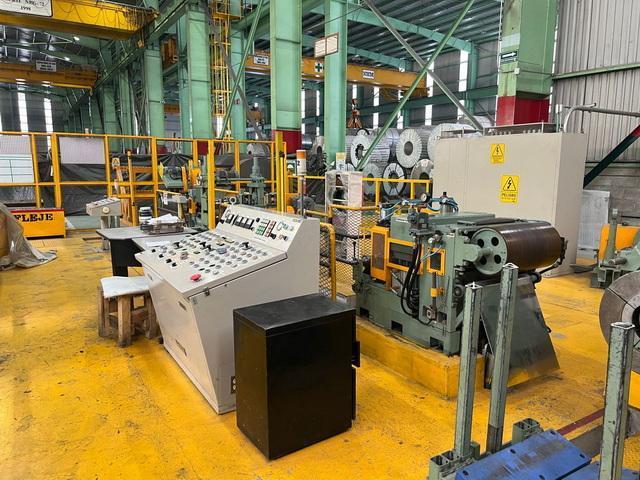

Complete Line with the Following Components:
Pit Type Coil Car

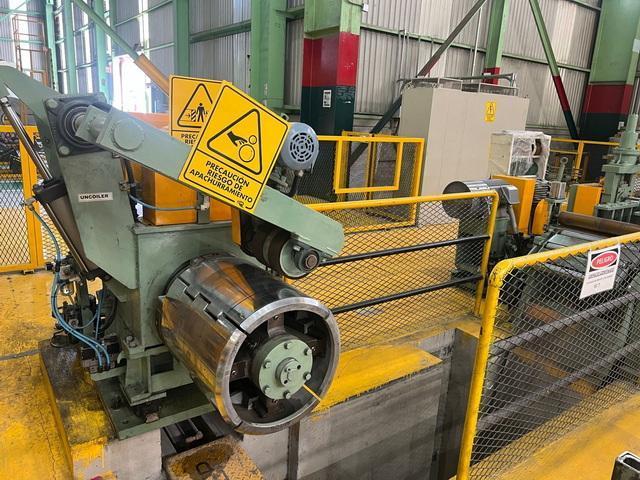

Mandrel Uncoiler
Coil OD: 39" ( 1000mm)
Coil ID Range: 18" (470mm) to 20" (525mm)
Loop Table #1
Entry Pinch Roll
Powered Edge Guides

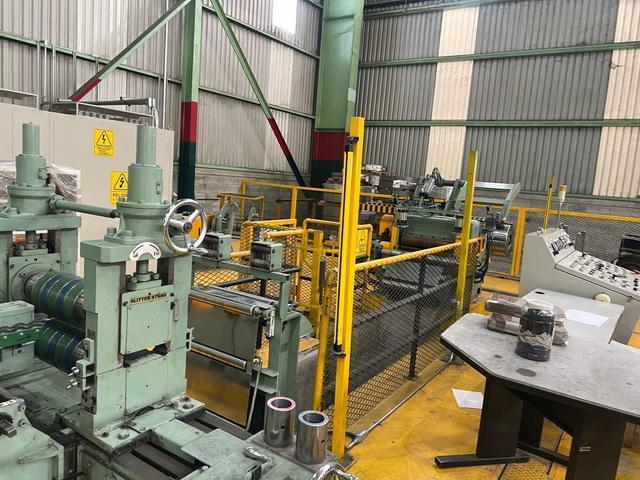

Slitting Head
Strip Width Range: .314" (8mm) to 18" (450mm)
Arbor Diameter: 4" (100mm)
Arbor Face: 22.6" (575mm)
Cutting Capacity:
4 Cuts of 2mm
12 Cuts of 0.5mm
Motor Drive: 15 KW AC Motor
Feeding Table with Scrap Guides
Loop Table #2
Scrap Winder
Double Tension Stand
Deflector Roll
Hydraulic Crop Shear
Feeder Roll
Recoiler
Max Coil Weight: 2 Ton
Drum Inside Diameter: 11.8" (300mm) with Pads for 20" (508mm)
Outside Diameter: 39" (1000mm)
Motor Drive: 15KW AC Drive
Exit Pit Type Coil Car with Coil Keepers

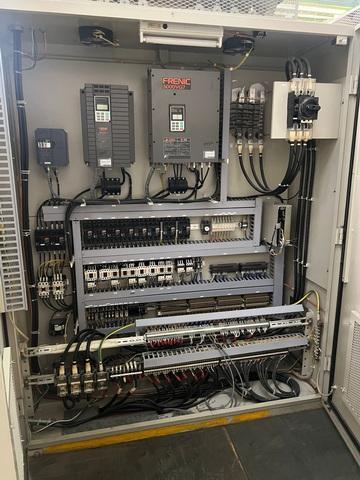

Complete with Large Amount of Knives, Spacers, Rubbers, Electrics, Controls, Hydraulics, Drawings and Manuals
Installed and Under Power
