Equipped With
Year 2002
Diameter of steel pipe 2 3/8" - 6 5/8" (60.3-168.3 mm)
Max Diameter: 177 x 5 mm
Wall Thickness: 2-8 mm
Length: 5.5-10 m
Max Weight: 316 kg/piece
Raw Material: hot rolled coil
Arbor Diametere: 115mm
Coil OD: 1200-1800 mm
Coil ID: 610 mm
Width: 195-550 mm
Material: API-5L Max: x-52
Max Weight: 10 ton
Height level of welding mill: +1000 mm
Welding speed of forming machine: 17-60m/min
Power Supply: AC 380V 50Hz
Installation power capacity: -800kw (exclude H.F)
Mass of whole equipment: -225 ton
Occupied area: 9m span in width -125m in length
Lifting capacity 10/5 ton OH cranes 2 sets
Complete Mill With:
Mandrel Uncoiler
Peeler Hold Down Roll
Flattener
Crop Shear
Pinch Rolls
Shear & End Welder

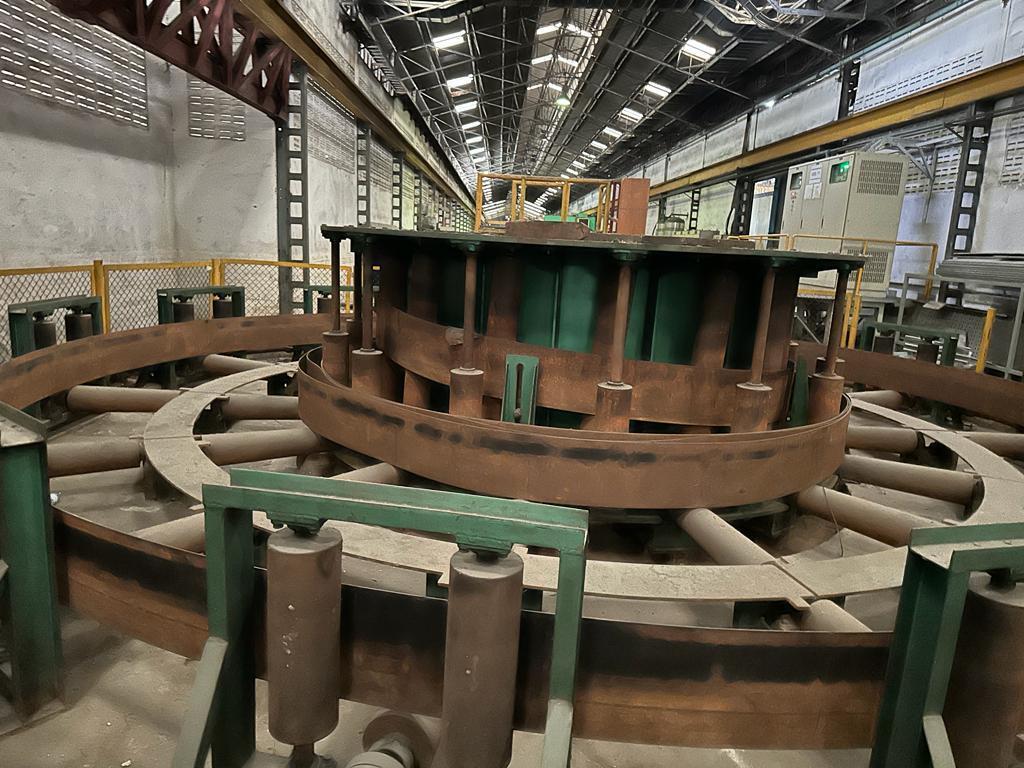

Horizontal Accumulator with Vertical Feeder Roll

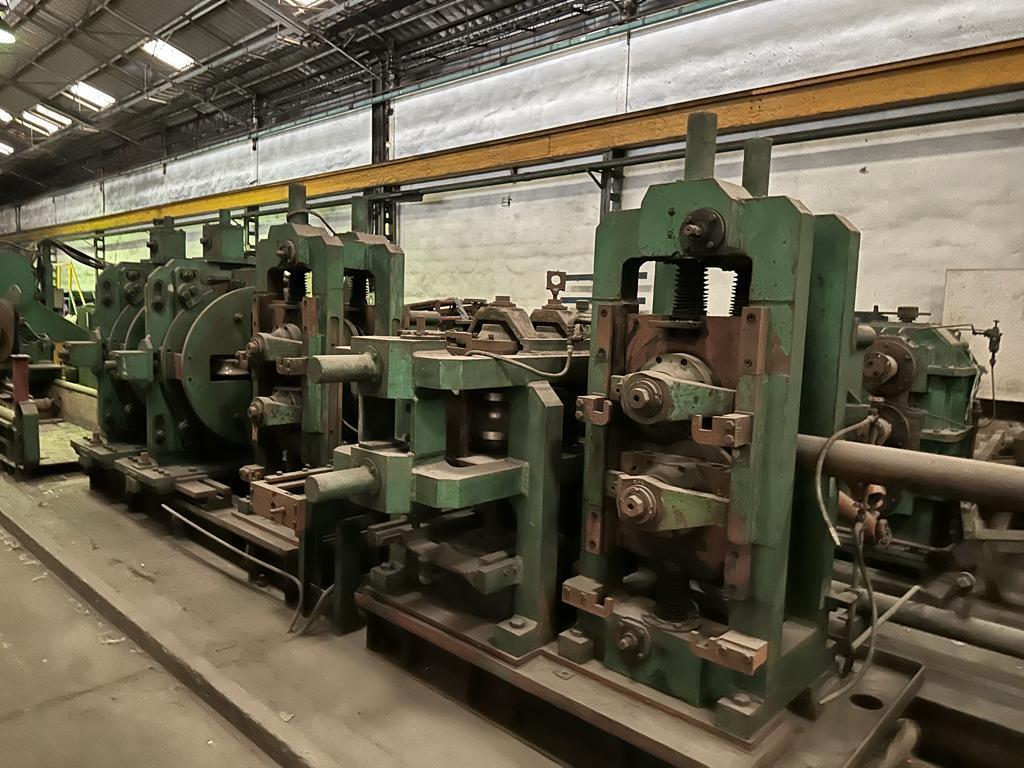

Forming Mill
Entry Edge Guides
Motorized Stand Adjustments
#1 Driven Break Down Stand
Cage Mill
#2 Driven Break Down Stand
2 Finn Pass Stands
800 KW High Frequency Welder

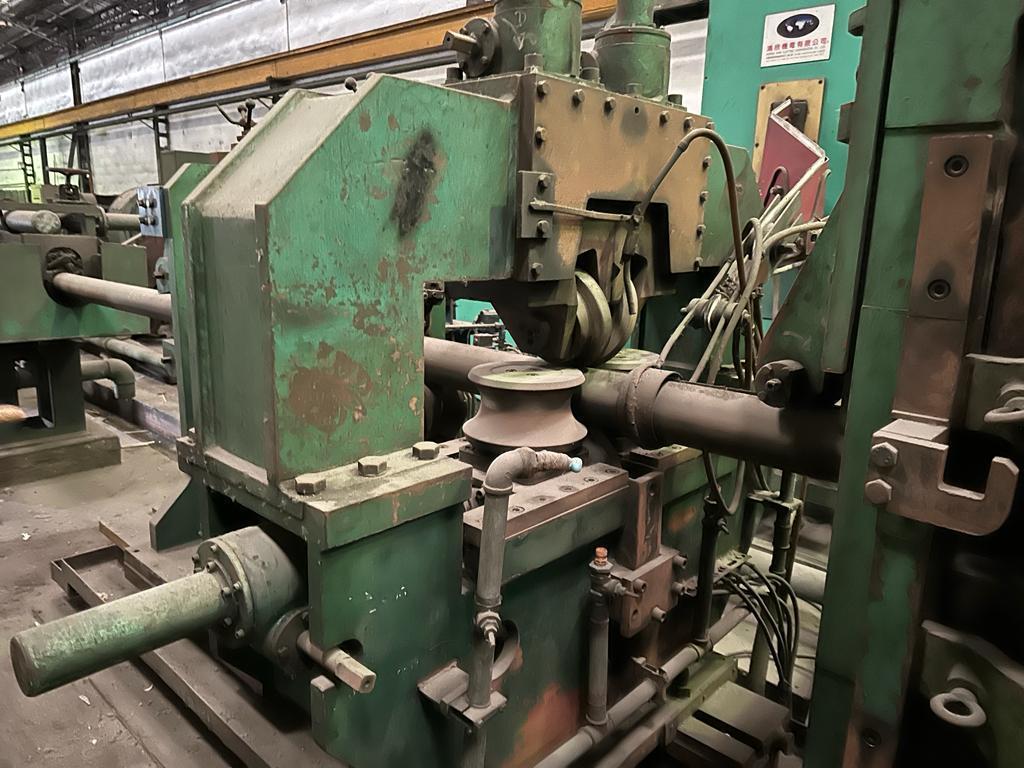

2 Roll Weld Box
2 Seam Guide Rolls
2 OD Scarfing Stands
20' Cooling Section
Sizing Section
Vertical Sizing Stand
Horizontal Sizing Stand
Horizontal Sizing Stand
Vertical Sizing Stand
2 Turks Heads Stands with Rotation

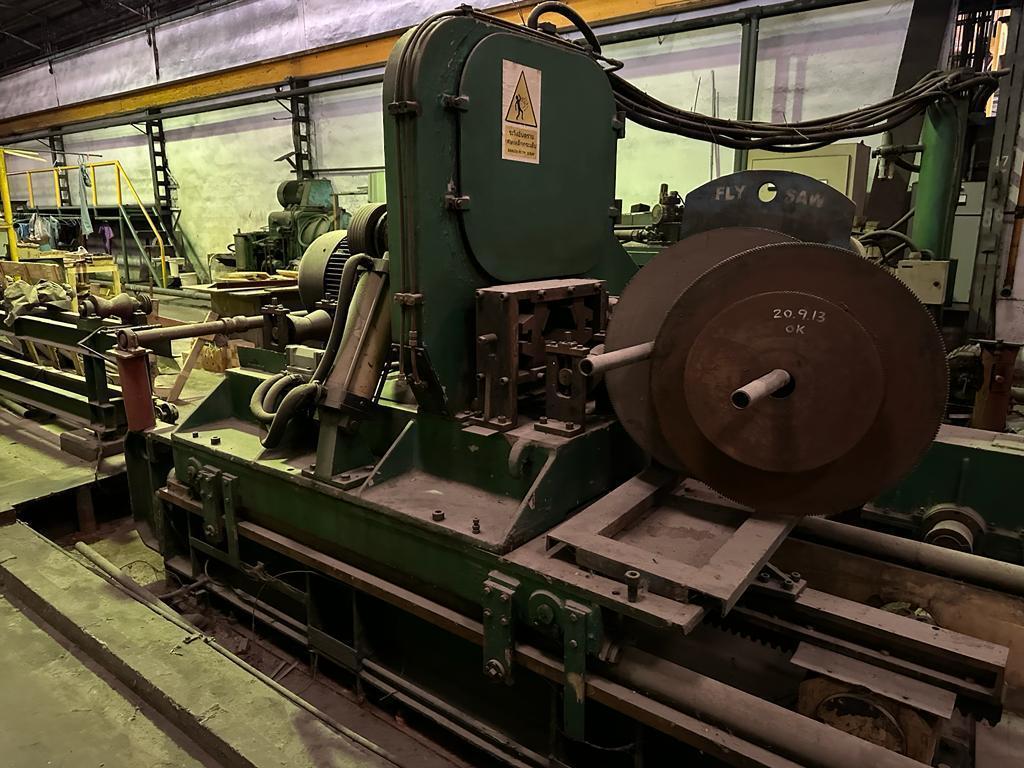

Flying Friction Saw
Rack & Pinion Accelerator
Digital Controls
Run Out Table
Dual End Facers
Walking Beam Conveyor
Hydrostatic Tester

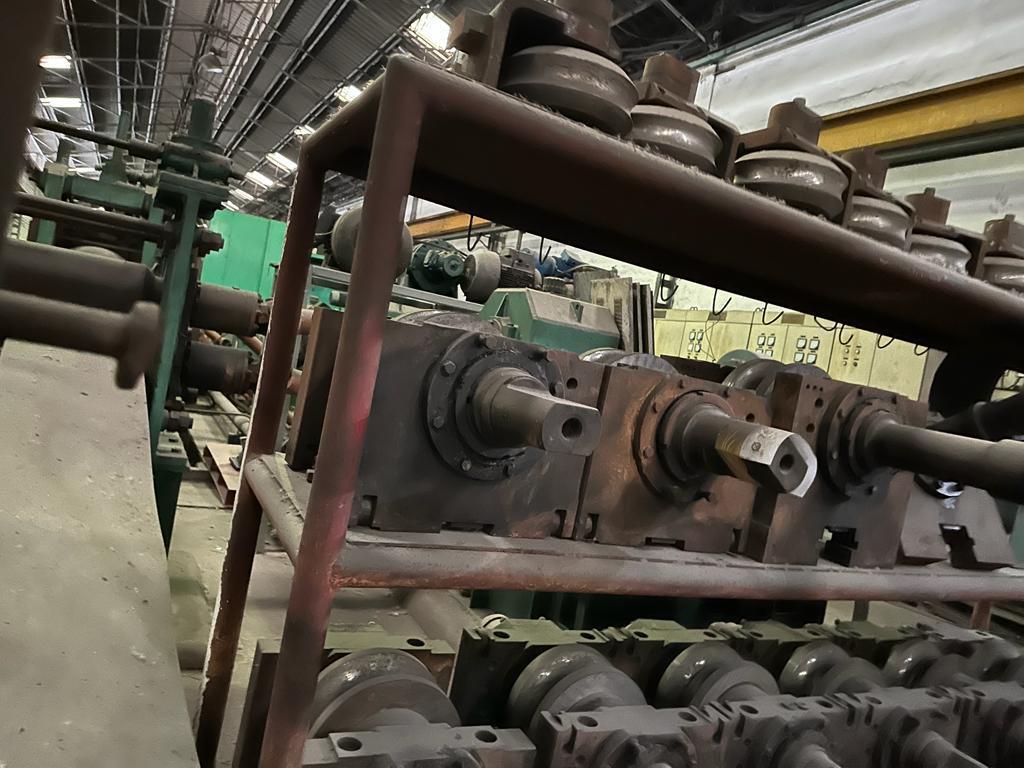

Tooling Rolls
Spare Tooling with Shafts & Bearings
