Model No. 1687
Rafted Mill with Spare Set of Rafts
110mm Shaft Diameter
Tube Diameter Range: 60mm - 170mm
Wall Thickness: 2mm - 7.11mm
Strip Width: 185mm - 535mm
Squares: 50mm x 50mm - 130mm x 130mm
Rectangular: 70mm x 25mm - 200mm x 65mm
Complete Mill With:

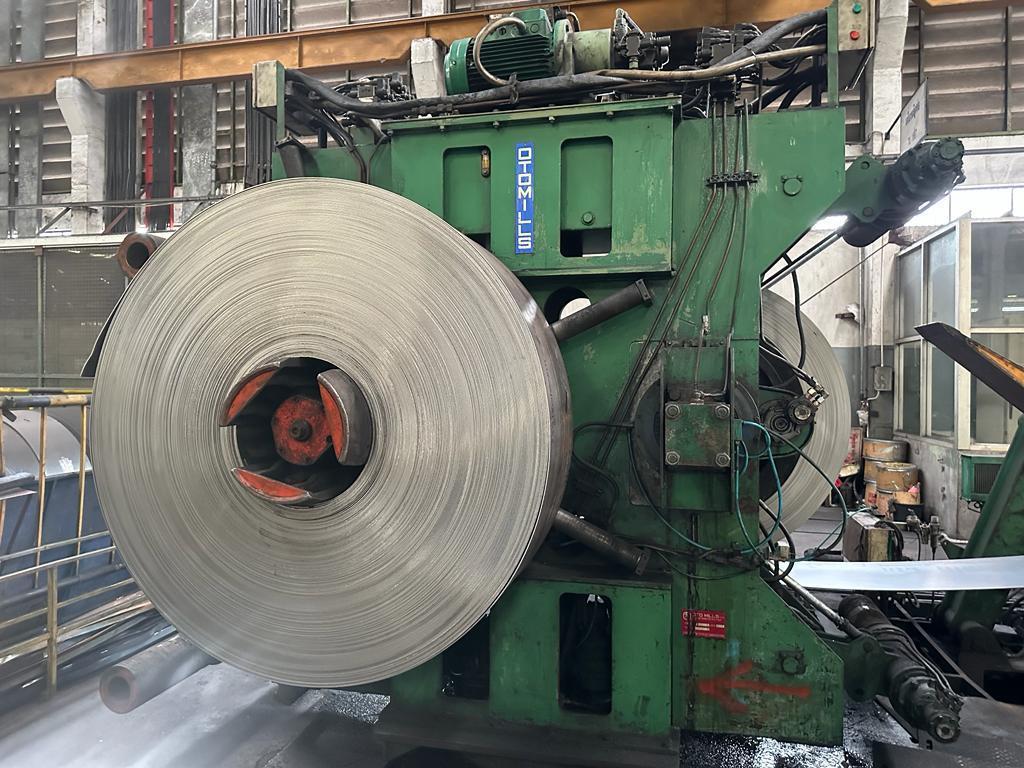

Oto Mills Double End Uncoiler
Coil Holder
Power Rotation
Brake & Clutch
Hydraulic Expansion
Hold Down Rolls
Peeler Table
5 Roll Flattener with Pinch Rolls

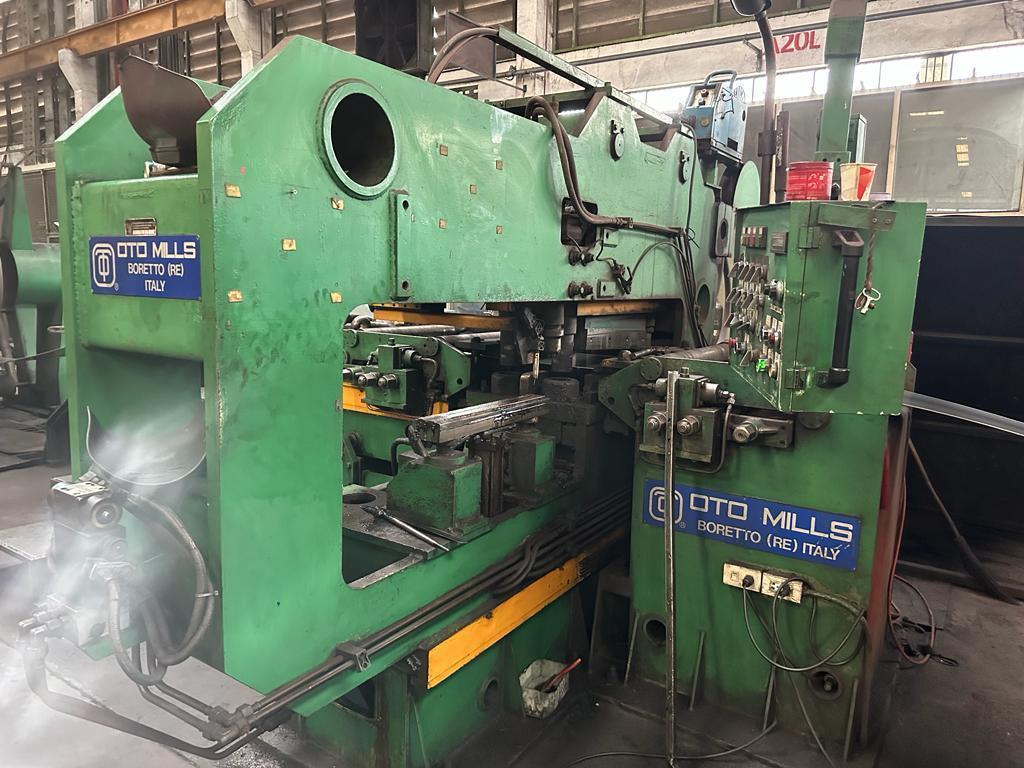

Automatic Oto Mills Shear & End Welder

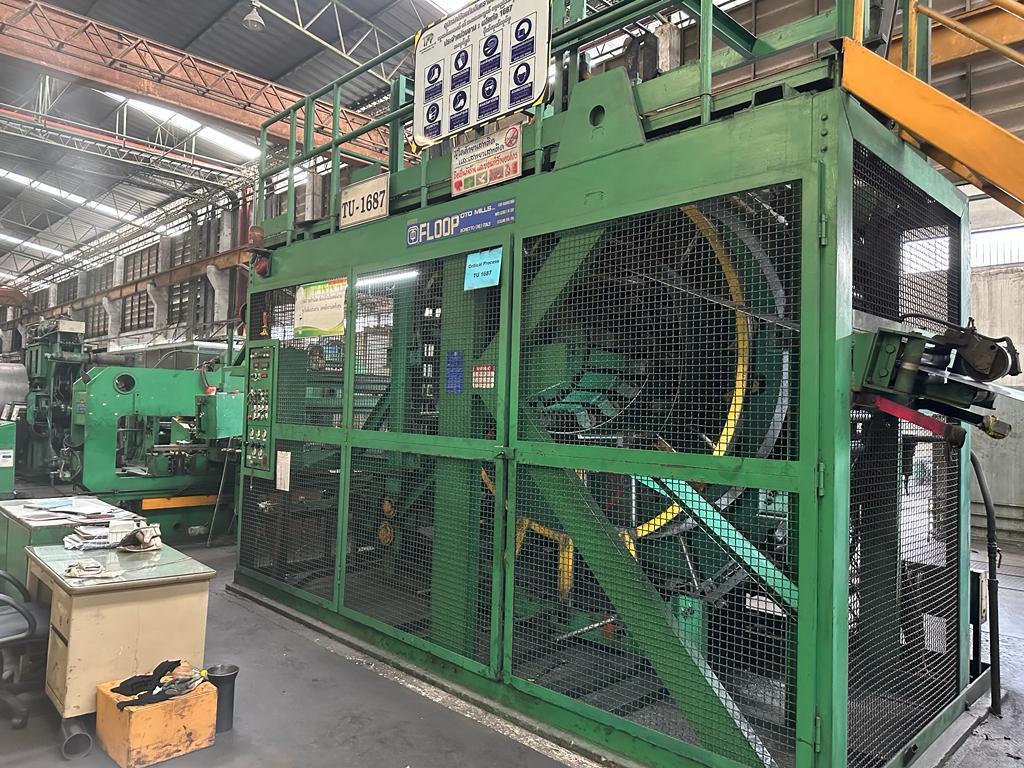

Oto Mills Floop

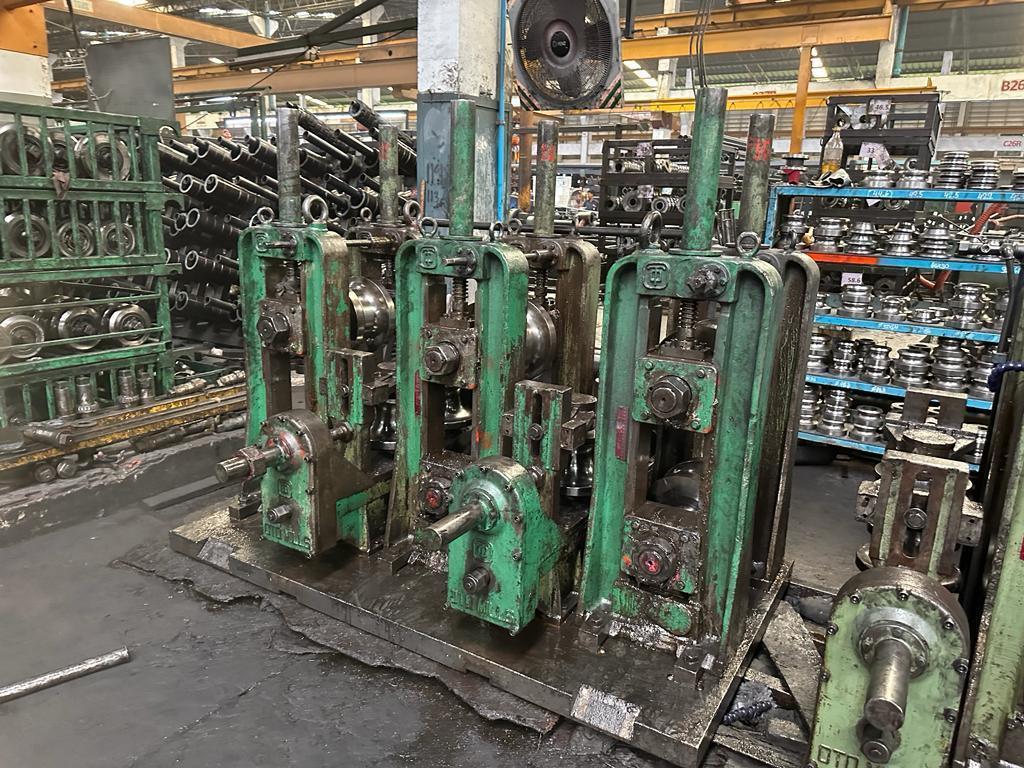

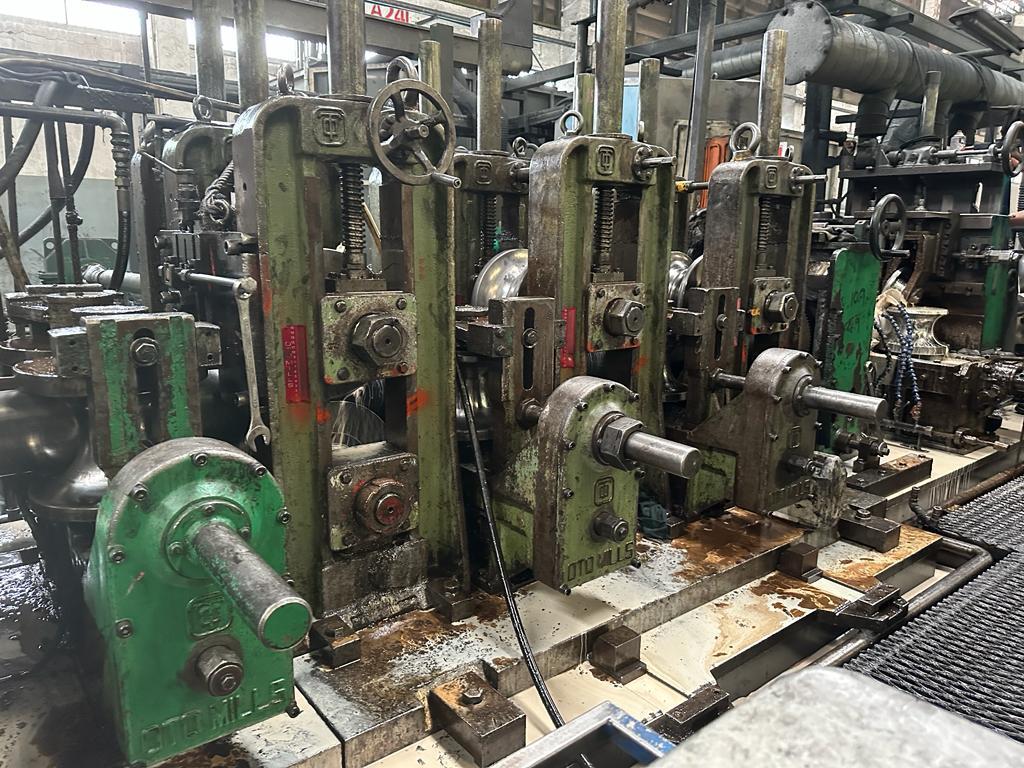

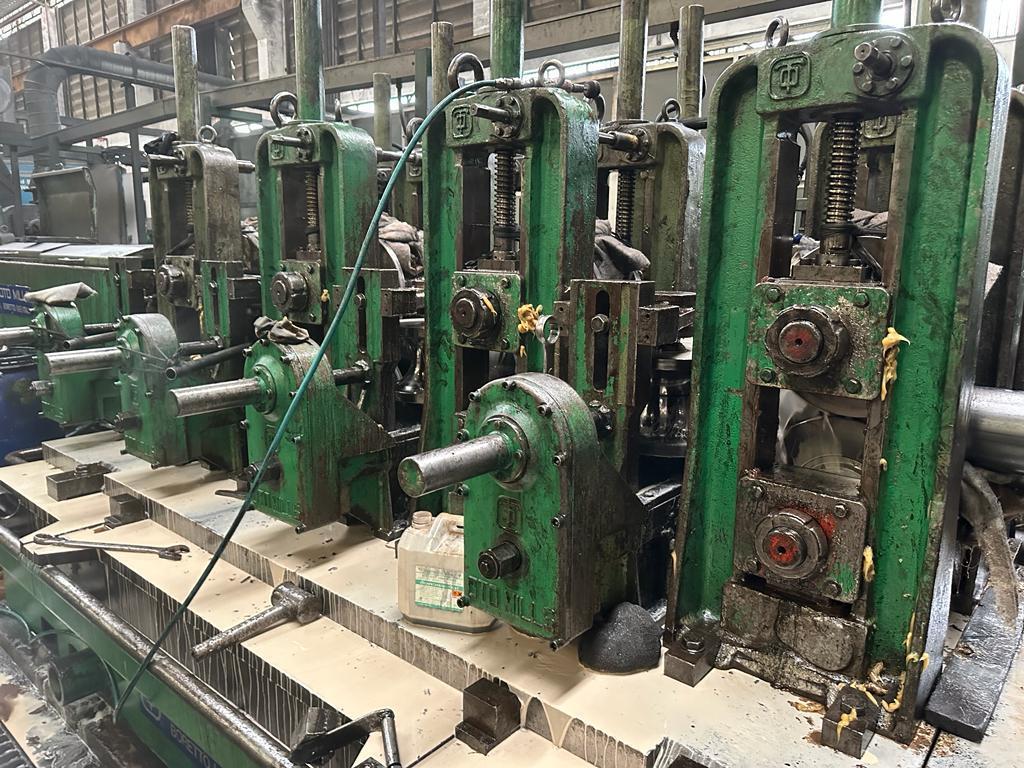

Oto Mills Rafted Forming Mill with Spare Set of Rafts
Entry Edge Guides
Entry Edge Prep Station
Entry 2 Roll Stand
5 Forming Stands
4 Side Idler Rolls
2 Side Idler Roll Cluster
3 Finn Pass Stands
2 Side Idler Rolls
Motorized Stand Adjustments
LVDT Positioners
2 x 119 KW DC Drives
2 Speed Gear Boxes
Welding Section
450 KW Thermatool Solid State Welder
2 Roll Weld Box
2 Seam Guide Rolls
20' Cooling Trough
Eddy Current Tester

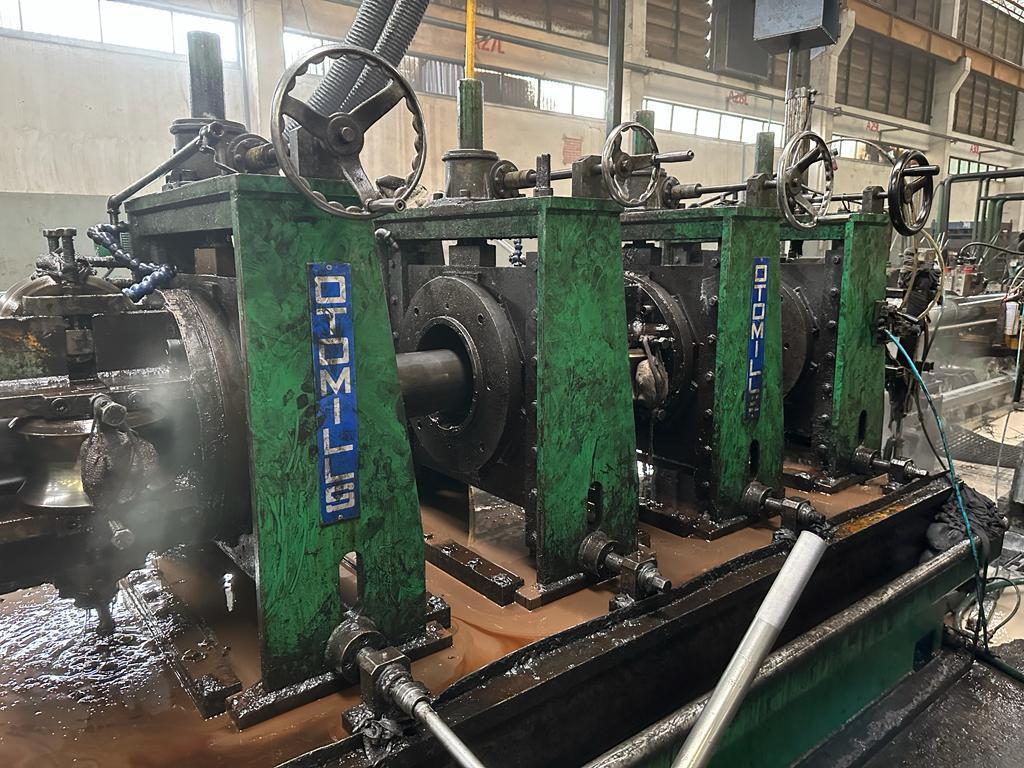

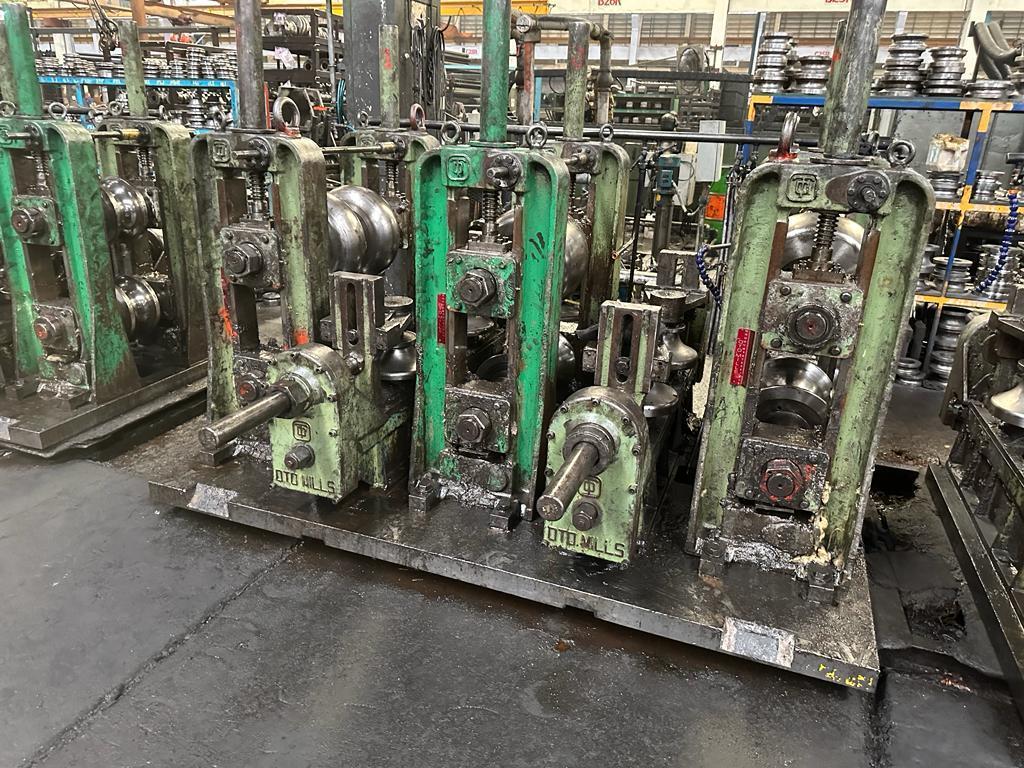

Oto Mills Rafted Sizing Mill with Spare Set of Rafts
4 Sizing Stands
3 Side Idler Rolls
4 Turks Heads
119 KW DC Drive
2 Speed Gear Box
Motorized Stand Adjustments
LVDT Positioning

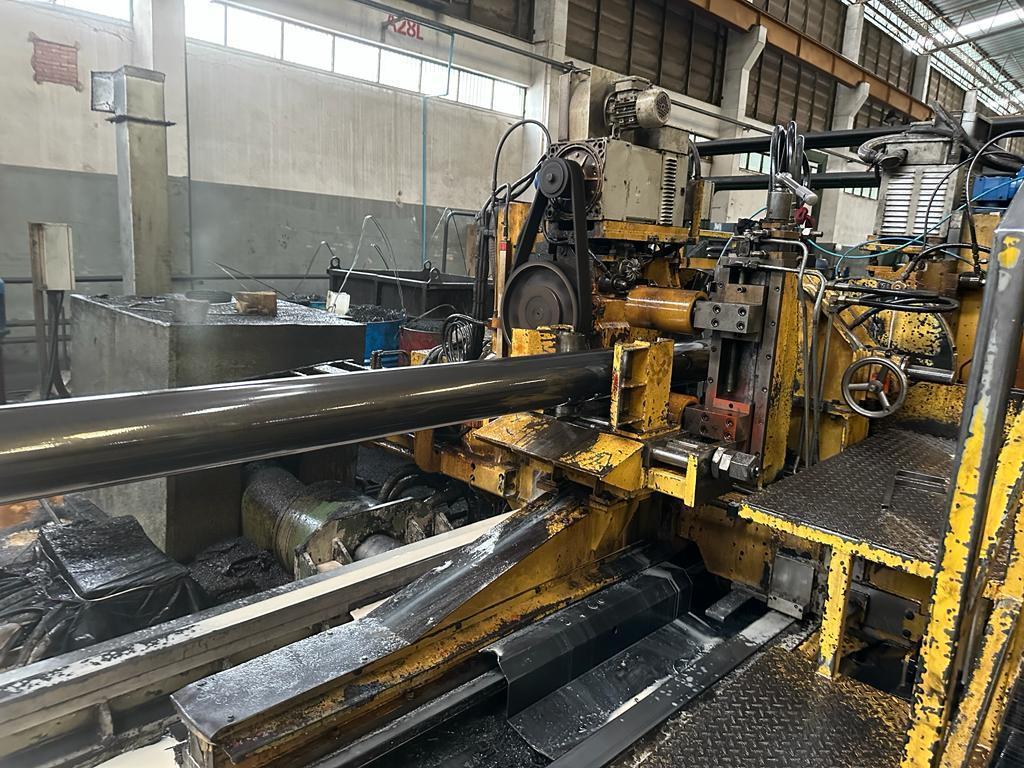

Double Cold Saw Cut-Off New in 2014
Model 14162T
Cut-Off Clamps
Touch Screen Controls
Run Out Table
Side Discharge
Ellytre Digital Controls
Simens Simatic Touch Screens
Eltav 5 Motion Controller

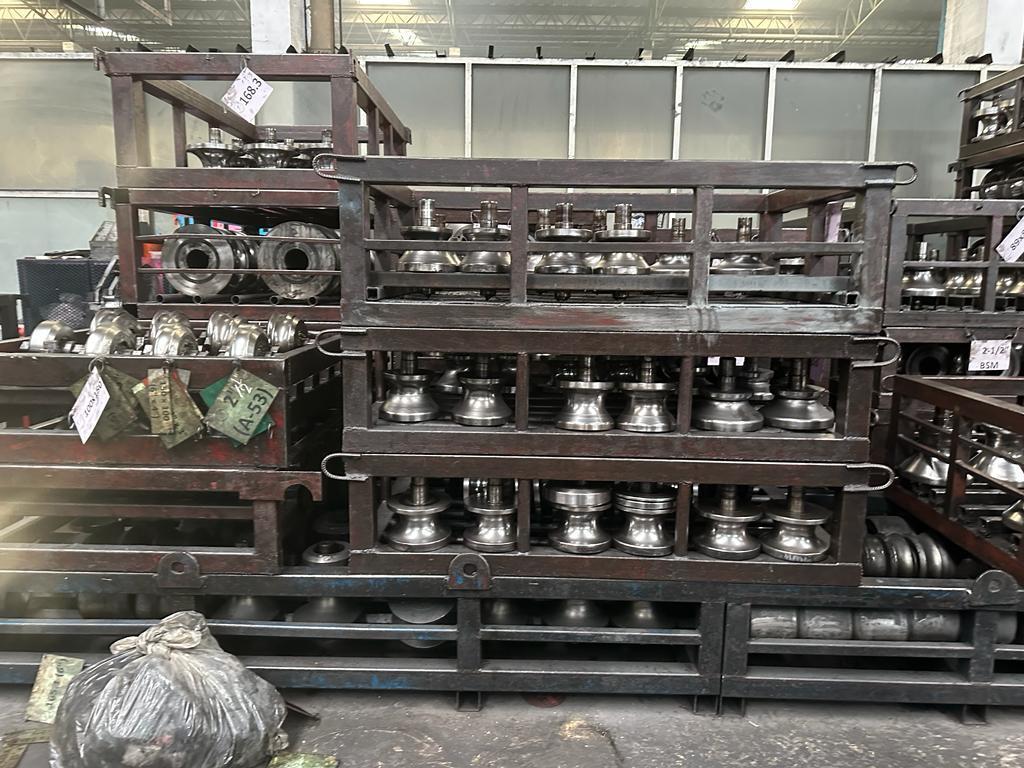

Large amount of Tooling for Rounds/Squares/ Rectangles
Complete Mill
