Year: 2020
MATERIAL DATA:
TENSILE STRENGTH MAX: 46.4 Kg/mm 2 AT 9 1 ~ 16mm
MAX. 77.3 Kg/mm 2 AT 6.0 ~ 9mm.... (9mm THICKNESS @ 700MPA)
YIELD POINT MAX. 36.6 Kg/mm 2 AT 9.1 ~ 16mm
MAX. 54.1 Kg/mm 2 AT 6.0 ~ 9mm
THICKNESS RANGE: 6mm - 6mm
COIL WIDTH: 900mm - 1600mm
COIL WEIGHT MAX. 30,000 Kg
LINE SPEED MAX: 60 m/min
THREADING SPEED 15 m/min
CUTTING SYSTEM PULL CUTTING MODE SYSTEM

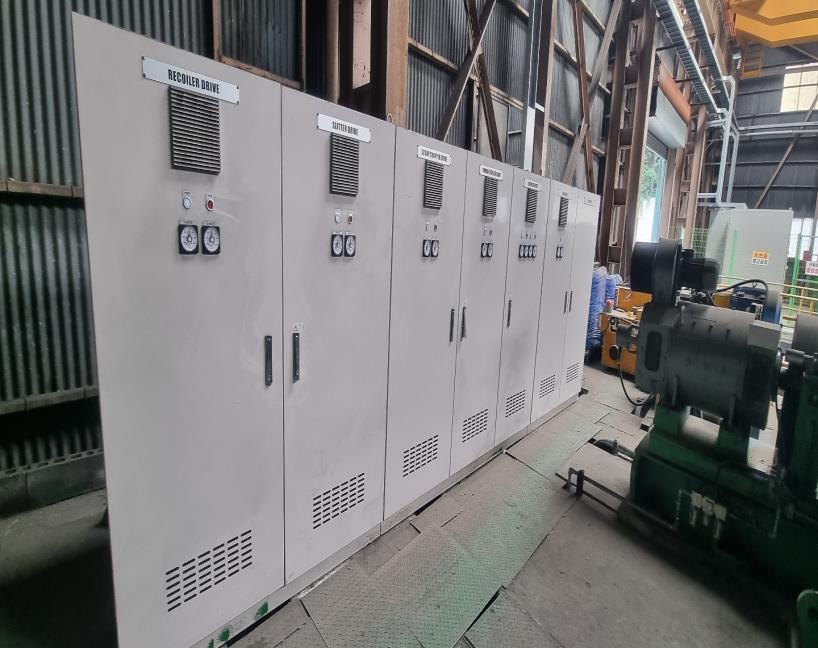

CONTROL SYSTEM DC POWER CONTROL
SLITTING WIDTH MIN: 162 mm
CUT NUMBER MAX: 7 CUTS x 6 STRIPS
PASS LINE HEIGHT FL + 1,100mm
STANDARD OF THREADING LINE CENTER
LINE DIRECTION: FROM RIGHT TO LEFT

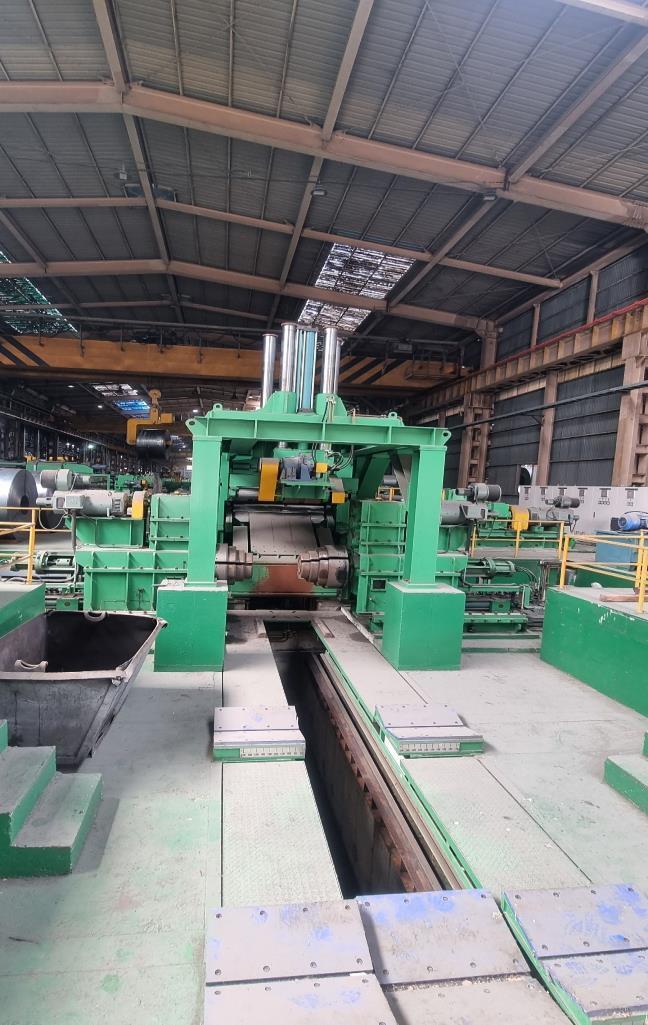

COMPLETE LINE WITH THE FOLLOWING COMPONENTS:
2 COIL STORAGE SKID STATIONS
FLOOR TYPE ENTRY COIL CAR
DOUBLE EXPANDABLE MANDREL UNCOILER

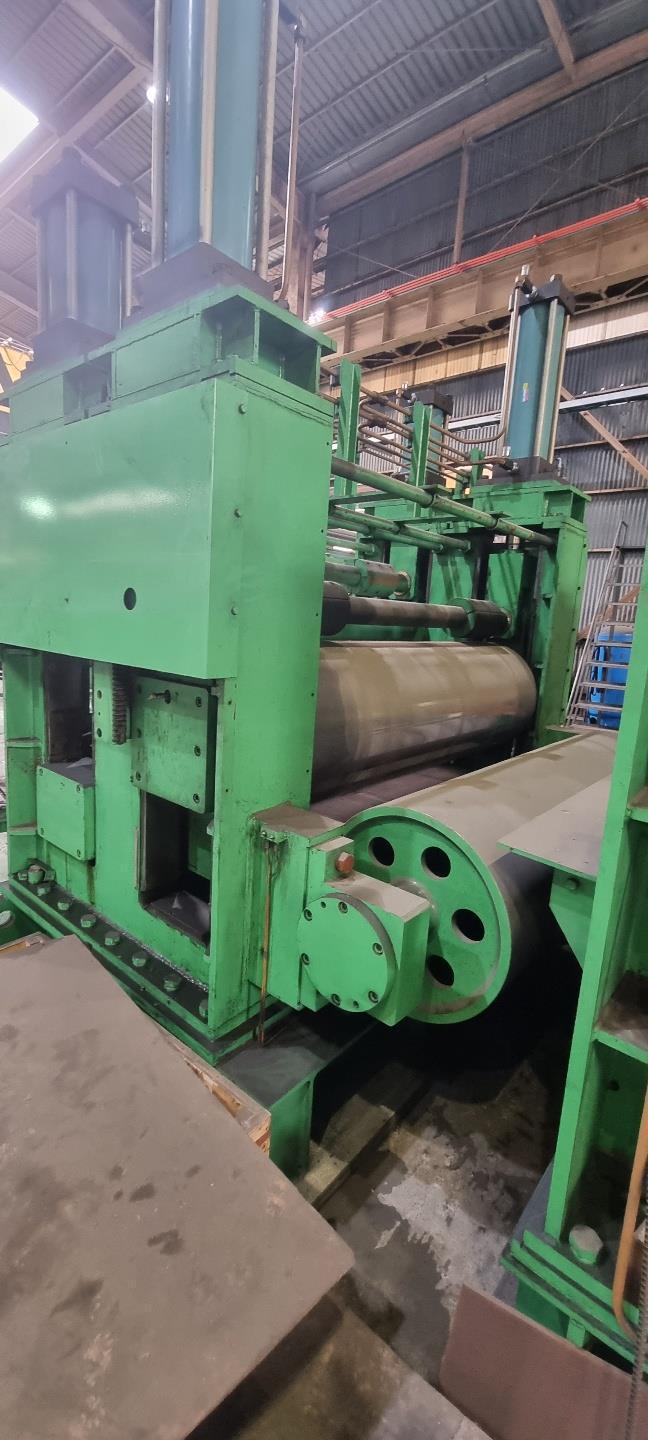

5 ROLL FLATTENER
ENTRY CROP SHEAR & SCRAP BOX
EDGE GUIDES
ENTRY PINCH ROLL

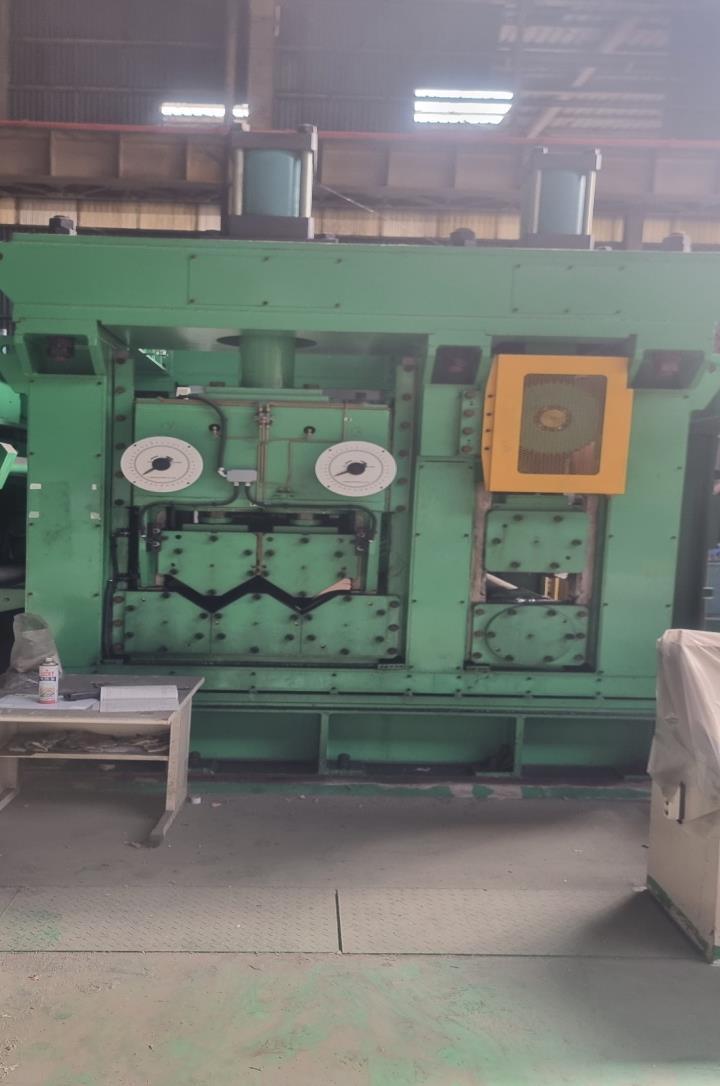

(2) SLITTER HEADS (INJECTOR DESIGN QUICK CHANGE)
SPARE SLITTER HEAD WITH CHANGING CAR
SCRAP CHOPPER
SCRAP WINDER
CHIP CONVEYOR WITH SCRAP BOX
THREADING TABLE WITH END PAD
LOOP TABLE
TENSION PAD WITH SEPARATOR
RECOILER
EXIT COIL CAR
4 ARM EXIT TURNSTILE
COMPLETE WITH HYDRAULICS, ELECTRICS, CONTROLS, TOOLING, DRAWINGS AND VIDEOS AVAILABLE
CURRENTLY INSTALLED AND OPERATING
