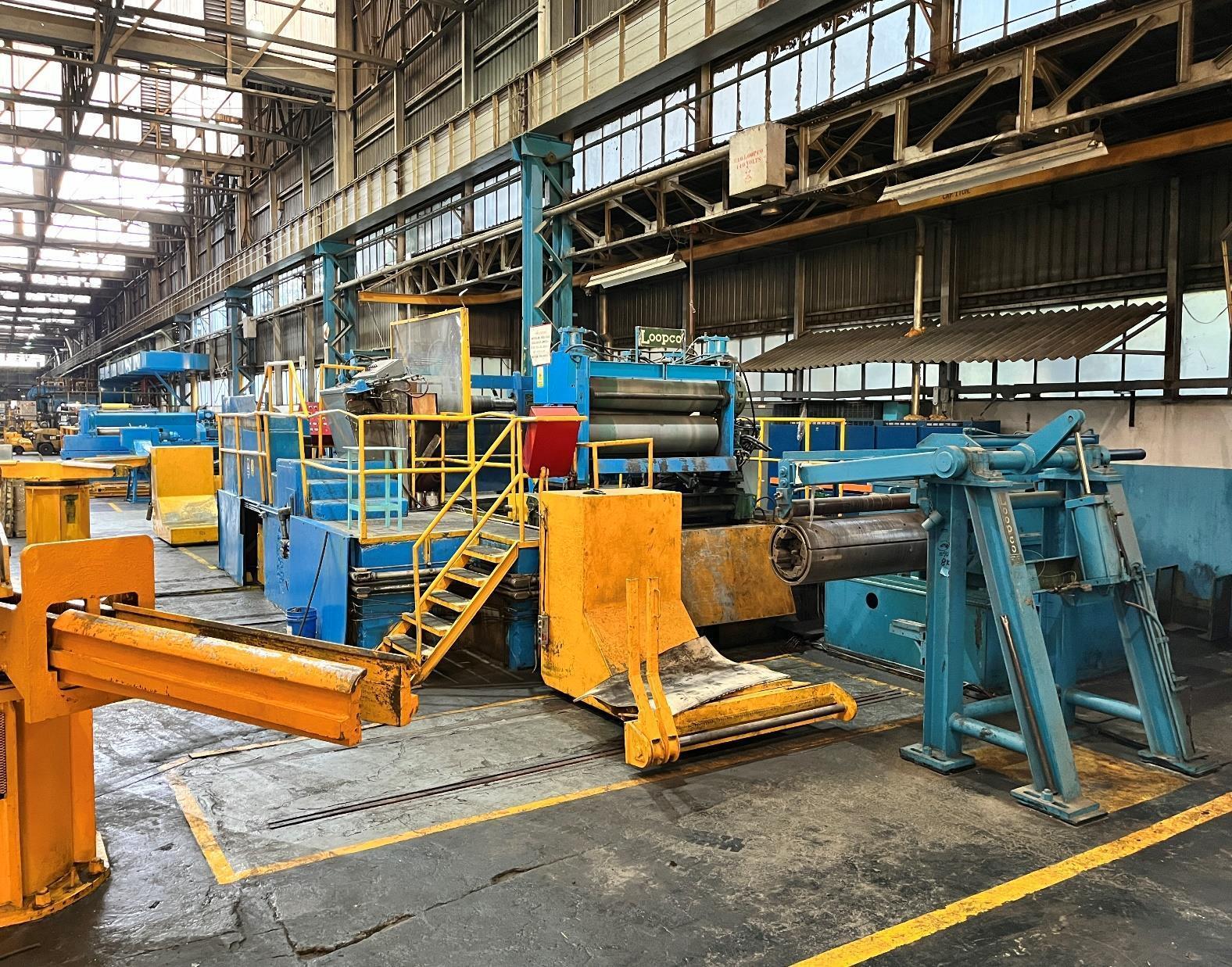

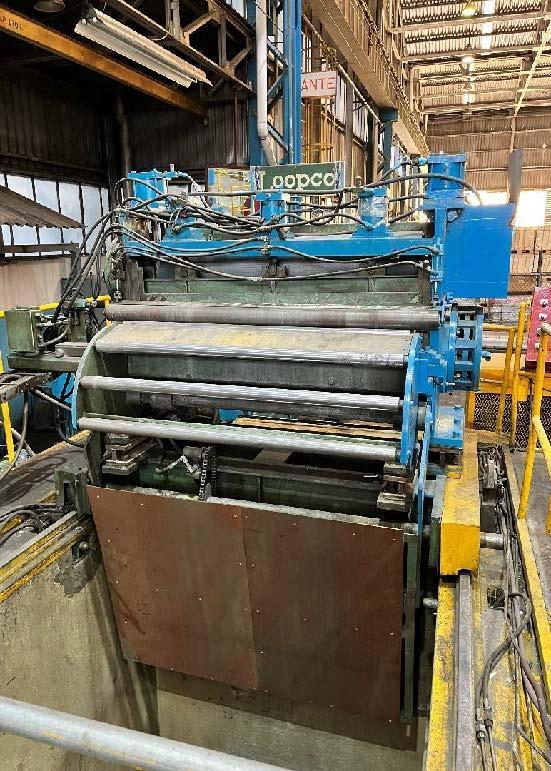

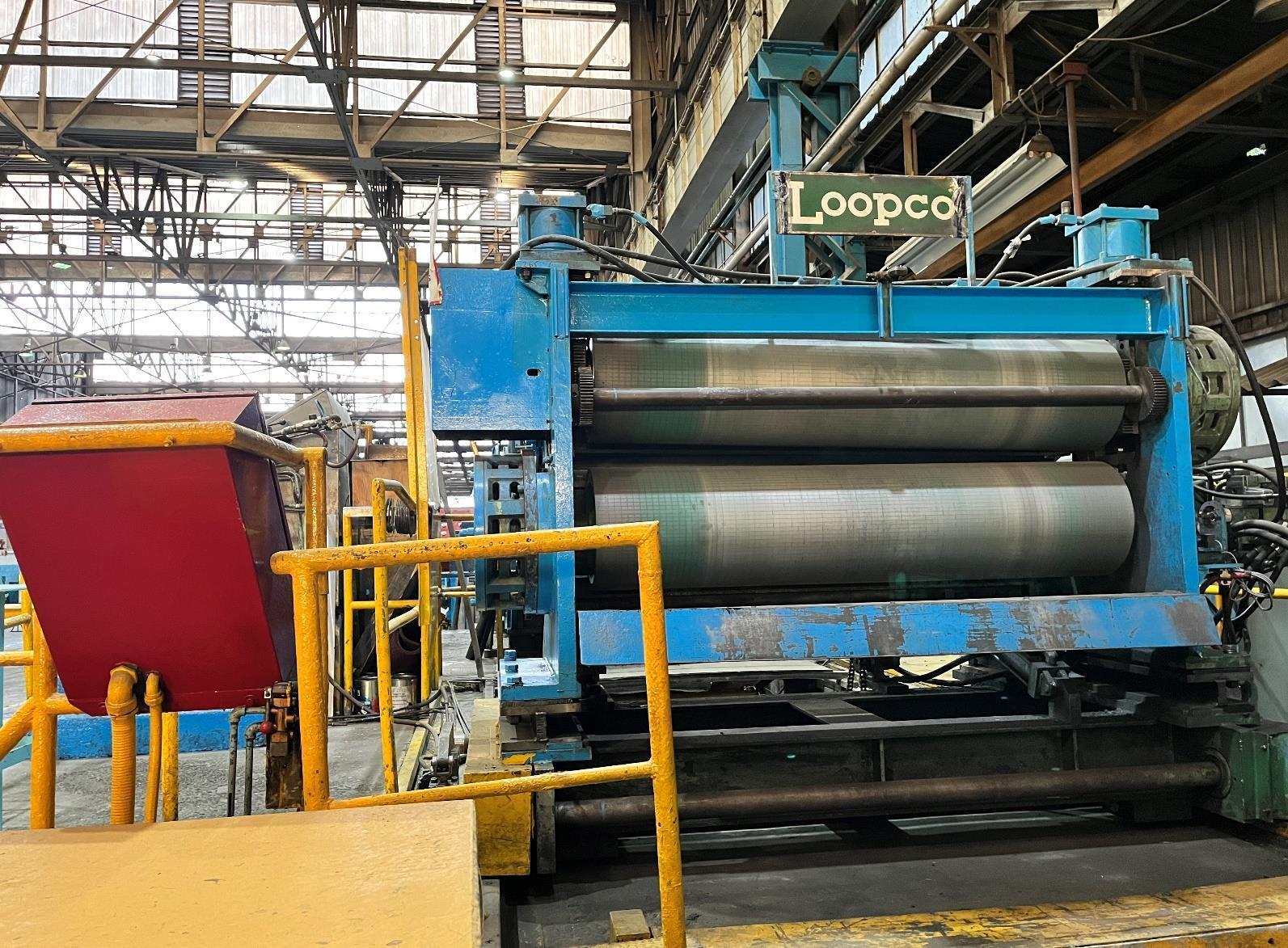

1600mm (63") x 3.5mm (.138") x 8 Ton Aluminum Loopco Loop Slitting Line

Brand
LOOPCO

Model
Not Specified

Stock #
605247D

Condition
Used

Year

Width 63 inches
Thickness .14 inches
Arbor Size 6.5 inches

Equipped With

Manufacturer: Loopco
Year:1982

Technical Specifications:
• Width: 32mm – 1600mm
• Thickness: 0.4mm - 3.5mm
• Line Speed: 120 mpm max
• Direction: Left to Right

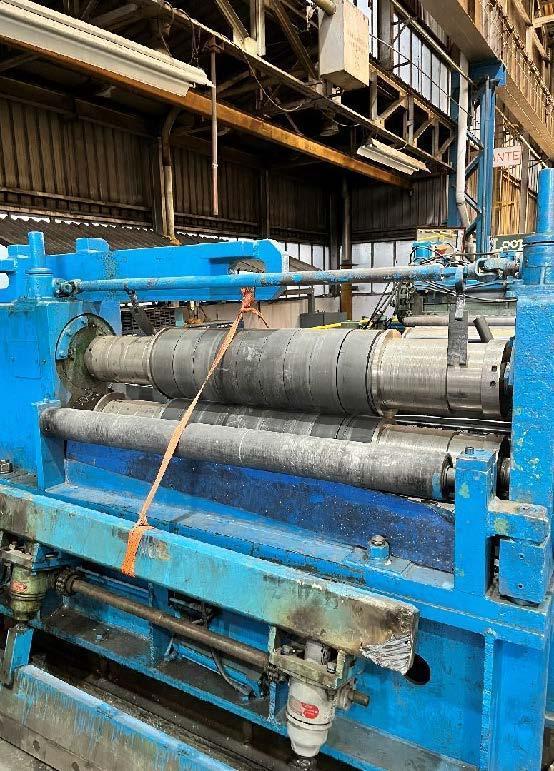

• Slitter Head: 165mm Diameter
• 45 kW Motor Drive

Uncoiler Data:
• Coil ID: 400/508/600mm
• Coil OD: 1800mm
• 75 kW Motor Drive

Recoiler Data
• Coil ID: 400/508/600mm
• Coil OD: 1800mm
• 112 kW Motor Drive
• Scrap Chopper
• Missing Straightening Rolls Table

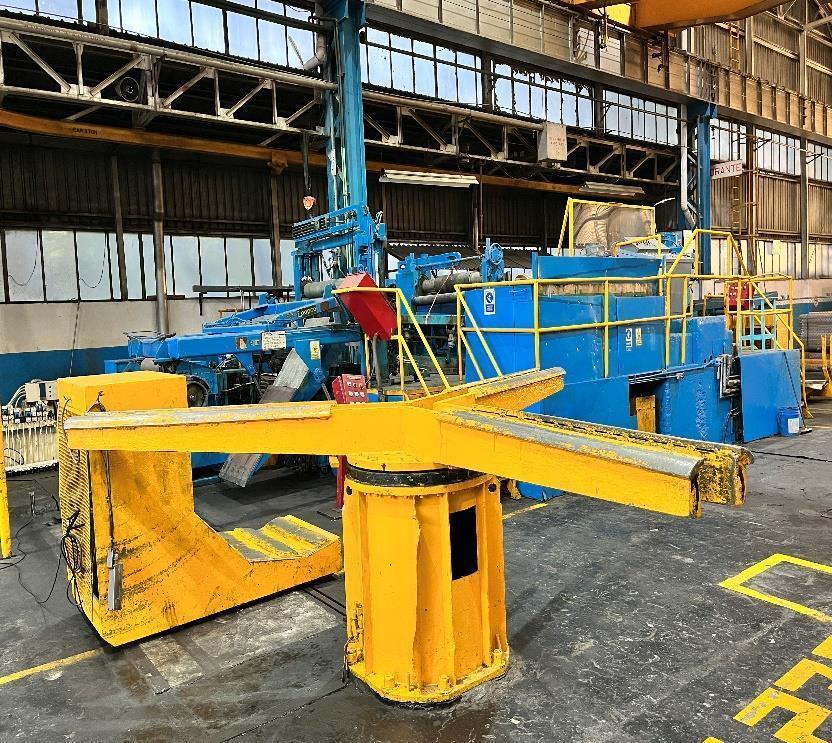

• 3 Arm Turnstile Entry
• 2 Arm Turnstile Exit
• Complete Controls, Electric & Hydraulics
• Used Knives & Spare Parts

Installed and Running
