Thickness Range: 3.5mm - .80mm
Coil Width: 1520mm - 600mm
Coil Weight Capacity: 16 Ton
Line Speed: 0 - 150 Meters/Min
Max Coil OD: 1600mm
Coil ID: 508mm & 610mm
Min Slit Width: 30mm
6 Cuts of 3.5mm
10 Cuts 2.0mm
18 Cuts 1.5mm
40 Cuts 0.6mm
Complete Line With:

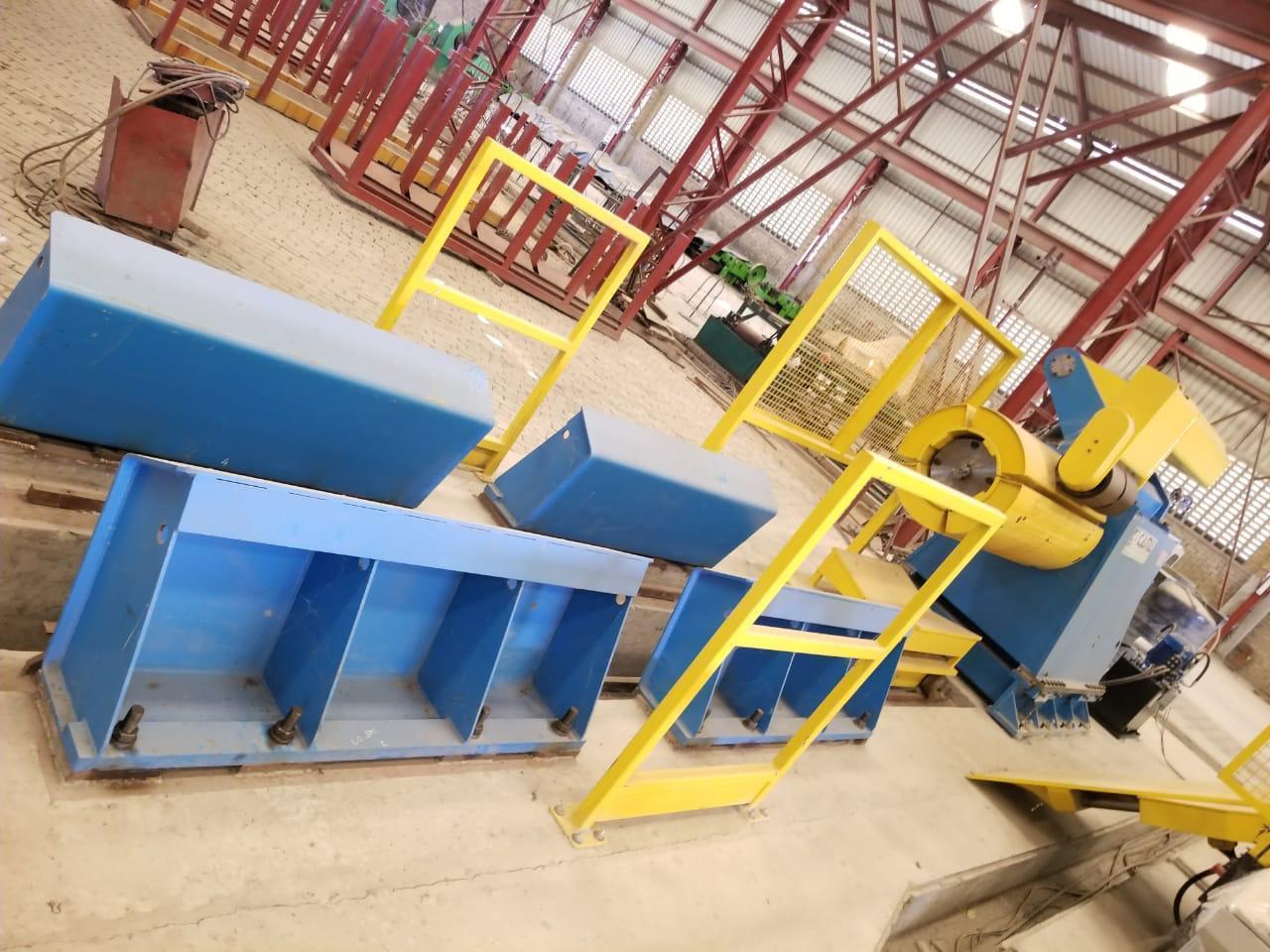

Coil Storage Rack
Coil Car

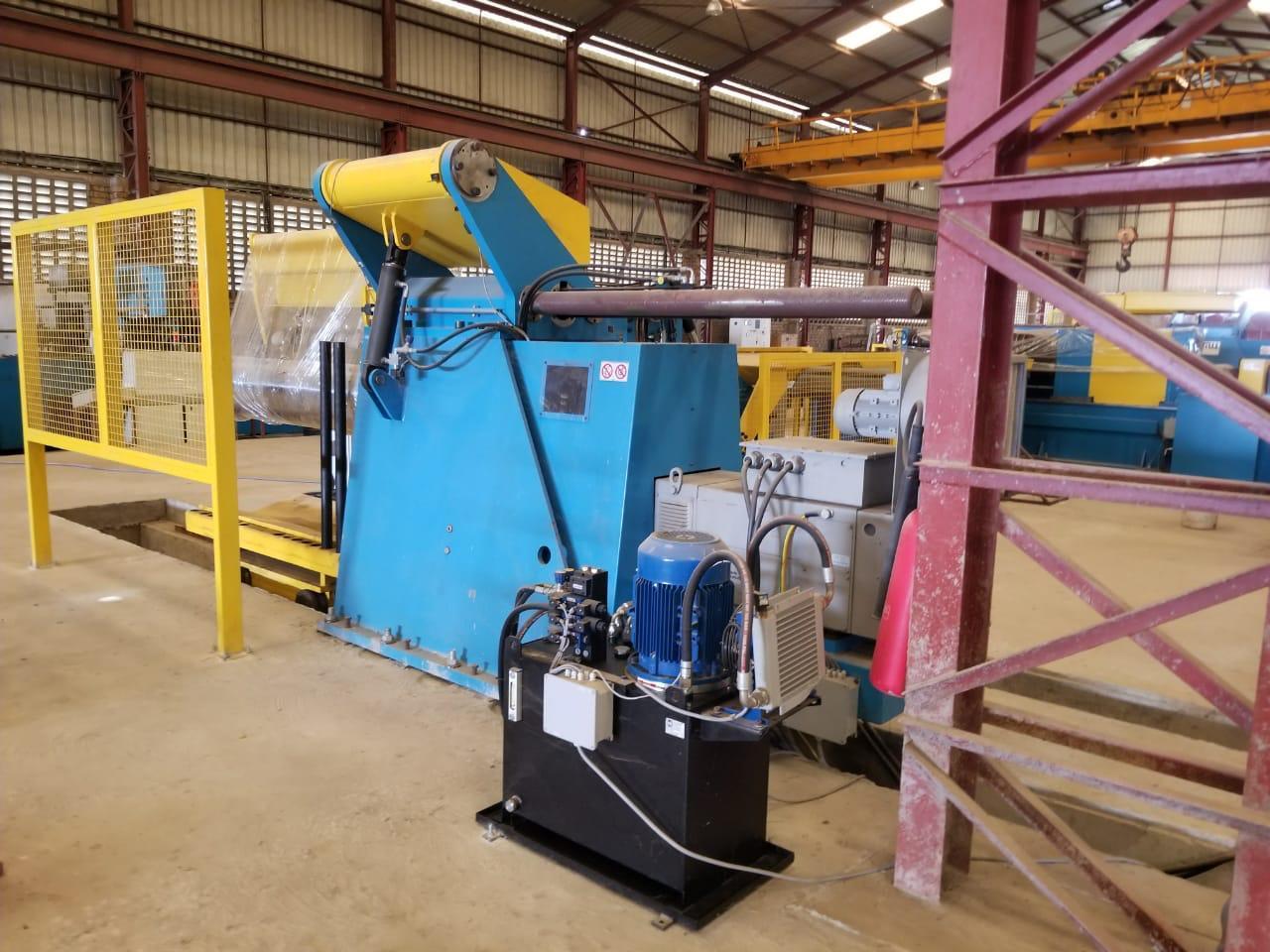

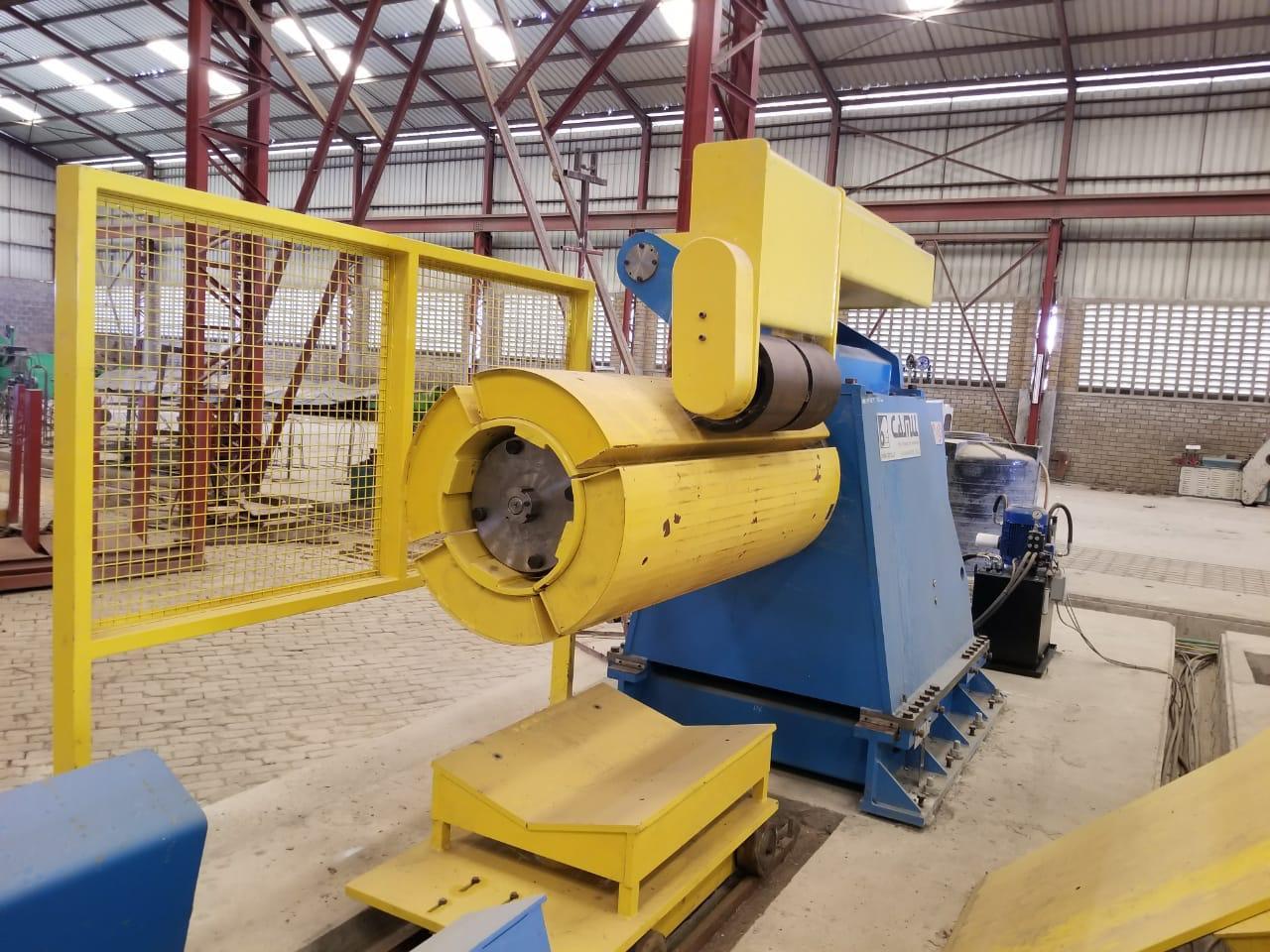

Mandrel Uncoiler with Sliding Base
Snubber Roll

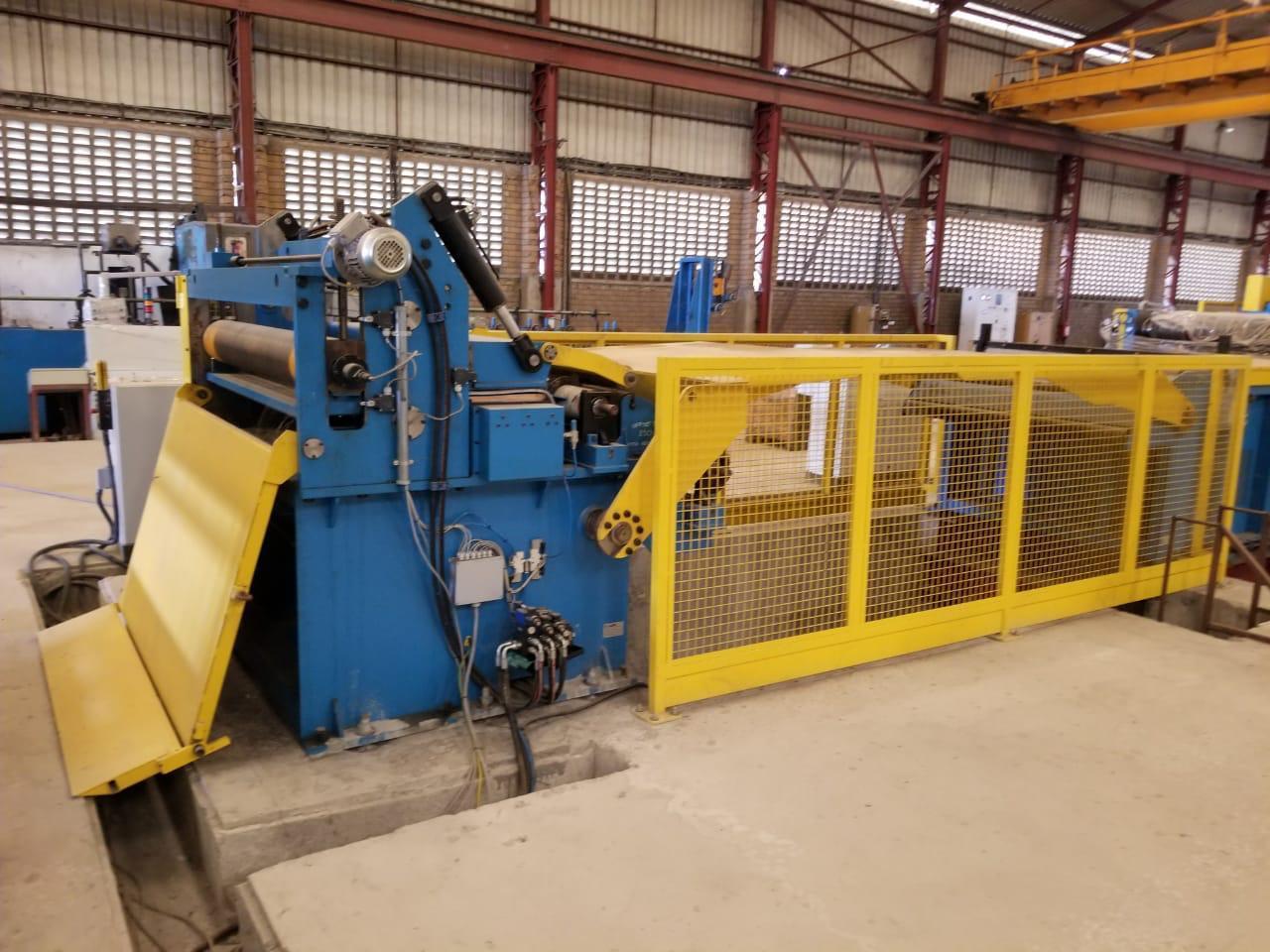

Peeler Table with 4 Directional Movements
Pinch Rolls
Crop Shear with Scrap Cart
Edge Guides

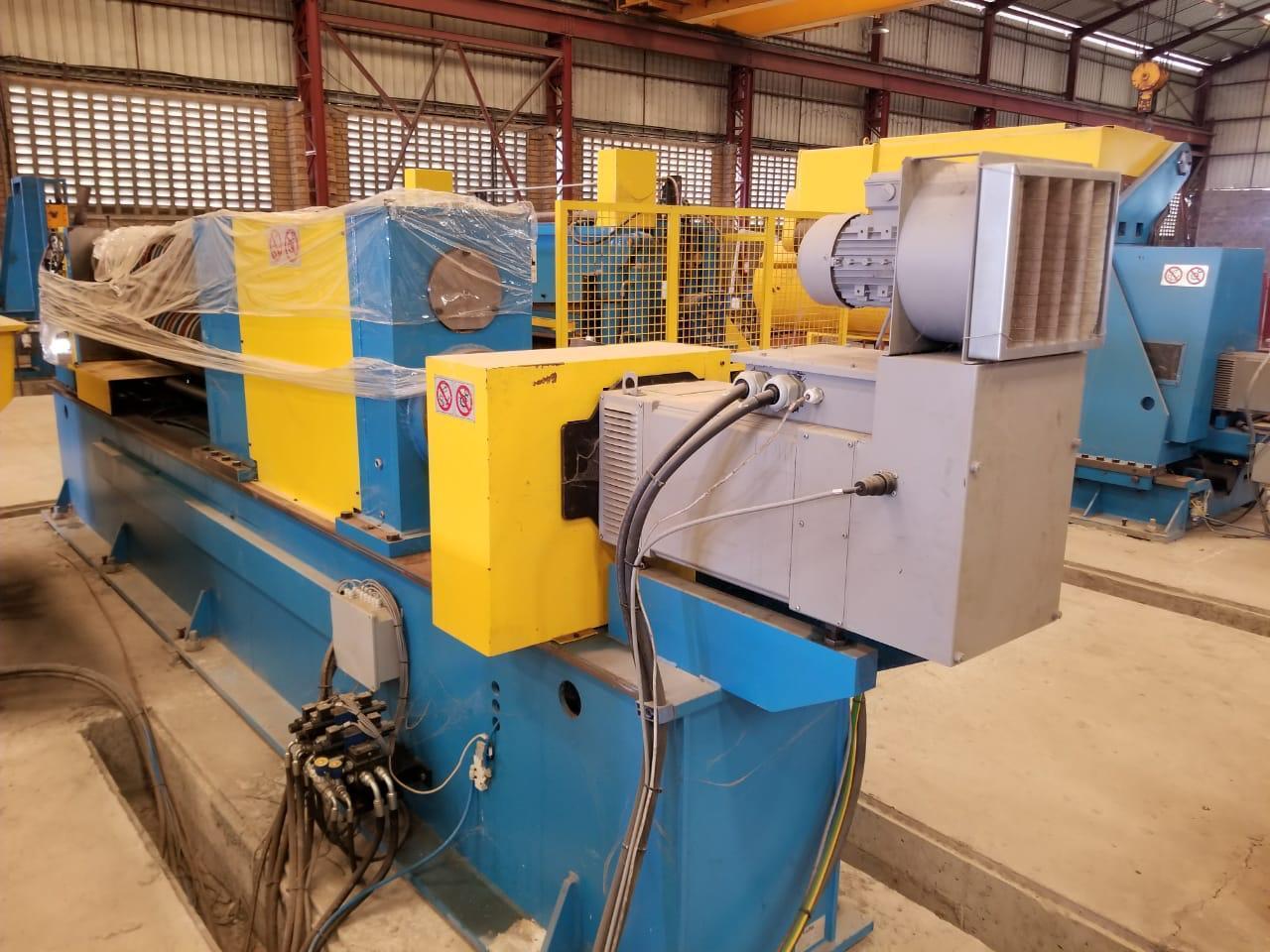

Slitteer Head with DC Drive and Hydraulic Sliding Outboard Support
Scrap Winder
Tail Block Group

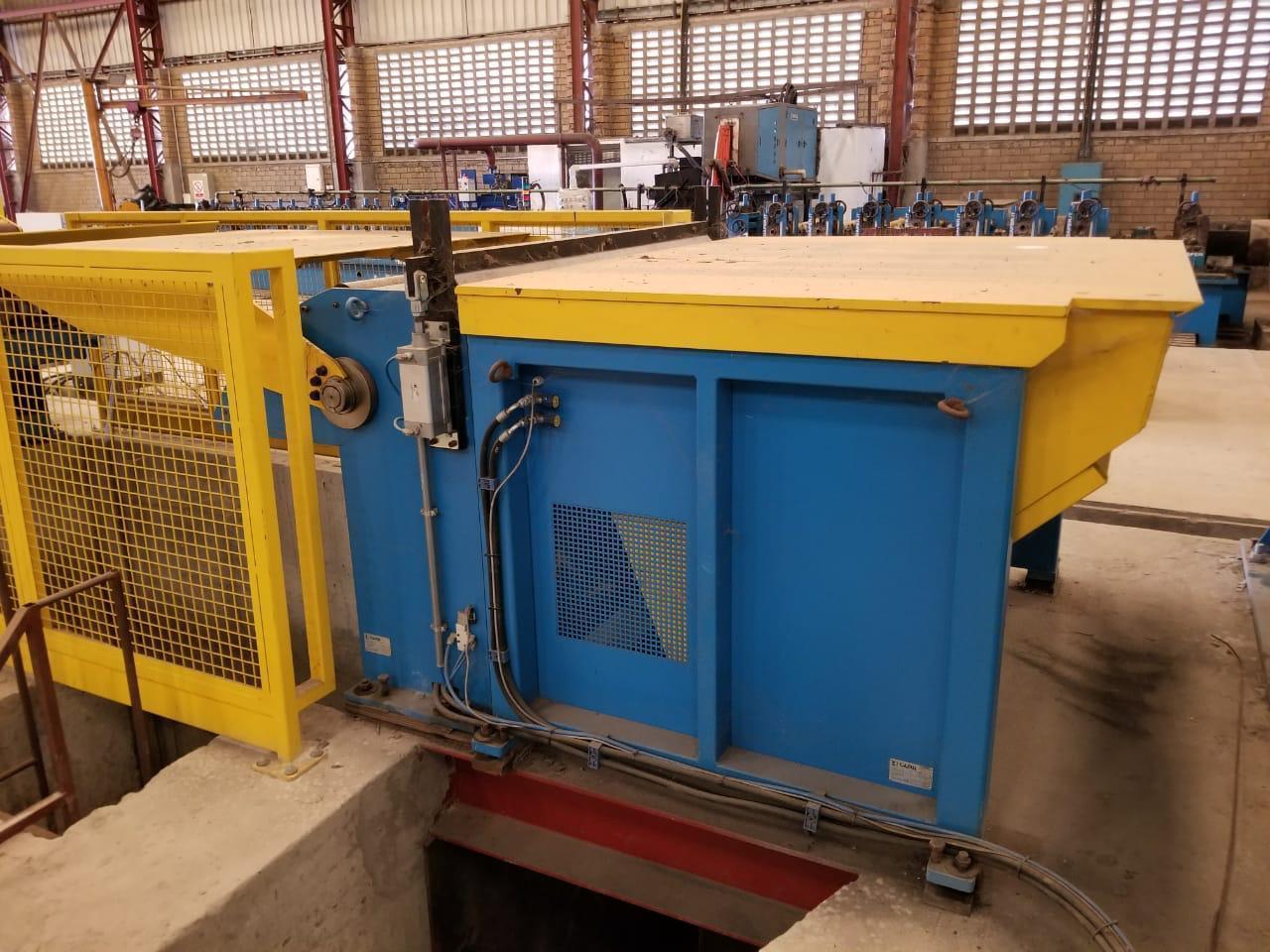

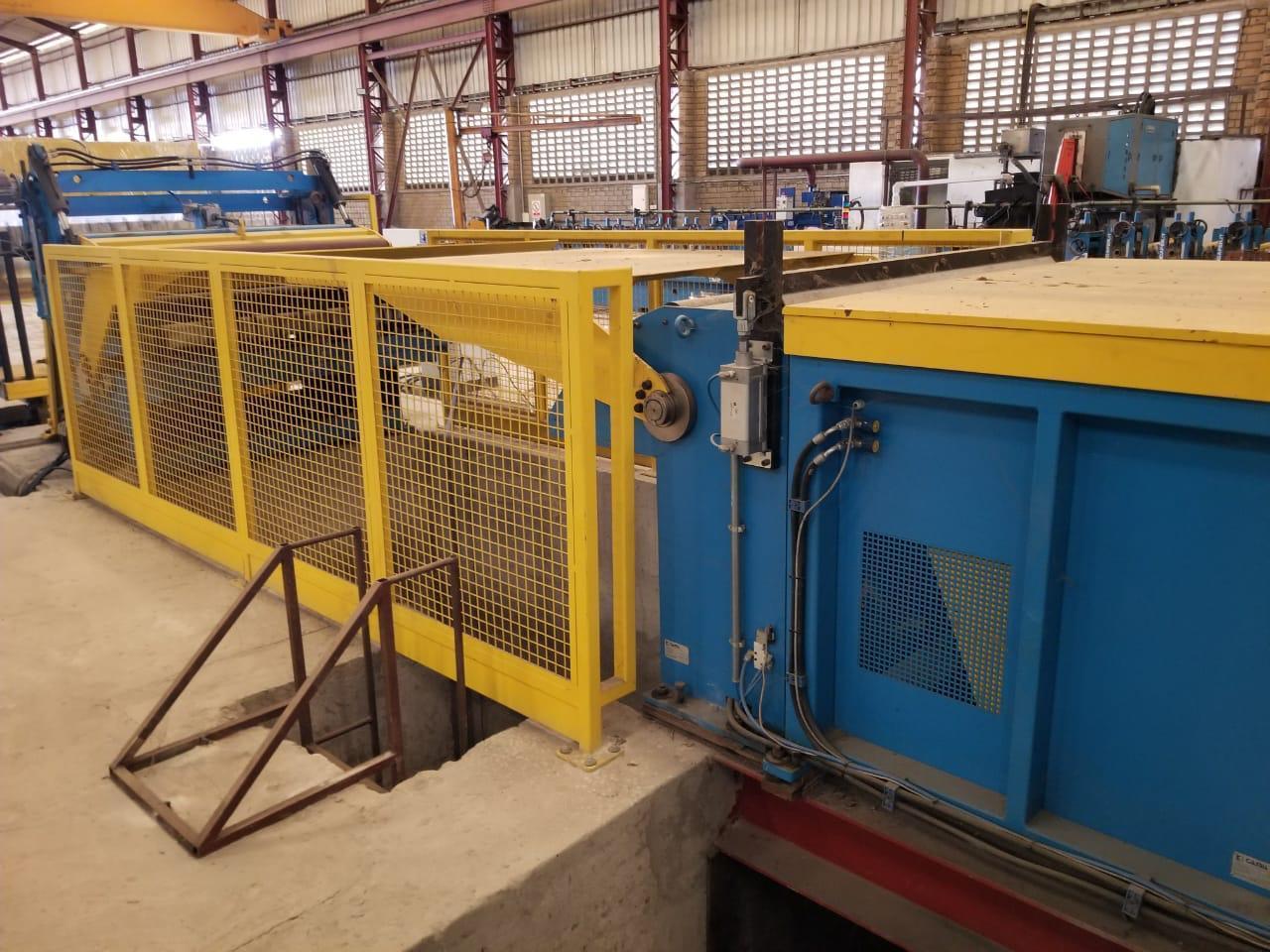

Looping Cross Over Table
Drag Board Tension Stand
Recoiler Feed Up Table

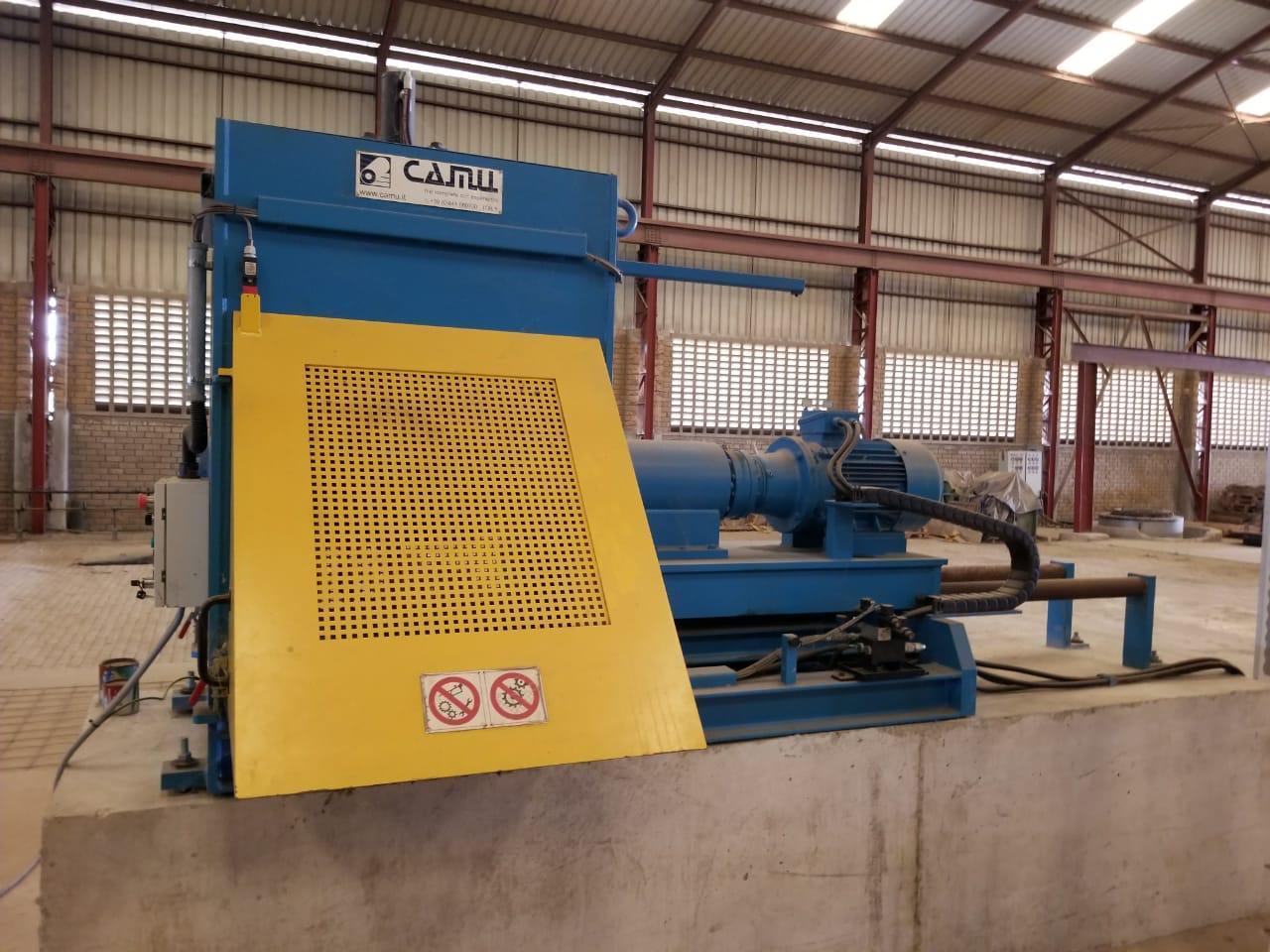

Recoiler with 508mm Full Hydraulic Drum
Exit Coil Car
Operator Push Button Stations

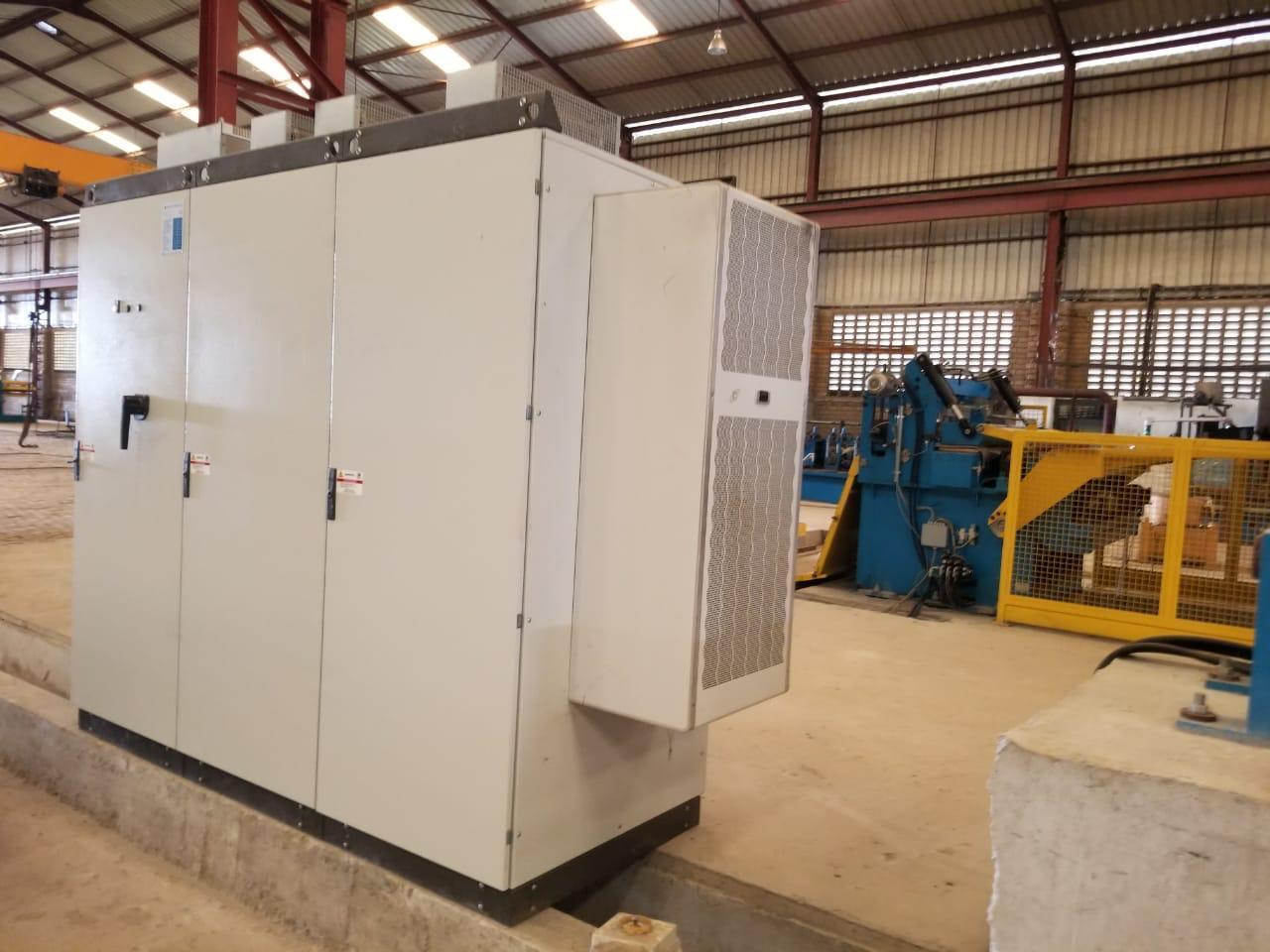

Digital Drives and Controls
Siemens PLC Logic Controller
Electrics: 415V / 50 Cycle
