Manufacturer: Bonak
Material Specifications:
Max Width: 1550 mm
Min Width: 300 mm
Max Coil Weight: 25 Tm
Thickness Range: 0.4/3.0 MM
Finished Sheet Specifications:
Max Length: 12000 mm
Min Length: 500 mm
Max Speed: 80 meter/minute
Line Direction: Right to Left
Max Coil Weight: 25 Tm

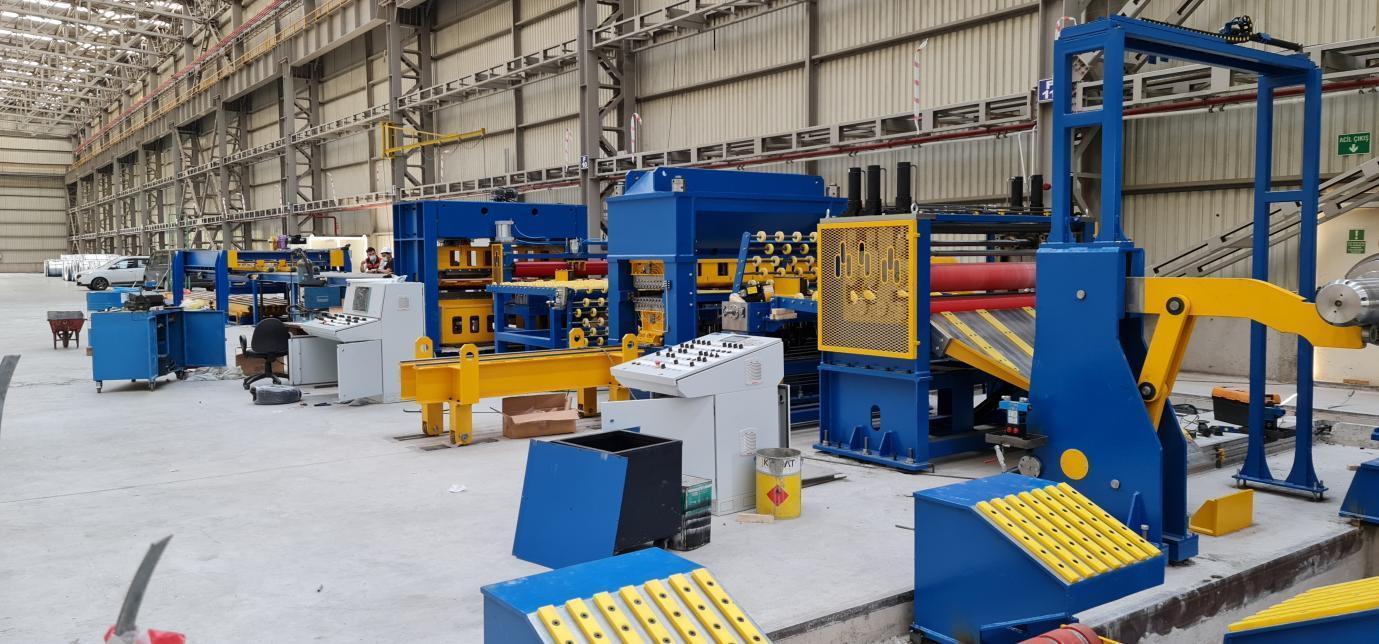

Complete Line with the Following Components:
Pit Type Coil Car
Double Expandable Mandrel
Coil OD Range: max. 2000 mm min. 600 mm
Coil ID Range: max.760 mm min.508 mm
Powered Hold Down Roll
Entry Guide Rolls
17 Roll Bonak 4-HI Leveler
Hydraulic Actuation
5 Flights of Top and Bottom Motorized Back Ups
Pit Cross Over Table
Conveyor Table
Feeder Roll
Mechanical Shear
Drop Type Stacker
Motorized Run Out Table
Complete with Electrics, Hydraulics, Controls and Drawings
