Manufacturer: VIGANO (ITALY)
Max coils weight: 20 tons
Minimum width: 400 mm (270mm)
Maximum width : thickness 2 mm – 1250 mm
Thickness: < 1.5 mm – 1500 mm
Minimum length: 400 mm(280mm)
Maximum length 3000 mm
Tolerance +- 0,5
Daily production 50 tons
Electrical Line Upgraded in 2023

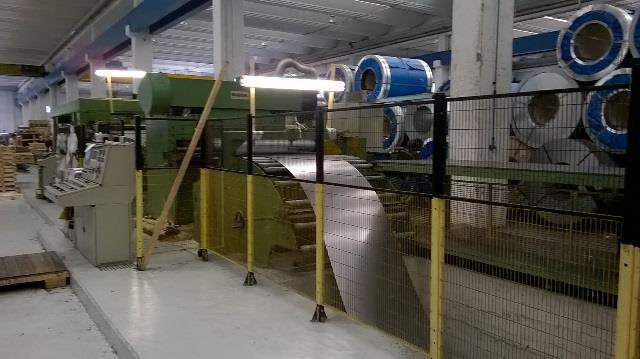

Complete Line with the Following Components:
Floor Type Coil Car
Mandrel Uncoiler
ID Expansion: 430 mm to 620 mm.
Sliding Base
Hydraulic Expansion
Powered Hold Down Roll
Peeler Table
Entry Edge Guides
Entry Pinch Roll
4-HI Precision Leveler
17 Work Roll Design
7 Flights of Up and Bottom Motorized Back Ups
Motorized Tilt Basculation
Motorized Up and Down
Motor Drive
Exit Pinch Rolls
Pit Cross Over Table
Servo Feeder Roll

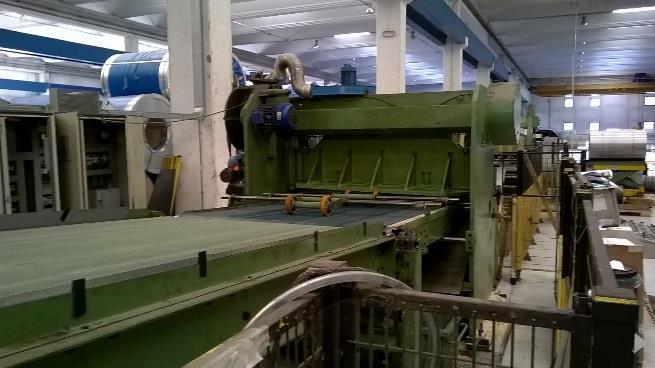

Mechanical Shear
Run Out Table

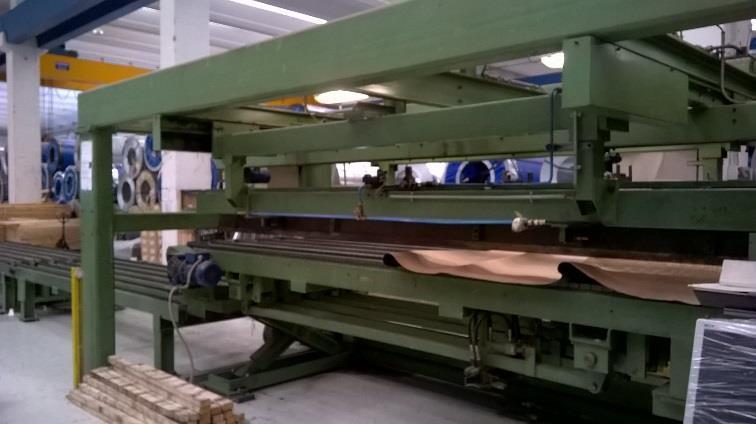

Stacker

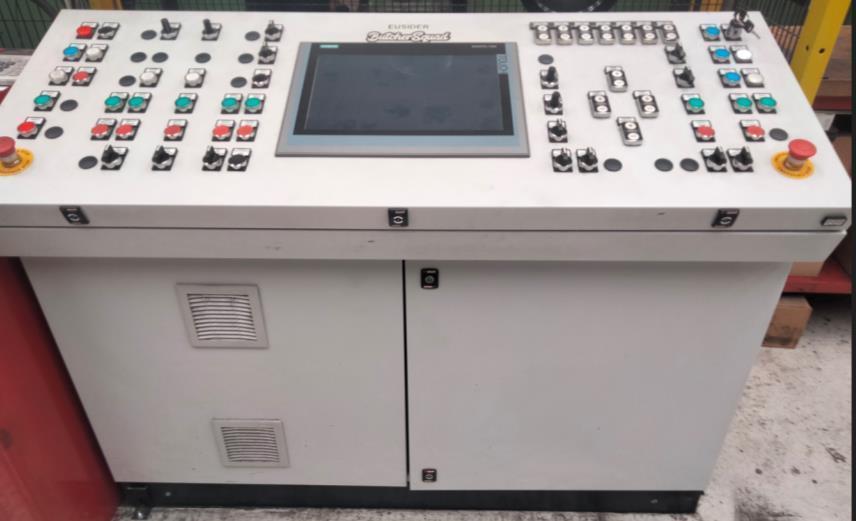

Complete with Hydraulics, Electrics, Controls
Installed
