Completely Rebuilt in 2012
Normalize , Soft Anneal , Stress Relief
Complete Line with the following Components

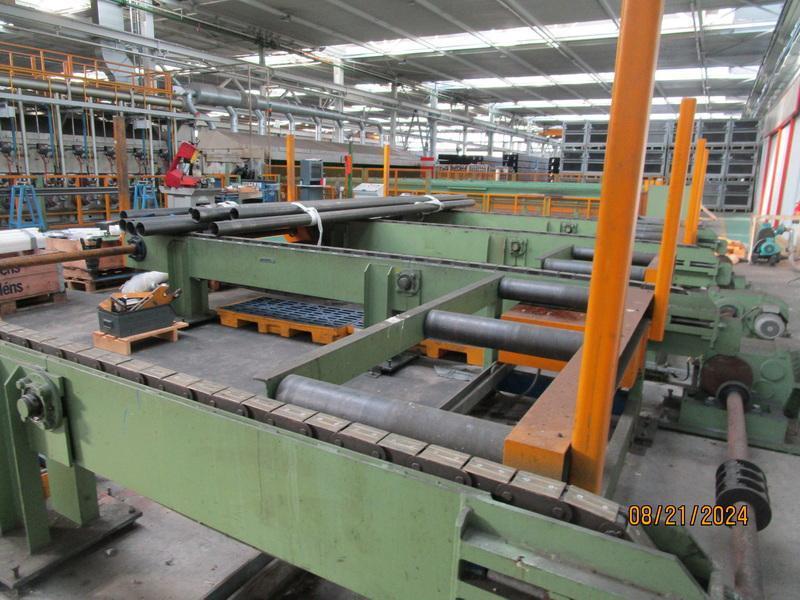

Entry Furnace Feed Conveyor
Birlec Drying Oven
Birlec Annealing Furnace with 30 WS Gas Burners
Gas Generators for Nitrogen & Hydrogen for Controlling the Atmosphere

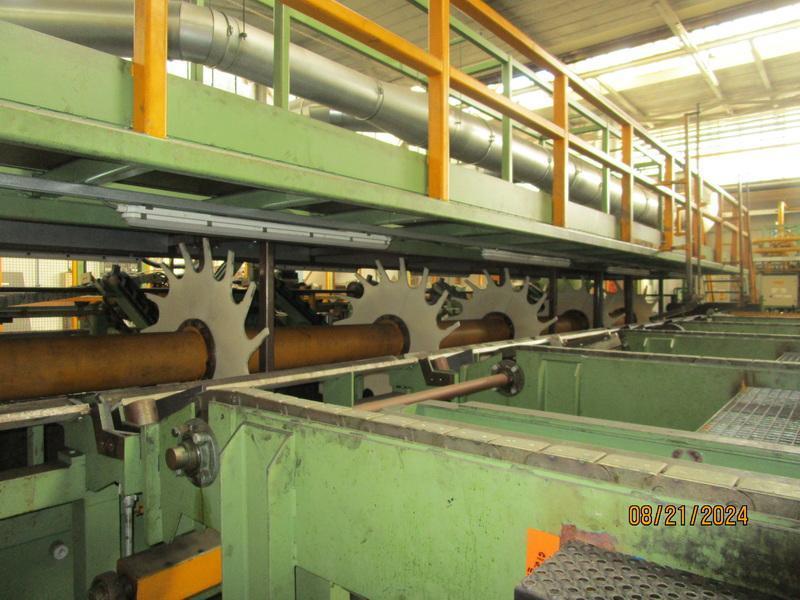

Cooling Section
Preservation Bath with Blow Out Section
Bronx 10 Roll Straightener
Forster NDT Testing Station
De-Magnetizing Section
Automatic Packaging Line with Tube Bundling
Itipack Banding
Exit Bundle Conveyor
Siemens Digital Controls and Touch Screens

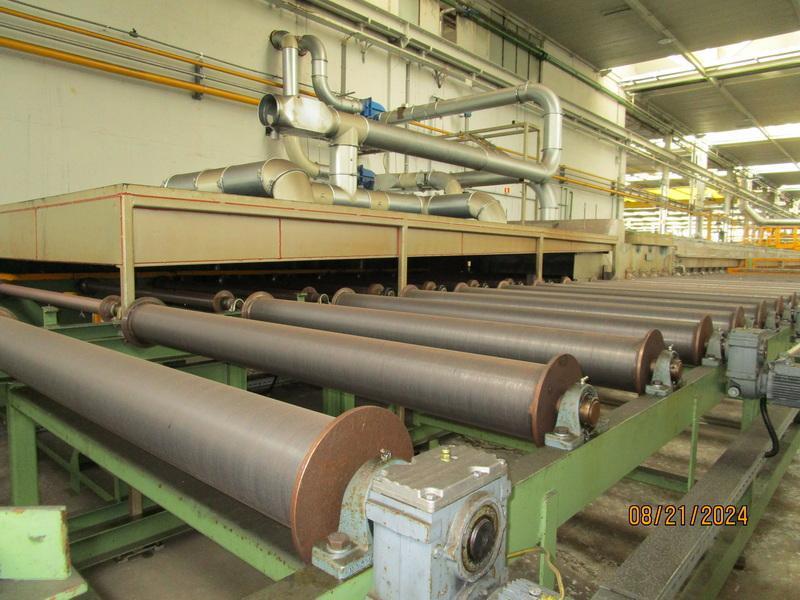

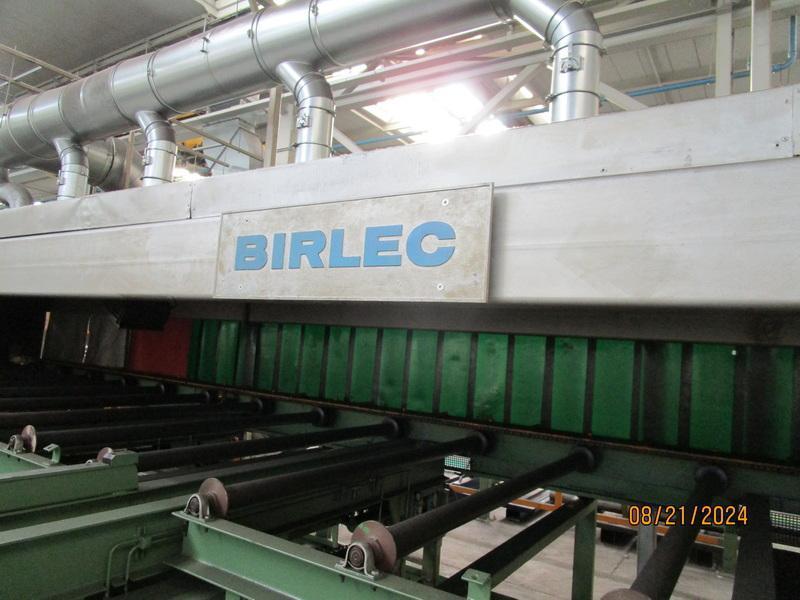

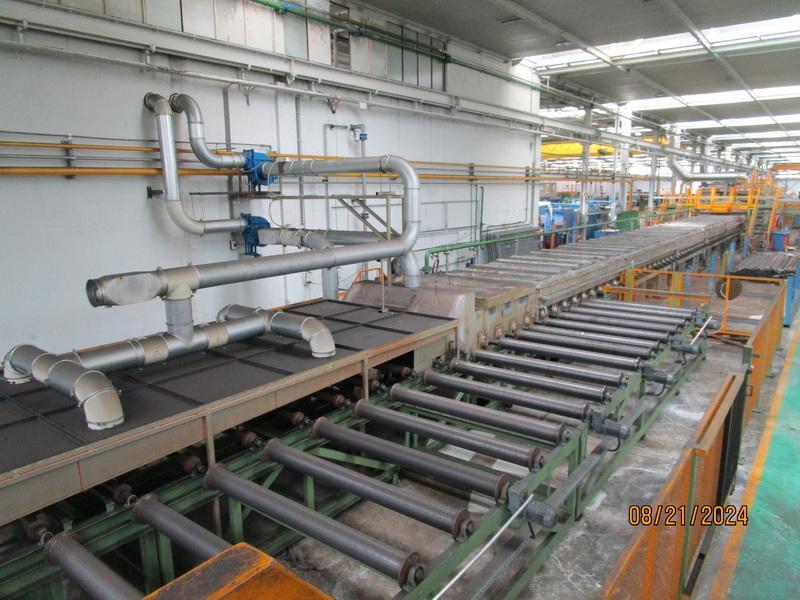

Birlec Annealing Furnace

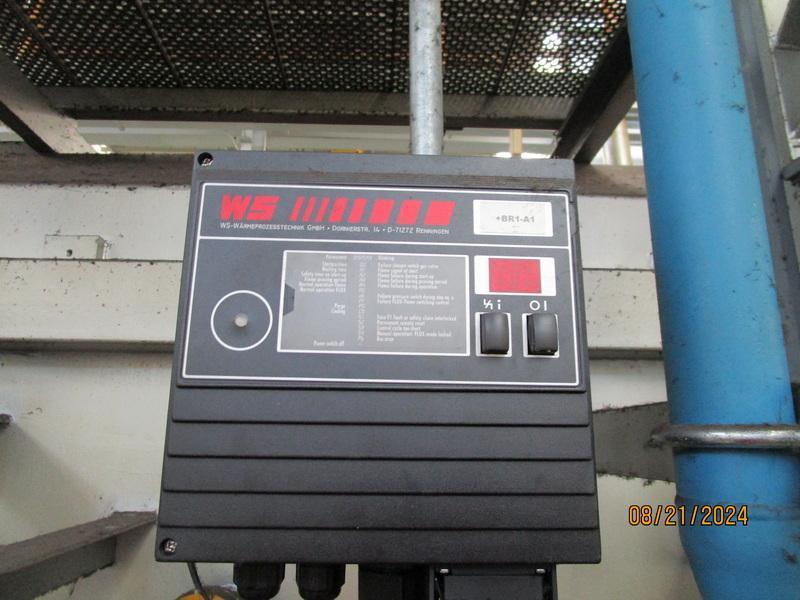

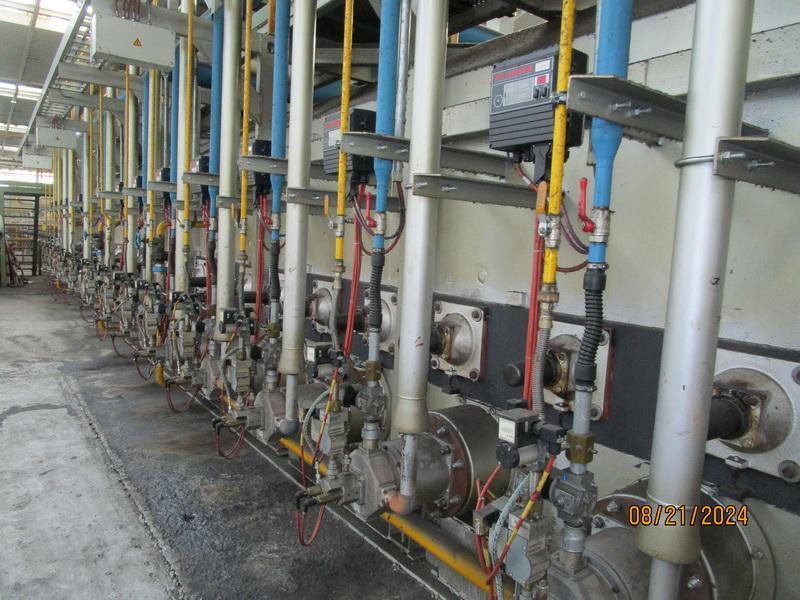

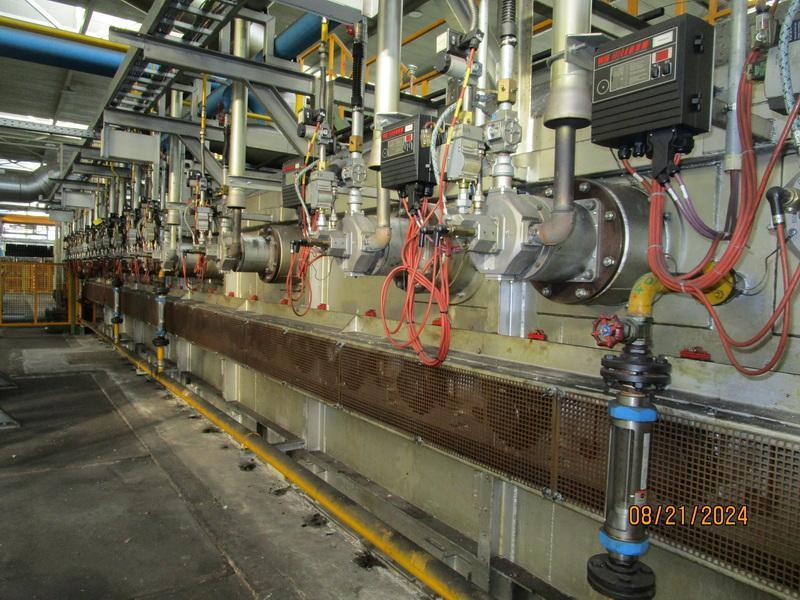

30 WS / Rekumat Gas Burners S150 S FLOX - Flame
Temperature 950 degress C
4 Zone (1) 780 - 870 C (2) 790 - 880 C (3) 810 - 910 C (4) 830 - 920 C
Load width: 12mm - 80mm
Pack Size: 9 - 50 Tubes
Load Length: 5220mm - 9000mm
Atmosphere Gas Generators & Drier
Model XCFGB-604
Exothermic Gas Generators
Output: 382Nm3/h at 1 bar.g Pressure
Nitrogen/Hydrogen/Carbon Monoxide/Carbon Dioxide/Water Vapour
Digital Controls

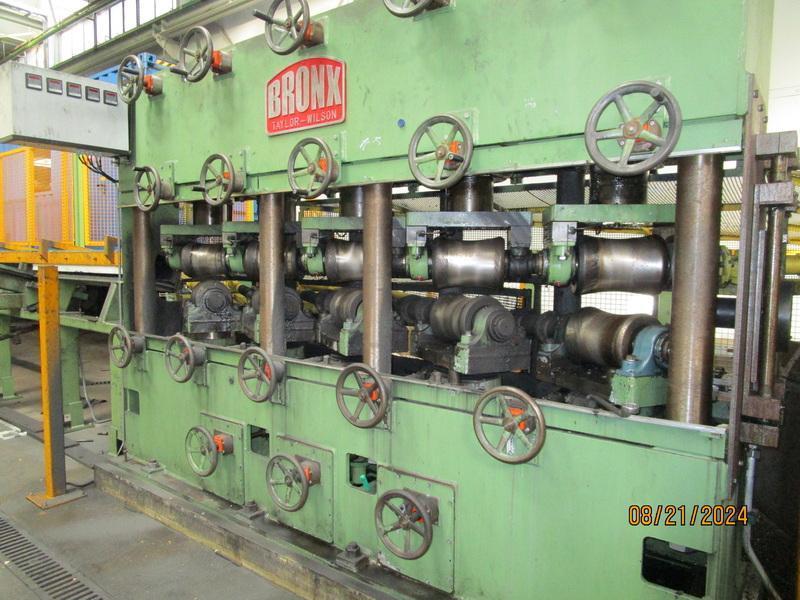

Bronx 10 Roll Straightener
Diameter: 20mm - 140mm
Max Wall Thickness: 11mm
Straightening Speed: 120 Meters/Min
Digital Roll Positioning
2 Drive Motors: 30 KW
Quick Roll Opening
Entry & Exit Tables
Foerster NDT Testing
Defectomat CP 2842
De-Magnetizer

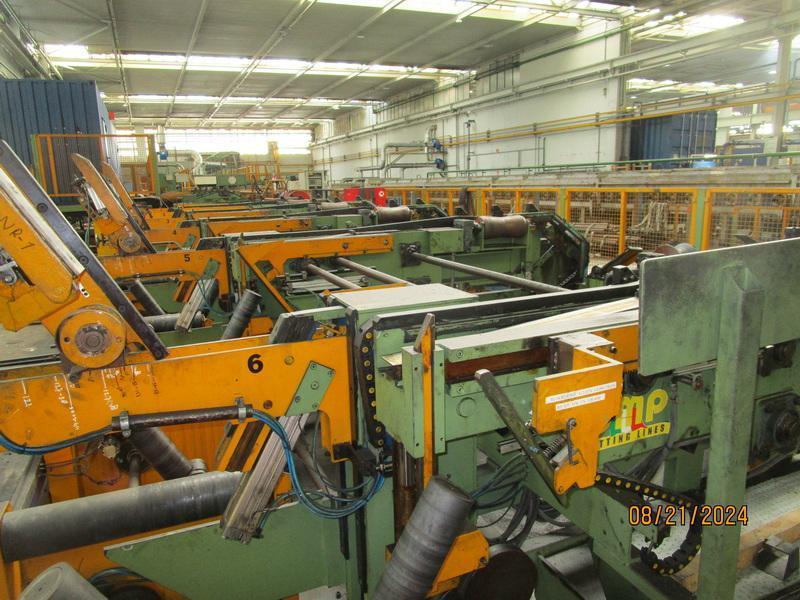

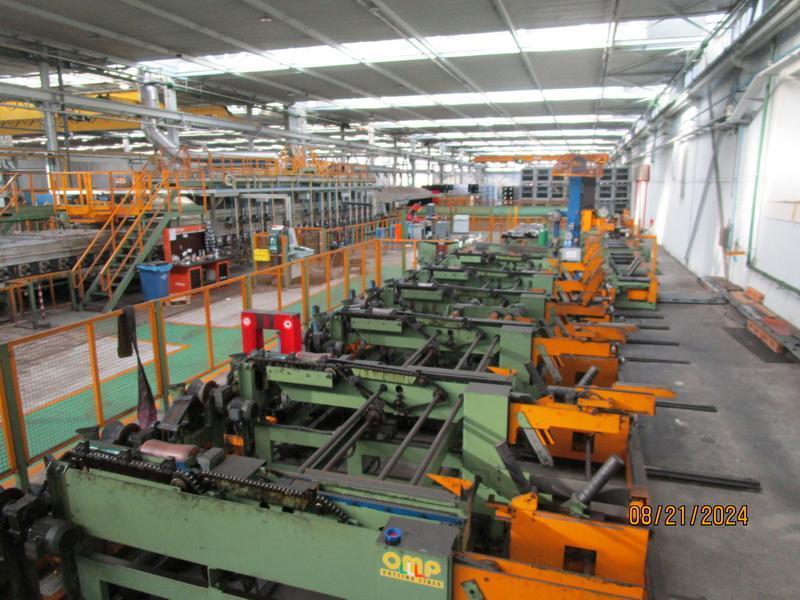

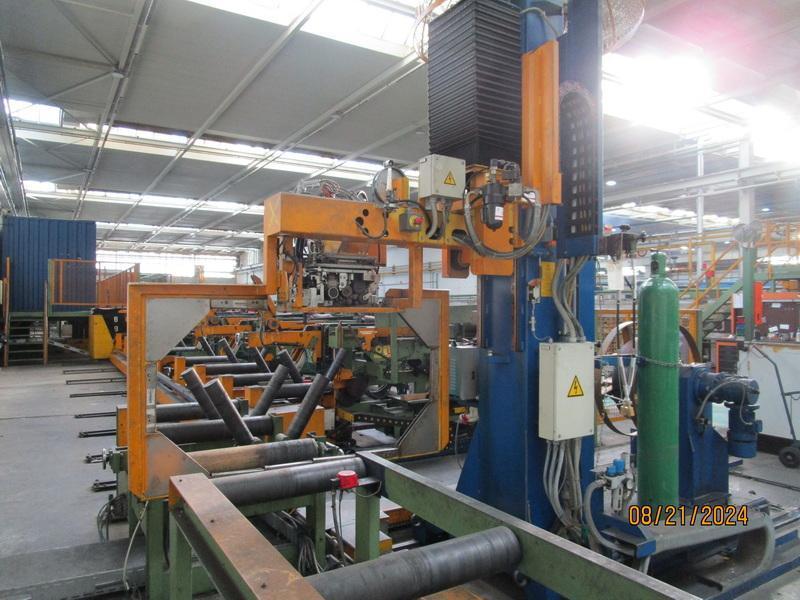

Packaging Line
Tube Diameter: 31.8mm - 63.5mm
Squares Tubes: 20mm - 50mm
Rectangular Tubes: 30mm x 20mm - 70mm x 30mm
Tube Lengths: 4000mm - 12,000mm
Bundle Dimensions: 250mm - 500mm Rds ; 600mm - 500mm Rects ; 150mm - 300mm Hexs
Bundle Weight: 3500 KG
Itipack Banding
Bundle Exit Conveyor
New Controls in 2020
Siemens Simatic Touch Screen Controls
Siemens PLC S7 300 / ET 200M INK
SEW Movitrac Digital Drives
